Half Rack Fan Panels

$191.82 – $222.00 MSRP

FDC4-HR Series

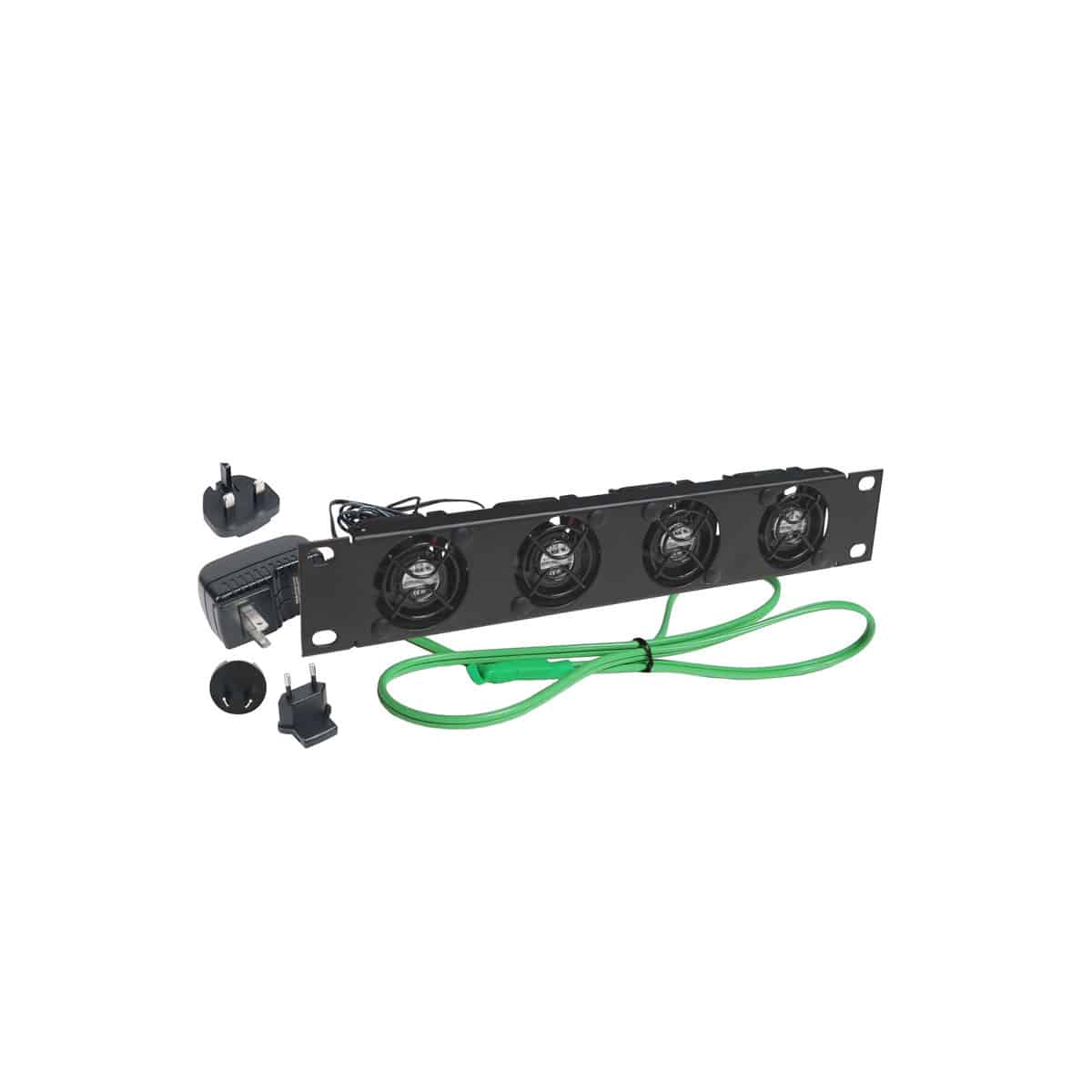

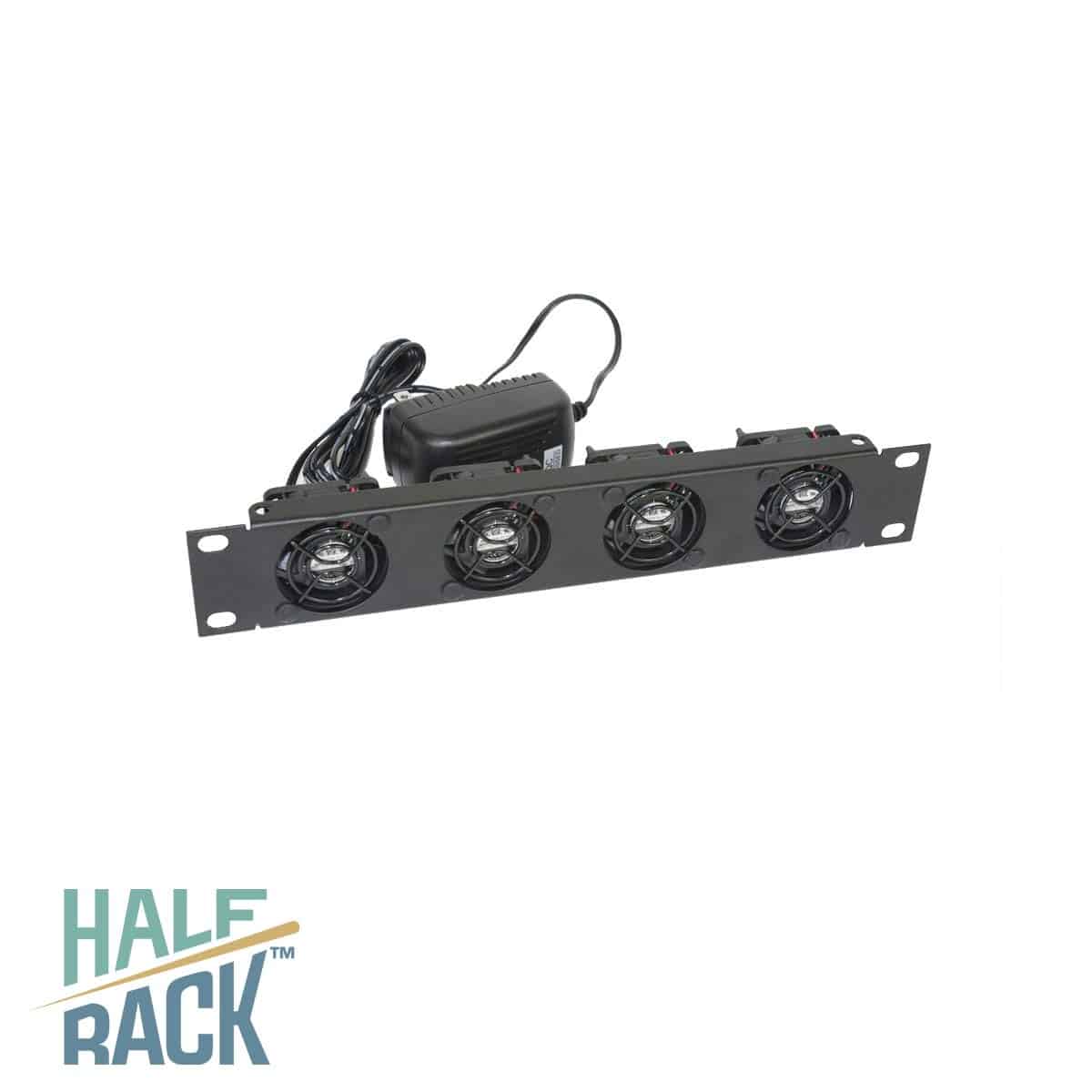

Rackmount fan panels for use with Lowell LHFR Series half-width racks. Available with standard cord or cord with built-in thermostat to control fan operation.

Cord Style

Clear

Add to Cart Log in to place an order.

Add to materials list

Add to Favorites

Compare

Material: Steel with black semi-gloss powder epoxy finish
Panel Size: 10.375 in. x 1.625 in. x 1U
Four fans with guards
Fan Diameter: 1.57 in.
Total Airflow Rating: 36cfm
Total Noise Rating: 38dB
Power supply with 6 ft. cord
Optional thermostat probe to control fan operation

Spec Sheet: 1211-FDC41HR
Spec Sheet:

Made in the U.S.A.
Certified U.S. steel

The fan panel for a half rack shall be Lowell Model __________. Housing shall measure 1.75 (1U) x 10.375 x 1.625 inches [45 x 264 x 41mm] and have a black powder epoxy finish. The panel shall include four fans, each with a 1.57 in. [40mm] diameter. Total airflow rating is 36cfm; total noise rating is 38dB. The unit shall include a UL Listed power supply with four plug adaptors—NEMA 1-15 for North America, Schuko CEE 7/16 for central Europe, BS1362 for the U.K. and AS3112 for Australia/New Zealand. It shall require 9.6 watts of power.

The fan panel shall also include an optional thermostat probe to control fan operation, which shall automatically activate fans when ambient temperature reaches 86˚F [30˚C] and deactivate them when temperature reaches 72˚F [22.2˚C].
