Fan Panels with Universal In/Out

$346.50 – $369.00 MSRP

FDC Series

Rackmount fan panel has universal input voltage (100VAC–240VAC), so it can be used almost anywhere in the world. Also includes a thermostat probe to control fan operation. Available with two or four fans.

Fan Qty

Clear

Add to Cart Log in to place an order.

Add to materials list

Add to Favorites

Compare

19 in. panel with fans and guards
2U panels have 3.15 in. dia. fans
Universal power supply (input 100-240 VAC, output 24VDC)

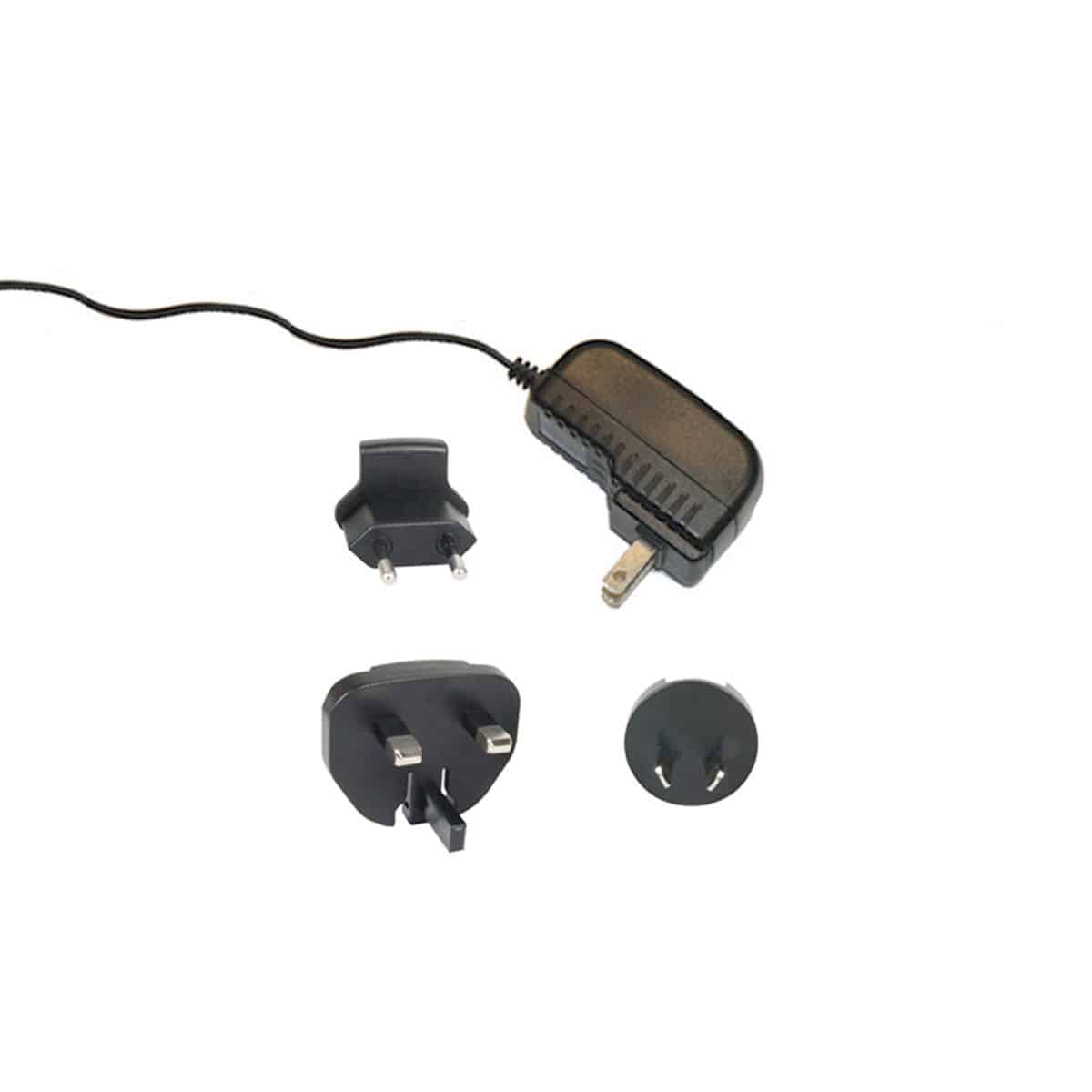

Four plug adaptors (NEMA 1-15, Schuko CEE 7/16, BS1362, AS3112)

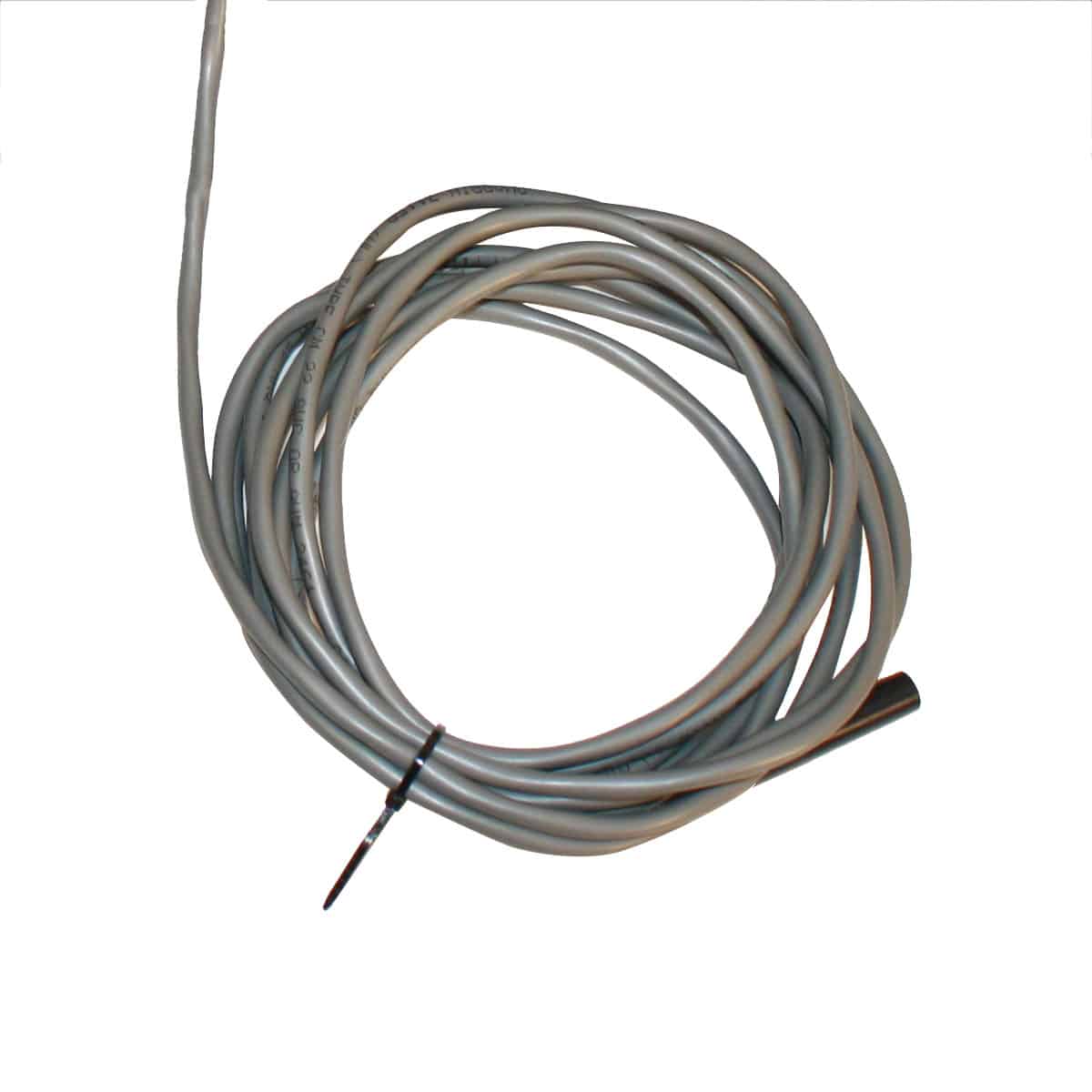

Variable-speed thermostat probe activates fans, increasing and decreasing speed as it adjusts to ambient temperature.

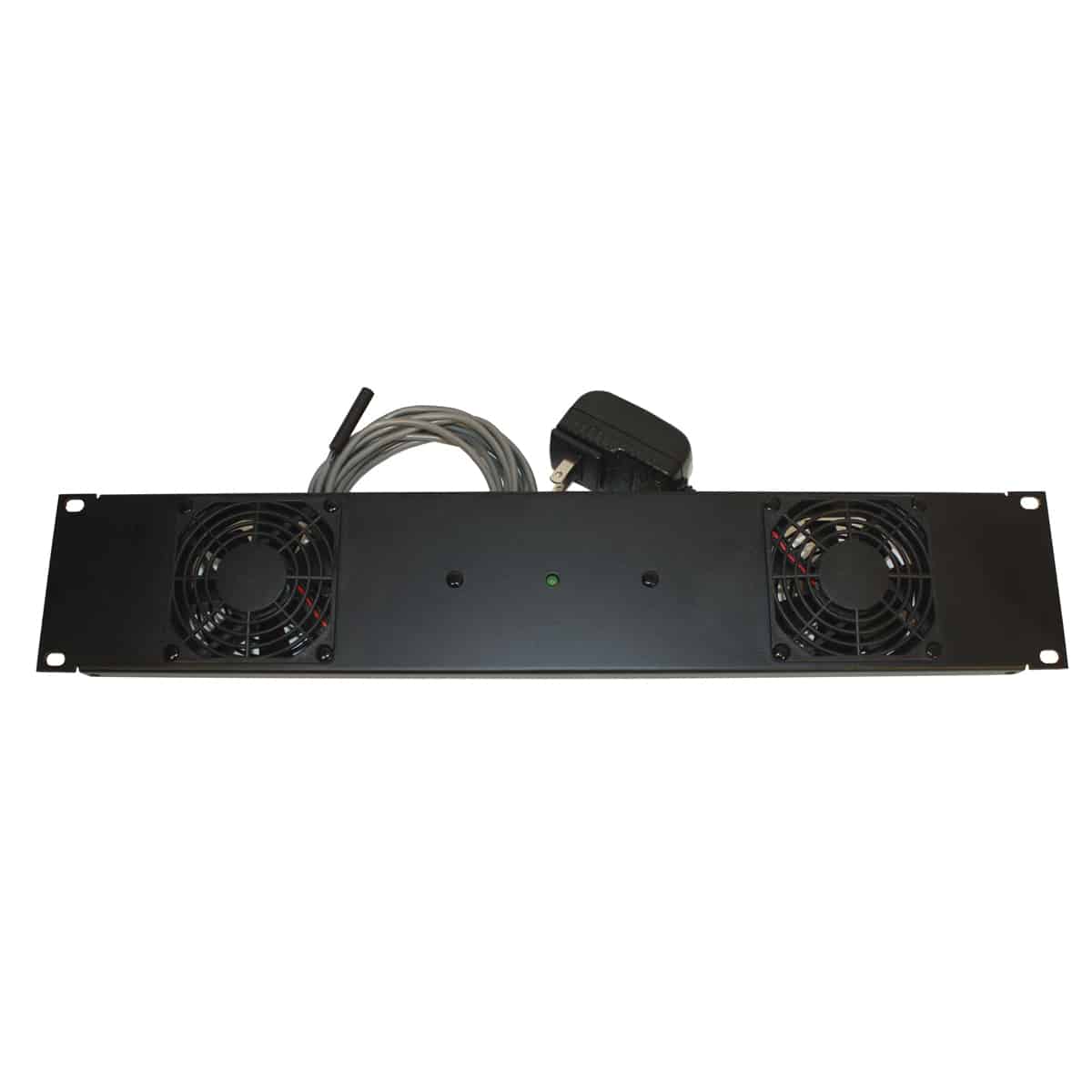

Spec Sheet for 2U fan panels w/two 3.15″ dia. fans: 2258-FDC22T

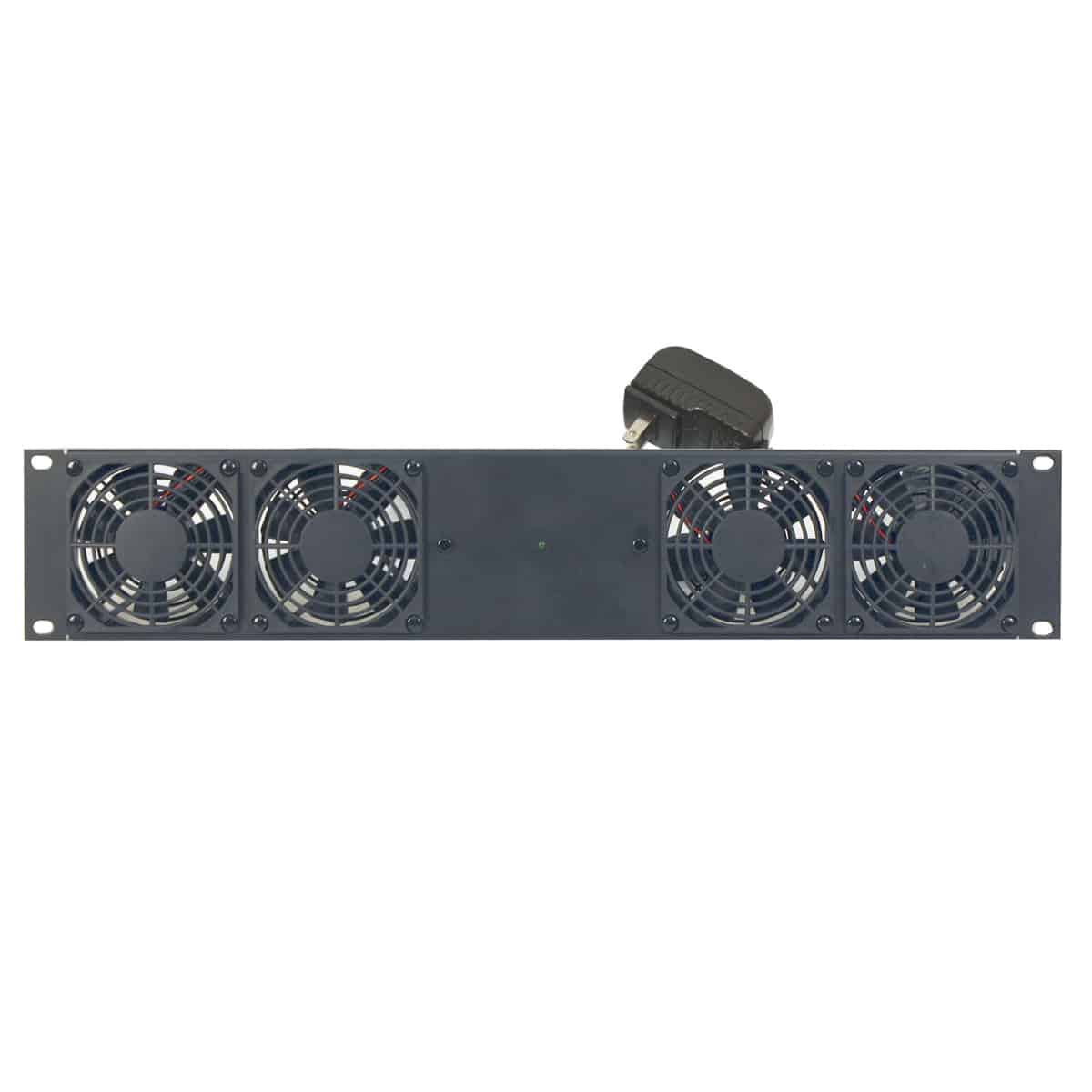

Spec Sheet for 2U fan panels w/four 3.15″ dia. fans: 2259-FDC42T

UL Listed power supply

The fan panel for rackmount installation shall be Lowell Model ___________ which shall be U.S. steel finished in black powder epoxy paint with mounted fans and fan guards. The panel shall measure 2U x 19 in.W and include ____ (2, 4) fans. Each fan shall have a _____ (3.5 in. dia., and provide ____cfm airflow with ____dB noise rating when operating at highest speed. The fan panel shall include universal power supply and four plug adaptors (NEMA 1-15, Schuko CEE 7/16, BS1363 and AS3112). The fan panel shall include a variable-speed thermostat probe to automatically activate fans, increasing and decreasing speed according to ambient temperature.
