8 inch (120W) Coaxial Pendant Speaker

Name: 8 inch (120W) Coaxial Pendant Speaker
SKU: ESP-82TB
Price: 454.98 USD
Availability: InStock

Includes driver, transformer, enclosure, grille

$454.98 MSRP

Model ESP-82TB

ESP Series Pendant Speakers are engineered to acoustically match ES Series Recessed Speakers, enabling high performance to integrate with even coverage no matter the type of architecture encountered. The speaker can be mounted with cable or pipe, or an optional U-bracket can be added to surface-mount.

Add to Favorites

Compare

Performance: ESP Pendant Speakers are engineered to acoustically match the ES Series of Recessed Speakers, enabling high performance to integrate with even coverage no matter the type of architecture encountered.
Quick Install: The sleek tapered enclosure with press-fit grille has a magnetic-mount top that easily clicks into position, hiding the integral top bracket and wiring connections.
Extremely Versatile: The speaker can be mounted with cable or pipe, but it’s also suitable for wall- or truss mount if the optional U-bracket is mounted to the threaded side insert points.

Driver: 8 in. 120W coaxial driver
Transformer: 120W transformer with tap selector switch mounted behind grille. Tap selections for 25V, 70V or 100V speaker systems plus 4 ohm transformer bypass position.
Enclosure: Tapered durable ABS plastic enclosure with matching magnetic-mount top to hide wiring connections and rigging bracket. The ported enclosure is tuned for extended bass response. Removable phoenix-style connector.

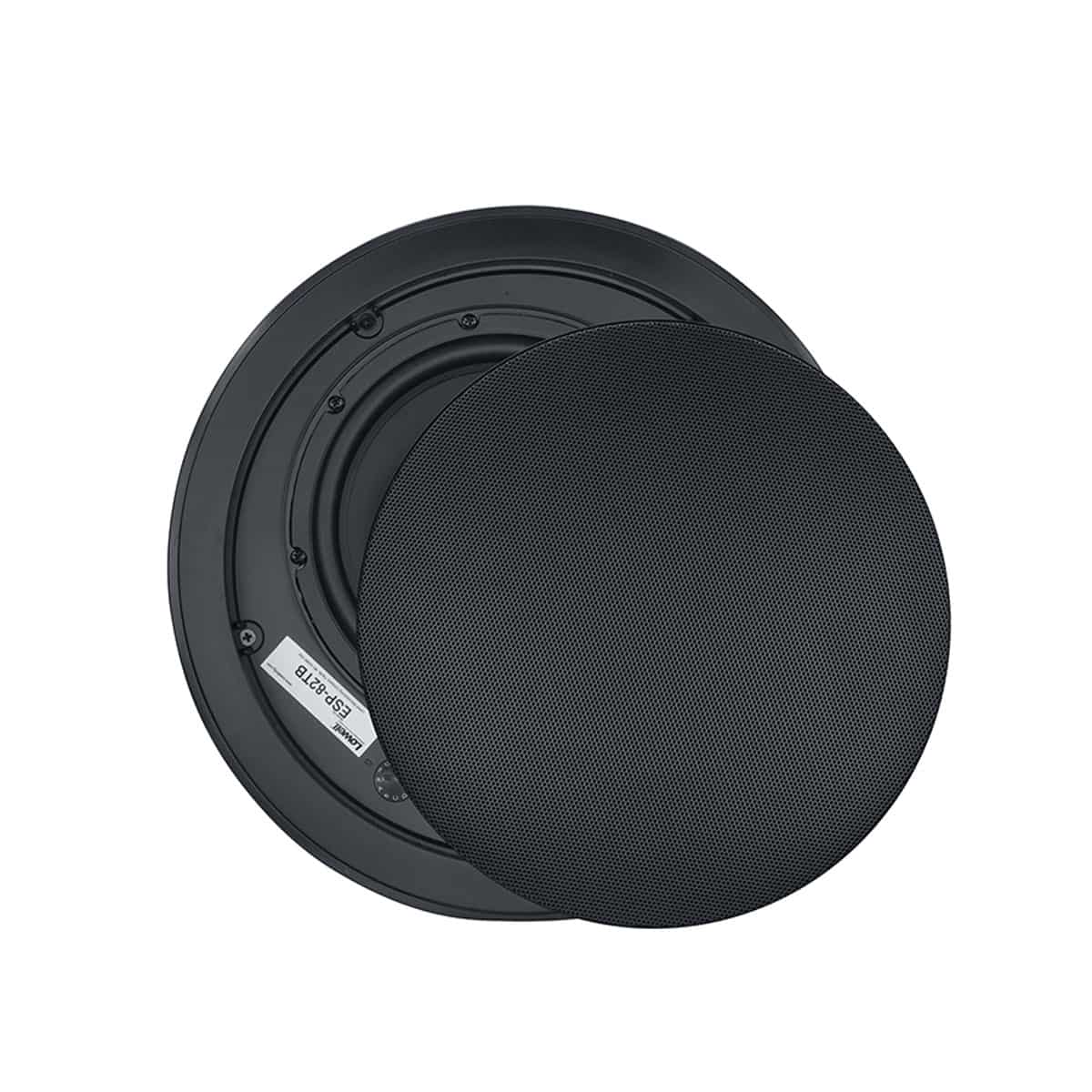

Grille: Fine mesh 20-gauge CRS press-fit grille with UV-rated black powder coating includes scrim and pull-tool.

Spec Sheet: 1981-ESP82TB
Ease Data: ESP82T-Ease
Installation: IS-ESP-W
Revit Models: ESP-82TB

UL 1480A General Signaling, US
CSA C22.2 No.205-12 General Signaling, Canada

The loudspeaker shall be Lowell ESP-82TB, which shall include a high-performance 8″ coaxial driver, ported bass reflex enclosure and press-fit grille for pendant or U-bracket mount. Frequency response shall be 64Hz-20kHz ±6dB. Sensitivity shall be 90.0dB log average @1W/1M over the frequency response range, measured in full-space. The speaker shall be constructed of a coated paper cone with rubber surround and a silk dome tweeter. The woofer magnet weight shall be a minimum of 19.2 oz. (544.7g) and the woofer voice coil diameter shall be 1.2″ (30.55mm). The transformer shall have primary taps for 100V (120, 60, 30, 15 watt); 70V (120, 60, 30, 15, 7.5 watt); and 25V (15, 7.5, 3.75, 1.88, 0.94 watt) with a selector switch mounted on the front under the grille that will include a 4ohm (UL minimum) transformer bypass position. The enclosure shall be black ABS plastic featuring a main body, magnetic cover, and bottom baffle where the driver shall be mounted. The enclosure shall feature a bracket assembly to accommodate cable or pipe hanging installations (cable/pipe not included). A four-conductor Phoenix style removable connector shall be located under the magnetic cover to allow input wiring and parallel output wiring to the next speaker. The unit shall include a fine mesh 20-gauge CRS press-fit grille with UV rated powder coating (black), scrim and pull tool.

ESP-CBL: Gripple Cable Kit
ESP-8-PG: Paint Guards (10-pk)
