5-1/4 inch (30W) Coaxial In-ceiling Speaker

Name: 5-1/4 inch (30W) Coaxial In-ceiling Speaker
SKU: ES-52T
Price: 198.40 USD
Availability: InStock

Includes driver, transformer, enclosure, grille, mounting aids

$198.40 MSRP

Model ES-52T

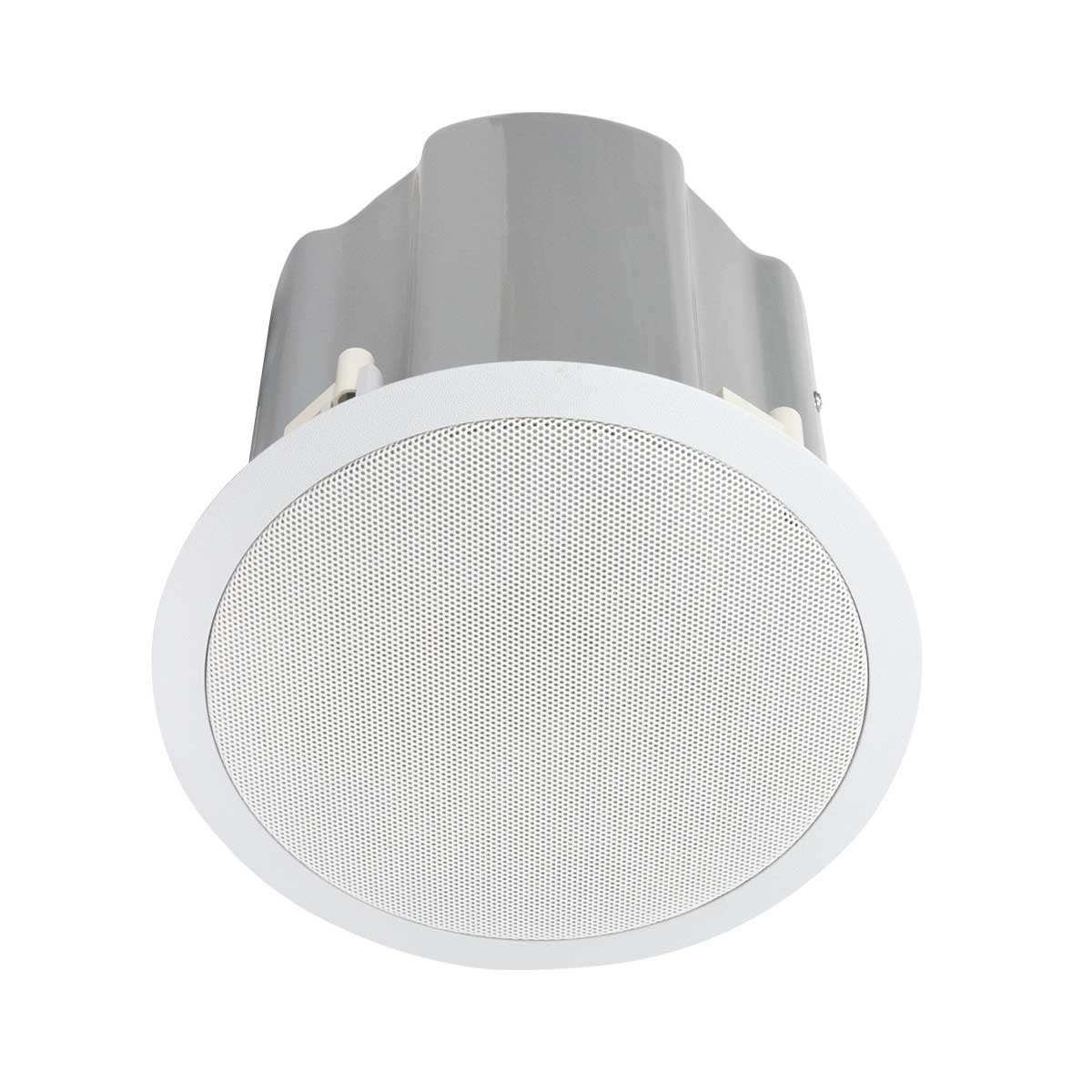

Ready-to-install in-ceiling speaker, with 5-1/4 inch coaxial driver, produces excellent intelligibility for speech and full-frequency response for music—ideal for commercial or residential use. The speaker is easy to install with reversible mounting dogs on the back-can and a press-fit grille.

Add to Favorites

Compare

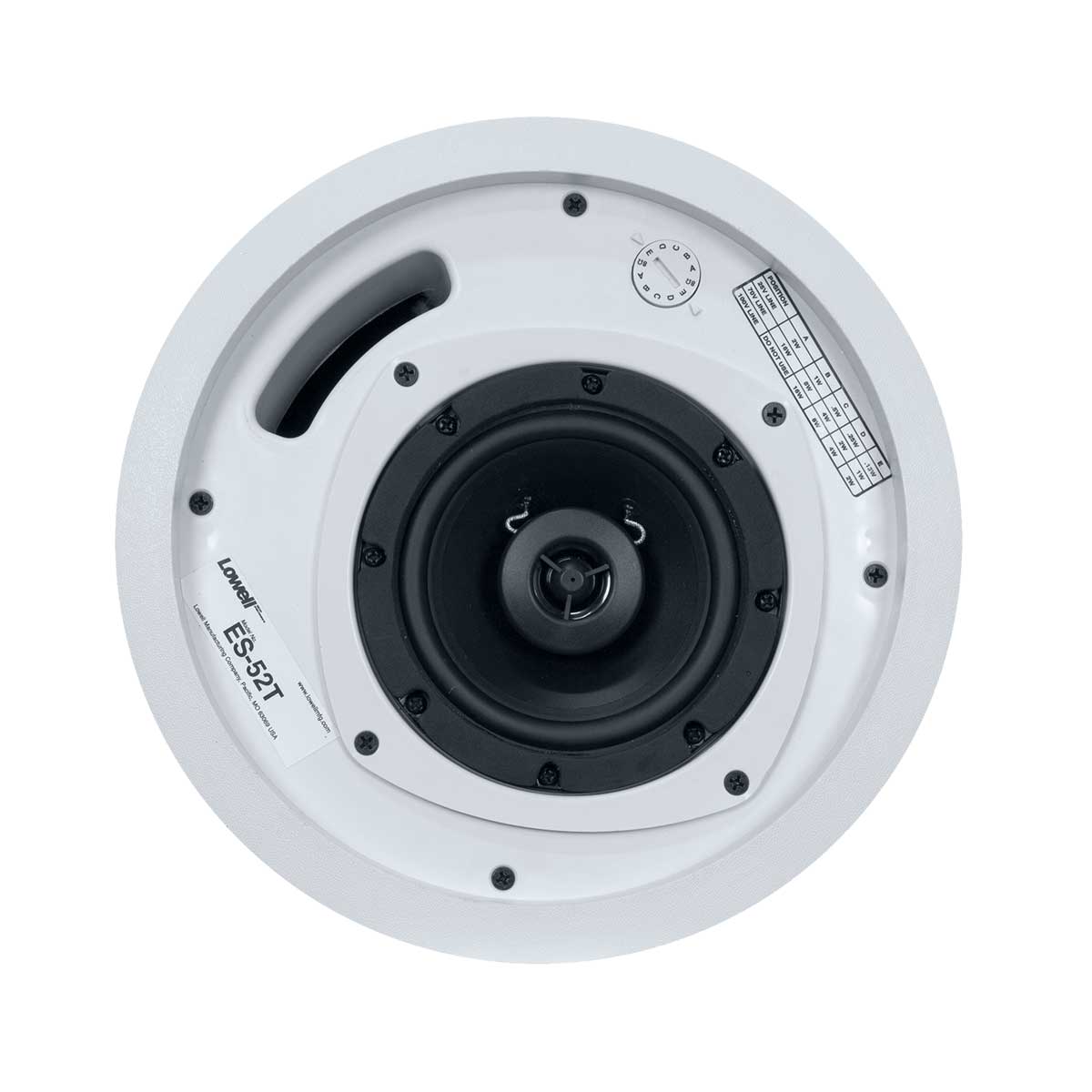

Driver: 5-1/4 in. coaxial driver with high-frequency Mylar tweeter/acoustic lens

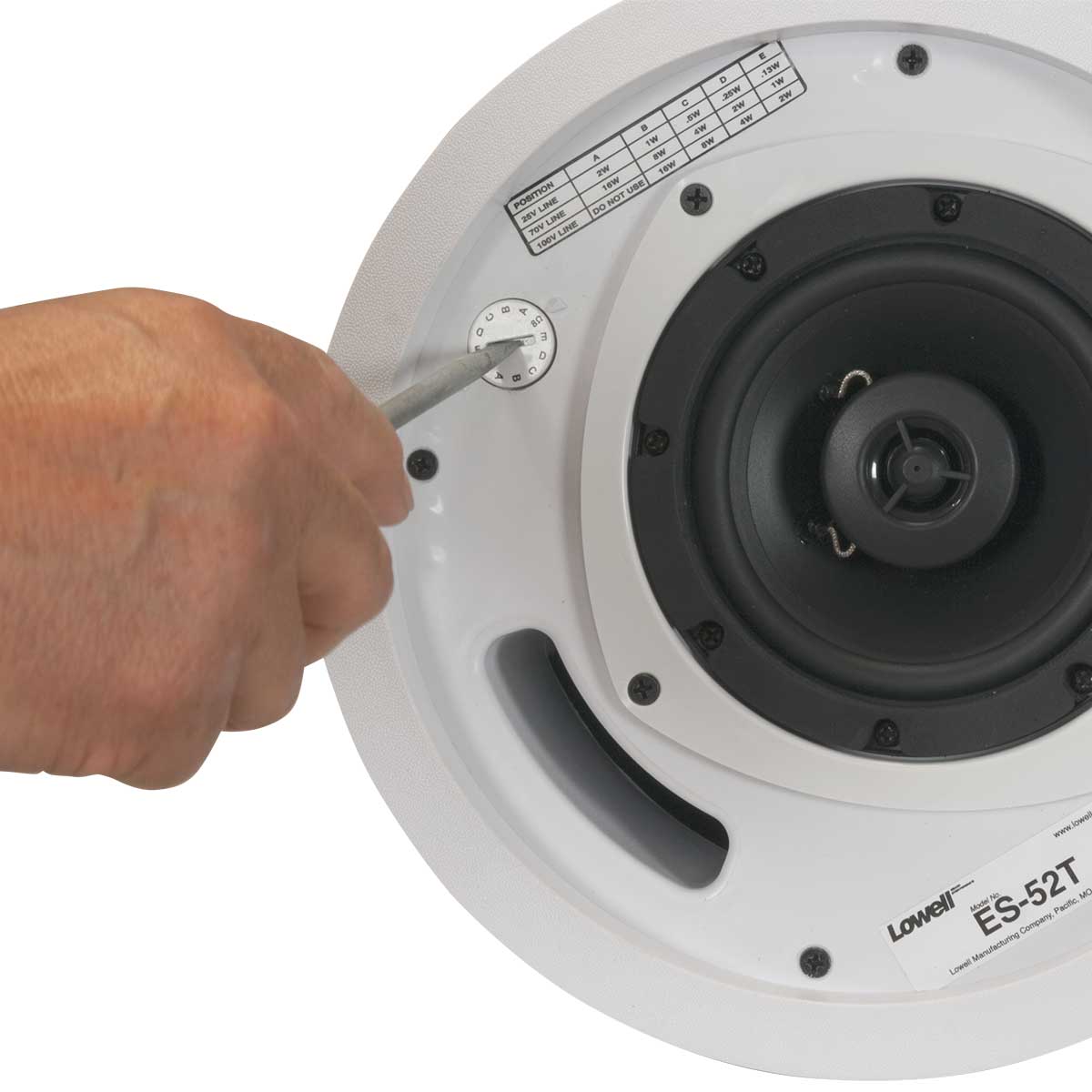

Transformer: 16W (tap selector behind grille). Taps for 25V, 70V or 100V speaker systems, and 8 ohm transformer bypass position.

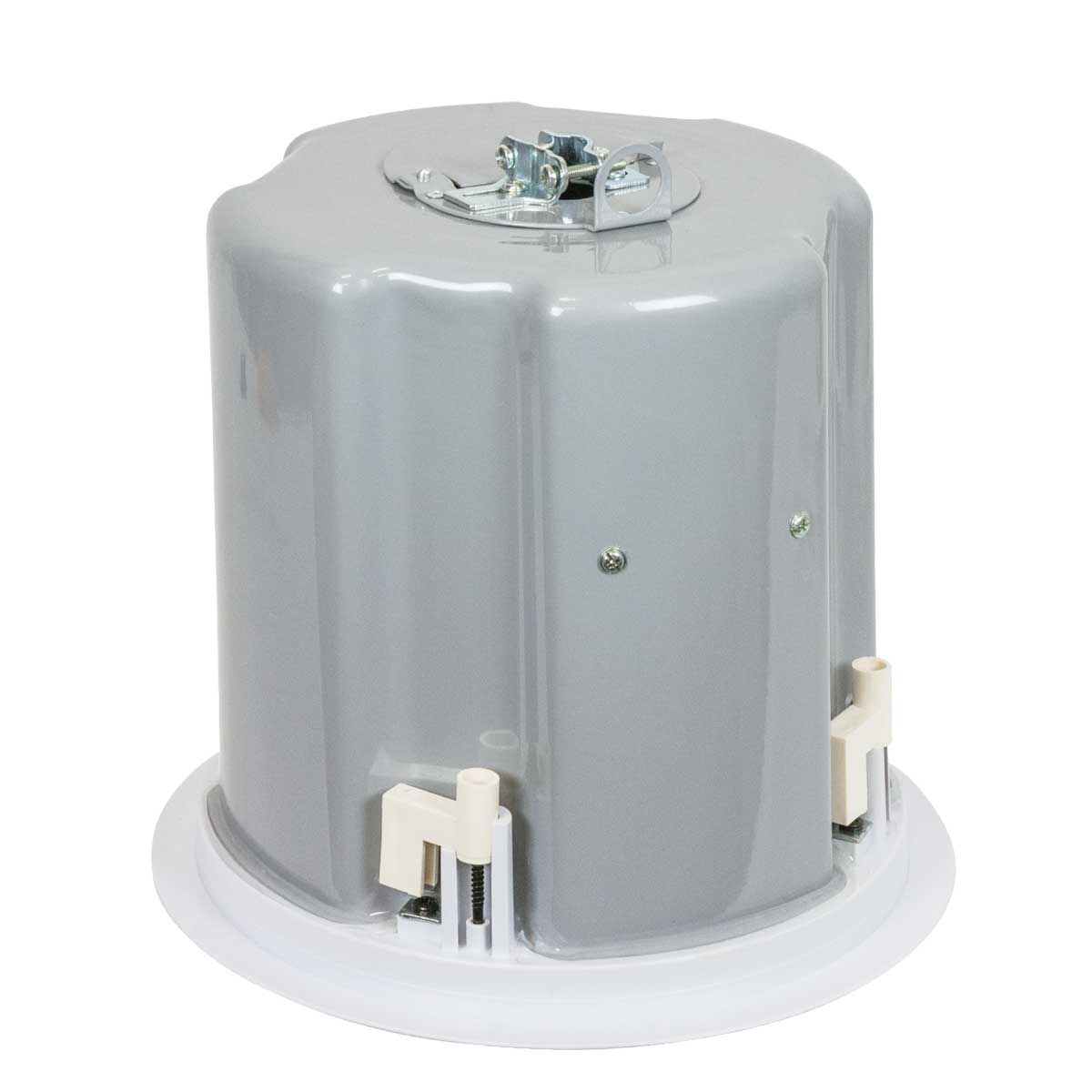

Enclosure: Painted (grey) steel back-can with reversible mounting dogs

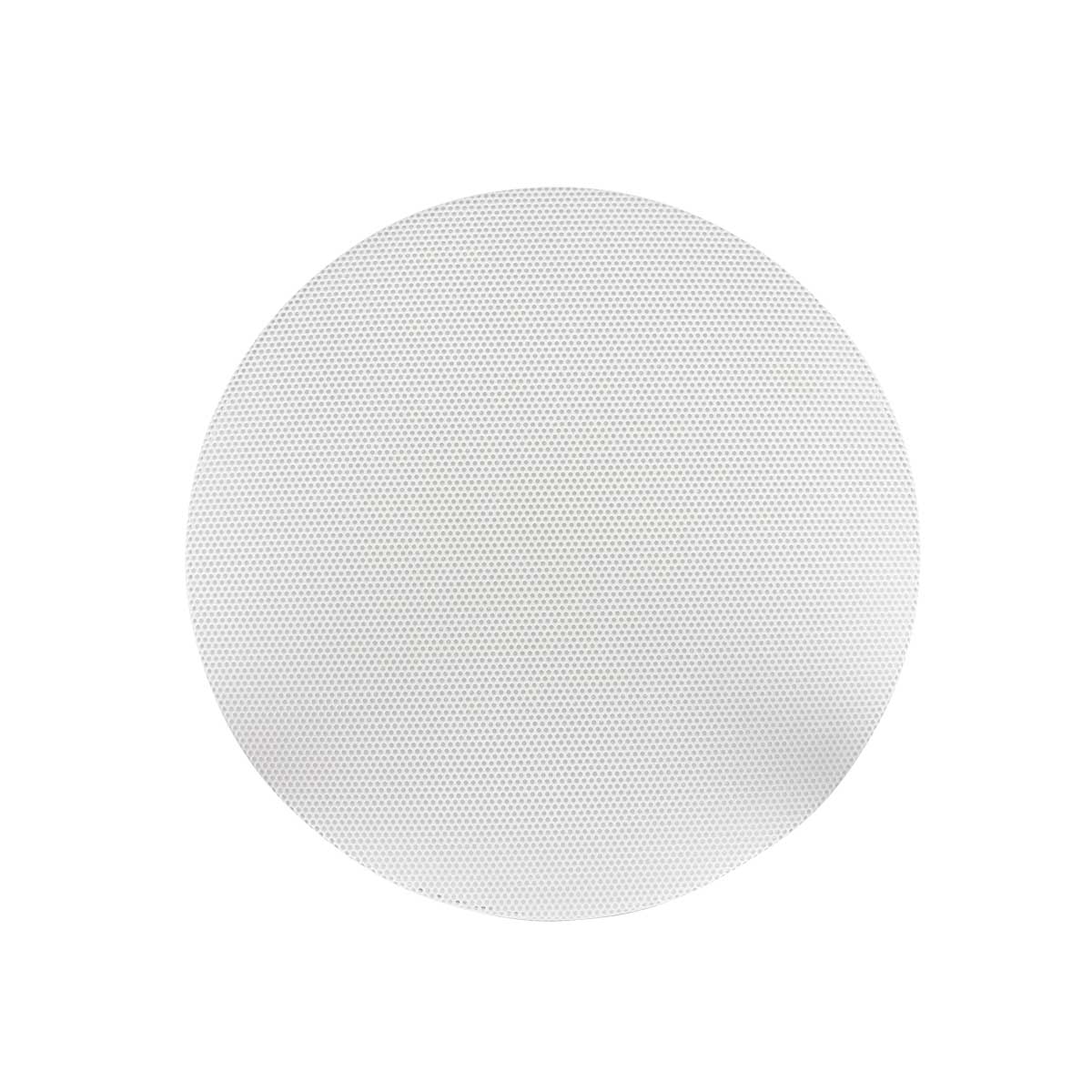

Grille: Press-fit grille with scrim, pull-tool

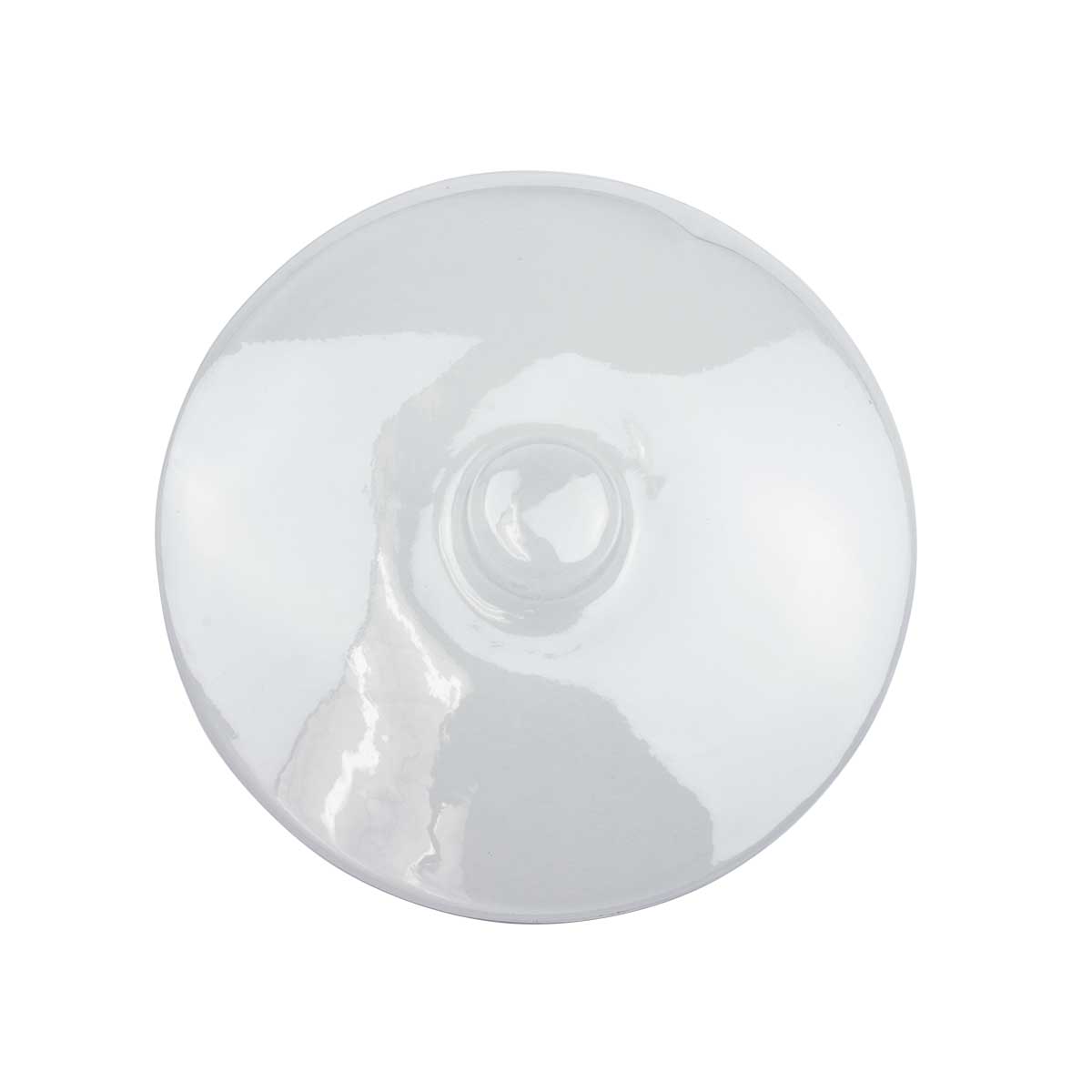

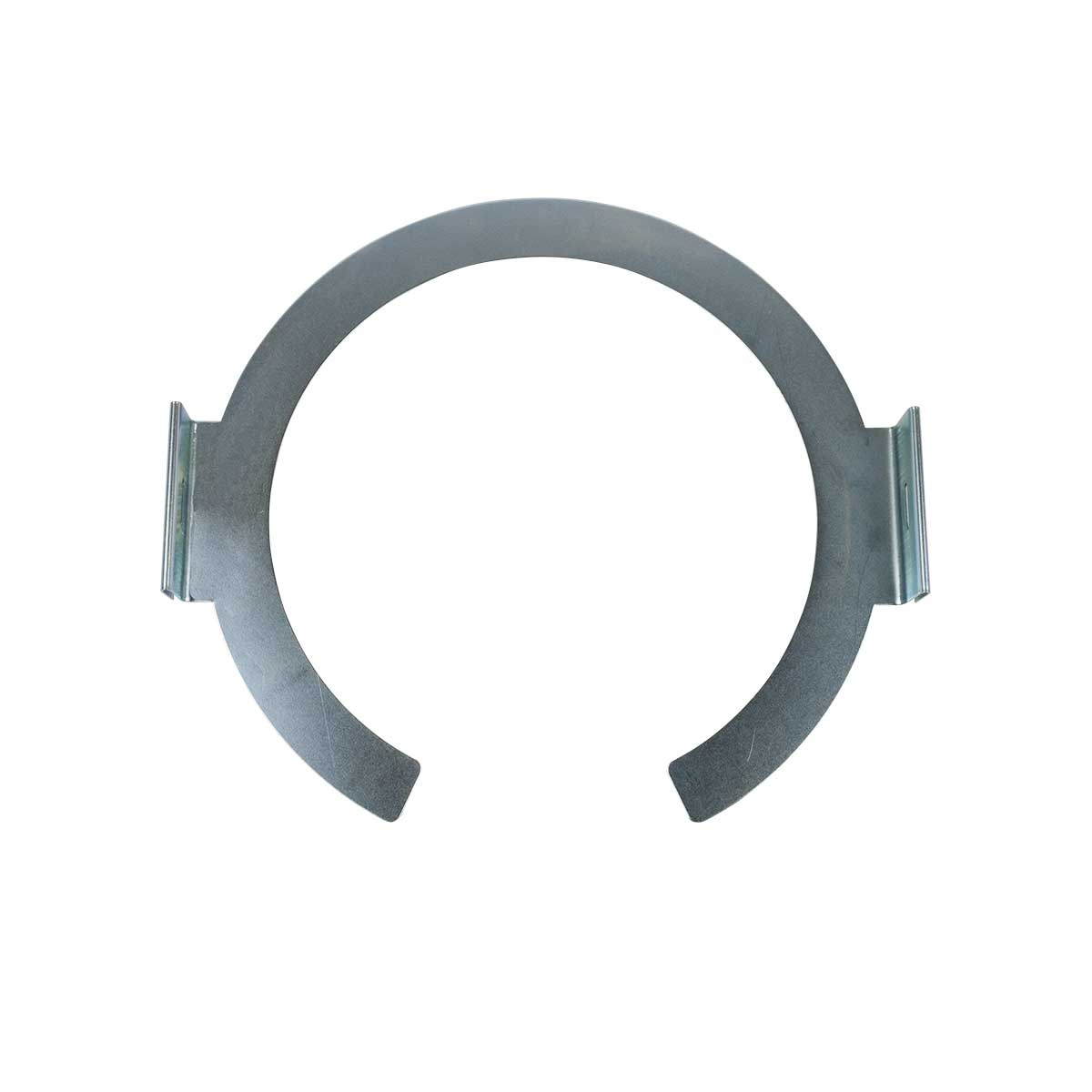

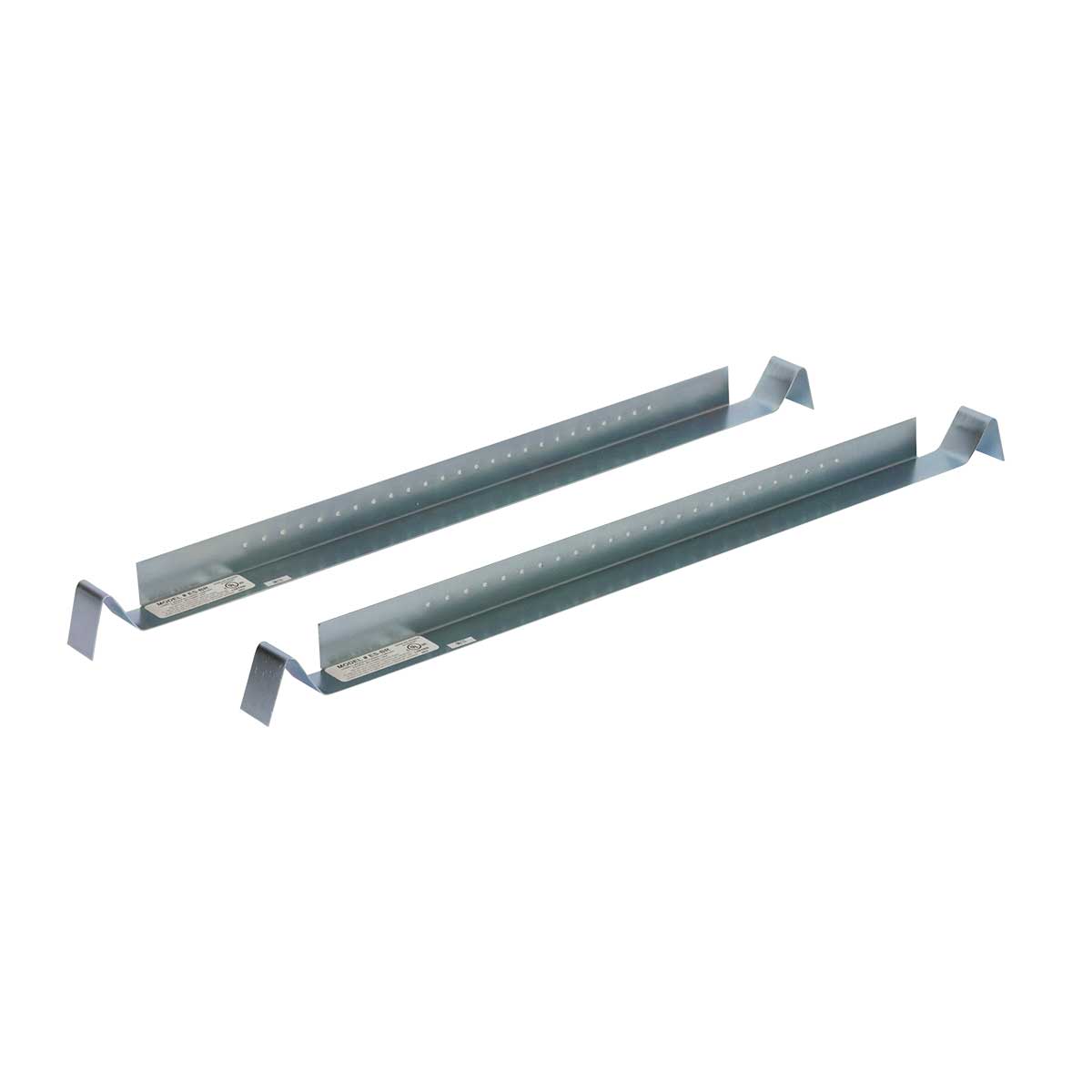

Mounting Aids: Plastic paint shield for driver, C-ring and support rails.
Note: The optional rough-in bridge for the 6-1/2″ speaker will also work with this model. (order ES-6-RIB separately)

Spec Sheet: 1904-ES52T
Instructions: Install-ES
How to Attach Conduit: ES Speakers & Flexible Conduit
Revit Models: ES-52T

UL 1480A (General Signaling, USA)
UL 2043 (Return Air Plenum Space)
CSA C22.2 No. 205-12 (General Signaling, Canada)

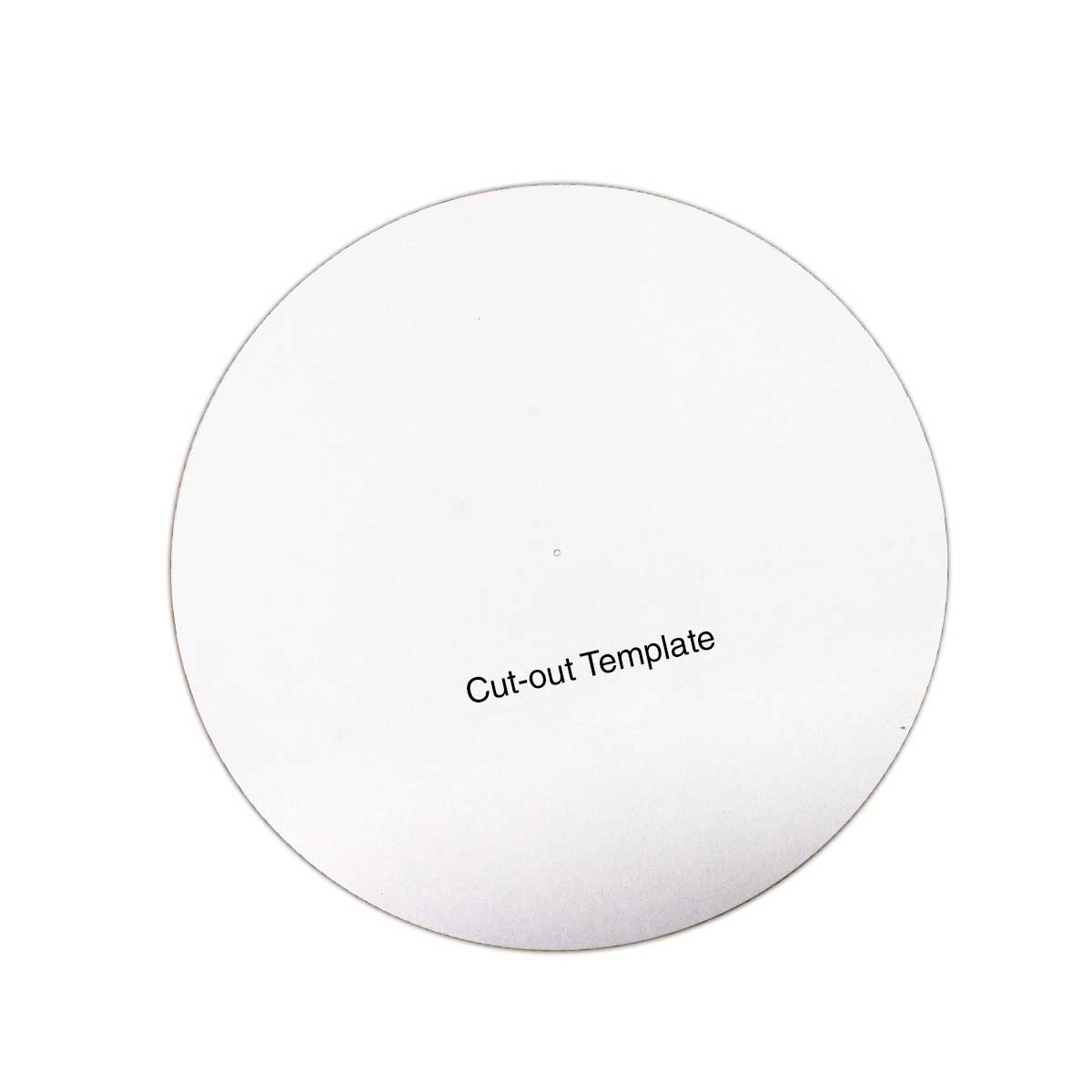

The loudspeaker shall be Lowell model ES-52T. It shall include a high-performance 5-1/4 inch coaxial loudspeaker, ported bass reflex enclosure and press-fit grille for recessed ceiling/wall installation. Frequency response shall be 70Hz-20kHz ±6dB. Sensitivity for the system shall be 88.0dB log average @1W/1M over the frequency response range, measured in half-space. The speaker shall be constructed of a polypropylene cone with rubber surround and a Mylar tweeter. The woofer magnet weight shall be a minimum of 10 oz. (283.5g) and the woofer voice coil diameter shall be 1″ (25.47mm). The transformer shall have primary taps for 100V (16, 8, 4.2 watt); 70V (16, 8, 4, 2, 1 watt); and 25V (2, 1, .5, .25, .13 watt) with a selector switch mounted on the front under the grille that will include an 8 ohm transformer bypass position. The factory-mounted enclosure shall be 20-gauge steel (painted grey) with internal volume of 379 cu.in. It shall have a seismic restraint ring tie-point on the rear for use where required by code or ordinance. It shall feature four dog-mount ears that allow it to be mounted in a ceiling with a maximum thickness of 2.125″ (54mm). A template shall be provided to assist in cutting mounting holes. A rear access cable or flexible conduit entrance strain relief shall be provided with a termination cavity that encloses a four-pin Phoenix-style connector. The connector shall include two terminals for input to the speaker and two parallel terminals for output to the next speaker in the string. The system shall include a C-ring for use in reinforcing the edge of drywall ceiling cutouts, or for use with the included support rails to guard against ceiling tile sag from speaker weight. Front baffle shall have a diameter not more than 9.84″ (249.9mm). The unit shall also include a press-fit, fine mesh 20-ga. CRS grille with UV rated powder coating (epoxy white), and shall include a thin piece of white scrim and a grille-pulling tool.

ES-6-RIB: Rough-in bridge
