Rough-in Bridge

Name: Rough-in Bridge
SKU: ES-4-RIB
Price: 21.00 USD
Availability: InStock

For ES Series 4 in. speakers

$21.00 MSRP

Model ES-4-RIB

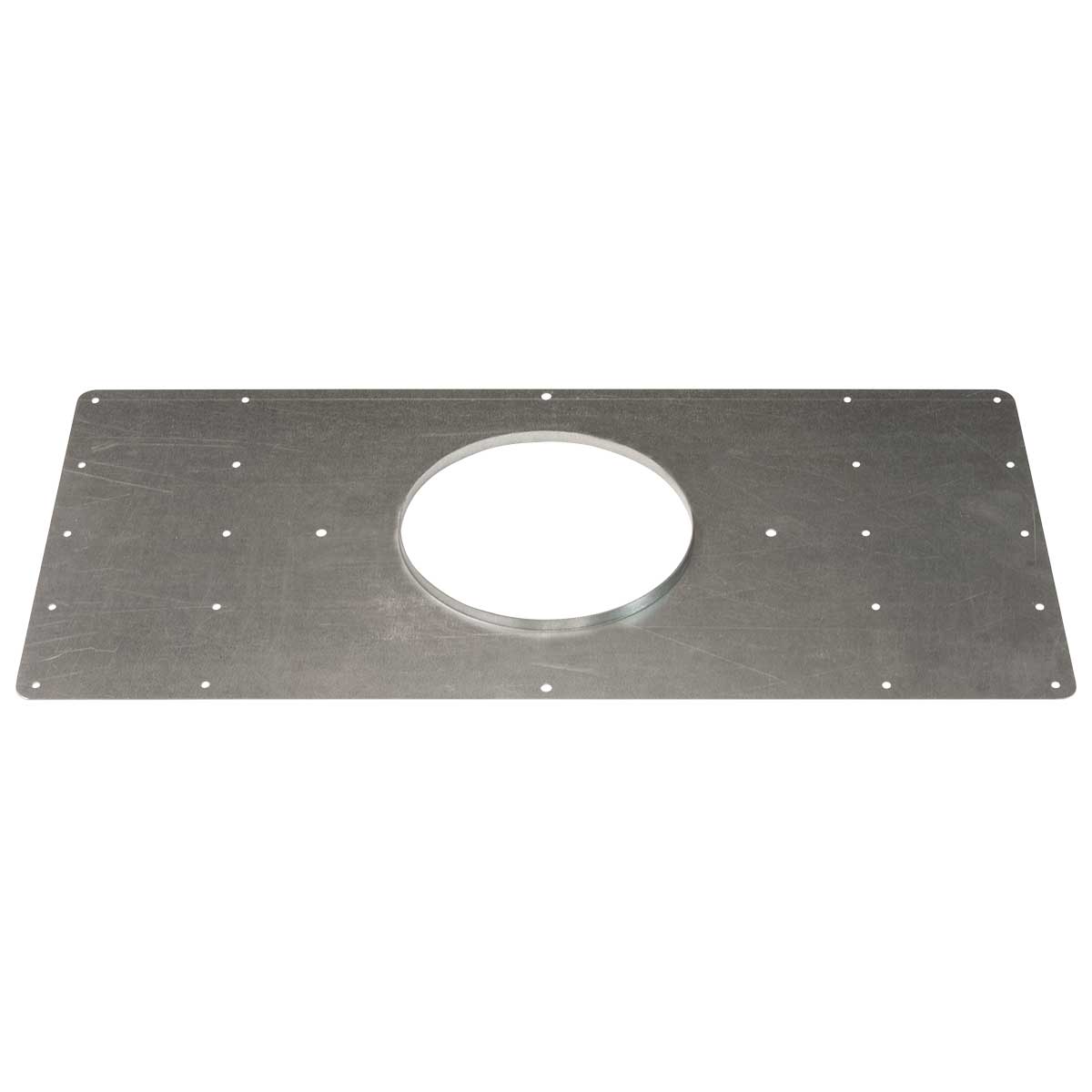

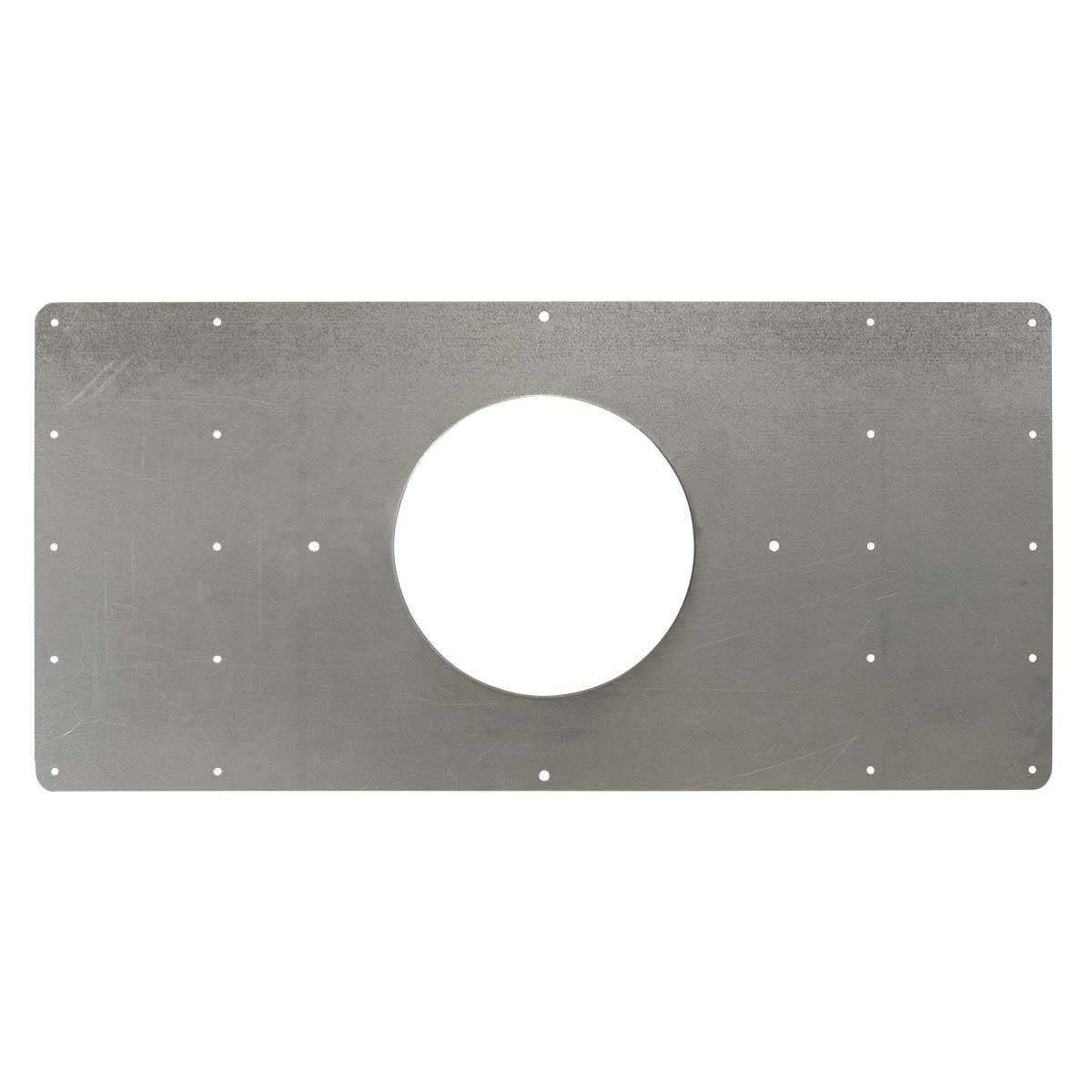

ES-4 rough-in bridge for new construction, drywall or plaster ceiling before finished ceiling is installed.

Add to Favorites

Compare

Material: Steel
Finish: Galvanized
Compatible Speakers: Model ES-4T

Spec Sheet: 1857-ES4RIB
Instructions: ESRIB-install

Made in the U.S.A.
Certified U.S. steel

The ES-4 rough-in bridge shall be Lowell Model No. ES-4-RIB, which shall be formed 20-gauge steel construction with galvanized finish. It shall feature 3/16 in. diameter mounting holes on 16 inch and 24 inch centers for mounting to joists, rafters, trusses, metal rails, or other ceiling support structures in new construction before the drywall ceiling is installed. It shall have overall measurements of 12 in. x 25 in. with a center opening having a diameter of 7.25 inches. It shall be used with Lowell speaker Model No. ES-4T (ordered separately).
