Recessed Enclosure for 8 inch driver, w/straps

Name: Recessed Enclosure for 8 inch driver, w/straps
SKU: DX108
Price: 99.96 USD
Availability: InStock

For screw-mount grille

$99.96 MSRP

Model DX108

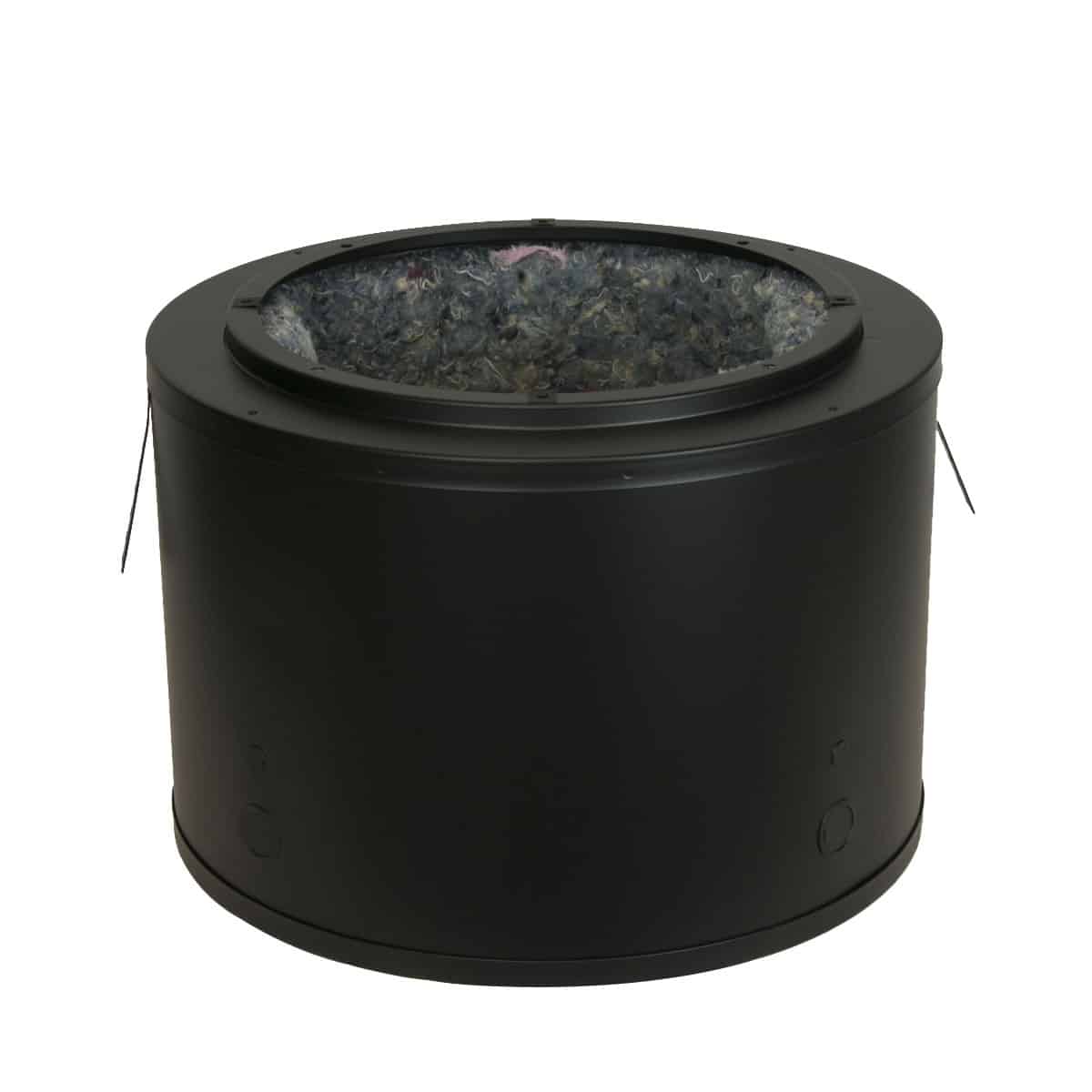

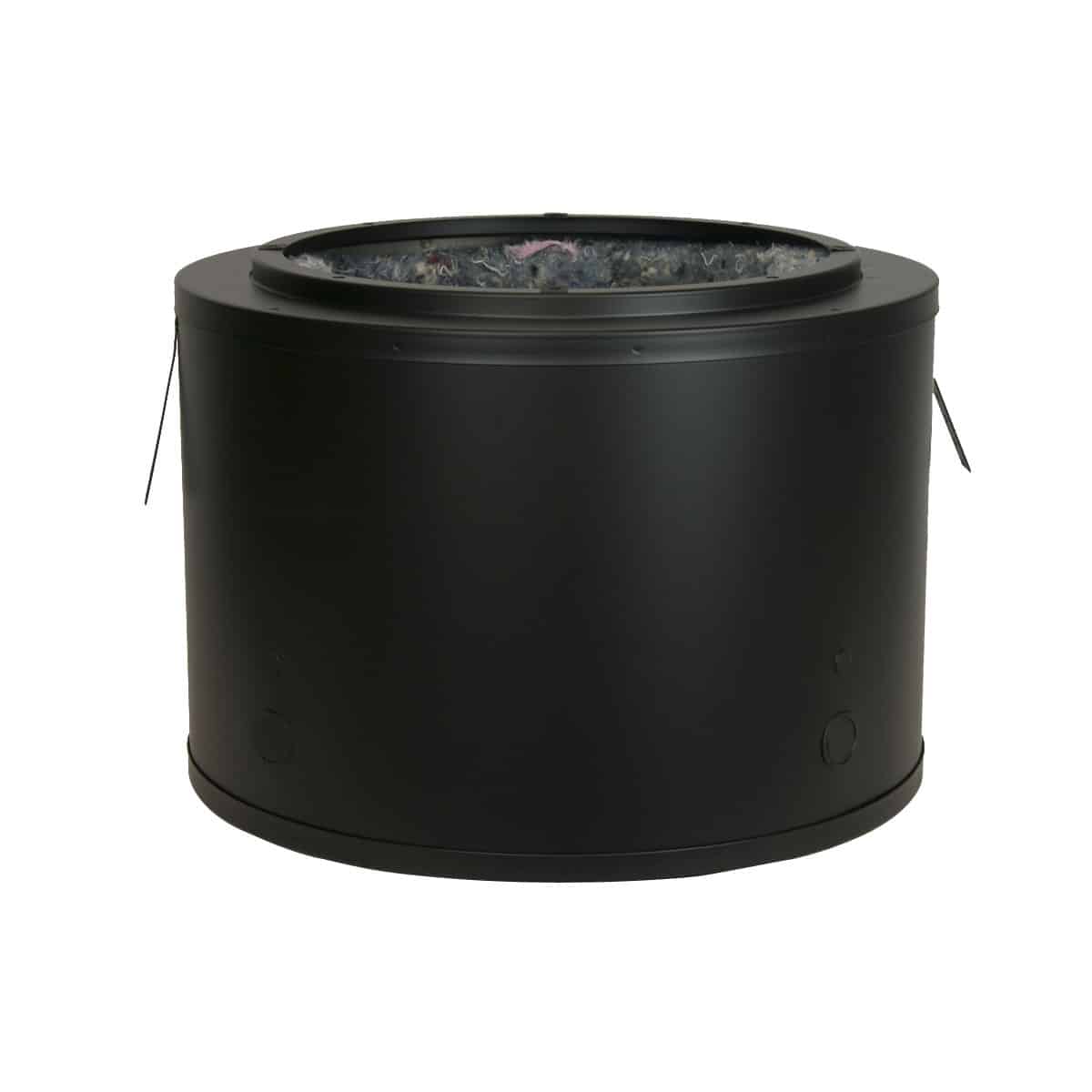

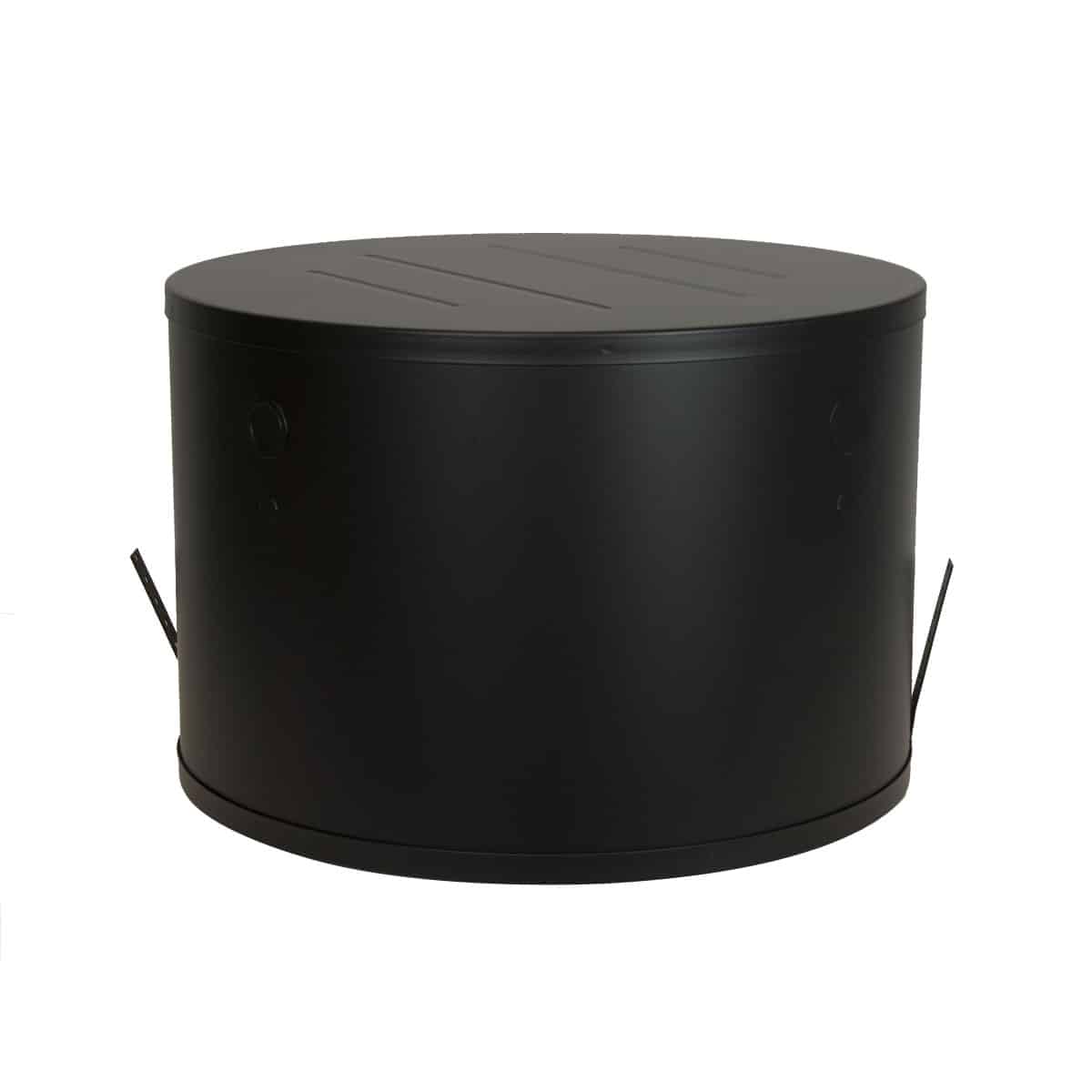

Large volume acoustic enclosure designed to provide the highest quality sound reinforcement for distributed 8 inch speaker systems — it's ideal for high fidelity, recessed speaker applications. It can also be used in new or existing construction when installed in suspended tile ceilings.

Add to Favorites

Compare

Material: Welded, unitized heavy gauge steel
Finish: Black
Diameter: 15.00 in.
Depth: 10.50 in.
Volume: 1.074 cu.ft.

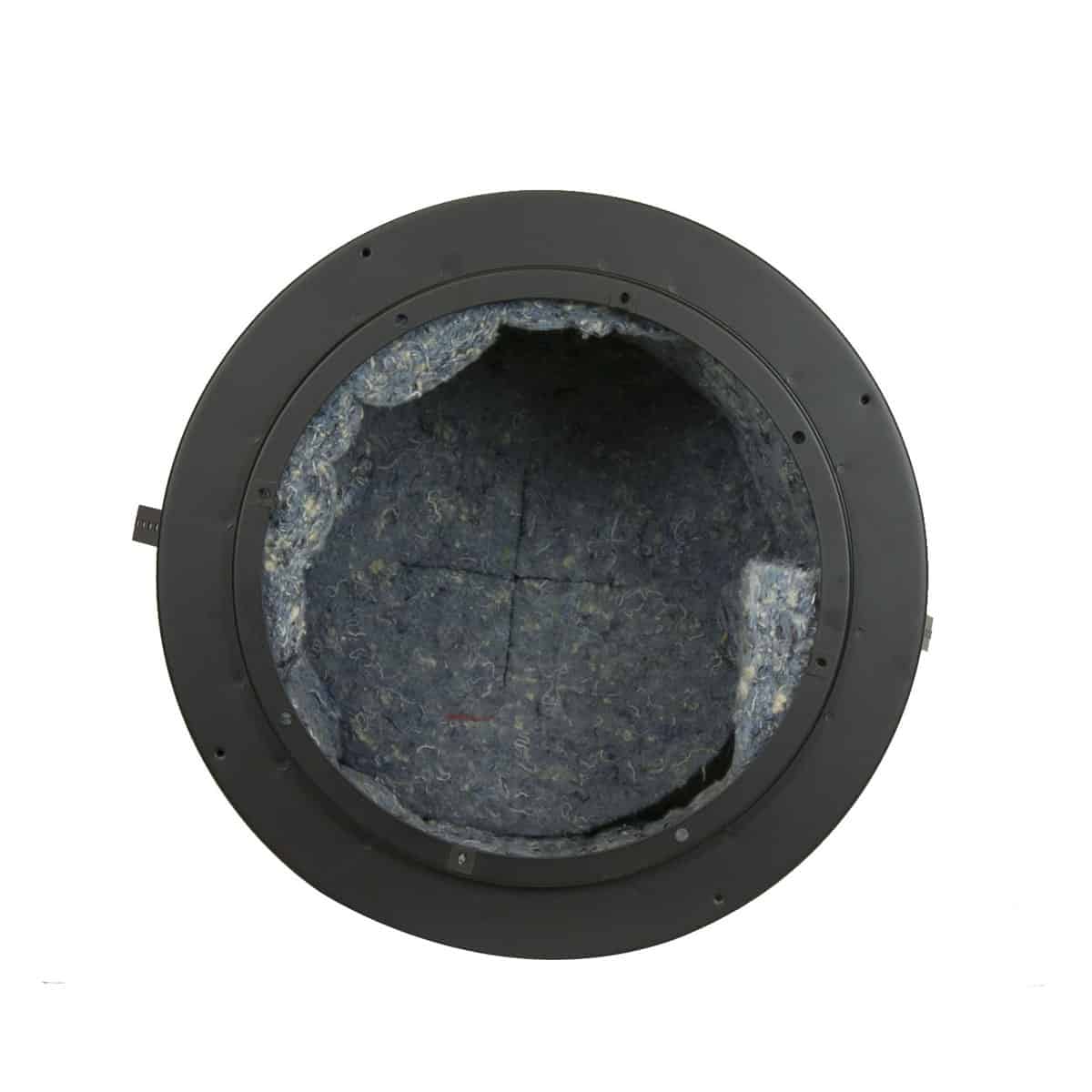

Acoustical Treatment: 1-1/2″ thick batting
Mounting Aids: Knockouts, U-clips, straps
For Grille Type: Screw-mount
Flange Type: Extended lip

Spec Sheet: 1291-DX108

Made in U.S.A.
Certified U.S. steel

The recessed acoustic enclosure for 8″ speakers shall be Lowell DX108, which shall be steel with an extended flange and black powder epoxy finish. It shall feature 1-1/2″ thick acoustic lining, 15″ diameter, 10.5″ depth, four (1/2″-3/4″) compound knockouts for conduit, and two flexible welded hanger straps. The enclosure shall be made in the U.S.A. with certified U.S. steel.

Screw-Mount Grilles: A8-AW, CS-8H, LO8-P, WB-8
Drivers: 8 inch
Tile Bridge: LBS8-CP
