Recessed Enclosure for 4 inch driver, w/straps

Name: Recessed Enclosure for 4 inch driver, w/straps
SKU: DX104-T
Price: 69.76 USD
Availability: InStock

For torsion grille

$69.76 MSRP

Model DX104-T

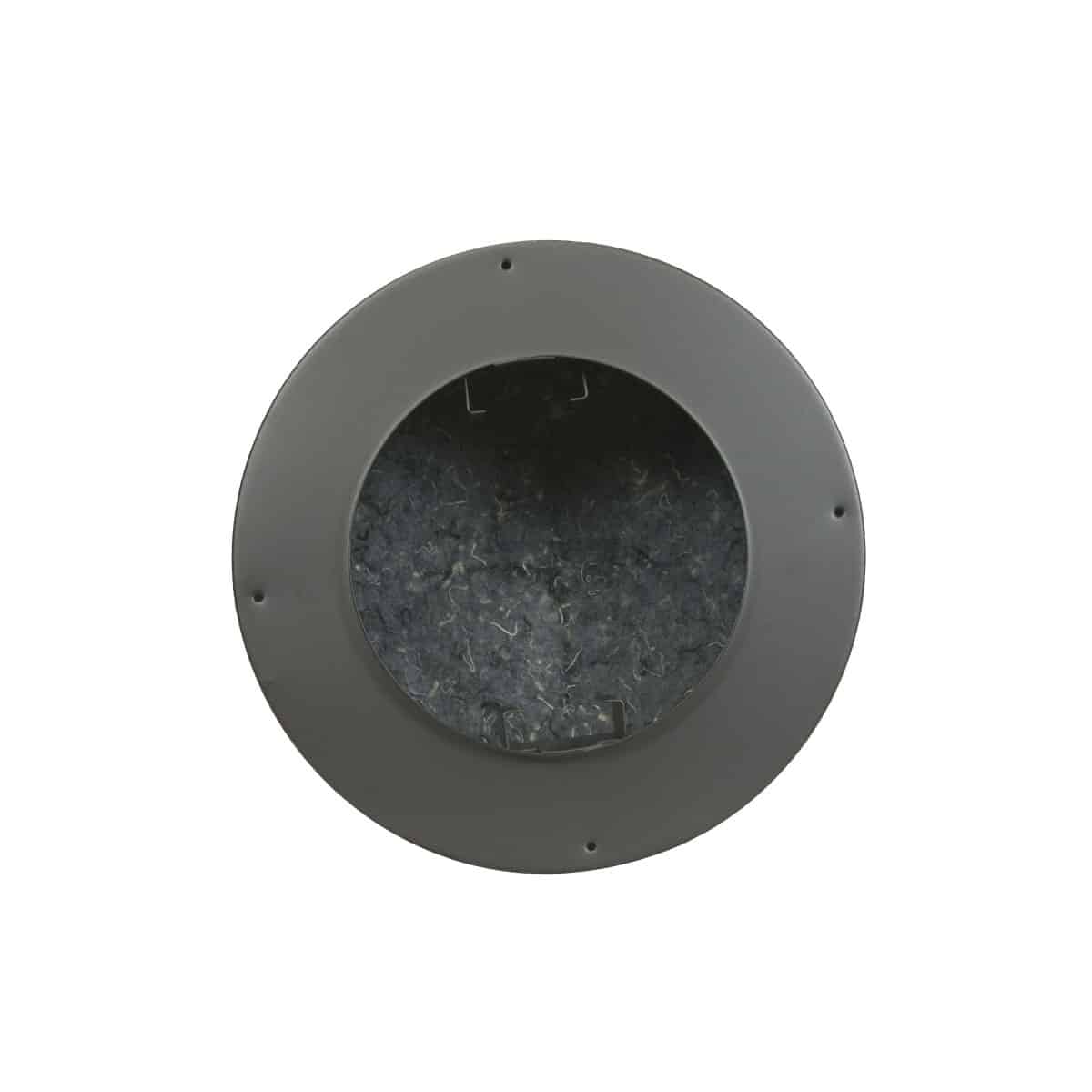

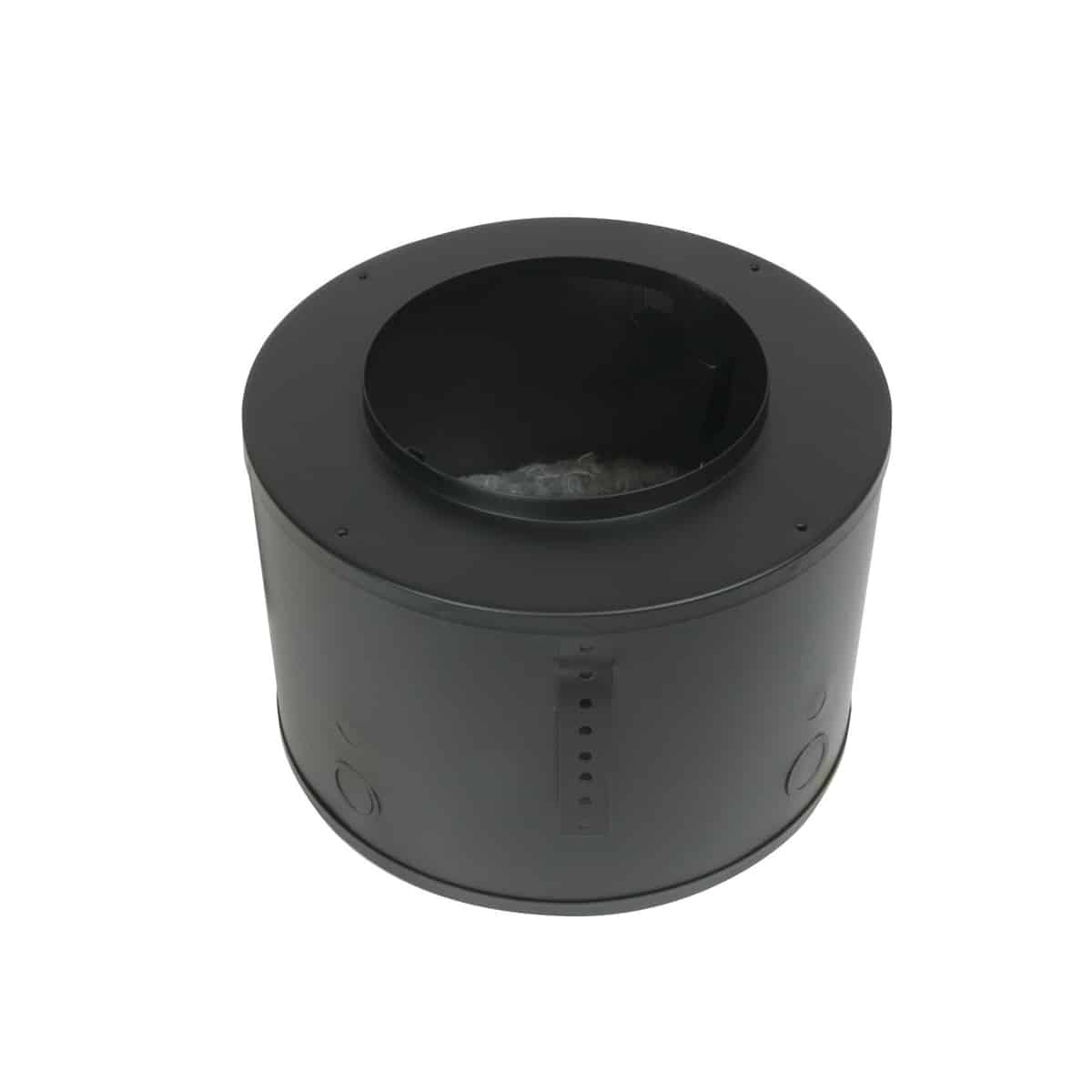

Steel speaker enclosure for recessed installation is acoustically engineered for professional applications where the highest quality sound reproduction and fidelity must be attained. The acoustically treated large volume design allows a 4 in. driver to operate at optimum loading level and to achieve improved low frequency response with rich, full bass. This enclosure is made for use with a torsion grille.

Add to Favorites

Compare

Material: Welded 22-gauge steel
Finish: Black
Diameter: 10.00 in.
Depth: 6.75 in.
Volume: 0.307 cu.ft.
Acoustical Treatment: 1.5 in. batting
Mounting Aids: Knockouts, straps
Flange Type: Extended lip
For Grille Type: Torsion

Spec Sheet: 1293-DX104T

UL Listed only when used with Lowell assembly WB4T-4A30-T870
Made in the U.S.A.
Certified U.S. steel

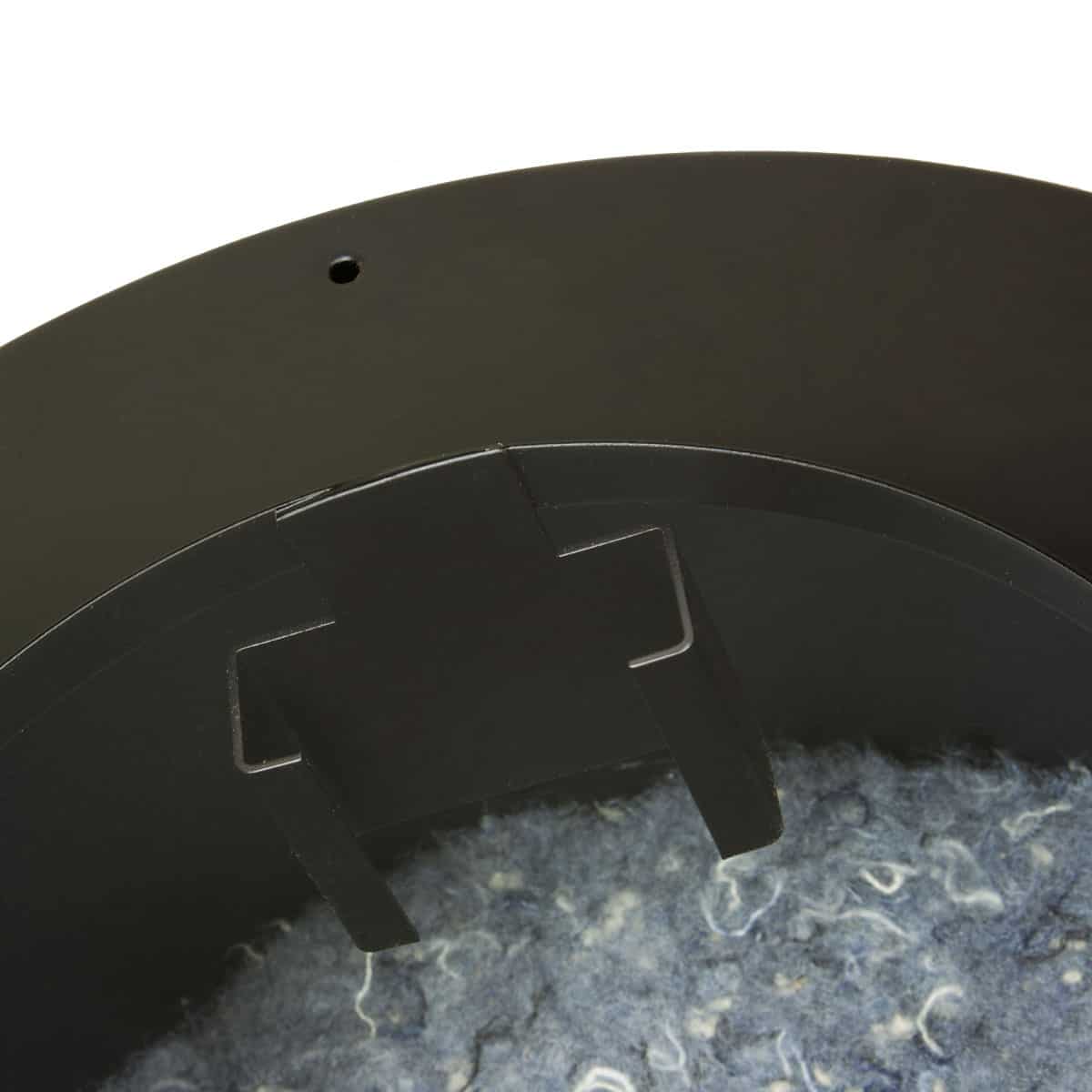

The recessed enclosure for 4 inch driver shall be Lowell model DX104-T, which shall be welded steel with black powder epoxy finish. It shall be lined with 1-1/2″ thick batting with a density rating of 1.5 lbs. to absorb undesirable resonance in the high frequency range. It shall have four combination (1/2″–3/4″) knockouts spaced at 90-degree intervals, and two flexible mounting straps at 180-degree intervals. It shall include receptacles to mount a torsion grille. The enclosure shall be made in the U.S.A. with certified U.S. steel.

Torsion Grilles: CN-4M, WB-4T
Drivers: 4 inch
Driver/Grille Assembly: WB4T-4A30-T870
Tile Bridge: LBS4-DX
