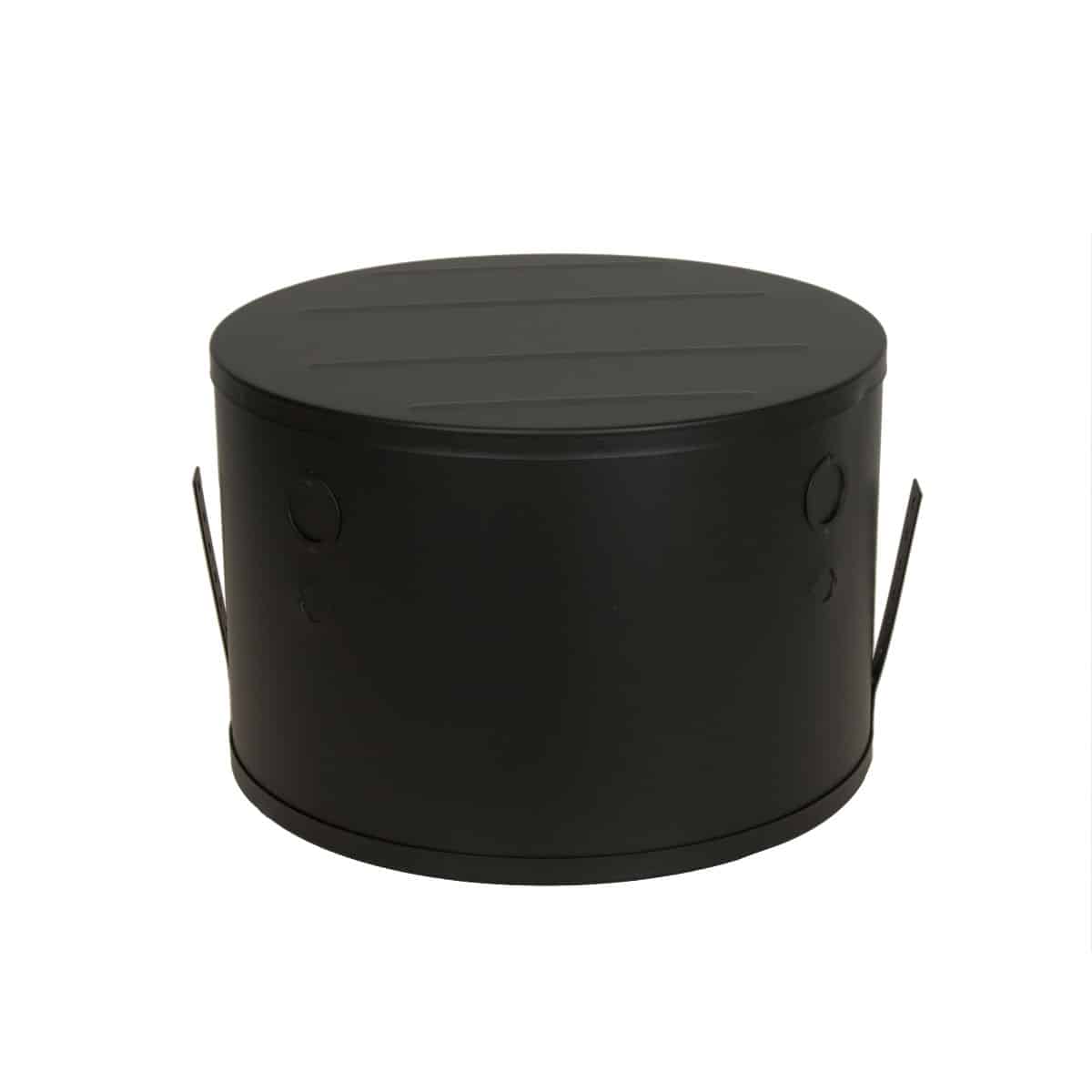

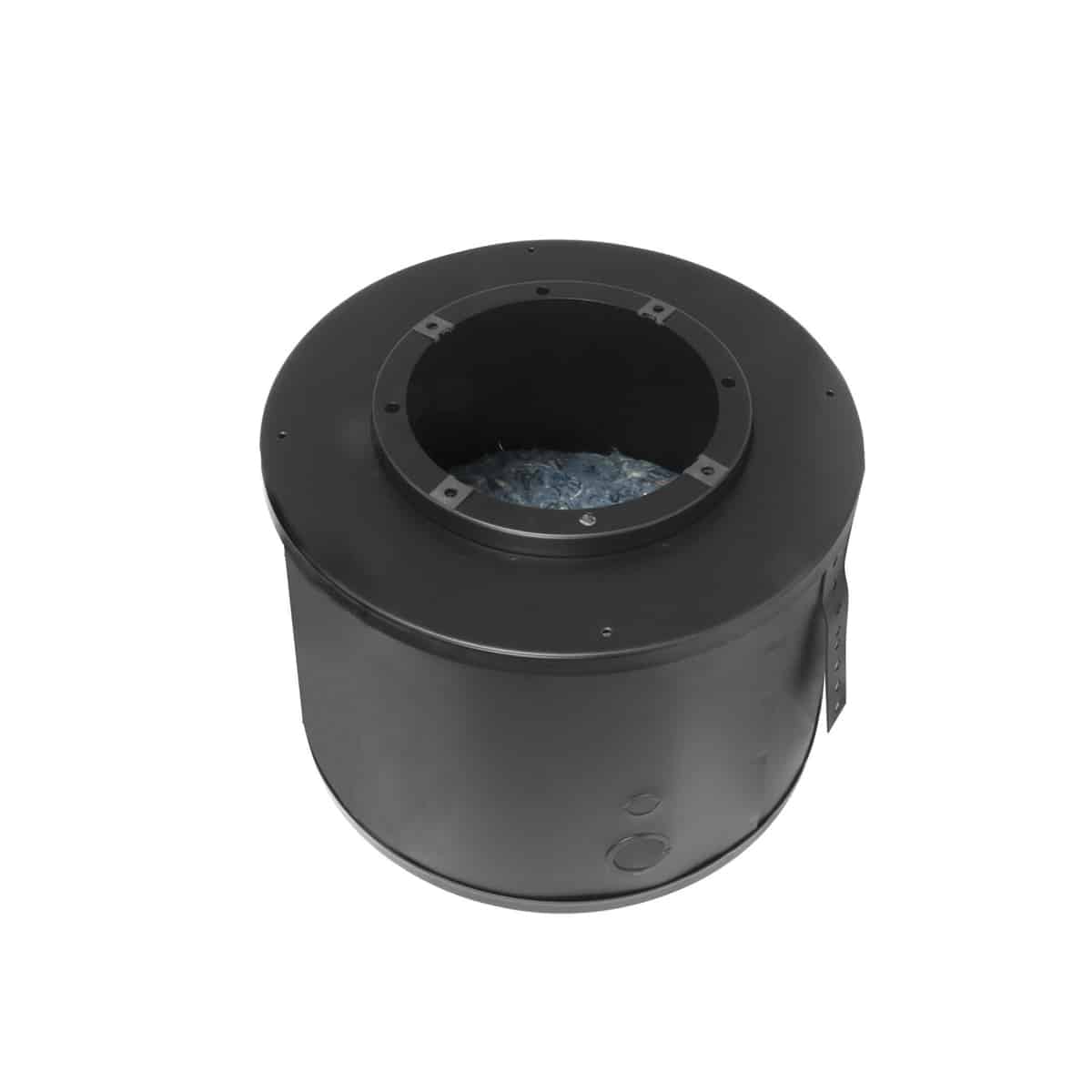

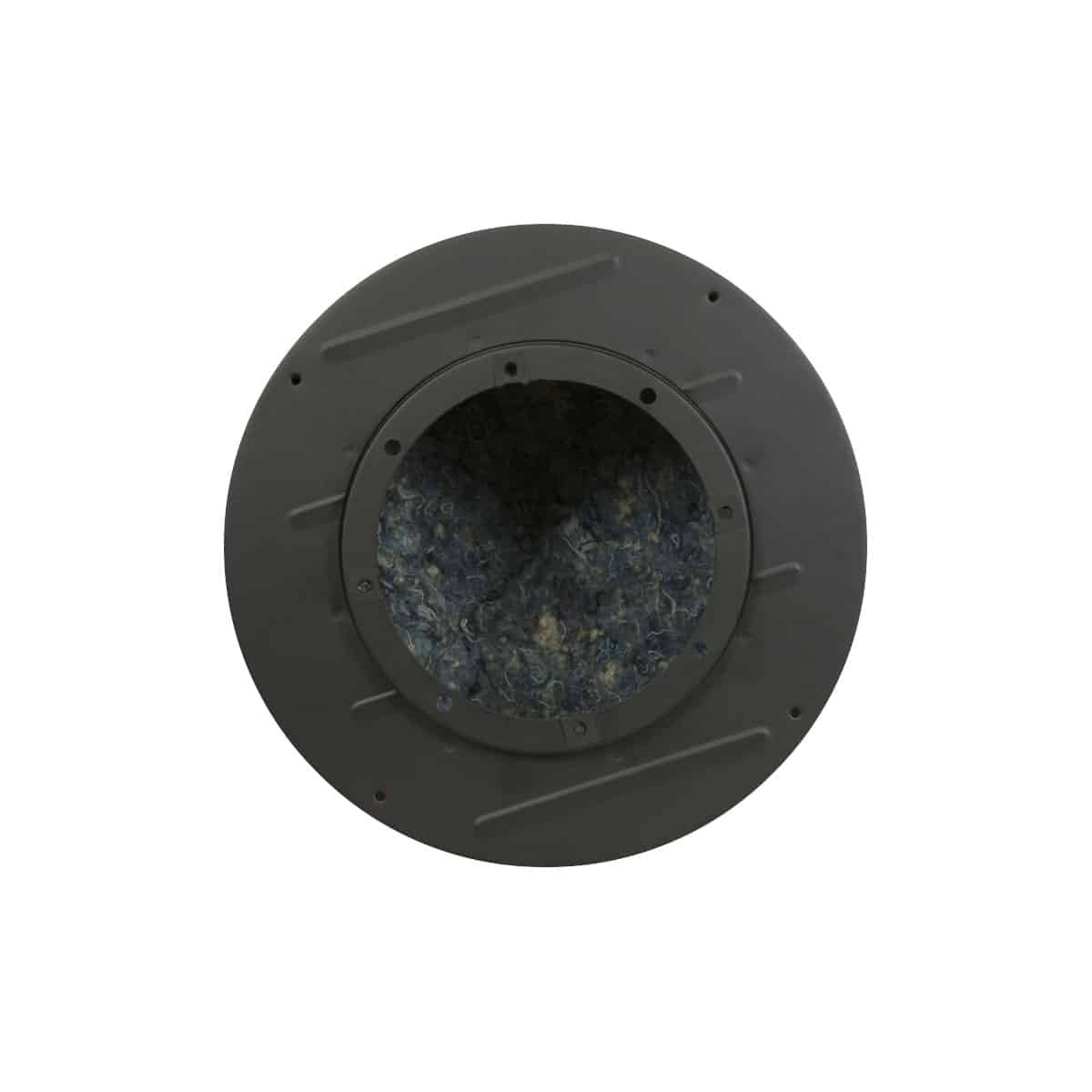

Recessed Enclosure for 4 inch driver, w/straps

Name: Recessed Enclosure for 4 inch driver, w/straps
SKU: DX104
Price: 56.28 USD
Availability: InStock

For screw-mount grille

$56.28 MSRP

Model DX104

Steel speaker enclosure for recessed installation is acoustically engineered for professional applications where the highest quality sound reproduction and fidelity must be attained. The acoustically treated large volume design allows a 4 inch driver to operate at optimum loading level and to achieve improved low frequency response with rich, full bass.

Add to Favorites

Compare

Material: Welded 22-gauge steel
Finish: Black
Diameter: 10.00 in.
Depth: 6.75 in.
Volume: 0.307 cu.ft.
Acoustical Treatment: 1.5 in. batting
Flange Type: Extended lip
Mounting Aids: Knockouts, straps
For Grille Type: Screw-mount

Spec Sheet: 1292-DX104

Made in the U.S.A.
Certified U.S. steel

The recessed enclosure for 4 inch driver shall be Lowell model DX104, which shall be welded steel with black powder epoxy finish. It shall be lined with 1-1/2″ thick batting with a density rating of 1.5 lbs. to absorb undesirable resonance in the high frequency range. It shall have four combination (1/2″–3/4″) knockouts spaced at 90-degree intervals, and two flexible mounting straps spaced at 180-degree intervals. It shall accept a screw-mount grille. The enclosure shall be made in the U.S.A. with certified U.S. steel.

Screw-mount Grille: WB-4
Driver: 4 inch
Tile Bridge: LBS4-DX
