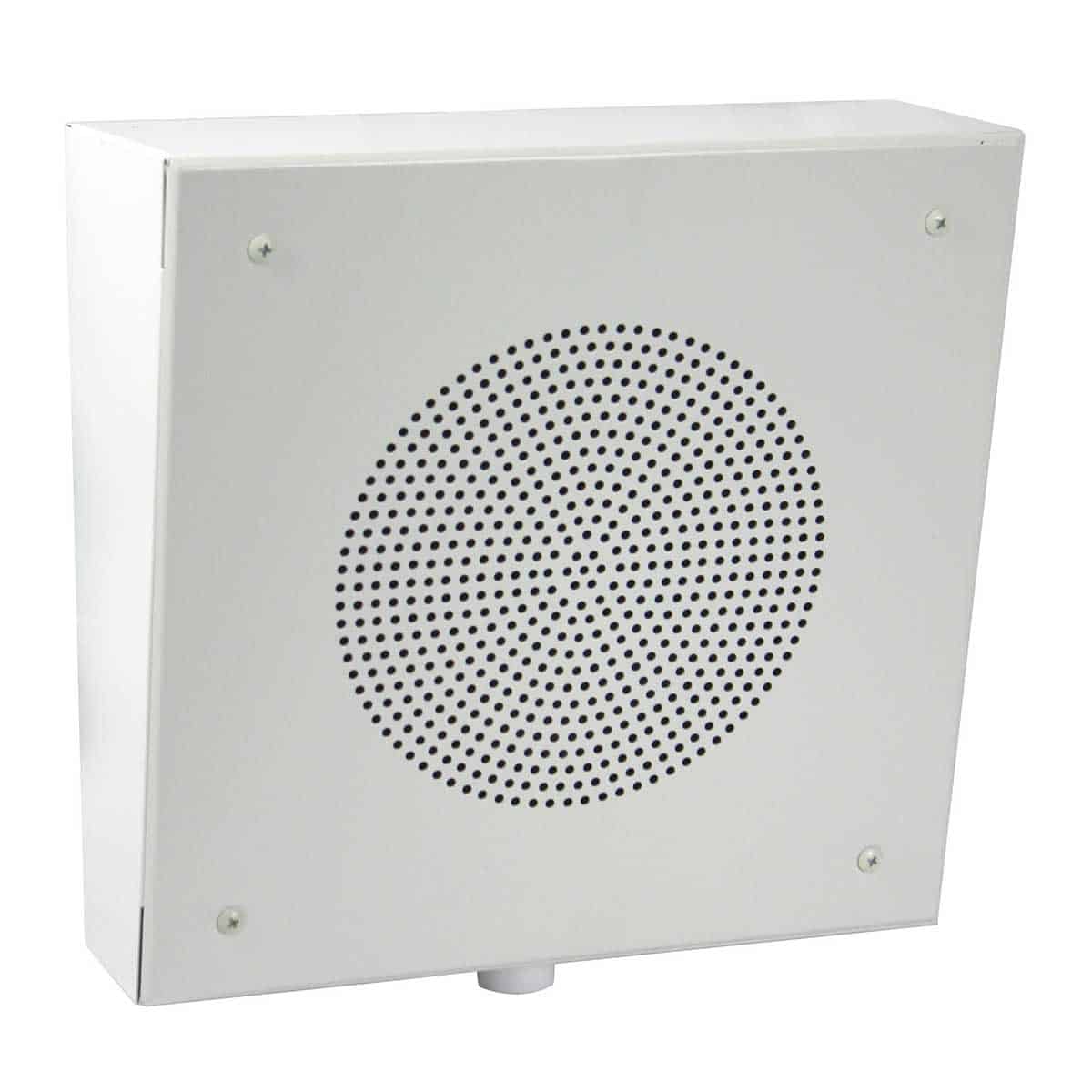

8 inch Dual Cone Surface-mount Speaker

Name: 8 inch Dual Cone Surface-mount Speaker
SKU: DSL-805-72K
Price: 106.96 USD
Availability: InStock

Includes driver, transformer, enclosure, grille, VC

$106.96 MSRP

Model DSL-805-72K

Speaker assembly for background music and paging in classrooms, offices, retail locations and just about anywhere an attractive surface-mount speaker system is required. Includes driver wutg transformer, enclosure with sloped front, grille and volume control knob on the bottom. Ships ready to install.

Add to Favorites

Compare

Driver (805A): 8 in. 12W dual cone driver with 5 oz. magnet
Transformer (TLM-572): 25V/70V dual voltage transformer. Taps at 0.25, 0.5, 1, 2, 5W.
Enclosure: Steel enclosure with sloped front. 11.3 in. x 11.5 in x 5.29 in. (3.05 in. at base). White. Volume control knob on bottom.
Grille: Steel with beveled edge and circular hole pattern. White.
Mounting Aids: Universal mounting hole pattern will install to a 4 in. square, 4 in. octagon, 1- or 2-gang box (not included). Top/bottom knockouts for 500 Series wiremold.
System Specifications: Frequency Response 122Hz–7.4kHz (±6dB), 65Hz–20kHz (±12dB). Average Sensitivity 95.1dB (1W/1M). Dispersion 110 degrees conical.

Spec Sheet: 1302-DSL80572K

Certified U.S. steel (grille, enclosure)
Made in Missouri, U.S.A.

The speaker assembly for indoor surface-mount applications shall be Lowell Model No. DSL-805-72-K. It shall include an 8 in. 12W dual cone driver with 5 oz. magnet, dual voltage transformer, white steel grille and backbox with sloped front. It shall include a volume control knob on the bottom. The backbox shall measure 11.3 in. x 11.5 in. x 5.29 in. It shall have wiremold knockouts on top/bottom and universal mounting hole pattern in rear. The system shall have a frequency response of 122Hz–7.4kHz (±6dB), 65Hz–20kHz (±12dB) and average sensitivity of 95.1dB. The transformer shall be dual voltage (70/25V) with power taps at 0.25, 0.5, 1, 2, and 5 watts with color coded leads. The steel backbox and grille shall have a white powder epoxy finish.
