Rackmount Panel for Devices

Name: Rackmount Panel for Devices
SKU: D8P-ID-3
Price: 76.90 USD
Availability: InStock

With label pocket

$76.90 MSRP

Model D8P-ID-3

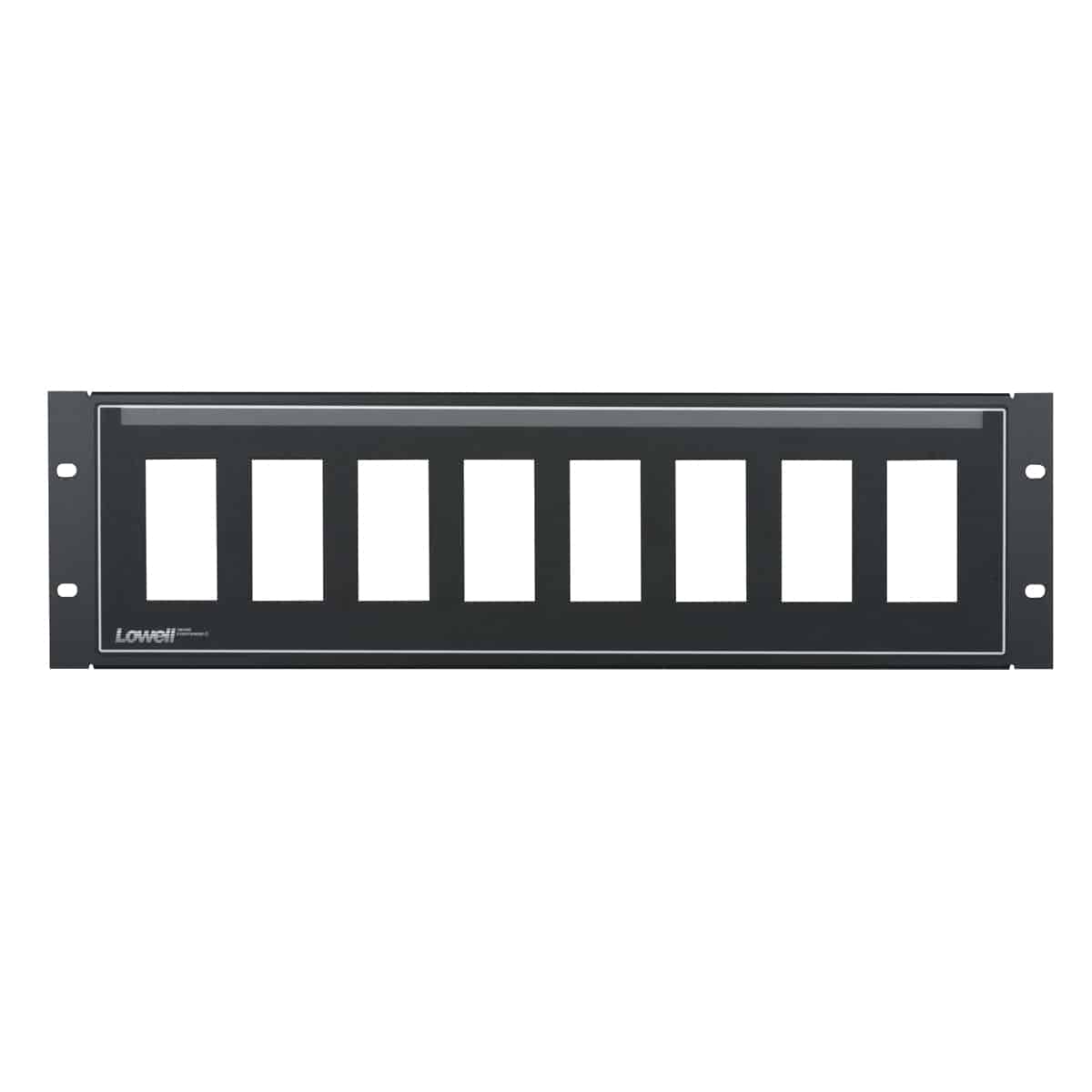

Rackmount panel holds up to eight low-voltage decorator style devices. Includes a plastic sleeve for labels.

Add to Favorites

Compare

16-gauge steel

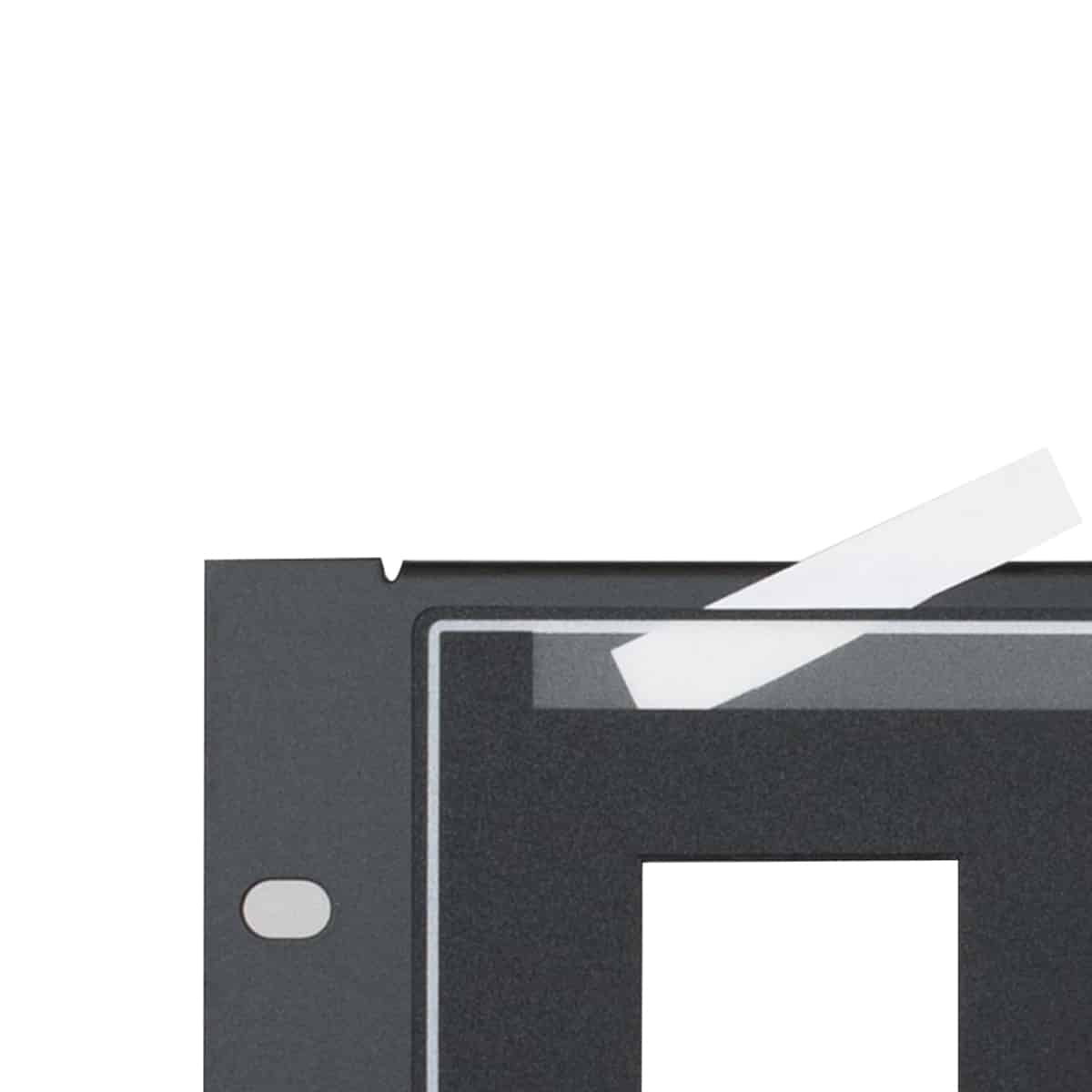

PocketID polycarbonate overlay window for a paper label (not included)

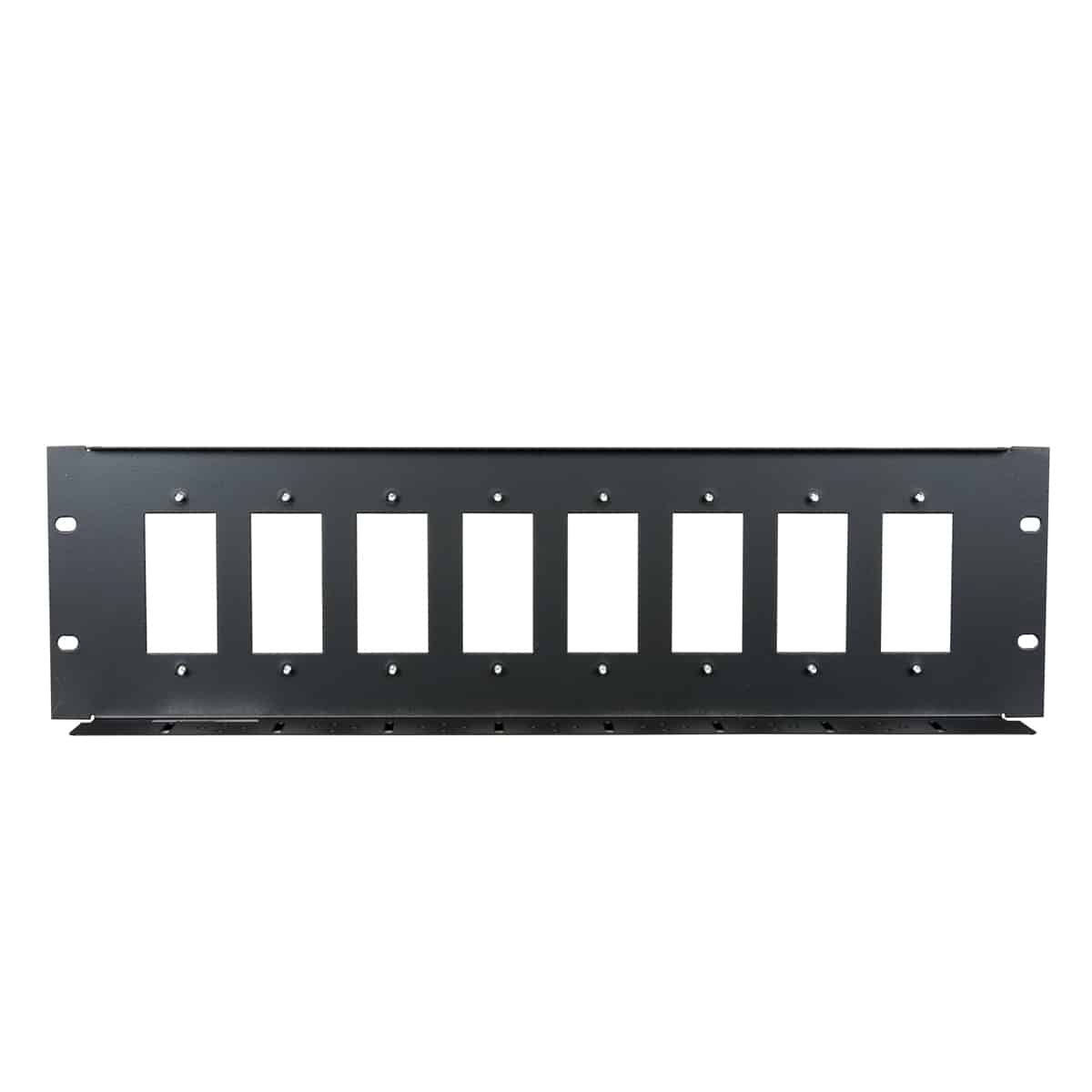

Eight (8) punches for low-voltage decorator style devices mounted vertically
Smooth black semi-gloss powder epoxy finish
Hardware

Rack Space: 3U
Height: 5.25 in.
Width: 19.00 in.
Depth: 0.5 in. flange

Spec Sheet: 1065-D8PID3
Label Template: PocketID “Template A”

EIA/TIA compliant
Certified U.S. steel
Made in Missouri, U.S.A.

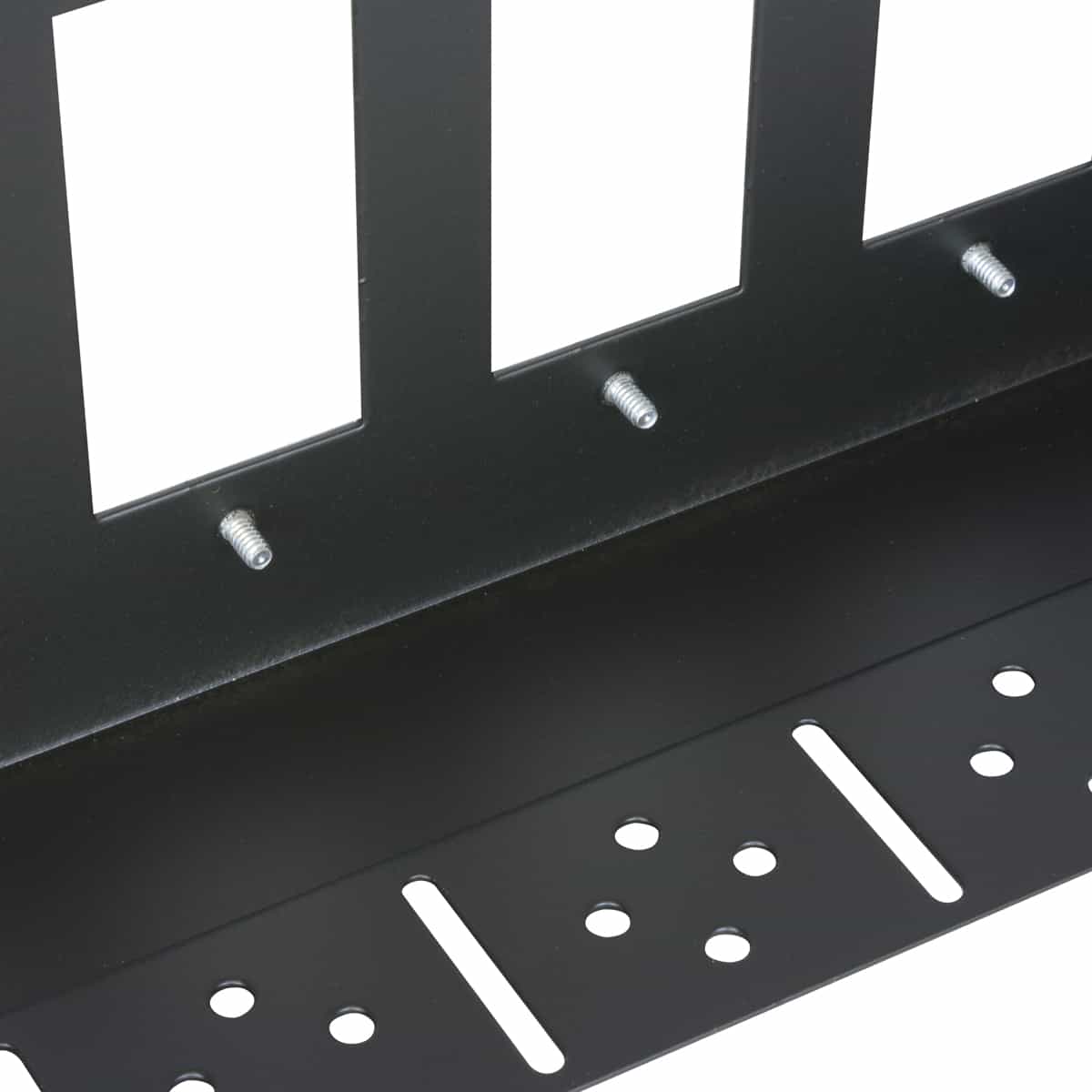

The rackmount panel for mounting low-voltage decorator style devices shall be Lowell Model No. D8P-ID-3. It shall be formed steel construction (19″W x 5.25″H) with 8 punched cutouts and a smooth black semi-gloss powder epoxy finish. It shall include hardware, a rear lacing flange for wire management, and a plastic overlay to hold a 0.5″H paper label (not included).

RPS Series: Switches. Choose one with decorator style wall plate and remove the plate before installing the switch in the panel.
DBB-4: Blank filler plate for unused positions (4 pk.)
