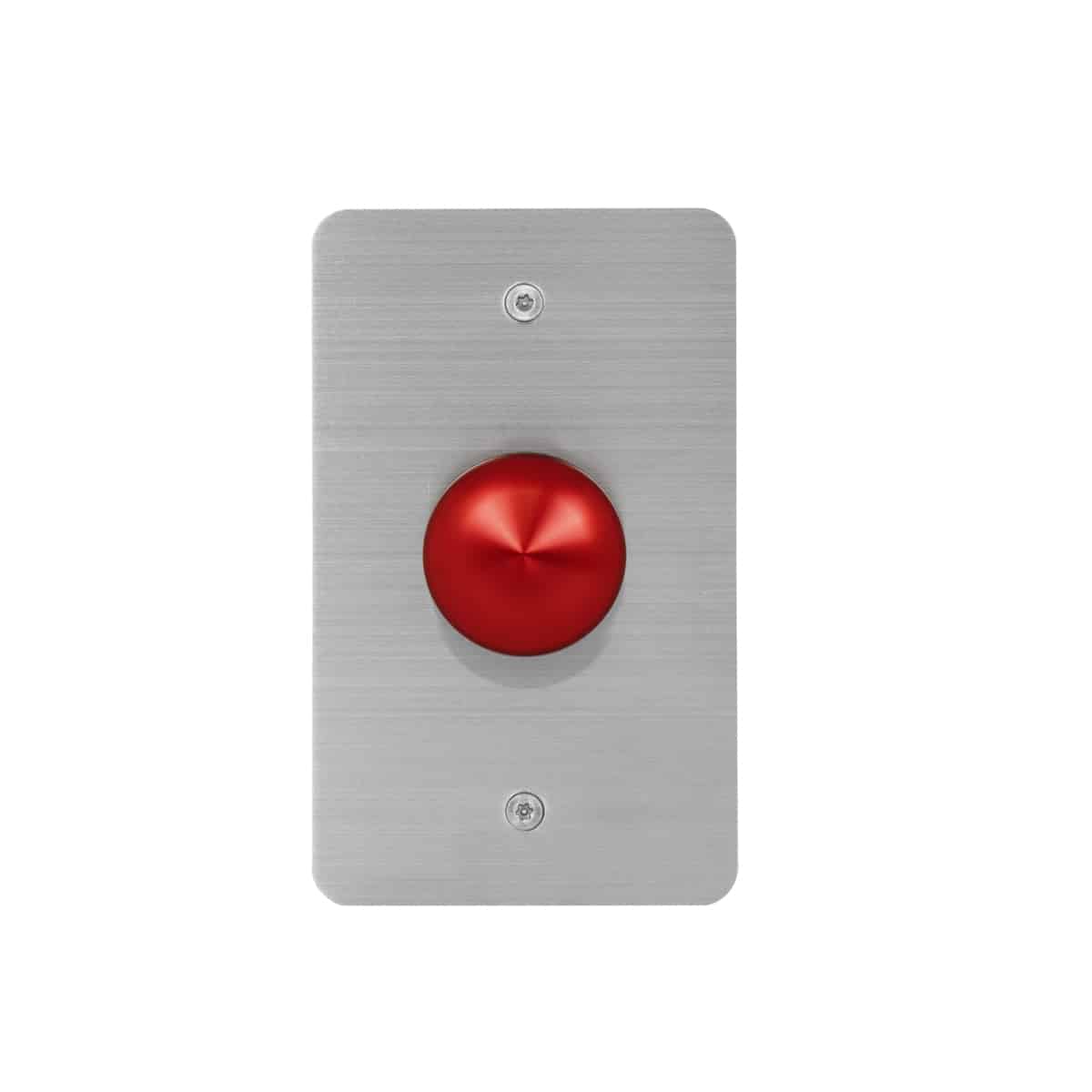

Vandal resistant call switch with red mushroom button

CVSM intercom call switch with mushroom button

Oversize-button Call Switch, Vandal-resistant

Name: Oversize-button Call Switch, Vandal-resistant
SKU: CSV-M
Price: 119.88 USD
Availability: InStock

1-gang

$119.88 MSRP

Model CSV-M

Vandal-resistant call switch for intercom systems--general purpose signaling and switching--features a red mushroom button and heavy duty stainless steel wall plate.

Add to Favorites

Compare

SPST call switch
Rating: 2A 48VDC
Function: Momentary (normally open)
Push button: Red mushroom

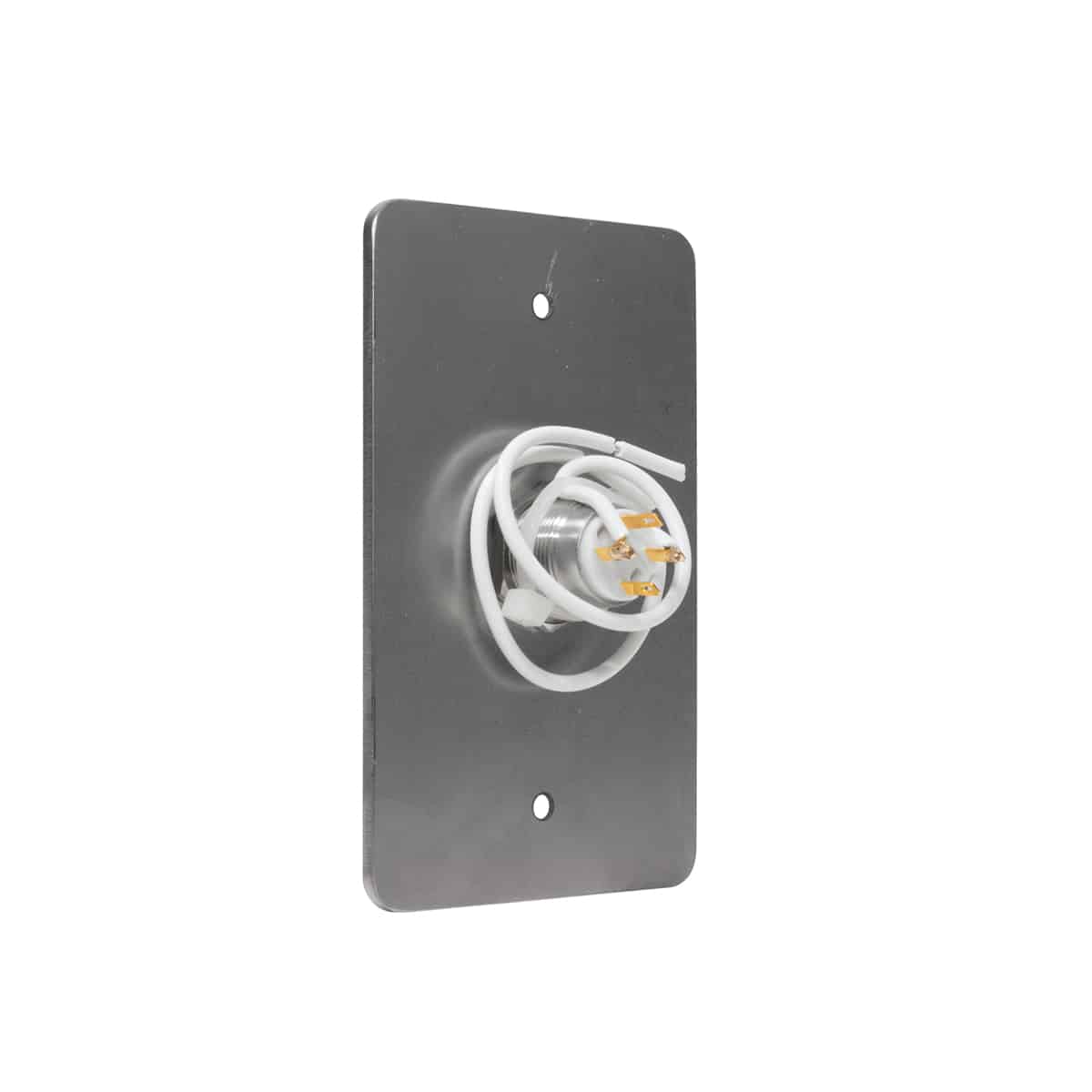

Pigtail connections
Wall Plate: Heavy duty 11-gauge stainless steel with brushed finish
Size: 1-gang
4.5 in. x 2.75 in. x 1.25 in.

Spec Sheet: 1939-CSV

Made in the U.S.A. with global components

The vandal-resistant call switch shall be Lowell model CSV-M, which shall be a single pole, single throw (SPST) momentary (normally open) switch with a rating of 2A 48VDC. It shall be mounted in a 1-gang 11-gauge stainless steel wall plate with brushed finish. The plate shall feature a red mushroom push button switch. It shall include vandal-resistant screws and driver bit.

P1X: Surface-mount wall box, 1-gang
