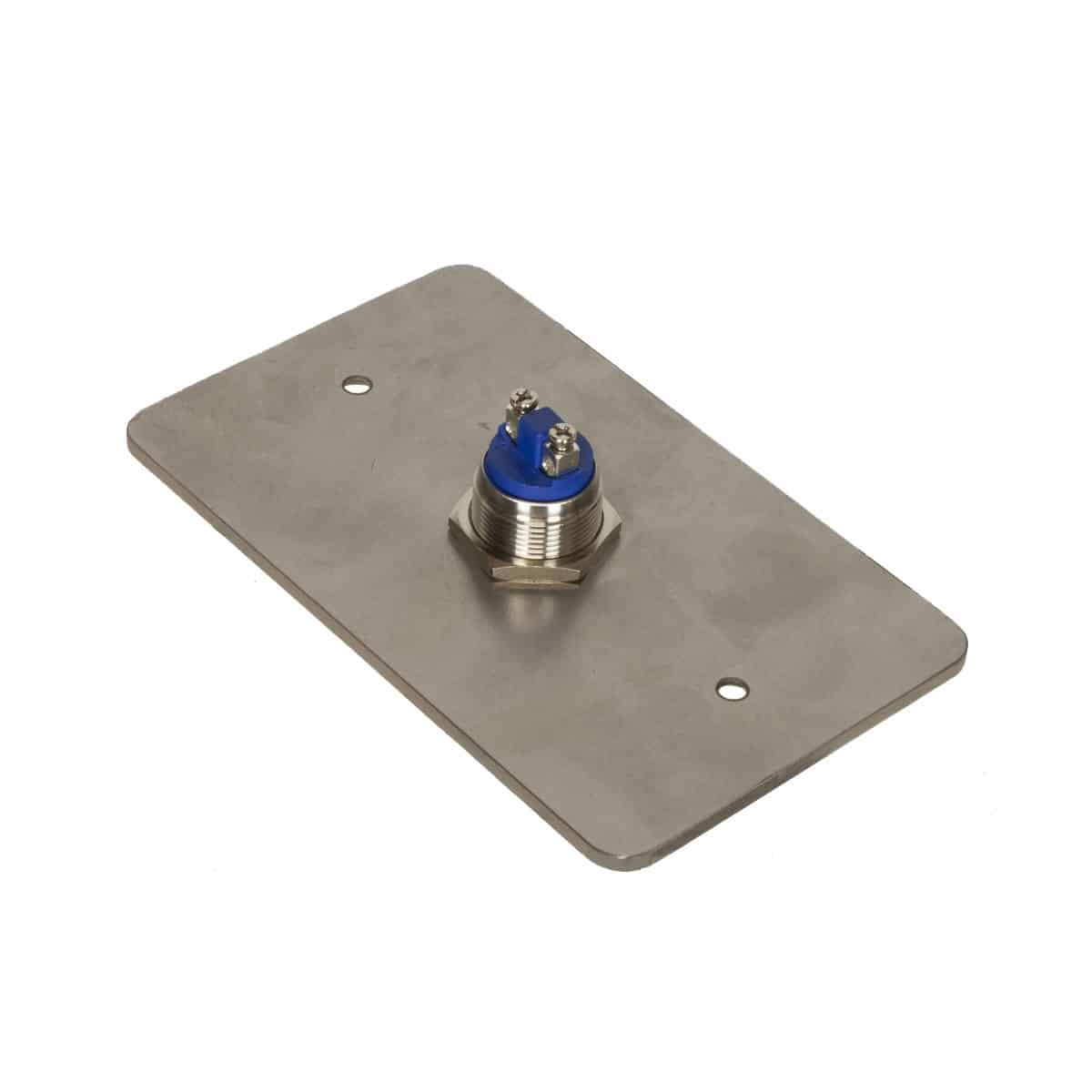

Vandal resistant call switch with standard silver button

Standard-button Call Switch, Vandal-resistant

Name: Standard-button Call Switch, Vandal-resistant
SKU: CSV
Price: 73.58 USD
Availability: InStock

1-gang

$73.58 MSRP

Model CSV

Vandal-resistant call switch for intercom systems--general purpose signaling and switching--features a silver push button and heavy duty stainless steel wall plate.

Add to Favorites

Compare

SPST switch
Rating: 2A 48VDC
Function: Momentary (normally open)
Push button: Silver
Screw terminal connections
Wall Plate: Heavy duty 11-gauge stainless steel with brushed finish
Size: 1-gang
4.5 in. x 2.75 in. x 1.25 in.

Spec Sheet: 1939-CSV

Made in the U.S.A. with global components

The vandal-resistant call switch shall be Lowell #CSV, which shall be a single pole, single throw (SPST) momentary (normally open) switch with a rating of 2A 48VDC. It shall be mounted in a 1-gang 11-gauge stainless steel wall plate with brushed finish. The plate shall feature a silver push button switch. It shall feature screw terminals and include vandal-resistant screws and driver bit.

P1X: Surface-mount wall box, 1-gang
