Six-source Program Selector Switch

Name: Six-source Program Selector Switch
SKU: CS6-DSB
Price: 84.70 USD
Availability: InStock

With wall plate

$84.70 MSRP

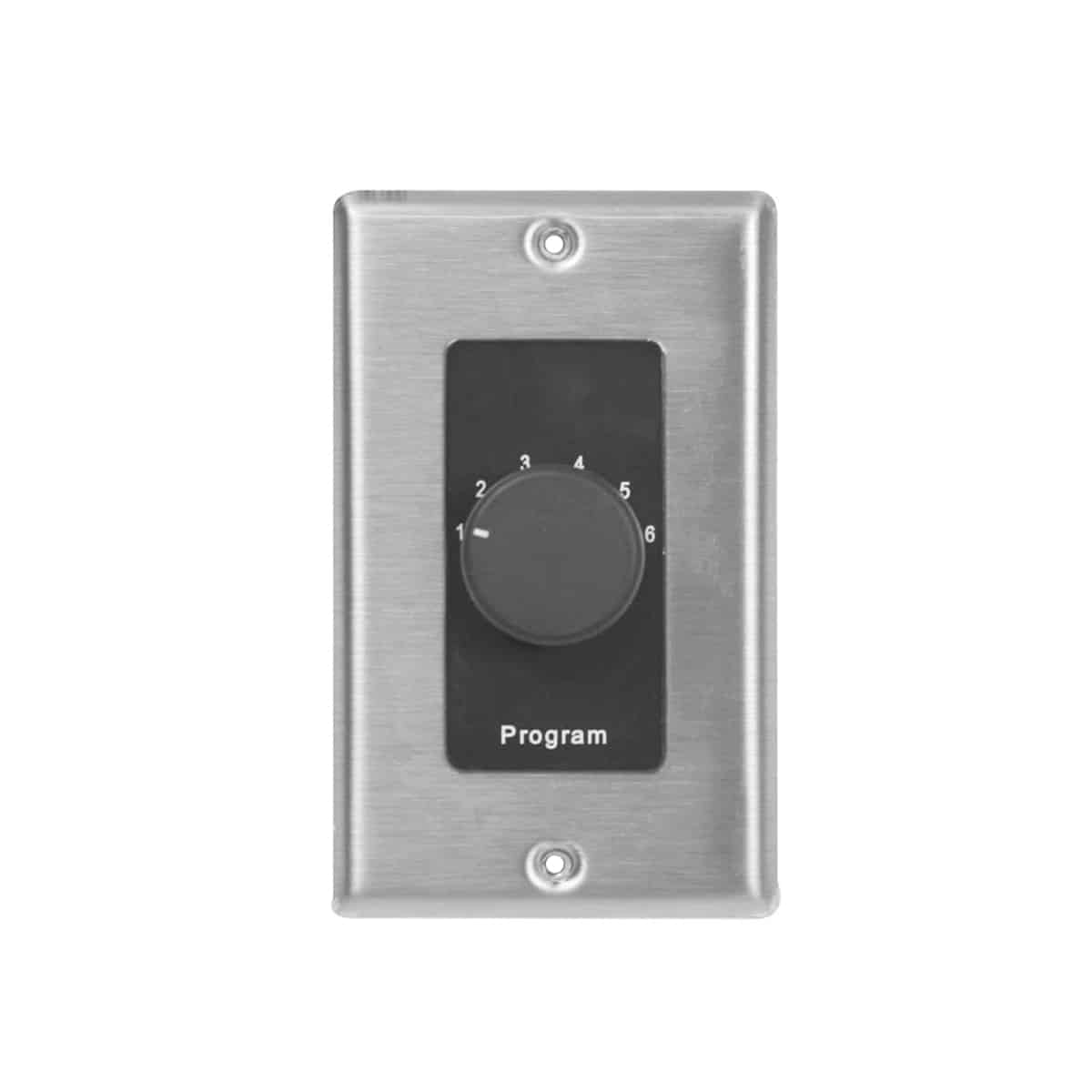

Model CS6-DSB Six-source program selector switch with 1-gang wall plate.

Add to Favorites

Compare

Program Sources:
Control: Rotary knob
Termination: Pigtails
Input: Screw terminal
Wall Plate: Decorator style, stainless steel and black
Fits standard E.O. box
May be used with a 70V/25V volume control

Spec Sheet: 2033-CS6DSB

Made in the U.S.A. with global components

The source selection device shall be Lowell Model No. CS6-DSB which shall be a six input selector switch in a 1-gang decorator style wall plate finished in stainless steel and black. It shall include a rotary knob and mounting screws. The selector switch shall be two-pole rotary style for isolation between lines. Wiring connections shall be to screw terminals allowing the unit to be field connected as an independent selector for use with a volume control. The wall plate shall measure 2.75 in. x 4.5 in. x 1 in. for installation into a standard gang size E.O. box (not included).

P1X: Surface-mount wall box, 1-gang
