Recessed Enclosure for 8 inch driver

Name: Recessed Enclosure for 8 inch driver
SKU: CP87
Price: 52.36 USD
Availability: InStock

For screw-mount grille

$52.36 MSRP

Model CP87

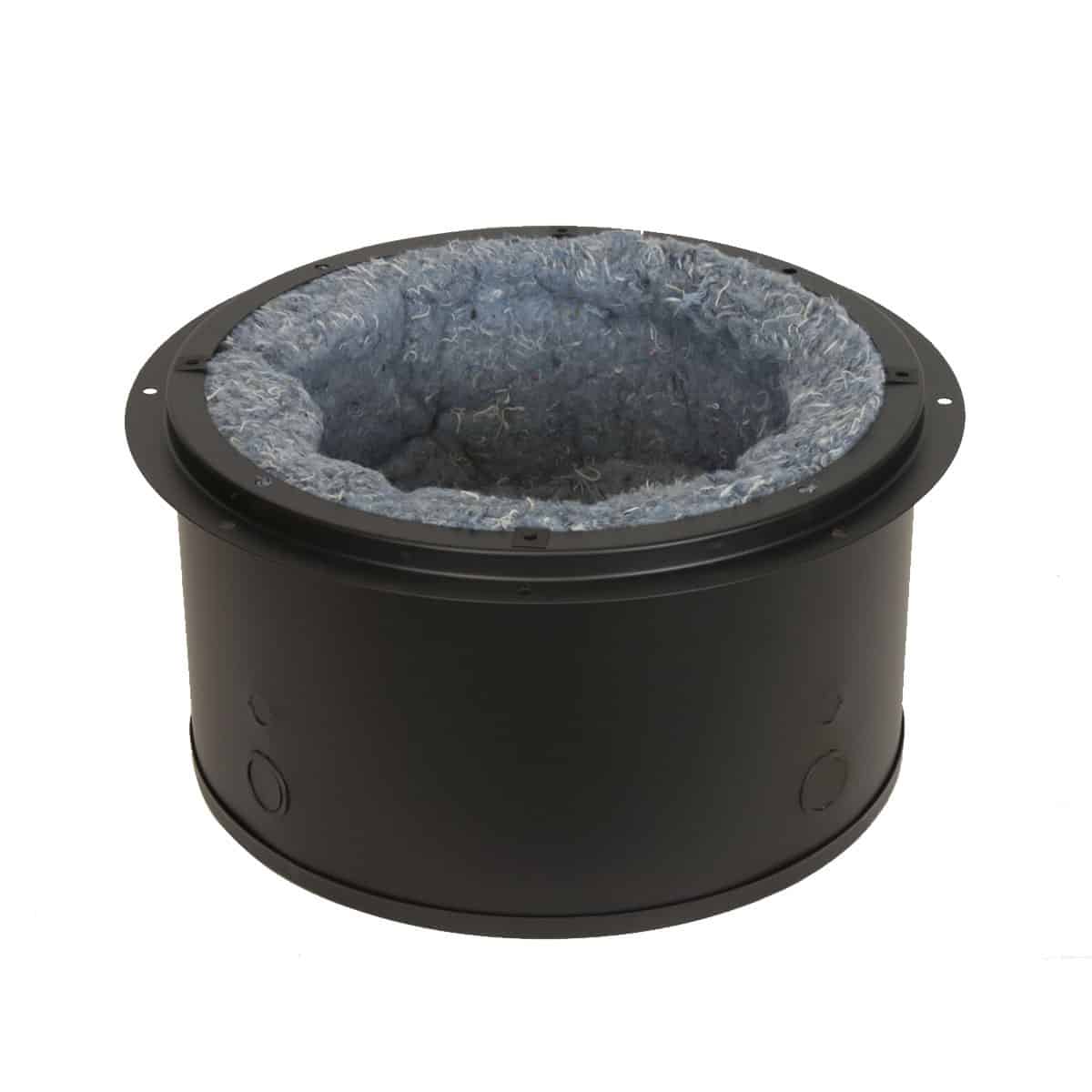

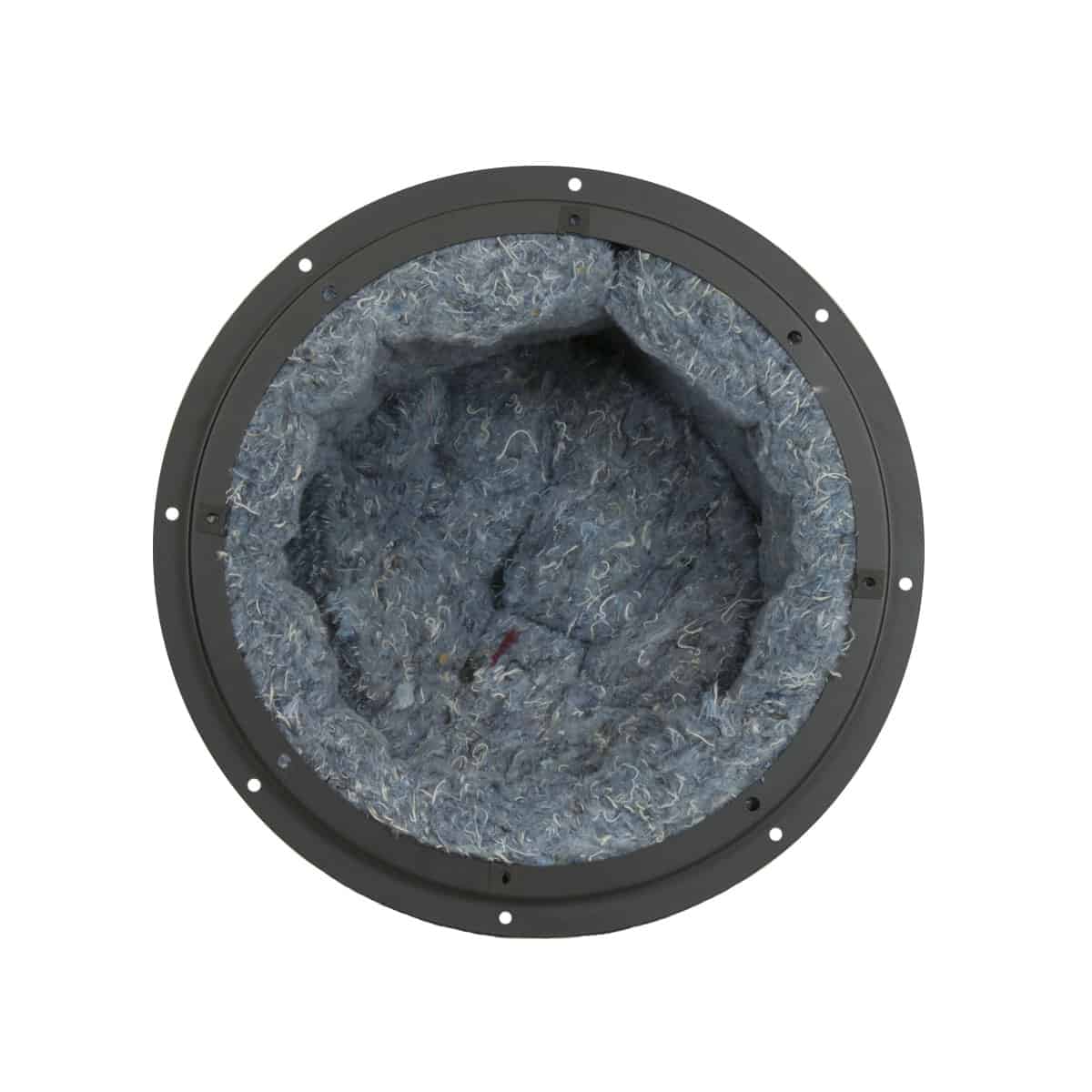

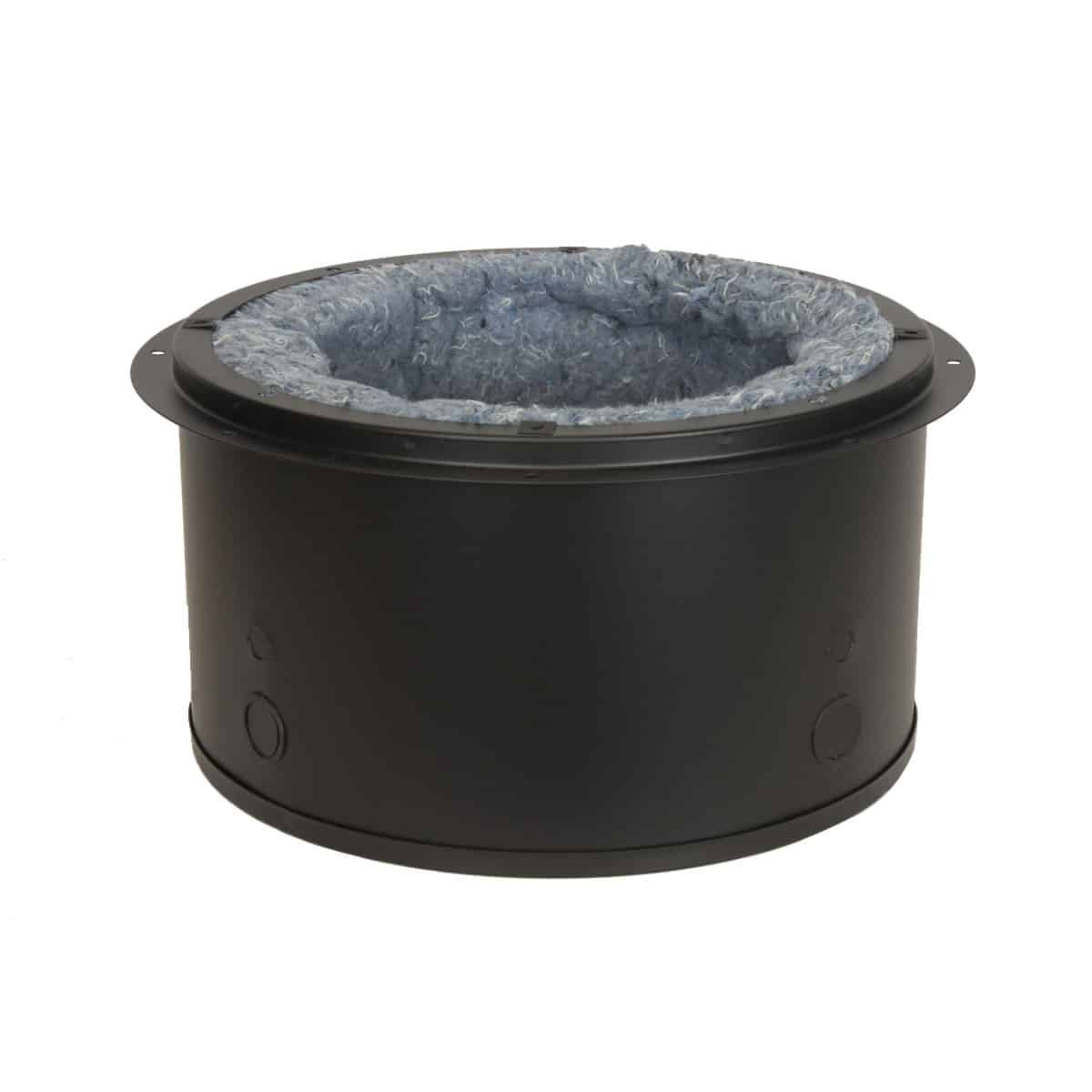

Backbox with extended grille mounting flange for recessed installation is ideal for new construction where the flange can protect the opening from plaster, poured concrete or sheetrock. It can also be used in new or existing construction when installed in suspended tile ceilings.

Add to Favorites

Compare

Material: Welded heavy gauge unitized steel
Diameter: 12.00 in.
Depth: 6.69 in.
Volume: 0.438 cu.ft.
Acoustic Treatment: 1.5″ thick batting
Mounting Aids: Knockouts, clips
For Grille Type: Screw-mount
Flange Type: Extended lip

Spec Sheet: 1281-CP87

Made in U.S.A.
Certified U.S. steel

The recessed enclosure for 8″ speakers shall be Lowell model CP87, which shall be welded unitized 22-gauge steel with black powder epoxy finish. It shall have a 12″ diameter with 6.69″ depth and feature an extended grille mounting flange, four combination knockouts (1/2″-3/4″) for conduit, four knockouts (1/2″) for wire, and 1.5″ thick acoustic lining. It shall be made in the U.S.A. with certified U.S. steel.

Screw-Mount Grilles: A8-AW, CS-8H, LO8-P, RS8-AW, WB-8
Drivers: 8 inch
Tile Bridges: LBS8-CP
