Recessed Enclosure for 8 inch driver

Name: Recessed Enclosure for 8 inch driver
SKU: CP84
Price: 37.08 USD
Availability: InStock

For screw-mount grille

$37.08 MSRP

Model CP84

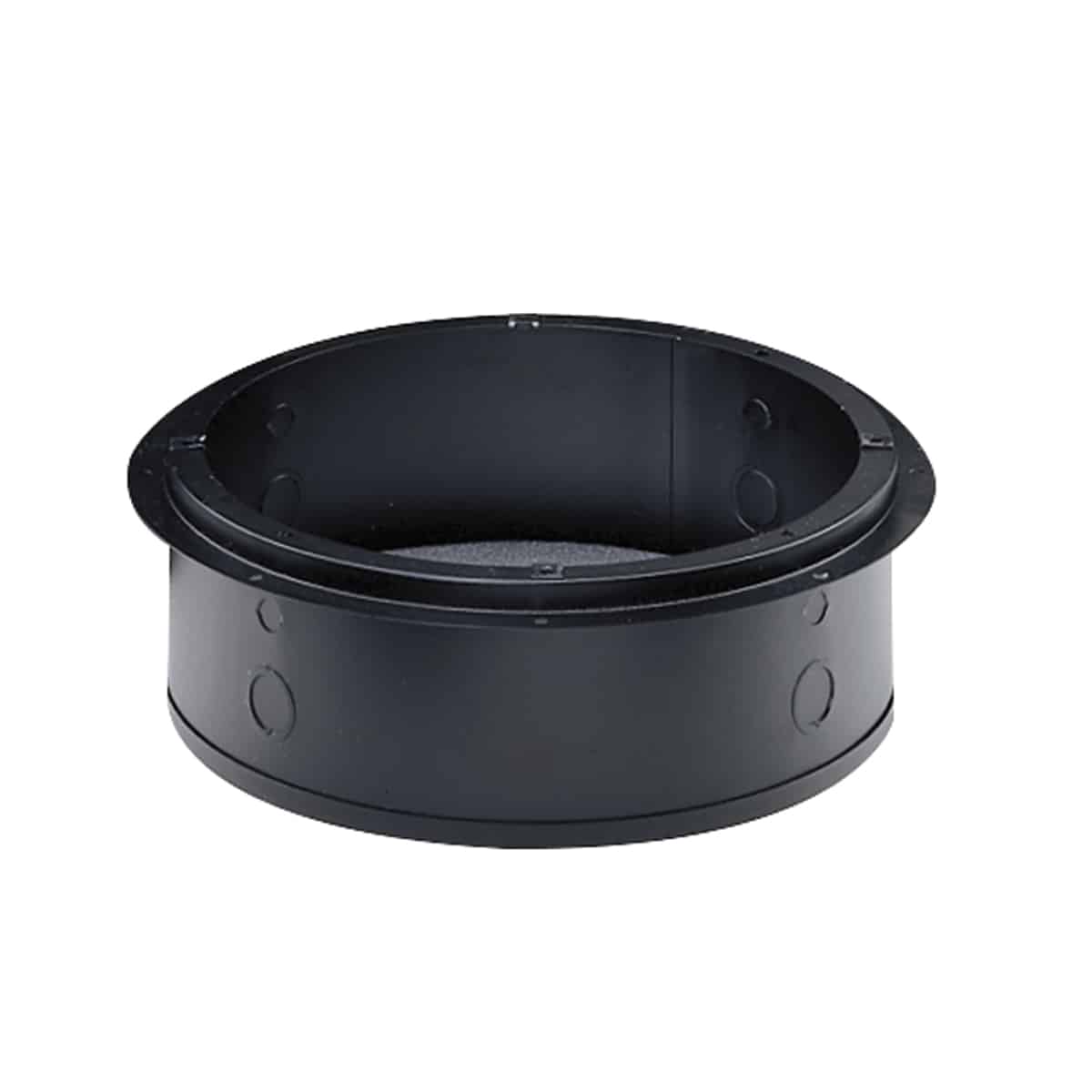

Steel speaker enclosure with extended grille mounting flange is made for recessed installation, ideally new construction where the flange can protect the opening from plaster, poured concrete or sheetrock. It can also be used in existing construction, suspended tile ceilings. The enclosure is designed to accommodate 8 inch drivers and screw-mount grilles.

Add to Favorites

Compare

Material: Welded heavy gauge unitized steel
Finish: Black
Diameter: 12.00 in.
Depth: 4.06 in.
Volume: 0.266 cu.ft.
Acoustic Treatment: Foam pad
Mounting Aids: Knockouts, clips
For Grille Type: Screw-mount
Flange Type: Extended lip

Spec Sheet: 1278-CP84

Made in U.S.A.
Certified U.S. steel

The recessed enclosure for 8″ speakers shall be Lowell model CP84, which shall be welded unitized 22-gauge steel with black powder epoxy finish. Dimensions shall be 12″ diameter and 4.06″ depth. The enclosure shall feature an extended grille mounting flange, four combination knockouts (1/2″-3/4″) for conduit, four knockouts (1/2″) for wire, and a foam pad lining in the base. The enclosure shall be made in the U.S.A.

Screw-Mount Grilles: A8-AW, CS-8H, LO8-P, RS8-AW, WB-8
Drivers: 8 inch
Driver/Grille Assemblies: ULD-WB8-2T572, ULS-WB8-CT572
Tile Bridges: LBS8-CP
