Recessed Enclosure for 4 inch driver

Name: Recessed Enclosure for 4 inch driver
SKU: CP4
Price: 37.18 USD
Availability: InStock

For screw-mount grille

$37.18 MSRP

Model CP4

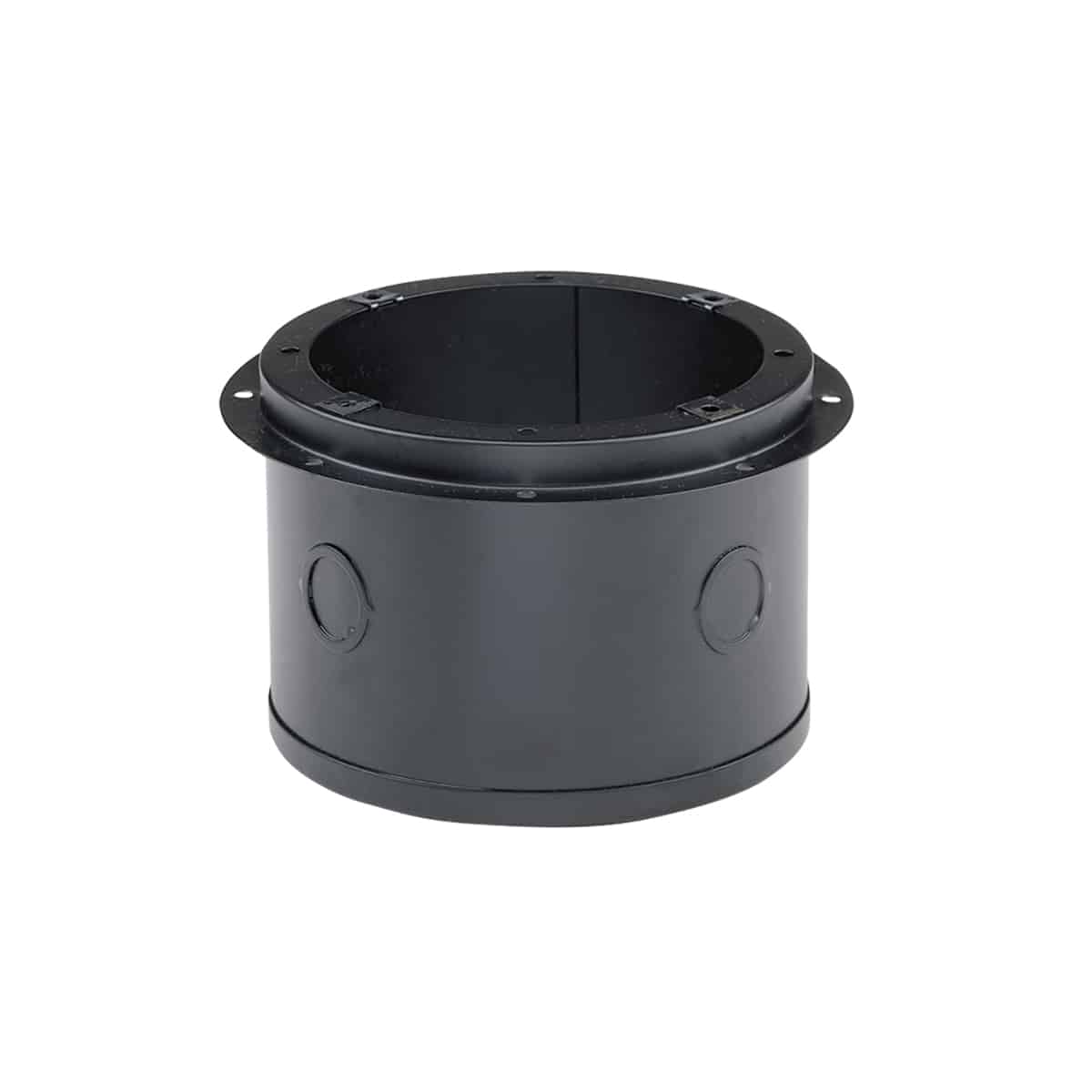

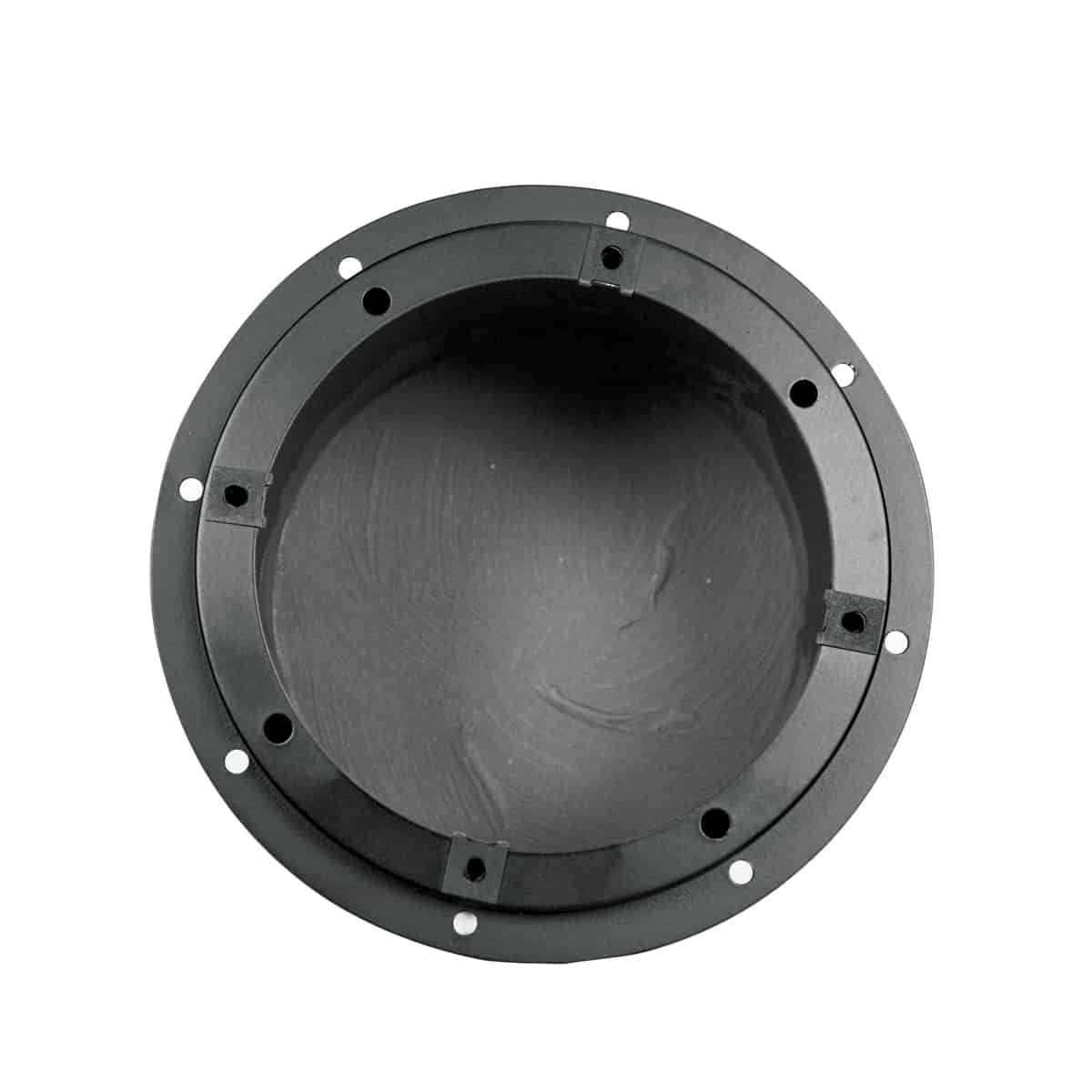

The recessed speaker enclosure for use with a 4 inch driver and screw-mount grille features an extended flange, making it ideal for new construction where the flange protects the opening from plaster, poured concrete or sheetrock. It can also be used in existing construction when installed in suspended tile ceilings, in which case a tile bridge or channel rails are recommended.

Add to Favorites

Compare

Material: Welded unitized 22-gauge steel
Finish: black
Diameter: 6.31 in.
Depth: 4.00 in.
Volume: 0.072 cu.ft.
Acoustical Treatment: Undercoated
Combination knockouts
For Grille Type: Screw-mount
Flange Type: Extended lip

Spec Sheet: 1277-CP4

Made in the U.S.A.
Certified U.S. steel

The recessed enclosure for a 4″ speaker shall be Lowell model CP4, which shall be 22-gauge steel with black powder epoxy finish and undercoated to reduce acoustic and metallic resonance. Dimensions shall be 6.31″ diameter x 4″ deep. The enclosure shall feature an extended flange and four (1/2″–3/4″) compound knockouts for conduit. It shall be made in the U.S.A.

Screw-Mount Grille: WB-4
Driver: 4 inch
Tile Bridge: LBS4-DX
