Steel Torsion Grille

Name: Steel Torsion Grille
SKU: CN-4M
Price: 73.20 USD
Availability: InStock

For 4 inch driver

$73.20 MSRP

Model CN-4M

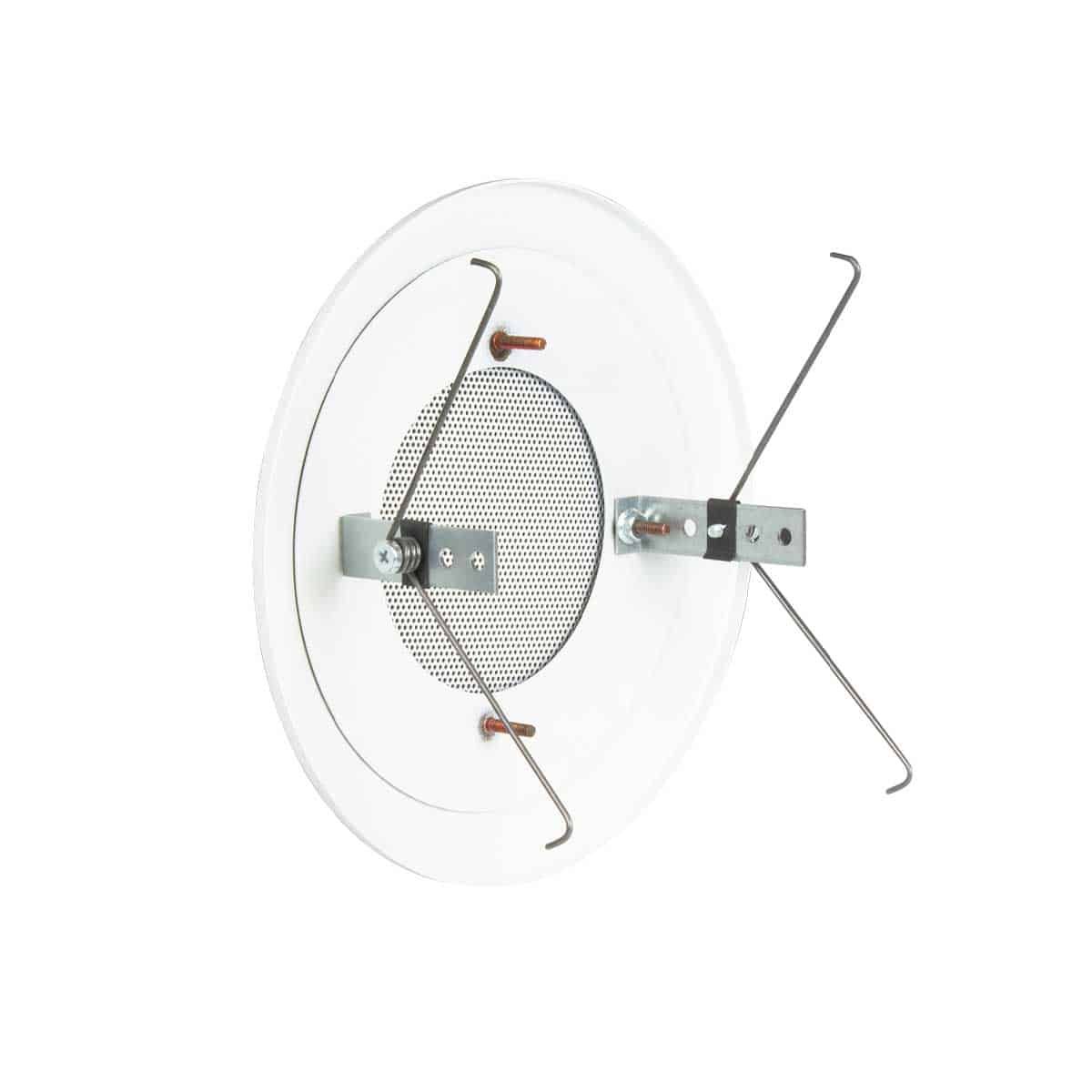

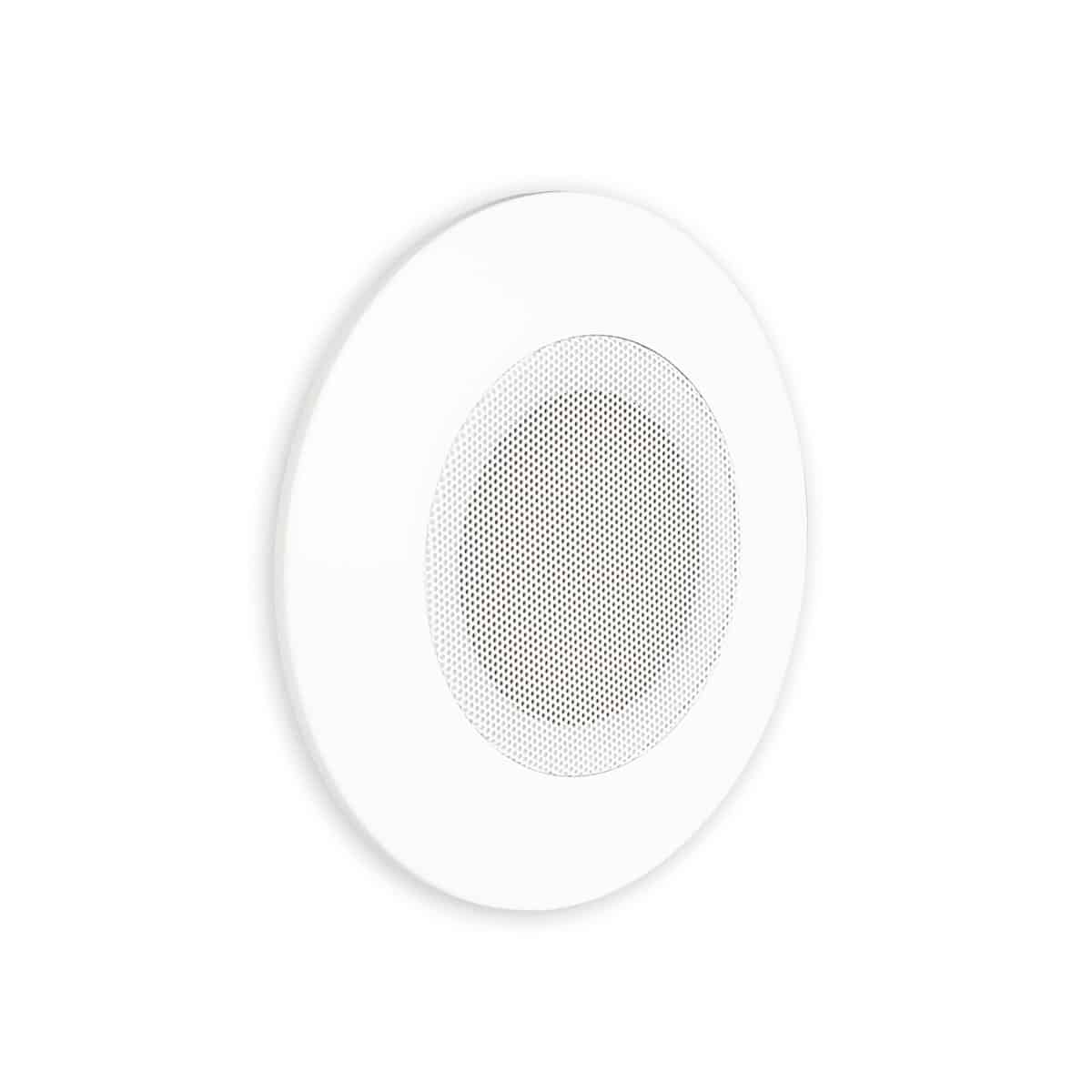

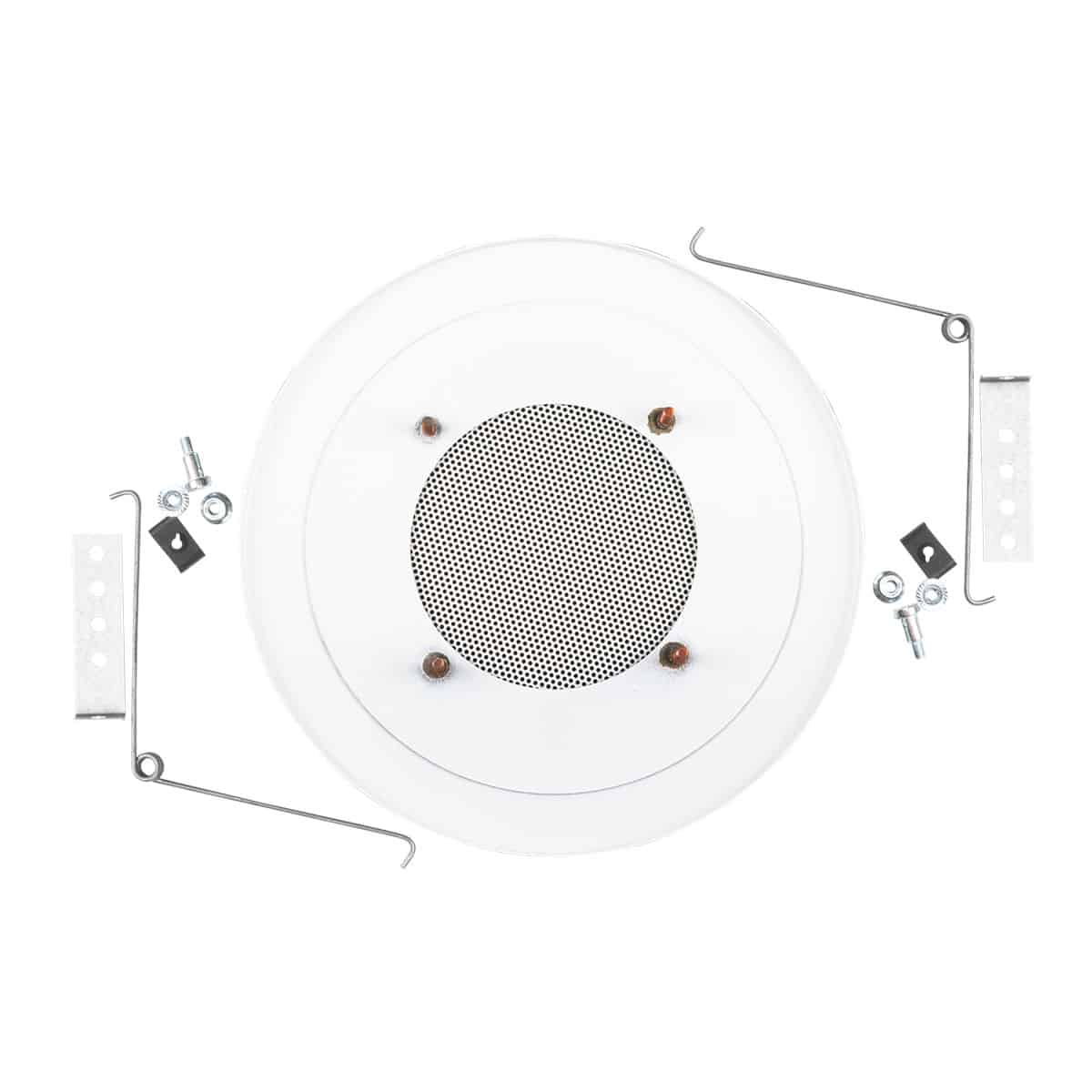

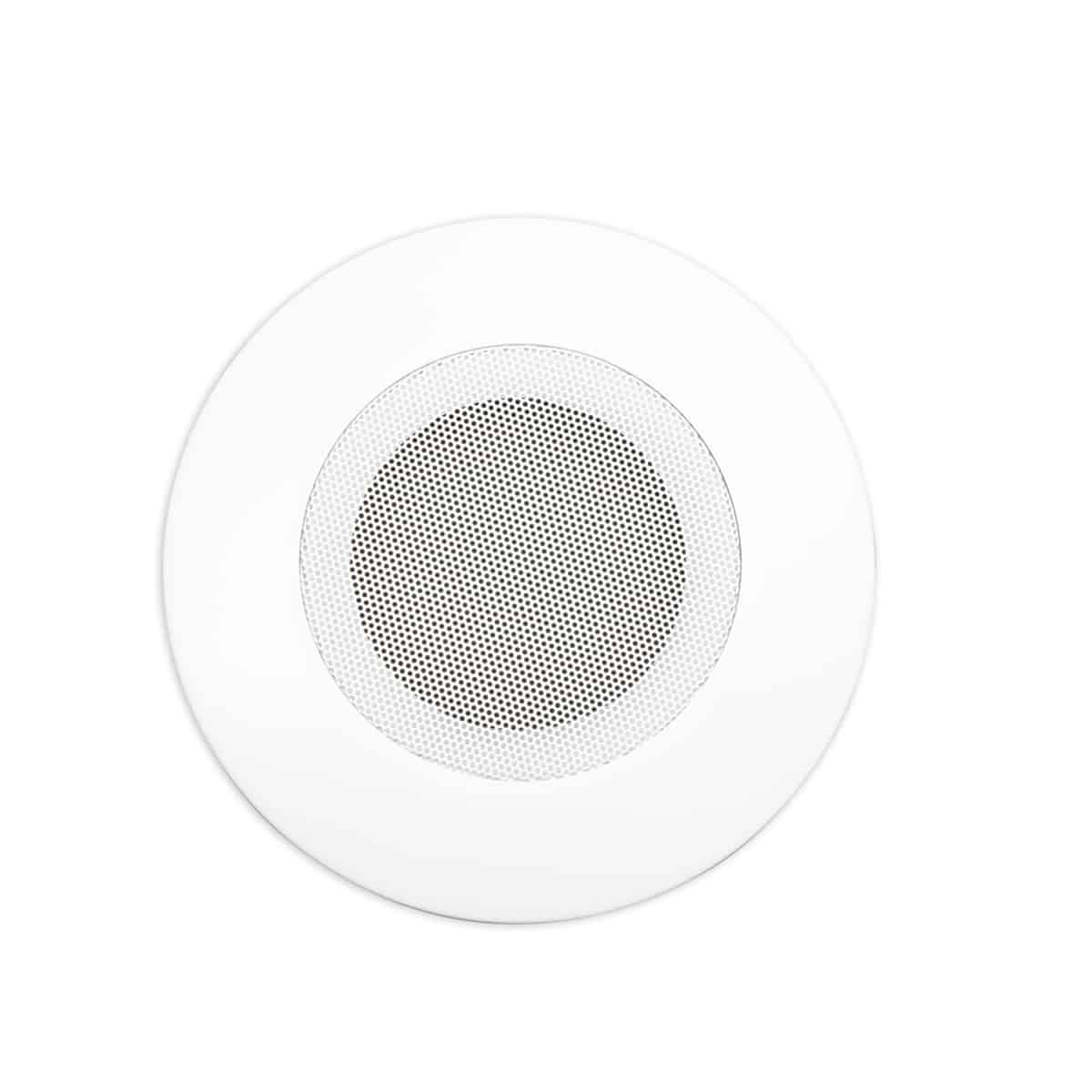

Torsion-mount grille with contoured edge for use with 4 inch driver (E.I.A. 5 inch) supports assemblies up to 3.5 lbs.

Add to Favorites

Compare

Style: Torsion
Material: 20-gauge steel outer ring with welded steel mesh center, inner ring with welded speaker studs
Finish: White
Size: 8.56 in. diameter
Mounting Projection: 0.63 in.
Mounting Provisions: Torsion bracket spring devices accommodate a variety of ceiling depths

Spec Sheet: 1645-CN4M
Instructions: Install-CNM+WBT

Made in the U.S.A.
Certified U.S. steel

The torsion speaker grille for 4 inch speaker drivers shall have no visible screws or hardware and shall be Lowell Model CN-4M. It shall be fabricated from 20-gauge steel with a welded steel mesh center and mount using torsion bracket/spring devices. The grille diameter shall be 8.56 in. with a shallow mounting projection of 0.63 in. The grille shall be finished in white powder epoxy. Model CN-4M shall include welded studs and nuts for mounting specified 4 in. (EIA 5 in.) speaker. It shall also include two torsion bracket/spring devices and installation accessories for mounting a speaker/grille assembly weighing up to 3.5 lbs. to specified Lowell backbox. The torsion/bracket method shall be adjustable for varying ceiling depths.

Driver (4 in.): 4A30, JR410
Recessed Backbox: DX104-T
Tile-Bridge: LBS4-DX
