Vertical Cable Management Panels

Name: Vertical Cable Management Panels
SKU: CMV SERIES
Availability: InStock

$158.90 – $376.30 MSRP

CMV Series

Vertical cable managers in three widths.

Unit of Measure

Vertical-mount

Rack Units

Clear

Add to Cart Log in to place an order.

Add to materials list

Add to Favorites

Compare

Height: 21.00–77.00 in. (12-44U)

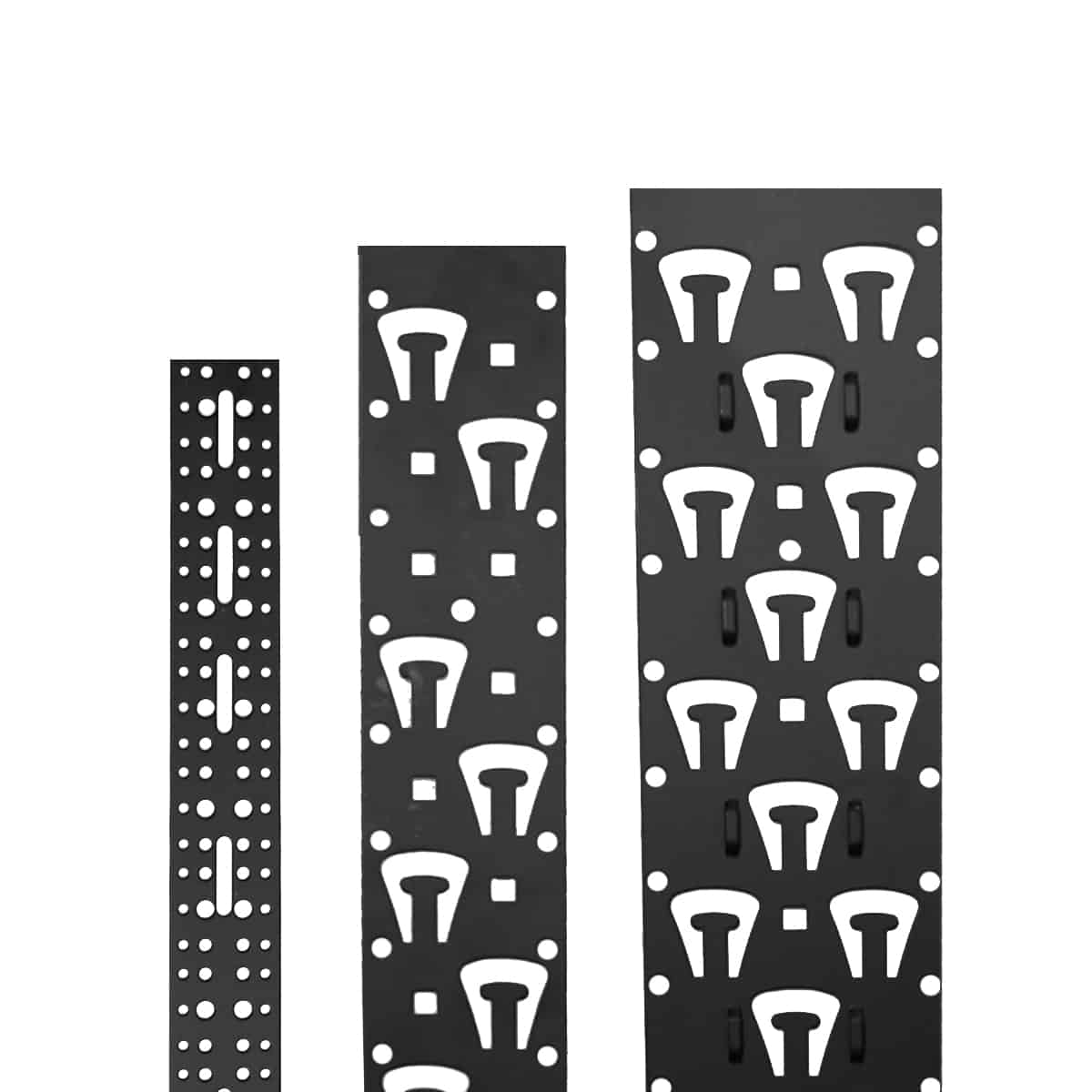

Width: 2.00, 3.25 or 4.75 in.

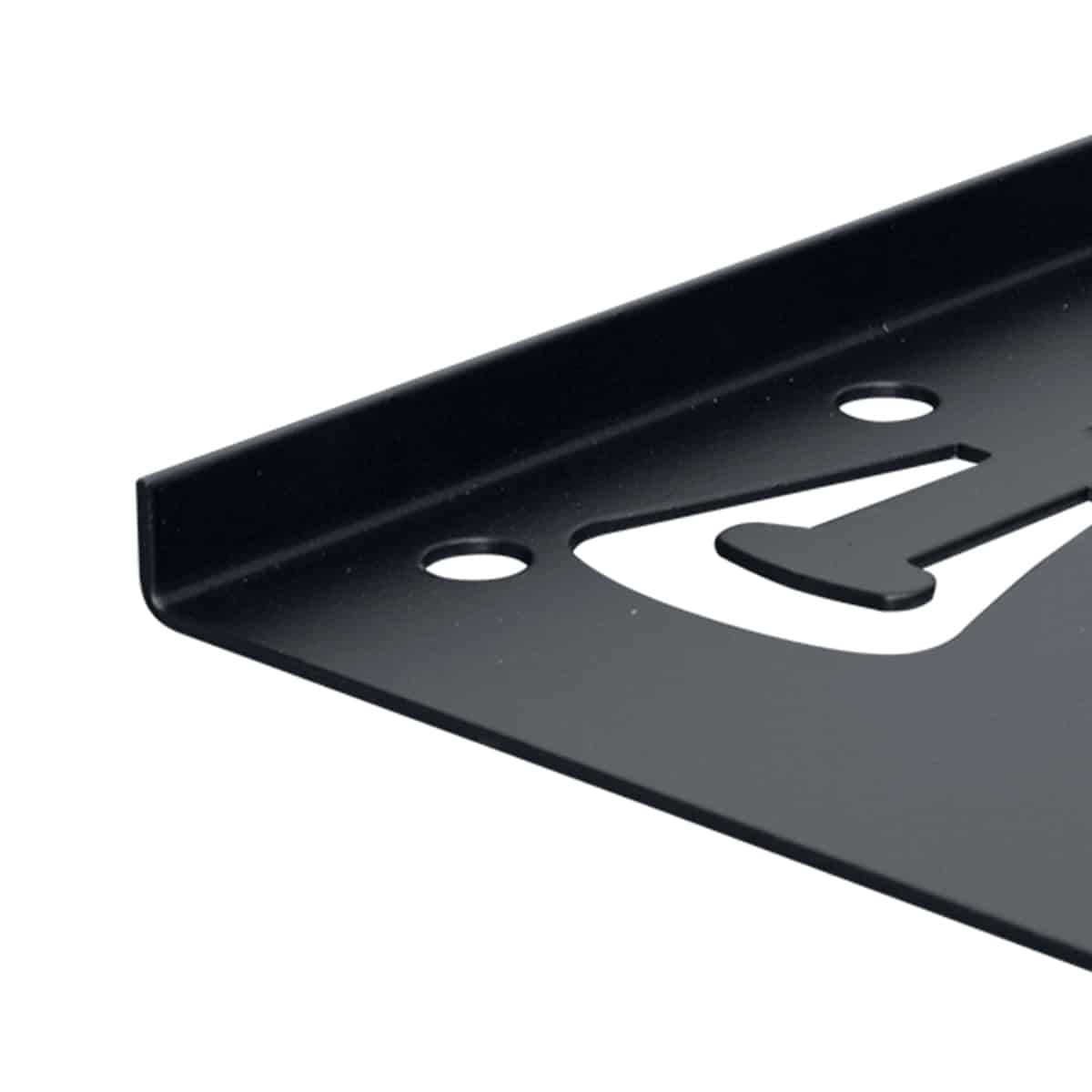

Material: Steel (11-gauge for 2.00 in. wide panels, 16-gauge with flanges for others)
Finish: Smooth black

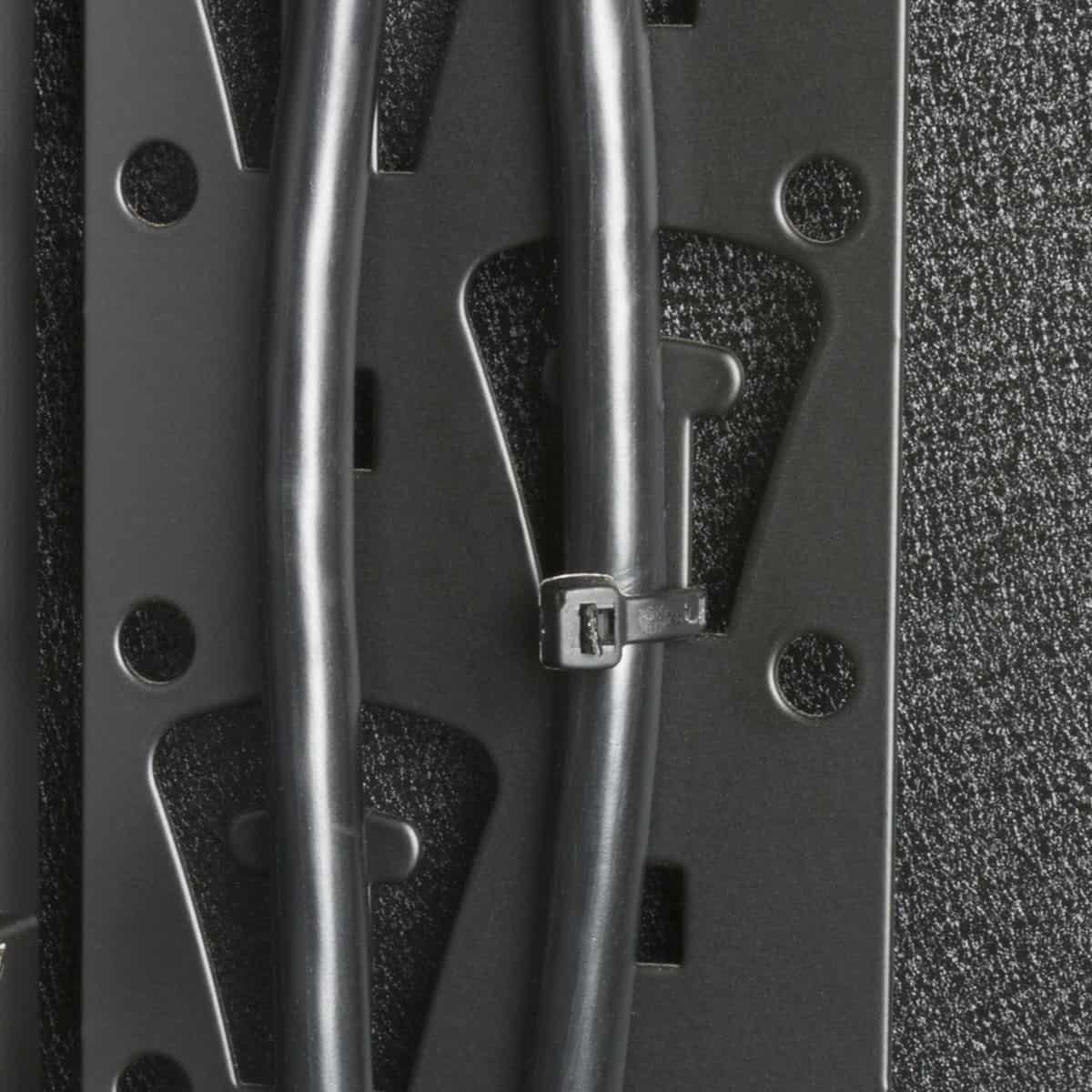

Multiple slots and/or tie-off points
Sold in packs of six

Spec Sheet: 2084-CMV218
Spec Sheet: 2085-CMV235
Spec Sheet: 2086-CMV244
Spec Sheet: 2087-CMV312
Spec Sheet: 2088-CMV324
Spec Sheet: 2089-CMV335
Spec Sheet: 2090-CMV340
Spec Sheet: 2091-CMV344
Spec Sheet: 2092-CMV524
Spec Sheet: 2093-CMV535
Spec Sheet: 2094-CMV540
Spec Sheet: 2095-CMV544

Made in the U.S.A.
Certified U.S. steel

The vertical-mount cable manager shall be Lowell Model __________, which shall measure ____ in. wide x ___ in. high. It shall be formed from _____ (11-gauge, 16-gauge) steel and include slots for lacing wires and cables. It shall have a smooth black powder epoxy finish.

Mounting Brackets for open frame rack: PCMB-6
