Surface Enclosure for 8 inch driver

Name: Surface Enclosure for 8 inch driver
SKU: CB84-SGVP
Price: 69.50 USD
Availability: InStock

For vandal-resistant grille

$69.50 MSRP

Model CB84-SGVP

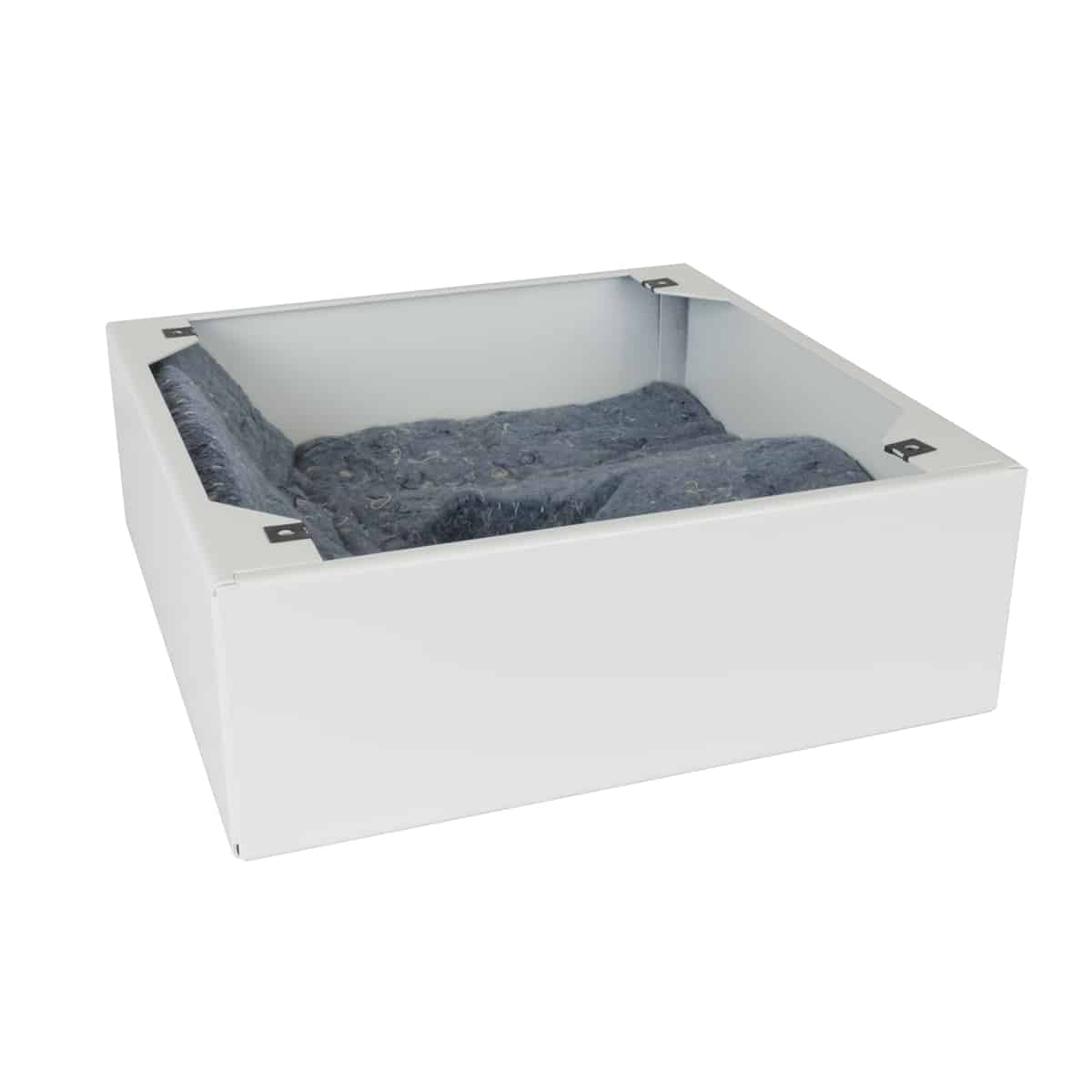

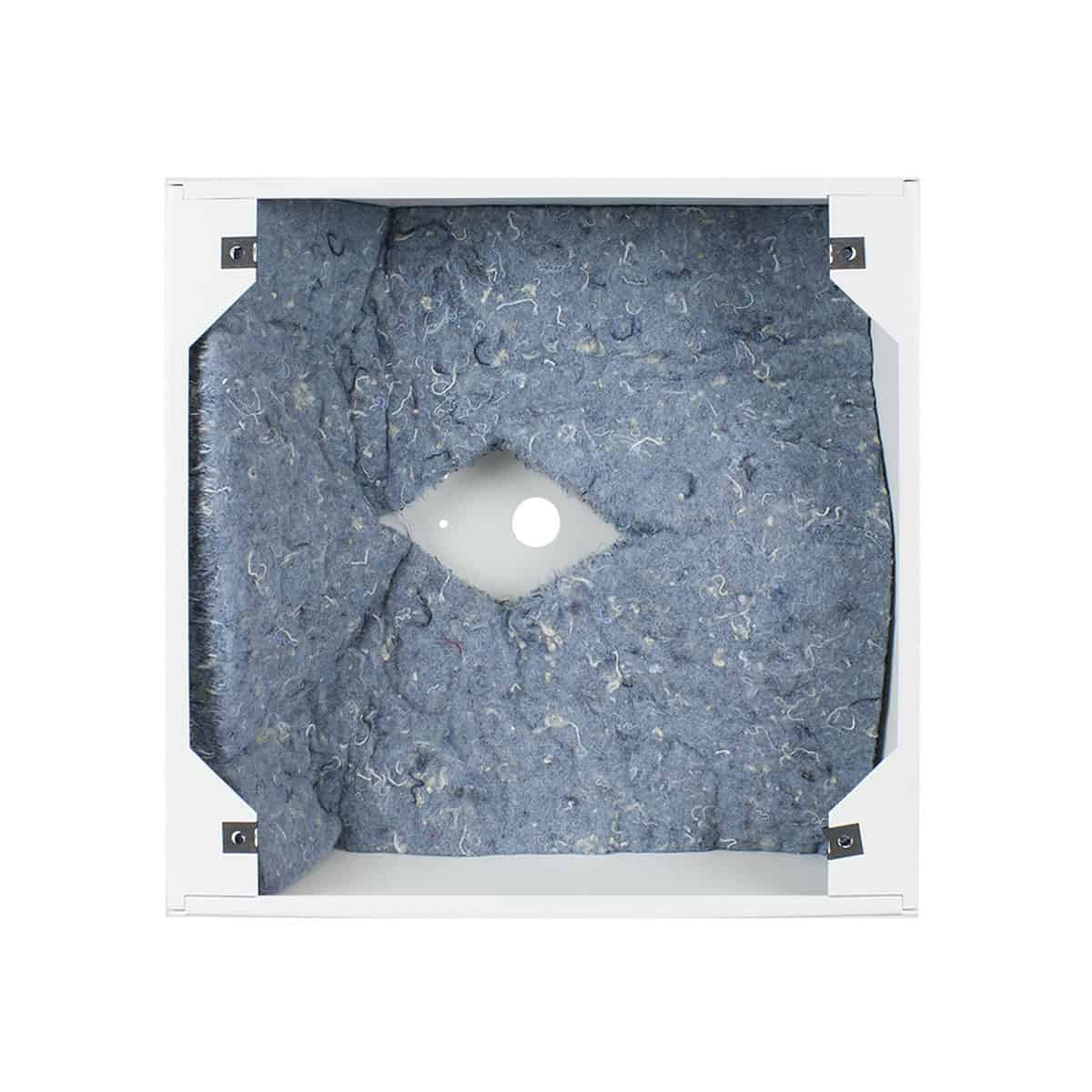

Surface-mount, heavy-duty steel backbox with white finish for ceiling or wall installation of an 8 inch speaker in vandal-prone areas or where tampering may be a concern. Note: This model has been discontinued and is available in limited quantities.

Add to Favorites

Compare

Material: 16-gauge steel, welded seams, white finish
Height: 11.50 in.
Width: 11.50 in.
Depth: 4.00 in.
Volume: 0.306 cu.ft.
Acoustical Treatment: 1.5 in. thick batting
For Grille Type: Screw-mount, tamper-resistant
Mounting Aids: U-clips, holes for a tamper-resistant grille, universal mounting pattern for E.O. box, 0.875 in. hole for conduit

Spec Sheet: 1340-CB84SGVP

Made in U.S.A.
Certified U.S. steel

The surface-mount backbox for 8 in. speakers shall be Lowell Model CB84-SGVP. The backbox shall be fabricated of 16- gauge steel and lined with 1.5 in. thick acoustic batting. The rear of the backbox shall include provisions to mount to a 4 in. square, 4 in. octagon, 2-gang or 1-gang E.O. box (not included). The backbox shall feature a 7/8 in. diameter hole for 0.5 in. conduit access. The backbox shall also include four mounting holes and 8-32 U-clips at flanged corners to accept tamper resistant grille Model ________ (order separately). The backbox shall measure 11.5 in. square x 4 in. deep and have a white powder epoxy finish.

Grille: SG-8VP
Driver (8 in.): 810
