Surface Enclosure for 8 inch driver

Name: Surface Enclosure for 8 inch driver
SKU: CB84-SG
Price: 59.56 USD
Availability: InStock

For screw-mount grille

$59.56 MSRP

Model CB84-SG

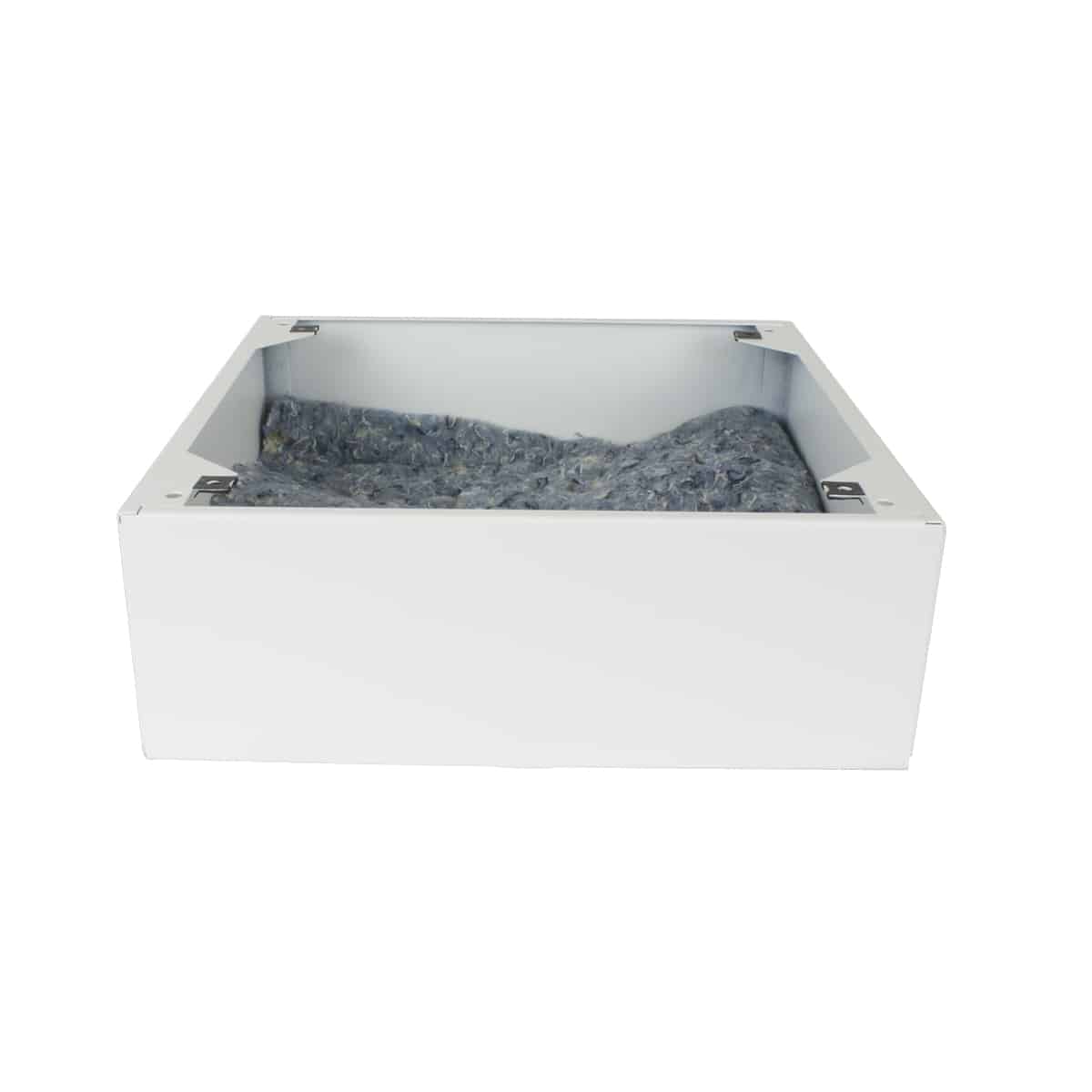

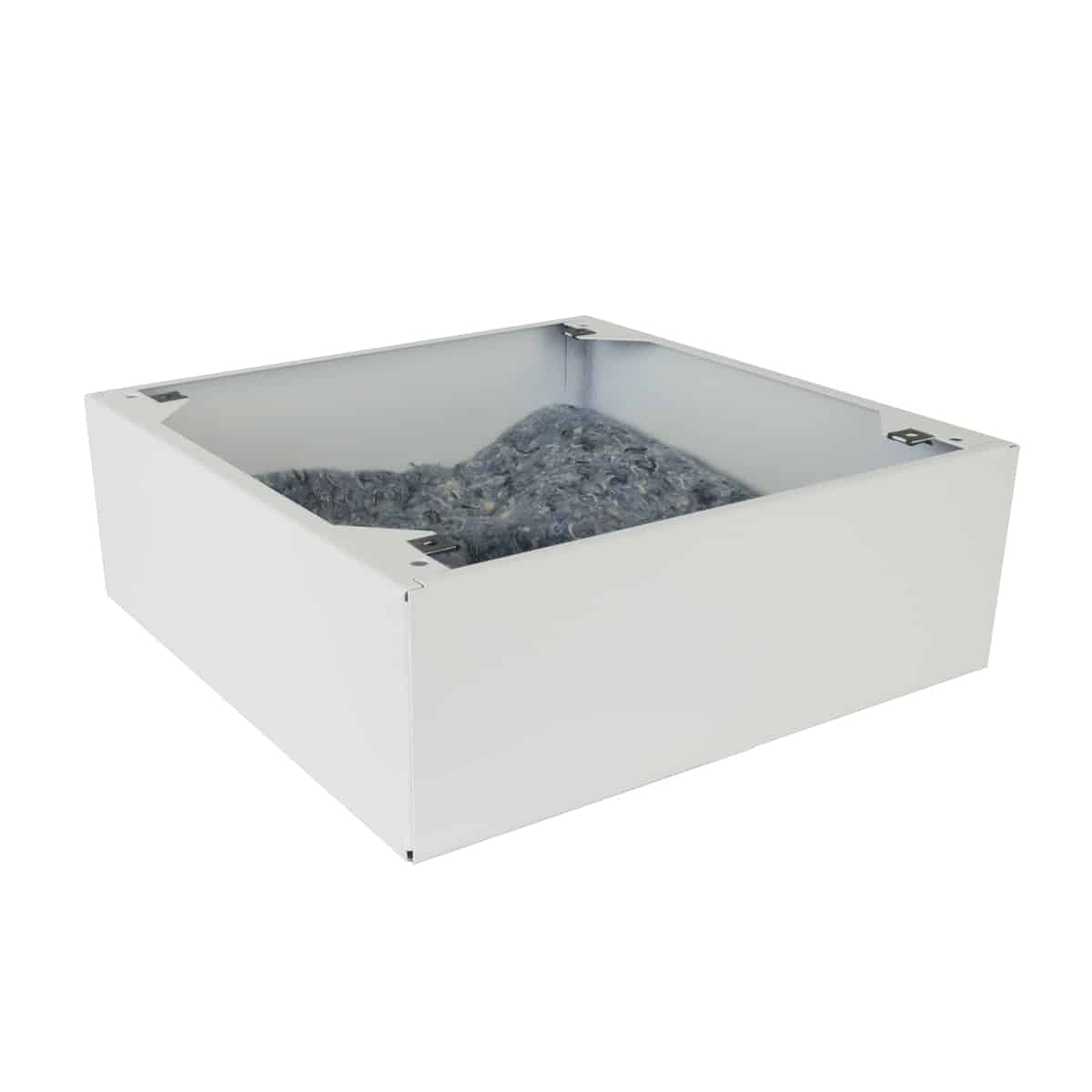

Surface-mount steel backbox with white powder epoxy finish is made in the USA with certified US steel. Note: This model has been discontinued and is available in limited quantities.

Add to Favorites

Compare

Material: 20-gauge steel, welded seams, white finish
Height: 11.50 in.
Width: 11.50 in.
Depth: 4.00 in.
Volume: 0.306 in.
Acoustical Treatment: 1.5 in. thick batting
For Grille Type: Screw-mount
Mounting Aids: U-clips, universal mounting pattern for E.O. box (not included), 0.375 in. hole with grommet for wire access, side knockouts (for 500 Series wire mold)
8 in. x 8 in. mounting dimensions

Spec Sheet: 1276-CB84SG

Made in U.S.A.
Certified U.S. steel

The surface-mount backbox shall be Lowell Model CB84-SG, which shall be fabricated of 20-gauge steel and lined with 1.5 in. acoustic batting. The rear shall include provisions to mount a 4 in. square, 4 in. octagon, 2-gang or 1-gang E.O. box (not included). The rear shall also have a 0.375 in. diameter hole with grommet for wire access. Two sides shall have knockouts for 500 Series wire mold. The backbox shall measure 11.5 in. square x 4 in. deep and have a white powder epoxy finish. It shall feature four holes and 8-32 U-clips at flanged corners to accept a screw-mount grille (order separately).

Grilles: SG-8, IC-105A
Drivers: 8 inch
Support Rails: SS24, SS30
