Bi-directional Wall or Ceiling Baffle

Name: Bi-directional Wall or Ceiling Baffle
SKU: BSG-8
Price: 217.00 USD
Availability: InStock

Steel enclosure, two grilles

$217.00 MSRP

Model BSG-8

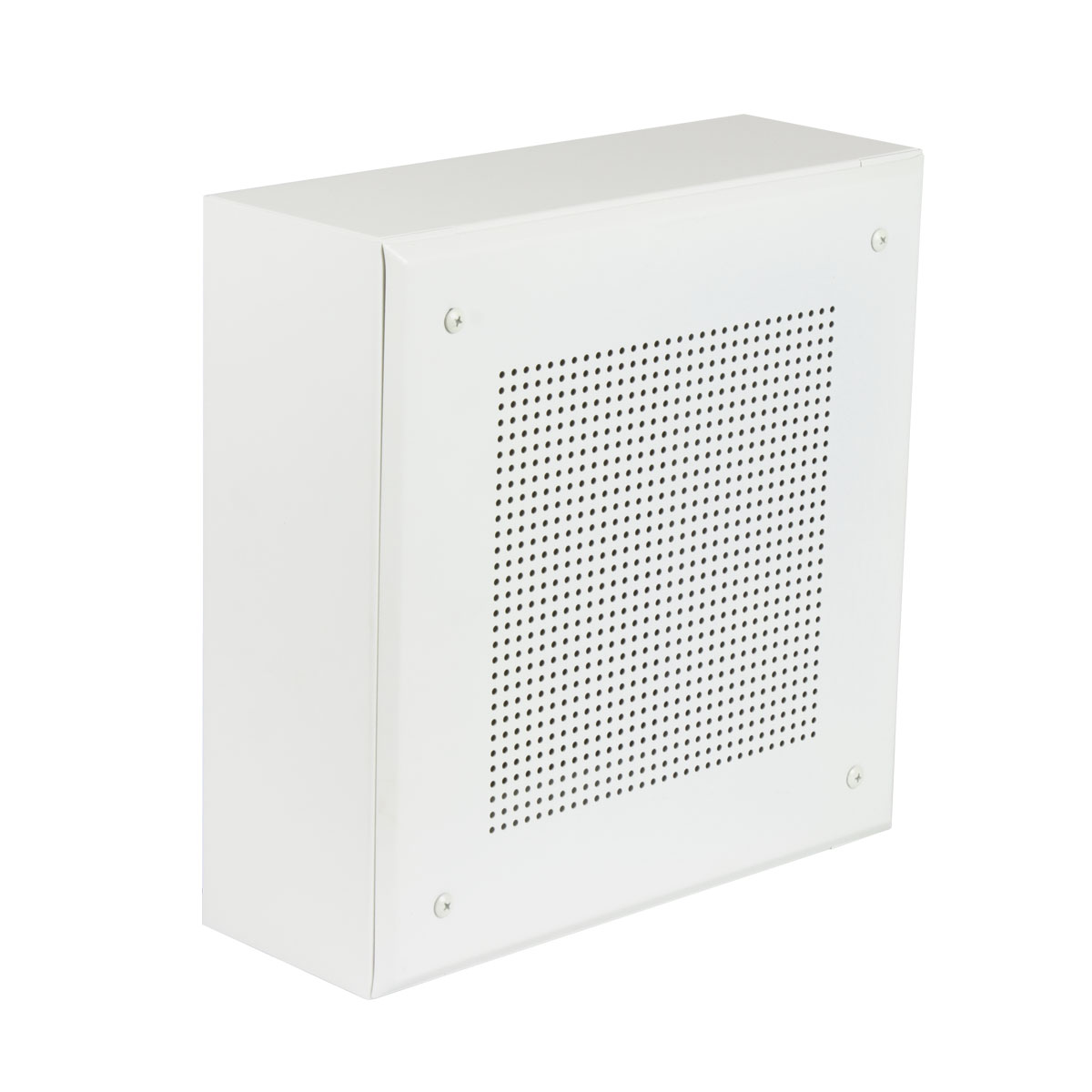

Bi-directional baffle for wall or ceiling installation of a single 8 inch driver in corridor or concourse area includes two grilles allowing sound to radiate from behind and in front of the driver for greater coverage.

Add to Favorites

Compare

Material: Precision formed 20-gauge steel with welded corners

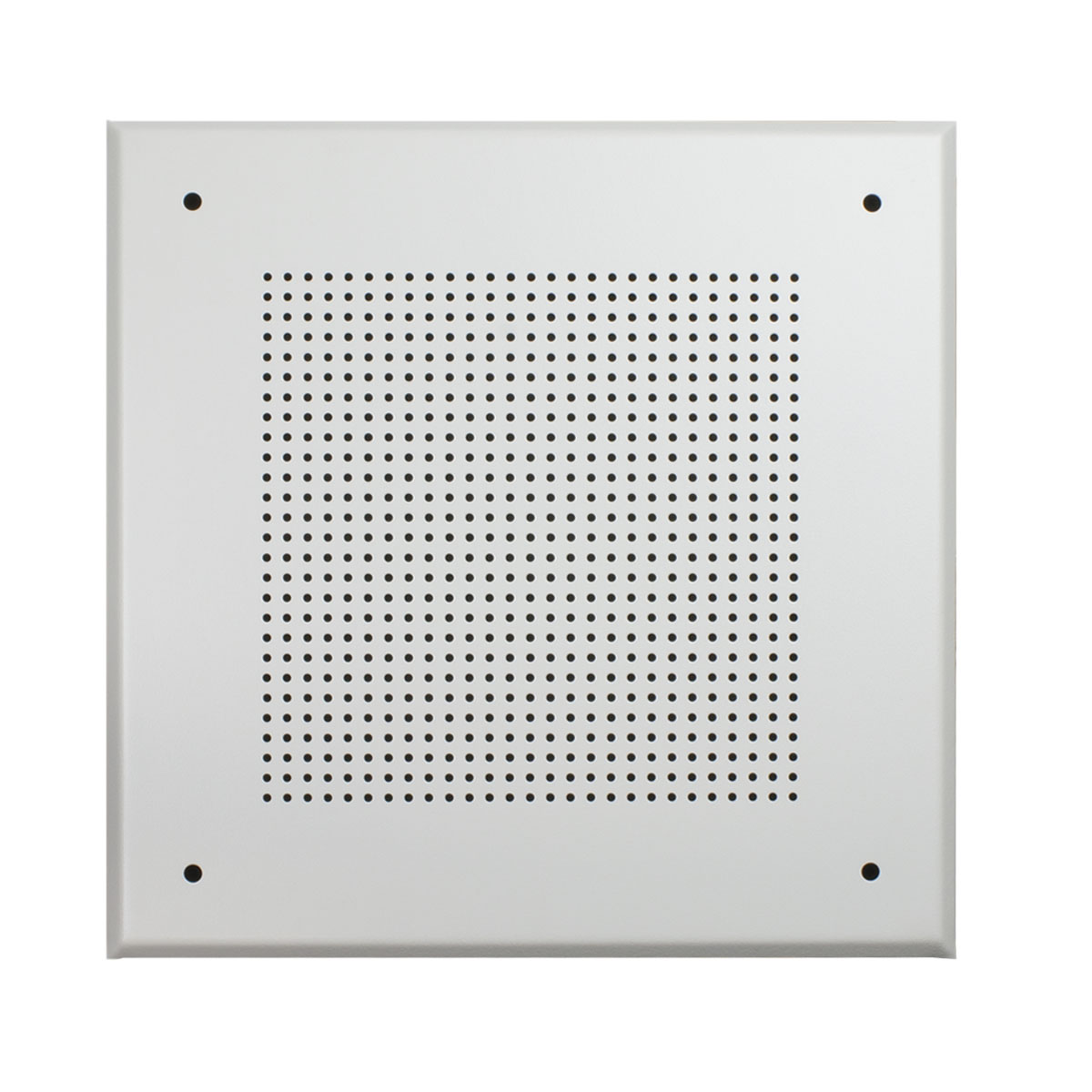

Grille: Two pre-mounted steel grilles with welded speaker studs
Finish: White
Size: 11.563 in. square x 4.250 in. deep

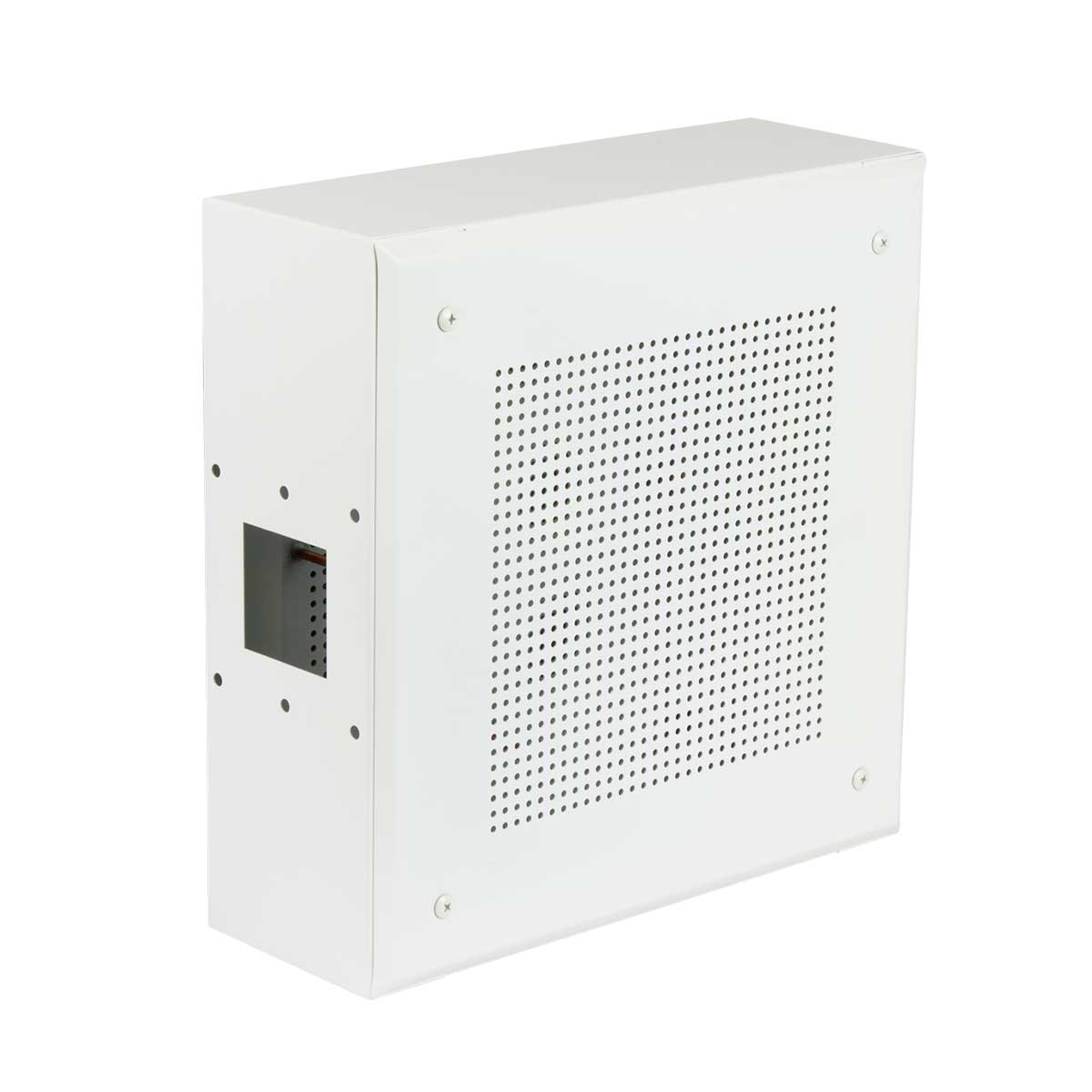

Mounting Aids: Side opening for wire access (2 in. square) and punched to flush mount a standard E.O. box (not included)

Spec Sheet: 1315-BSG8

Made in U.S.A.
Certified U.S. steel

The bi-directional baffle for wall or ceiling installation of a single 8 inch driver (not included) shall be Lowell Model No. BSG-8. The box shall be fabricated of 20-gauge steel (11.563 in. square x 4.250 in. projection) with two pre-mounted grilles, one front and one rear. The assembly shall have a white powder epoxy finish.

Drivers (8 in.): 8A50, 810, 8C10MRB, 8C10DVCA-2T72, CT830A
