Blind-mount Enclosure for 8 inch driver

Name: Blind-mount Enclosure for 8 inch driver
SKU: BME87
Price: 54.98 USD
Availability: InStock

For torsion or screw-mount grille

$54.98 MSRP

Model BME87

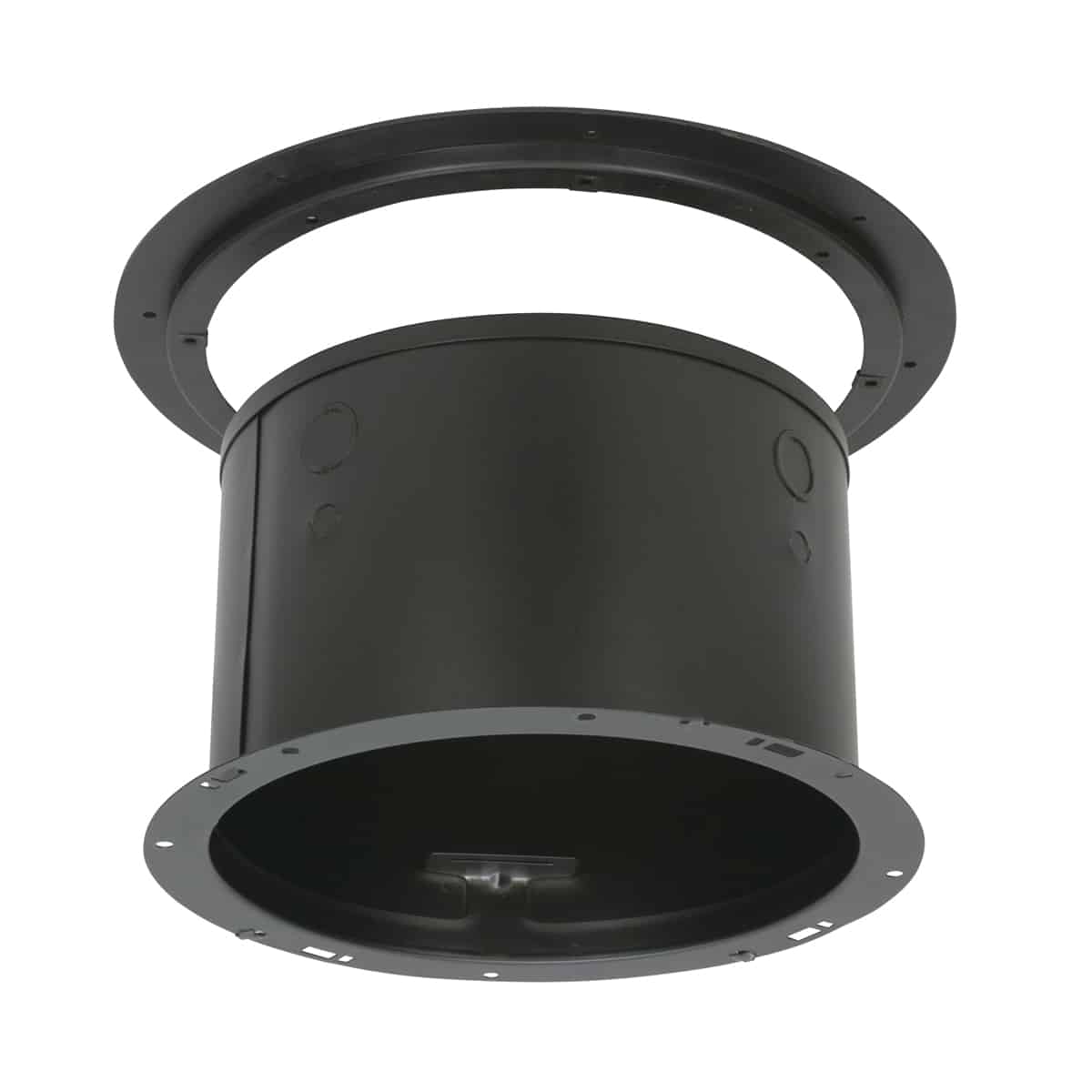

The BME87 kit includes a backbox and mounting ring that creates a blind-mount enclosure to be installed from beneath a drywall or plaster ceiling, when above-ceiling access is not available.

Add to Favorites

Compare

Material: Welded unitized heavy gauge steel
Finish: Black
Diameter: 10.06 in.
Depth: 6.69 in.
Volume: 0.308 cu.ft.
Acoustical Treatment: Foam pad
Mounting Aids: Knockouts, U-clips, torsion receptacles, ring with breakaway tab
For Grille Type: Screw-mount or torsion

Spec Sheet: BME87
Instructions: Install-BME
Before you cut, check space above the ceiling. Read the technical paper here.

Made in U.S.A.
Certified U.S. steel

The blind-mount enclosure for use with 8″ speakers shall be Lowell model BME87, which shall include a 22-gauge steel backbox with black powder epoxy finish and black plastic mounting ring with a breakaway groove to facilitate threading the 13.81″ diameter ring into a 12.125″ opening. Can diameter shall be 10.06″ and depth shall be 6.69″. It shall feature four combination 1/2″–3/4″ knockouts for conduit and four 1/2″ knockouts for wire. The unit shall have a foam pad to reduce acoustic and mechanical resonance. It shall include two welded brackets to mount a torsion grille and 8-32 tinnerman clips for a screw-mount grille. Grille and speaker shall be ordered separately.

Screw-Mount Grilles: A8-AW, CS-8H, LO8-P, RS8-AW, WB-8
Torsion Grilles: CN-8M, WB-8T
Drivers: 8 inch
