Frame with Grille (full-perf)

Name: Frame with Grille (full-perf)
SKU: AP-700
Price: 334.60 USD
Availability: InStock

Surface

$334.60 MSRP

Model AP-700

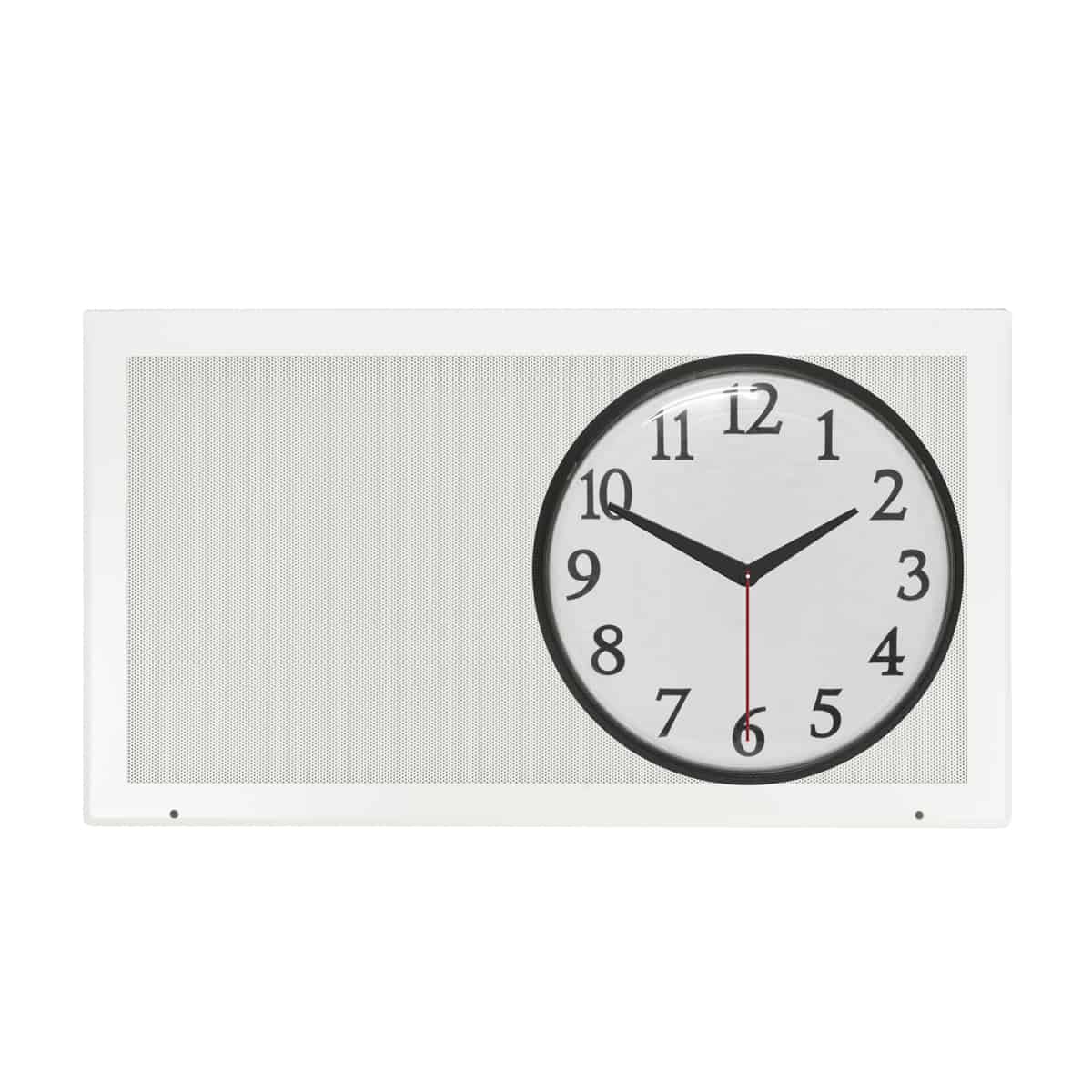

The center features a grille and frame designed to accept a paging speaker, a standard 12 inch analog clock and a surface-mount backbox. Mount horizontally or vertically. NOTE: Clock, speaker, and backbox are not included.

Add to Favorites

Compare

Two-piece (grille subplate) assembly. Subplate mounts to grille after bracket/speaker installation.

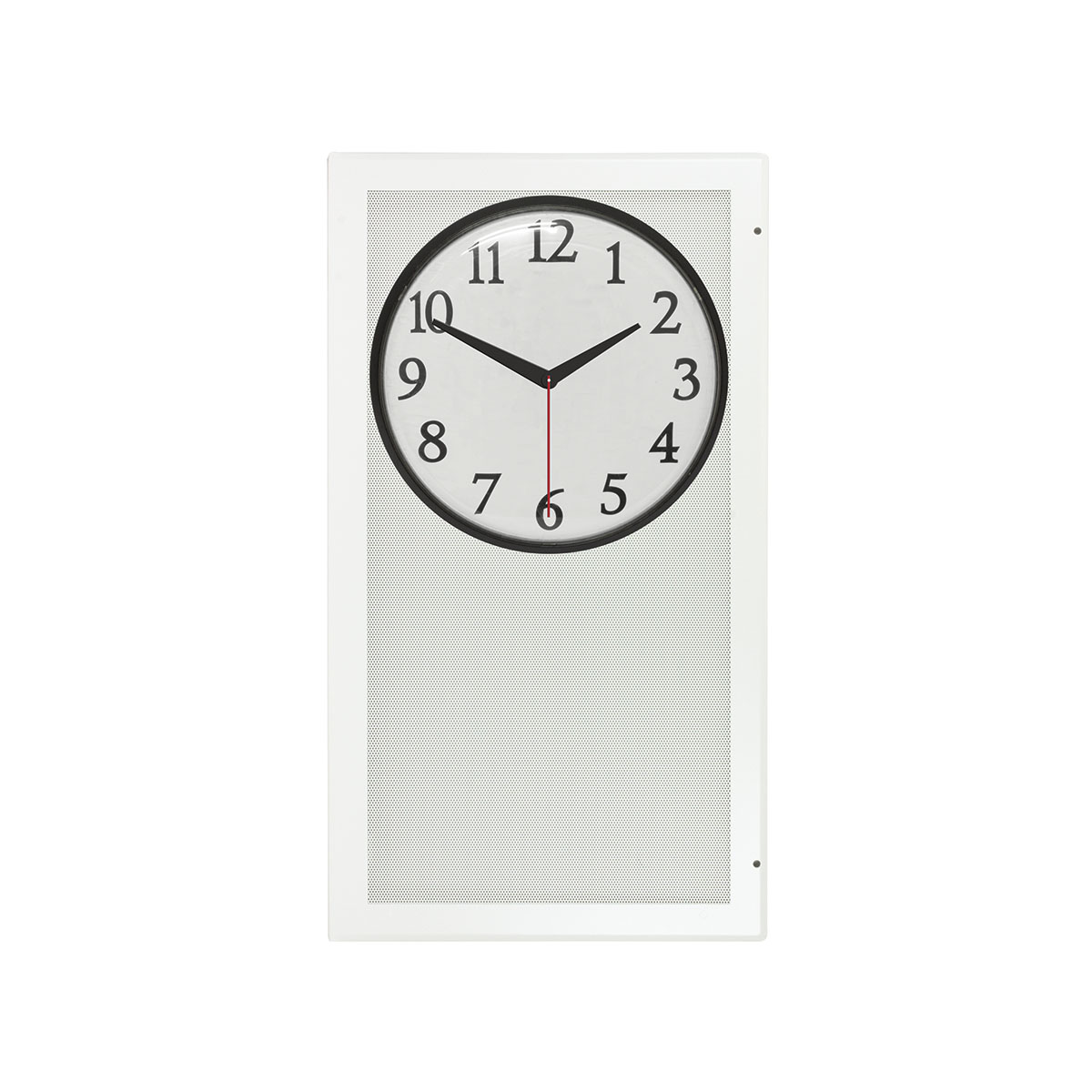

For surface-mount installation, horizontal or vertical orientation

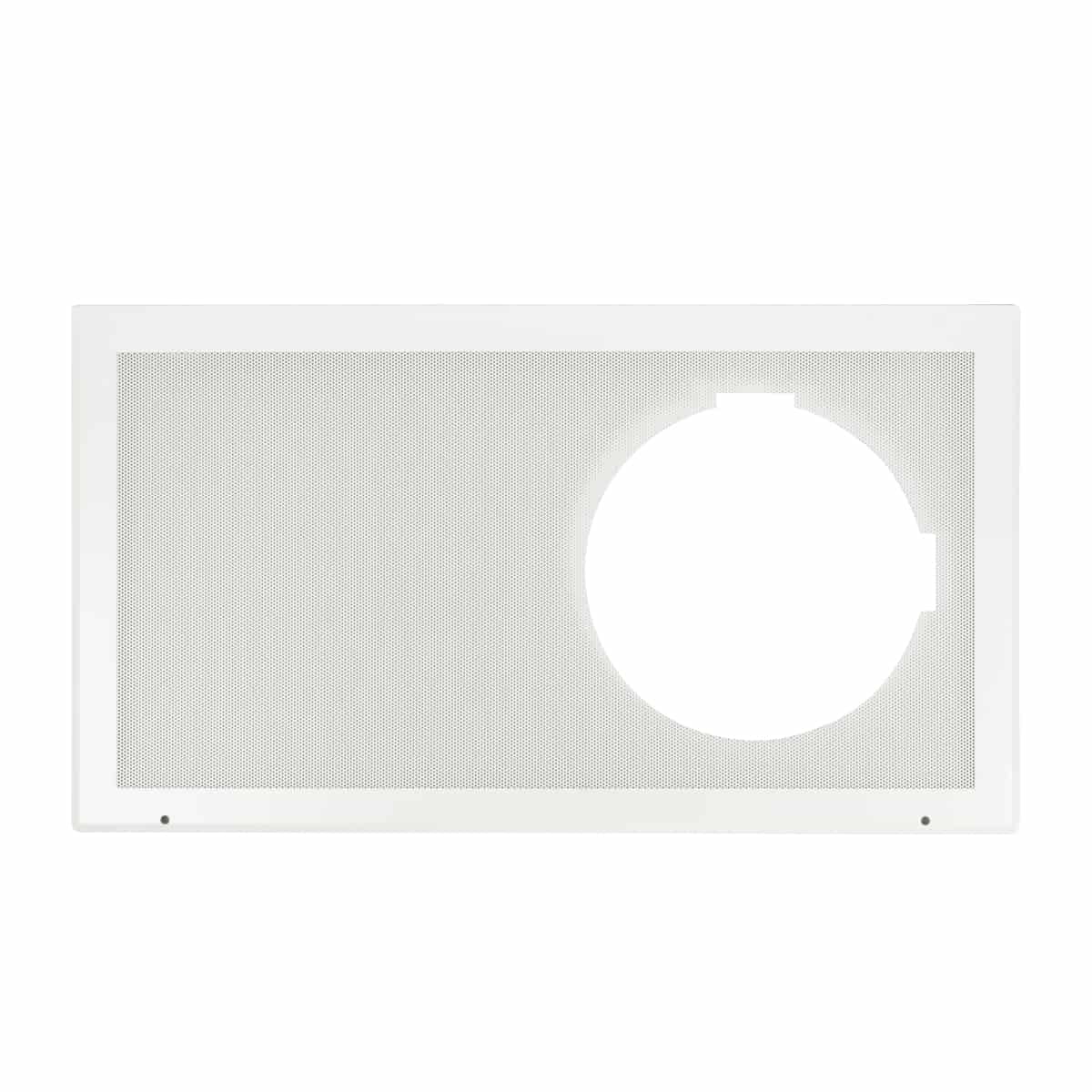

Grille: 26 in. x 14.5 in. formed from single piece 18-gauge steel. Full-perforation face, integral frame border.

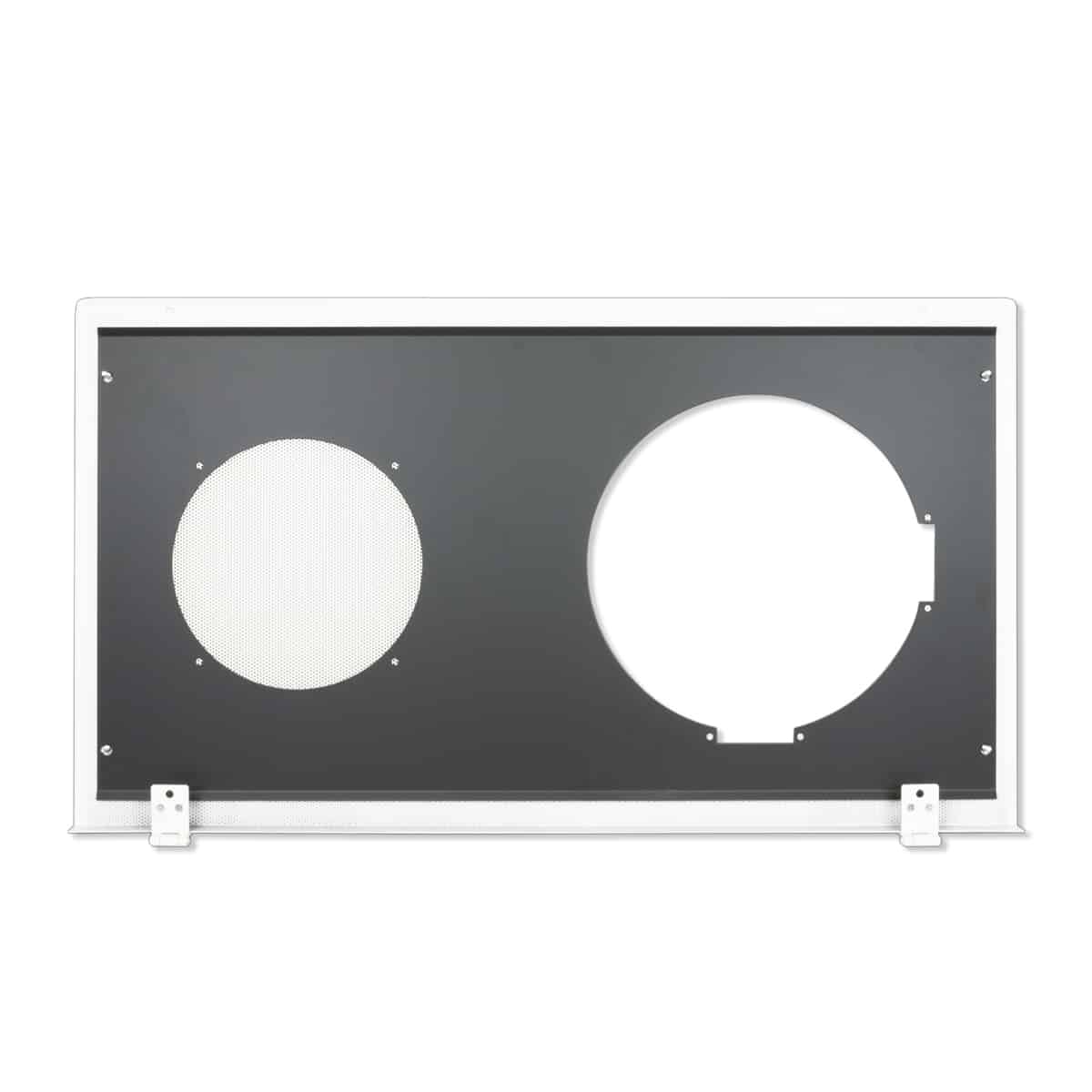

Subplate: Two cutouts (one for standard 12 in. analog clock, one for 8 inch speaker).

Spec Sheet: 1804-AP700

Made in the U.S.A.

The grille for the clock/speaker center shall be Lowell Model AP-700. It shall be 18-gauge steel and measure 26 in. x 14.5 in. It shall be two-pieces with a perforated face and separate black subplate. It shall include mounting hardware to install an 8 in. speaker (ordered separately), and a universal clock-mounting bracket with hardware for horizontal or vertical installation of a 12 in. analog clock (by others). The white grille shall include hinges and screws for installation to surface backbox Model PC712 (ordered separately).

Surface-Mount Backbox: PC712
Speaker (8 in.): CT830A-T72
