Rackmount 4-step power sequencer with surge suppression, key activation, ACSPR-SEQ4-1509k

Sequencer with AC Power Outlets (15A), ADV Surge Protection, Remote-in/out, Key Switch

Name: Sequencer with AC Power Outlets (15A), ADV Surge Protection, Remote-in/out, Key Switch
SKU: ACSPR-SEQ4-1509K
Price: 1008.00 USD
Availability: InStock

Classic wire connections

$1,008.00 MSRP

Model ACSPR-SEQ4-1509K

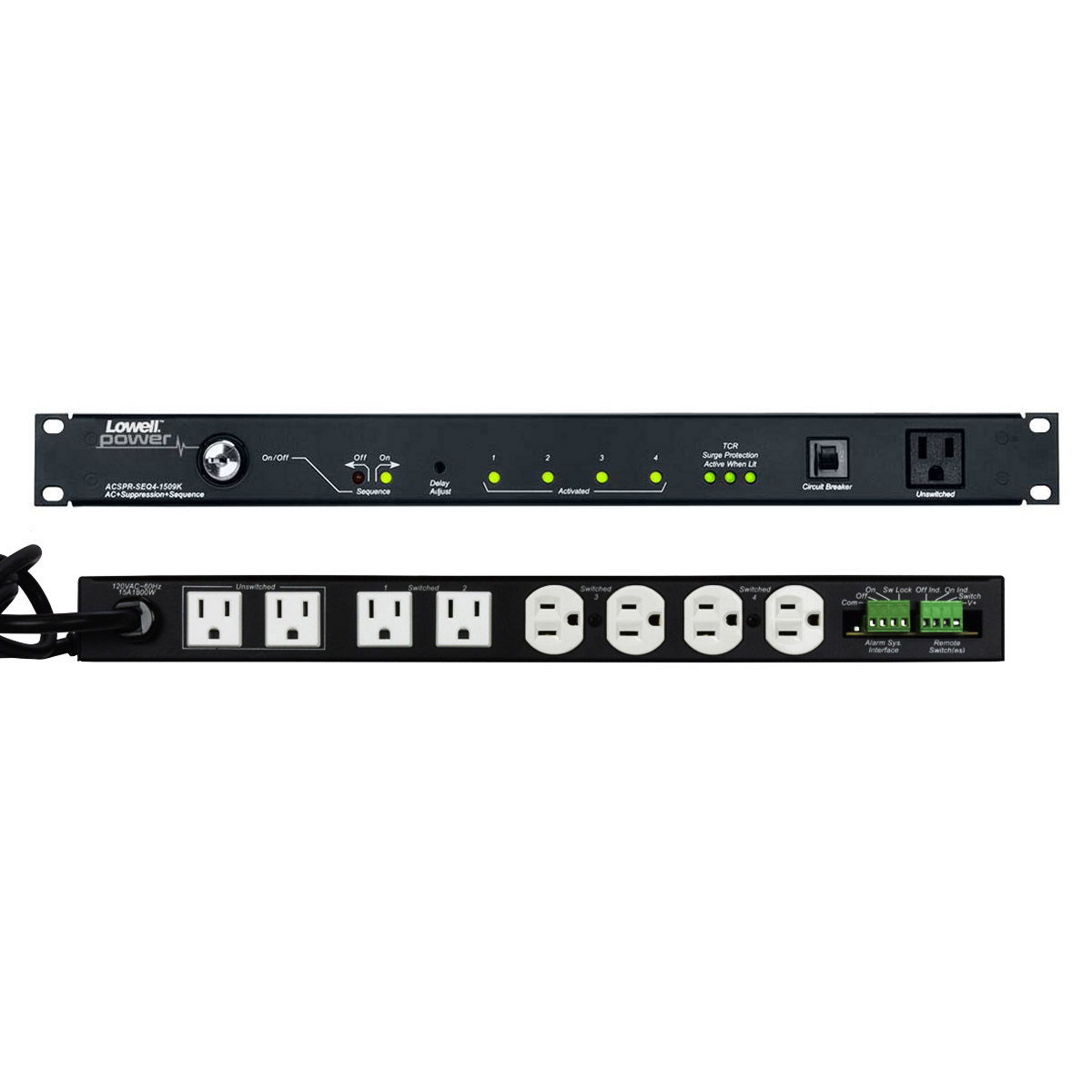

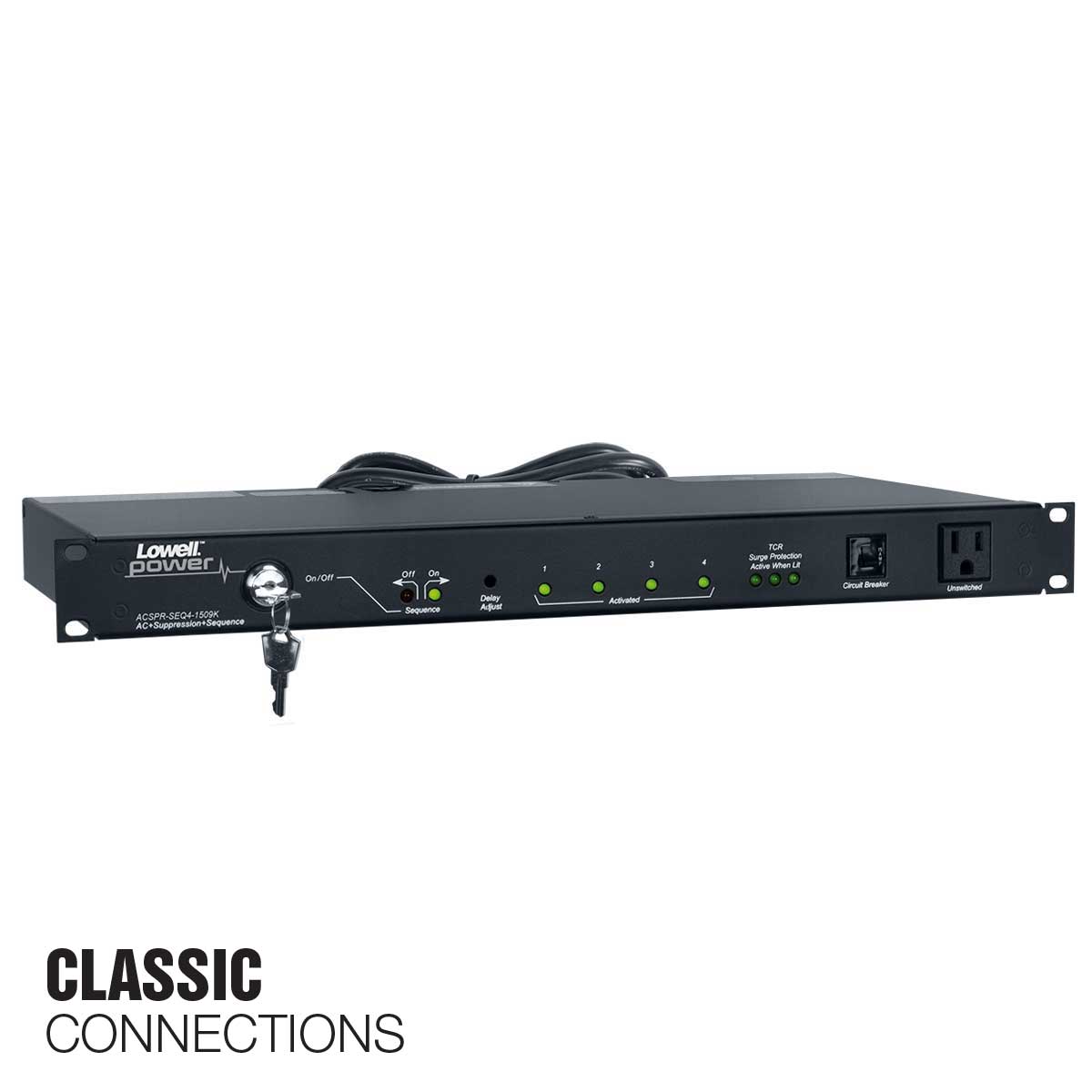

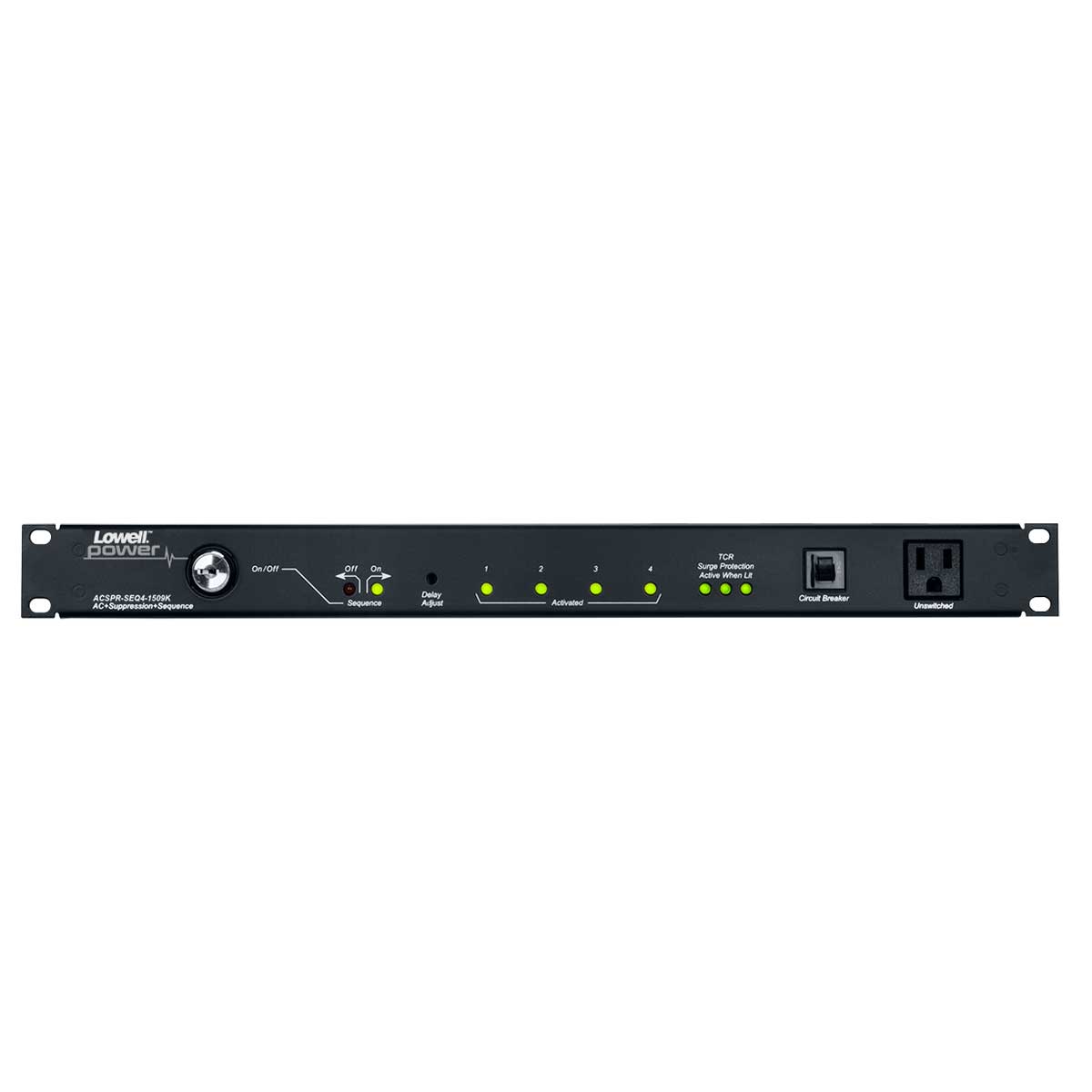

The power distribution panel with four-step sequencer and key switch, features nine (9) NEMA 5-15R receptacles. The sequencer is initiated by the front rocker switch and begins a delayed start up (or shut down) of six (6) rear outlets; the other outlets are not controlled by a switch and are always on. The panel can be controlled remotely by connecting the rear terminal blocks to a remote switch or alarm system. The unit includes Advanced Surge Protection (surges up to 72,000A), 9-ft. attached cord with NEMA 5-15P plug. ETL Listed. Made in the U.S.A.

Add to Favorites

Compare

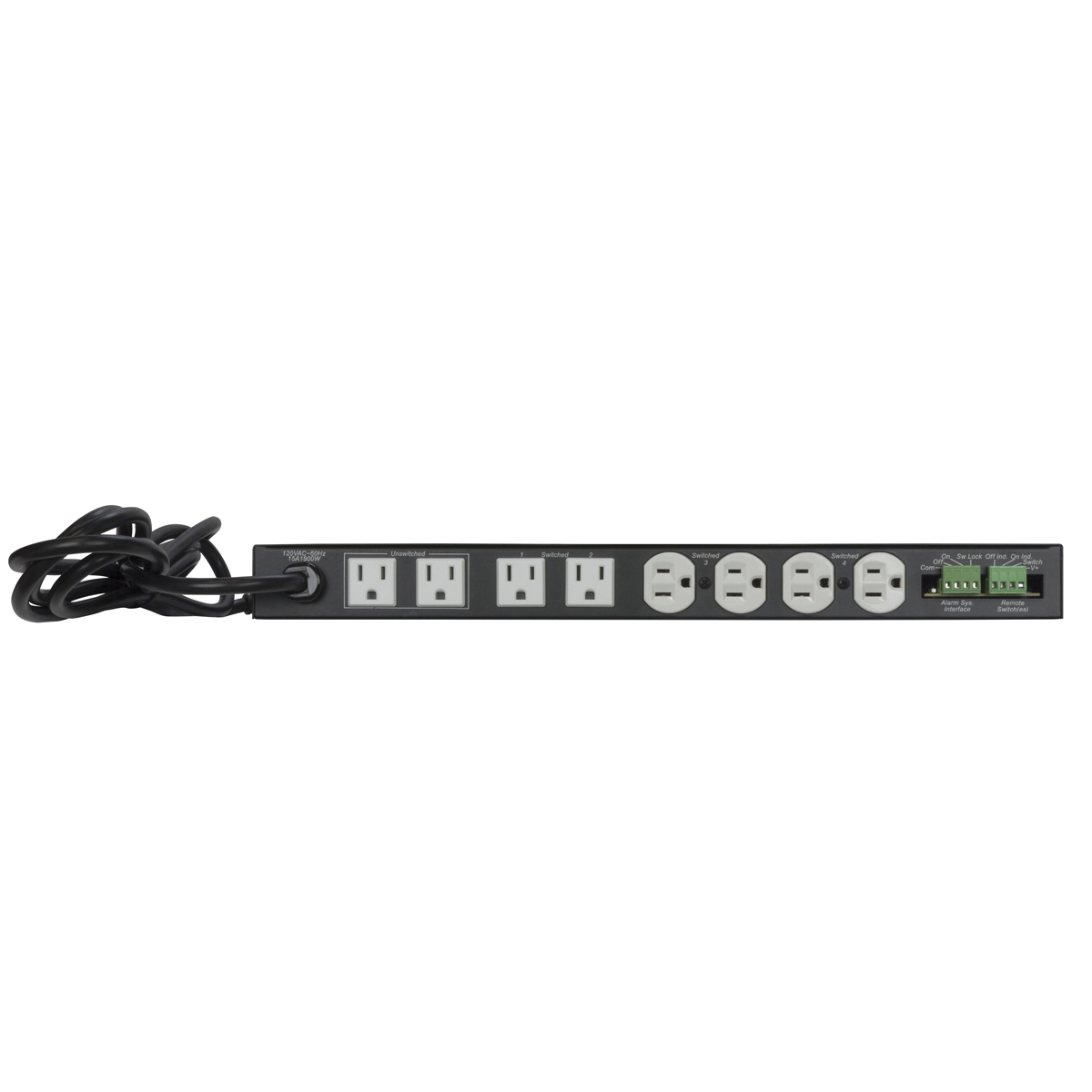

Outlets (9 total): 1 front 15A (un-switched), 2 rear 15A (un-switched) , 6 rear 15A (switched)
Power Rating: 120VAC, 60Hz, 15A
Termination: 9 ft. attached cord with NEMA 5-15P plug
Advanced surge protection to 72,000A.
Four-step sequencer has a delay between steps that can be set between 0.5 and 10 seconds (screwdriver adjustable)
Color coded LED status indicators
Rear terminal block for connection to optional remote switches (momentary)
Rear terminal block to allow system switches to be overridden for life safety system applications where fire code mandates an alarm interface.
Chassis: 19 in. x 9 in. x 1.75 in. (1U)
On/off Switch: Key

Spec Sheet: 2134-ACSPRSEQ41509K

ETL Listed (U.S., Canada)
Made in U.S.A. with global components
Surge Protector: UL1449 fourth edition and ANSI C62.41 compliant

The 1U rackmount panel with nine 15A power outlets (one un-switched in front, two un-switched in rear, six switched in rear), surge suppressor, and four-step sequencer shall be Lowell Model ACSPR-SEQ4-1509K. It shall be ETL Listed and have a power rating of 120VAC 60Hz/15A with EMI/RFI filtering. The front switch shall sequentially activate and deactivate equipment connected to the “switched” rear outlets in four steps. The sequence delay between steps shall be between 0.5 to 10 seconds, which shall be screwdriver adjustable. Surge suppressor shall be UL1449 fourth edition and ANSI C62.41 compliant to defeat surges up to 72,000A. The steel chassis shall have a black finish and feature color coded LEDs and a key activation switch on the front. Overall measurements shall be 19 in. x 1.75 in. x 9 in. Termination shall be via a 9 ft. cord with NEMA 5-15P plug.
