Rackmount remote power control, eight 15A outlets, surge suppression, VTE, classic connections

AC Power Panel (15A) with 9 Outlets, ADV Surge Protection with VTE, Remote-in, Switch

Name: AC Power Panel (15A) with 9 Outlets, ADV Surge Protection with VTE, Remote-in, Switch
SKU: ACSPR-RPC1-1509
Price: 1084.42 USD
Availability: InStock

NEMA 5-15R outlets

$1,084.42 MSRP

Model ACSPR-RPC1-1509

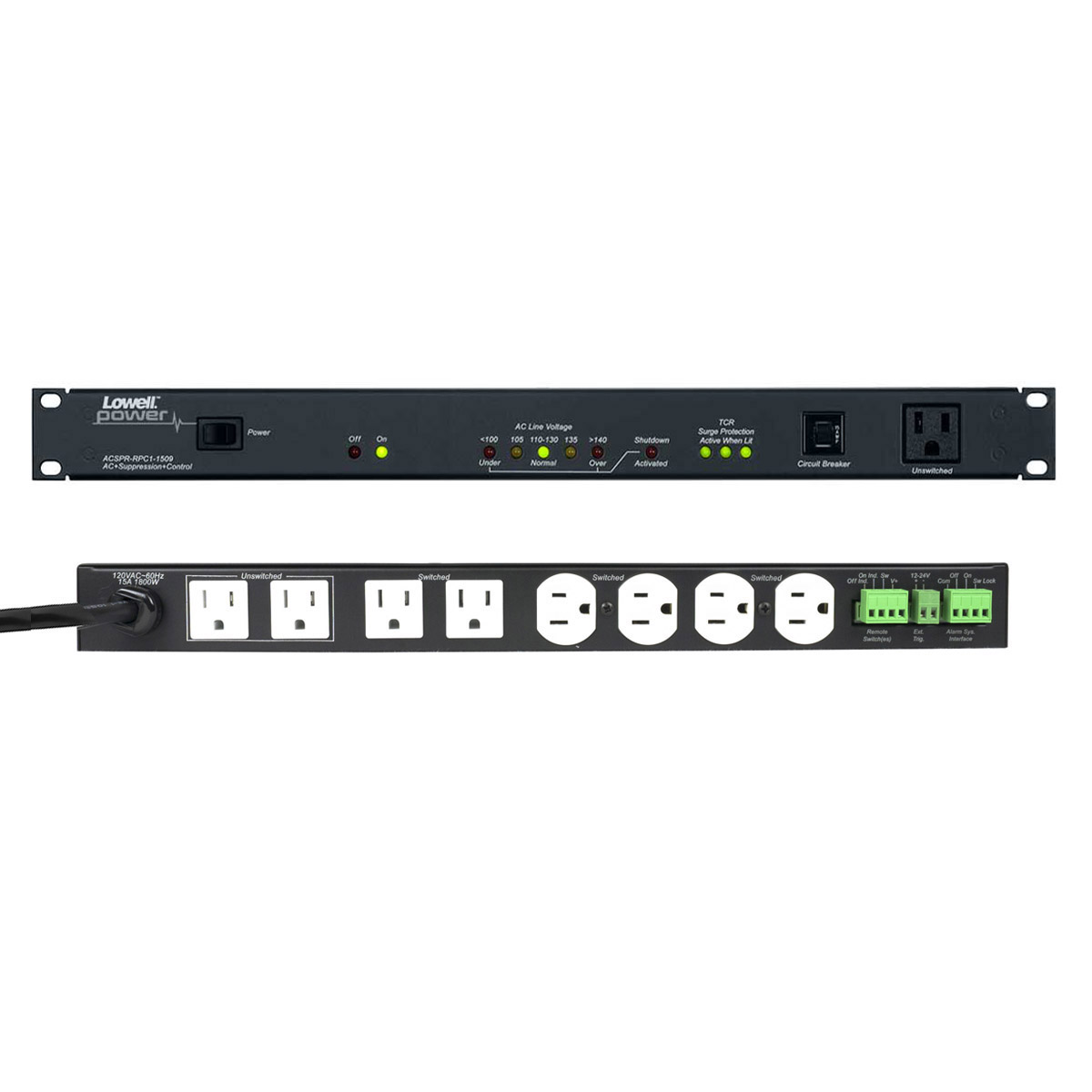

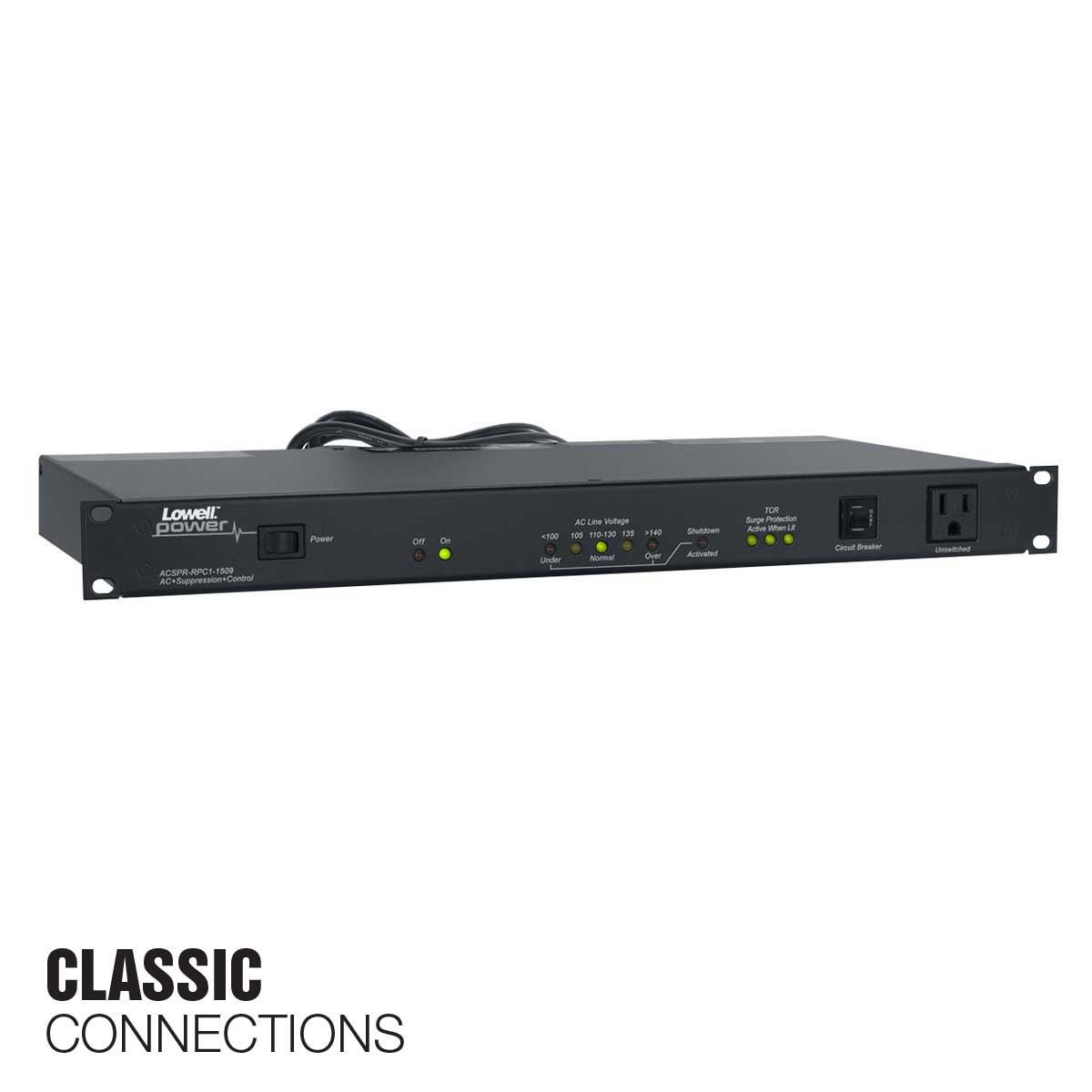

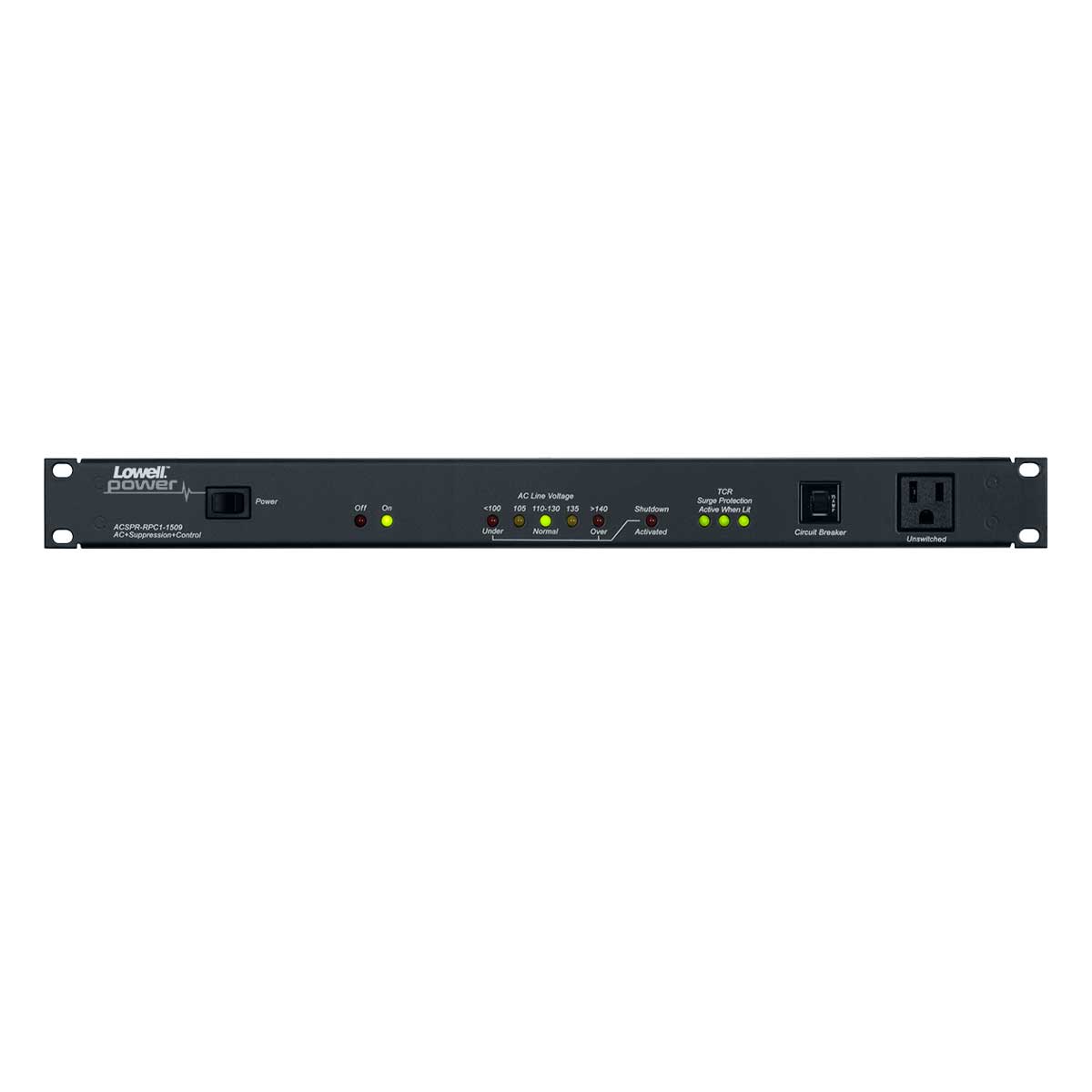

Power distribution panel with rocker switch has nine (9) NEMA 5-15R receptacles—a combination of switched (controlled by switch) and un-switched (always on) outlets. The panel can also be activated/deactivated by an external remote switch, trigger voltage, alarm system, or sequencer connected to plug-in terminal blocks in the rear (order external controls separately). The panel features Advanced Surge Protection (power surges up to 72,000A), and over/under voltage protection (VTE). ETL Listed. Made in the U.S.A.

Add to Favorites

Compare

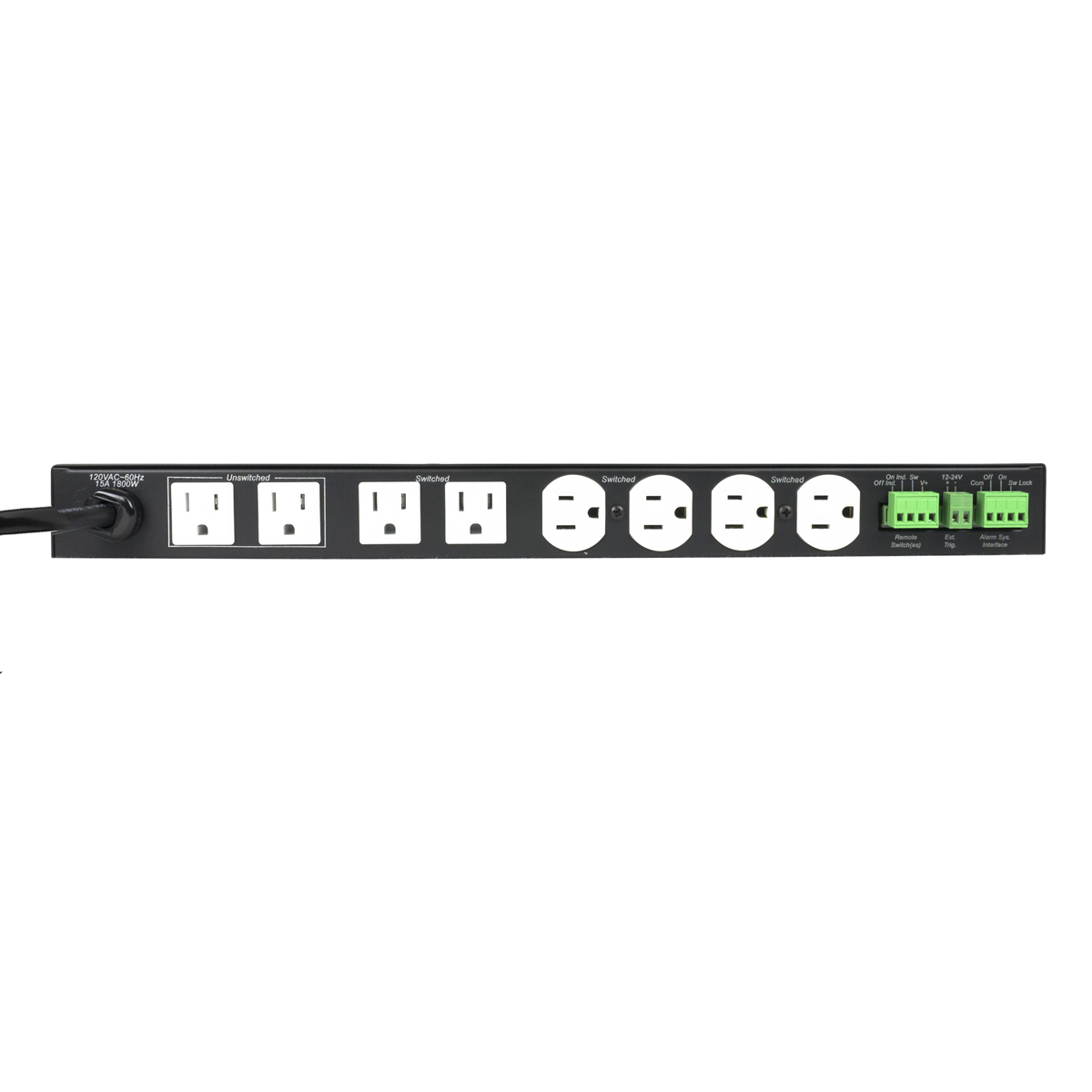

Outlets: 9 outlets (1 front un-switched, 2 rear un-switched, 6 rear switched)
Power Rating: 120VAC, 60Hz, 15A
Termination: 9 ft. attached cord with NEMA 5-15P plug
Advanced surge protection to 72,000A
Voltage Tolerance Envelope Monitor with Auto Reset: Over/under protection turns outlets off when line voltage exceeds 140V or drops below 100V, and on when voltage returns to normal.
Remote power control circuitry (RPC) allows for on/off control by external DSP timed events. Rear termination blocks are available for connecting remote switches (momentary) and remote triggers (maintained) for on/off functions.
Integral override facilitates use in life safety applications where fire code mandates an alarm interface.
Steel Chassis: 19 in. x 9.00 in. x 1.75 in. (1U)
Activation: Rocker switch

Spec Sheet: 1742-ACSPRRPC11509

ETL Listed (U.S., Canada)
Made in U.S.A. with global components
Surge protector: UL 1449 4th edition and ANSI C62.41 compliant

The AC control device shall be Lowell Model ACSPR-RPC1-1509 with surge protection, over/under voltage protection with auto re-set, remote power control circuitry, and EMI/RFI filtering. It shall be an ETL Listed 15A device that provides safeguarded power distribution from a 1U rackmount chassis with three un-switched outlets (1 front, 2 rear) and six switched outlets that can be remotely controlled. It shall include an alarm interface with lock on, lock off and switch lock functions. Front actuation shall be via a rocker switch. The steel chassis shall measure 19 in. x 9 in. x 1.75 in. and it shall have a black powder epoxy finish.

RPS Series: SPST maintained and momentary switches
SEQ Series: Low-voltage sequencers
