Rackmount power panel, 15A/20A outlets, ASP, VTE

AC Power Panel (20A) with 9 Outlets, ADV Surge Protection with VTE, Switch

Name: AC Power Panel (20A) with 9 Outlets, ADV Surge Protection with VTE, Switch
SKU: ACSPR-2009-VTE
Price: 836.92 USD
Availability: InStock

NEMA 5-15R & 5-20R outlets

$836.92 MSRP

Model ACSPR-2009-VTE

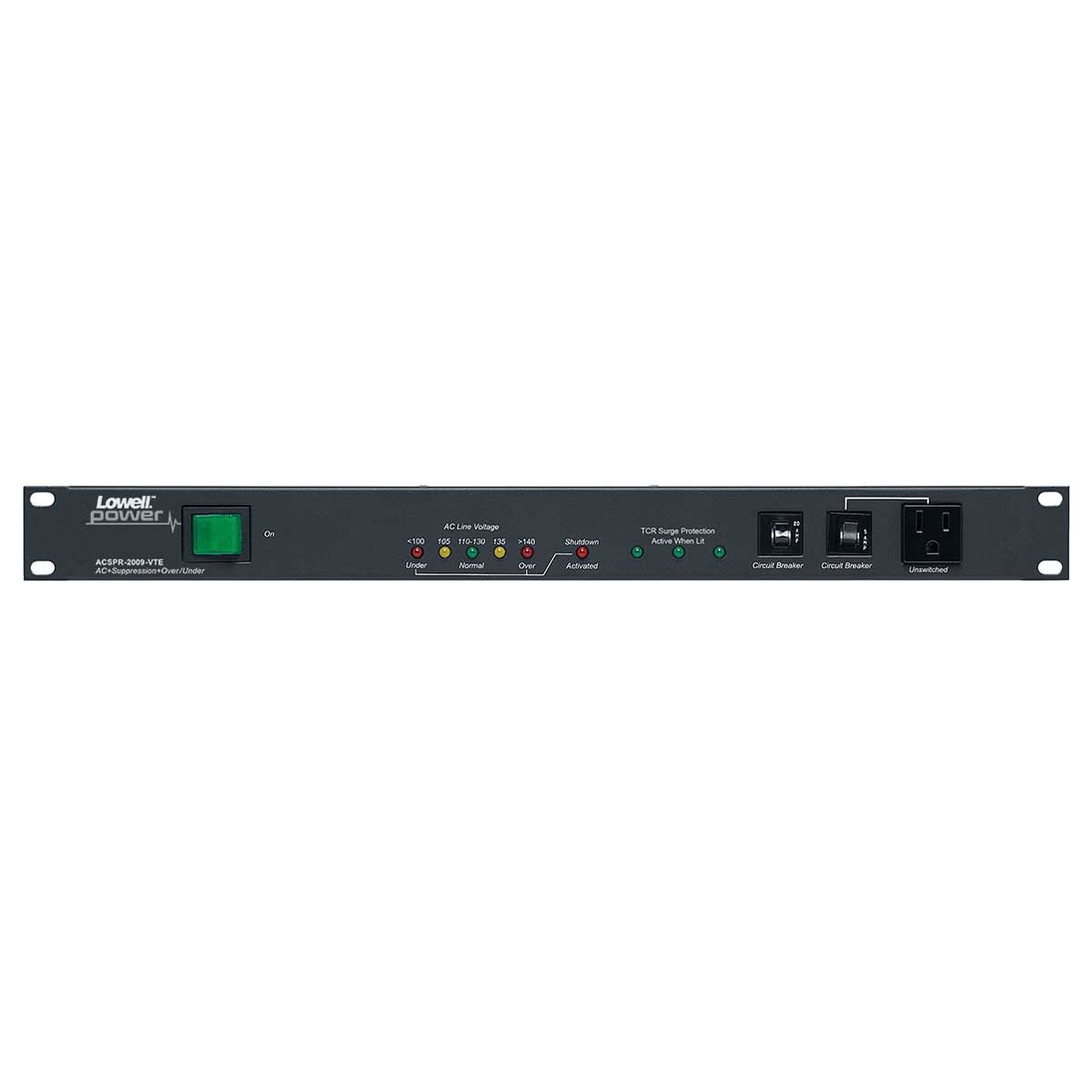

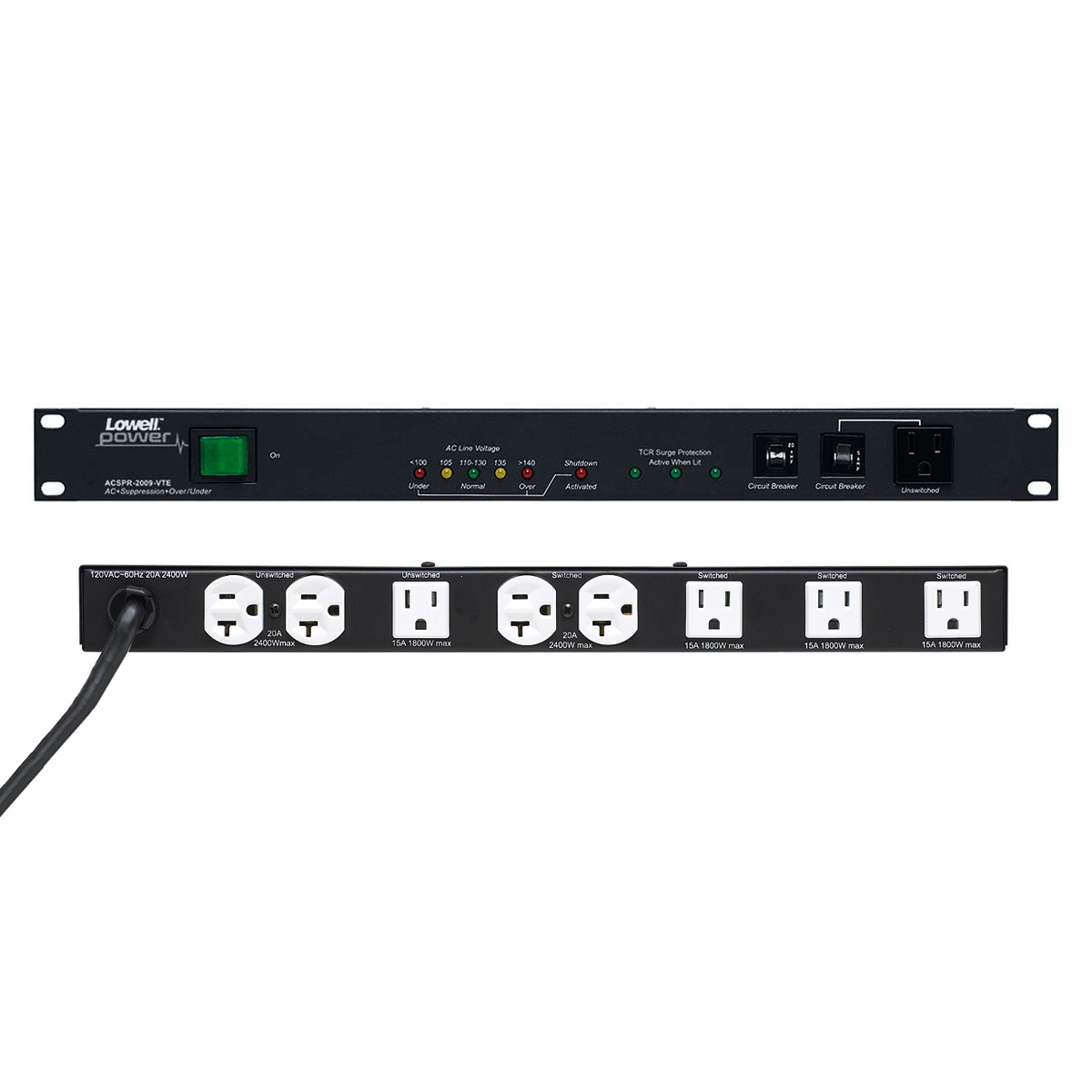

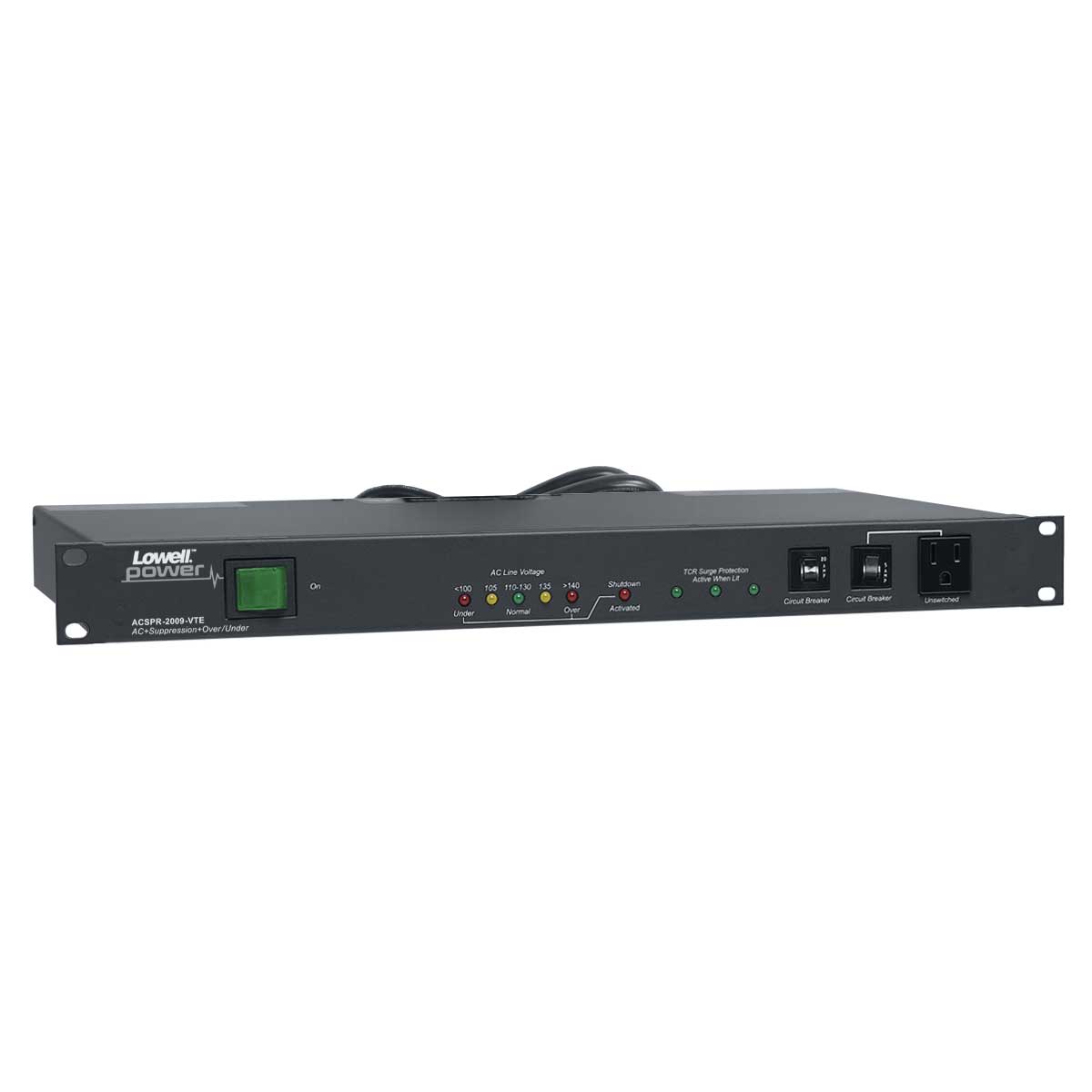

Power distribution panel with Advanced Surge Protection (up to 72,000A) and VTE Voltage Tolerance Envelope (over/under voltage protection), features nine (9) NEMA receptacles (15A/20A). The eight rear outlets include both switched (controlled by switch) and un-switched (always on). The lighted rocker activation switch makes it easy to see when the switched outlets are powered. The unit includes a system circuit breaker plus a separate circuit breaker to independently protect the front outlet, minimizing the possibility of system disruption when a non-system device is connected there.

Add to Favorites

Compare

Power Rating: 120VAC, 60Hz, 20A

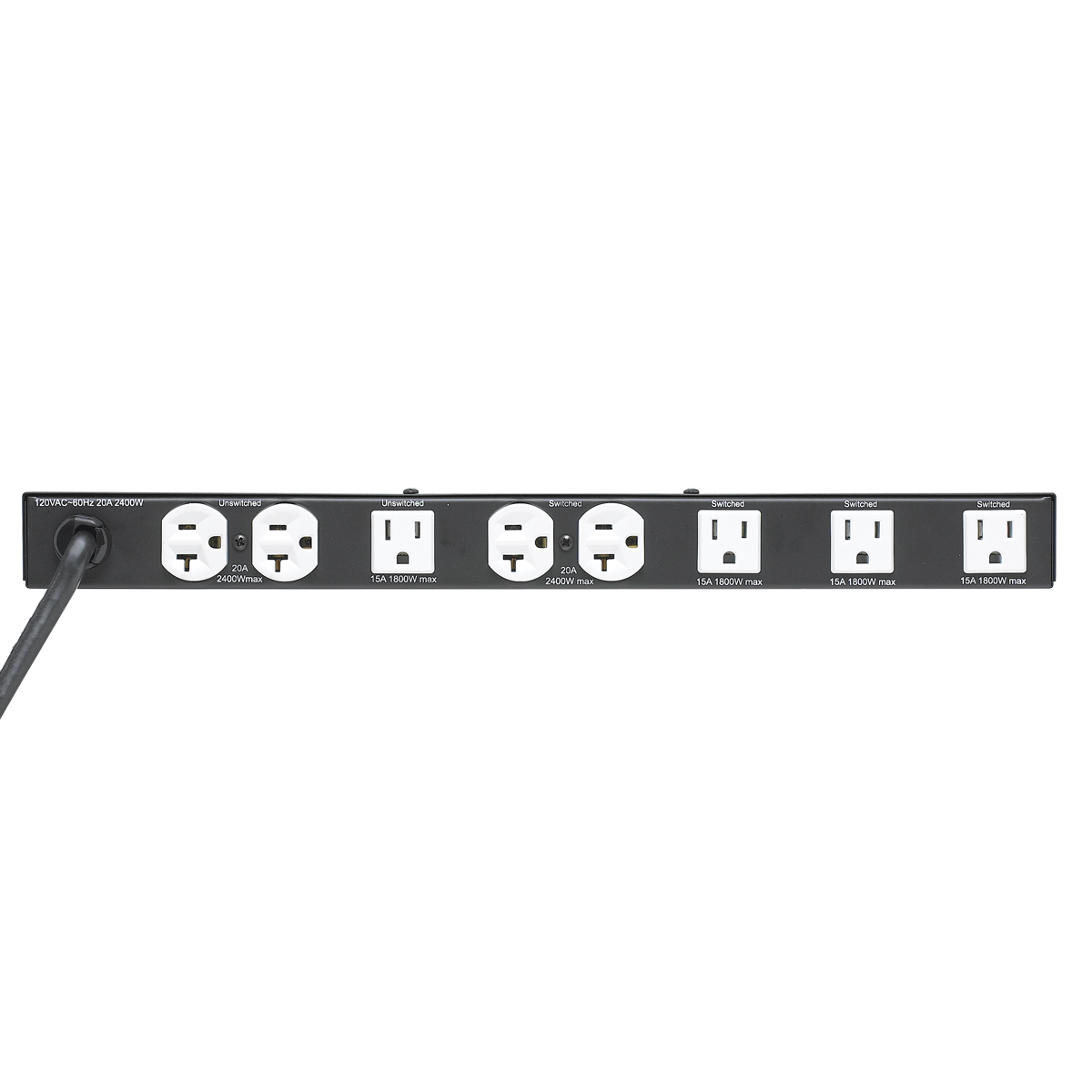

Outlets: 9 (15A/20A) NEMA outlets (1 front, 8 rear)
Termination: 9 ft. attached cord with NEMA 5-20P plug
Chassis: 19 in. x 9 in. x 1.75 in. (1U)
Advanced surge protection to 72,000A. LED status indicators.
On/off Switch: Lighted rocker switch controls 5 rear outlets (others are un-switched)
Voltage Tolerance Envelope Monitor with Auto Reset: Over/under protection turns outlets off when line voltage exceeds 140V or drops below 100V, and on when voltage returns to normal.

Spec Sheet: 2136-ACSPR2009VTE

ETL Listed (U.S. and Canada)
Made in the U.S.A. with global components

The AC power panel shall be Lowell Model ACSPR-2009-VTE. It shall be ETL Listed and have a power rating of 120VAC, 60Hz/20A with EMI/RFI filtering and nine (15A/20A) outlets (4 un-switched, 5 switched). It shall be housed in a rackmount steel chassis (19 in. x 9 in. x 1.75 in.) finished in black powder epoxy paint. Front activation shall be via a lighted rocker switch. Termination shall be via an attached 9 ft. cord with NEMA 5-20P plug. It shall include surge protection to 72,000A. The unit shall include over/under voltage protection to turn outlets off when line voltage exceeds 140V or drops below 100V.
