Rackmount power panel, 15A/20A outlets, ASP

AC Power Panel (20A) with 9 Outlets, ADV Surge Protection, Switch

Name: AC Power Panel (20A) with 9 Outlets, ADV Surge Protection, Switch
SKU: ACSPR-2009
Price: 699.16 USD
Availability: InStock

NEMA 5-15R & 5-20R outlets

$699.16 MSRP

Model ACSPR-2009

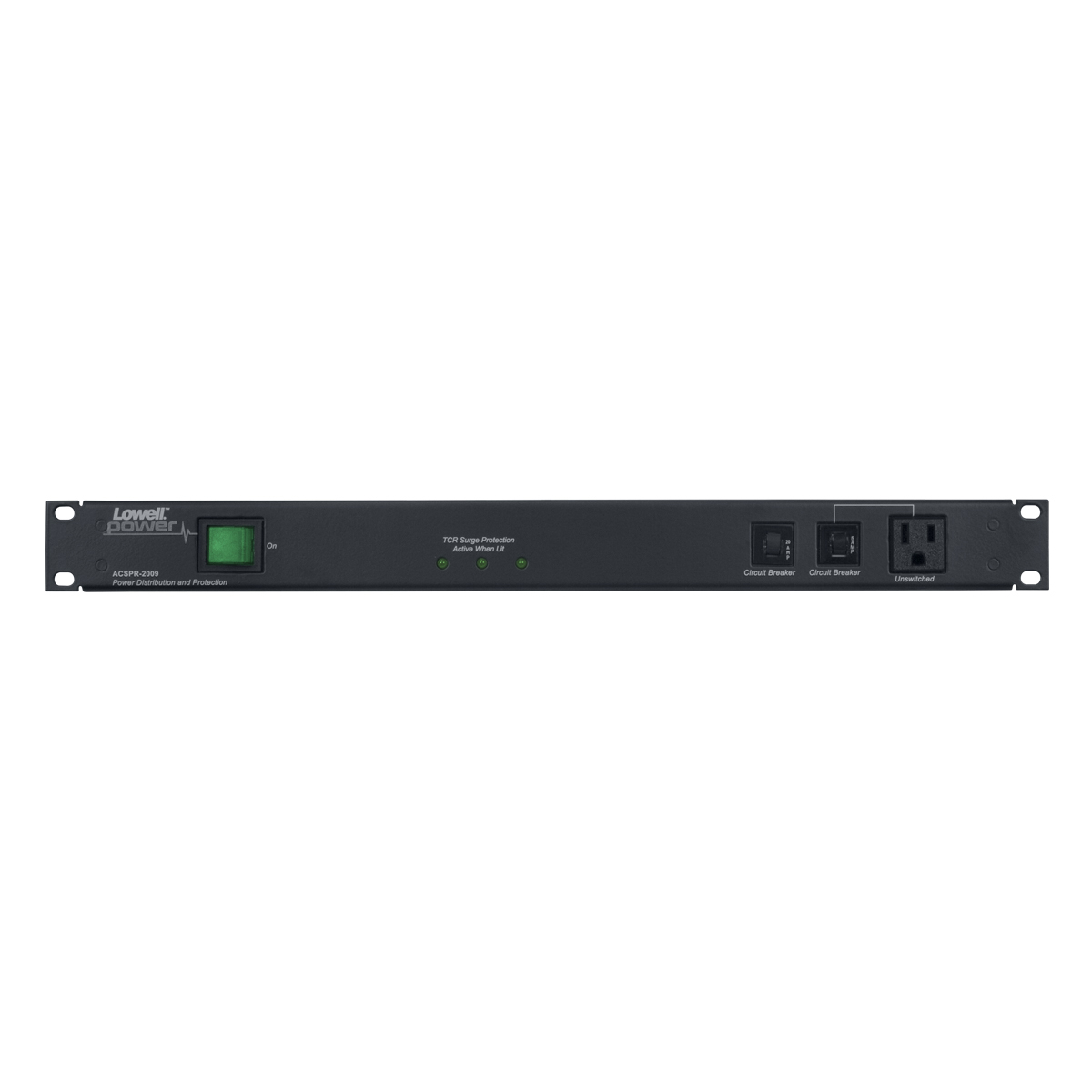

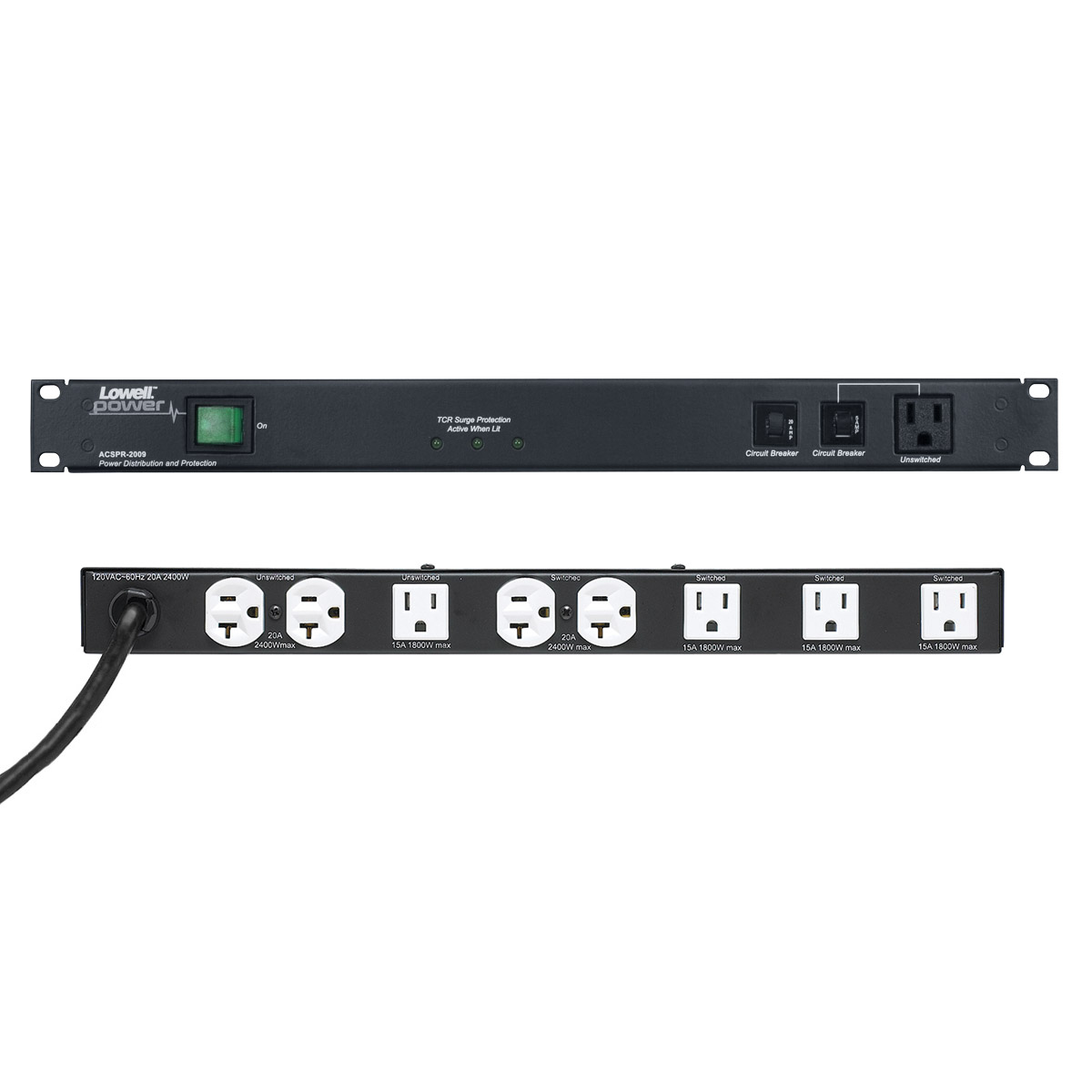

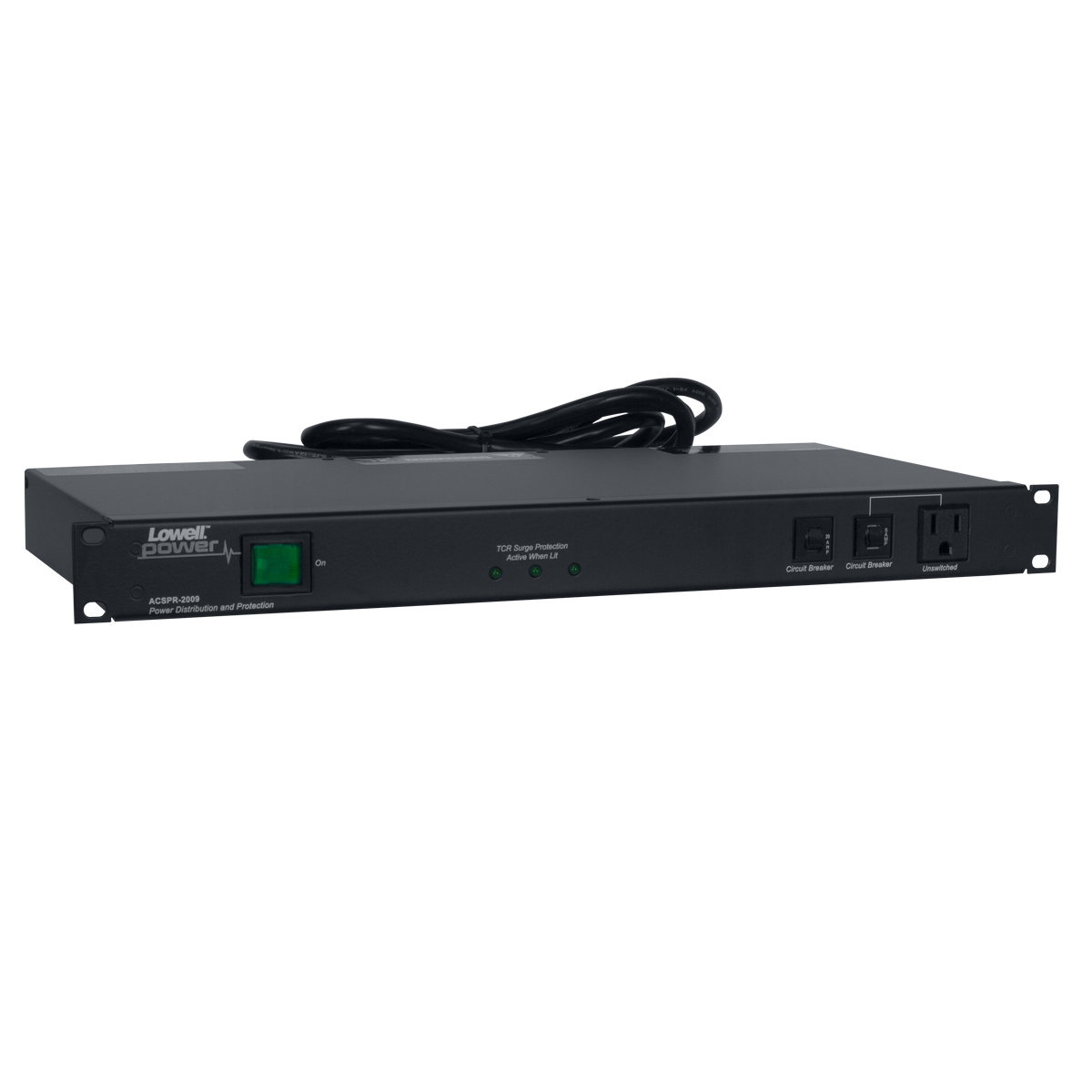

This power distribution panel with Advanced Surge Protection (up to 72,000A) features a total of nine (9) NEMA receptacles (mix of 15A and 20A). The lighted rocker switch on the front controls five of eight rear outlets. Three rear outlets and the front convenience outlet are not controlled by a switch but are always on. The unit has a system circuit breaker plus a separate breaker for the front outlet, minimizing the possibility of system disruption when a non-system device is connected there. Includes 9-ft. attached cord with NEMA 5-20P plug. ETL Listed. Made in the U.S.A. with global components.

Add to Favorites

Compare

Power Rating: 120VAC, 60Hz, 20A

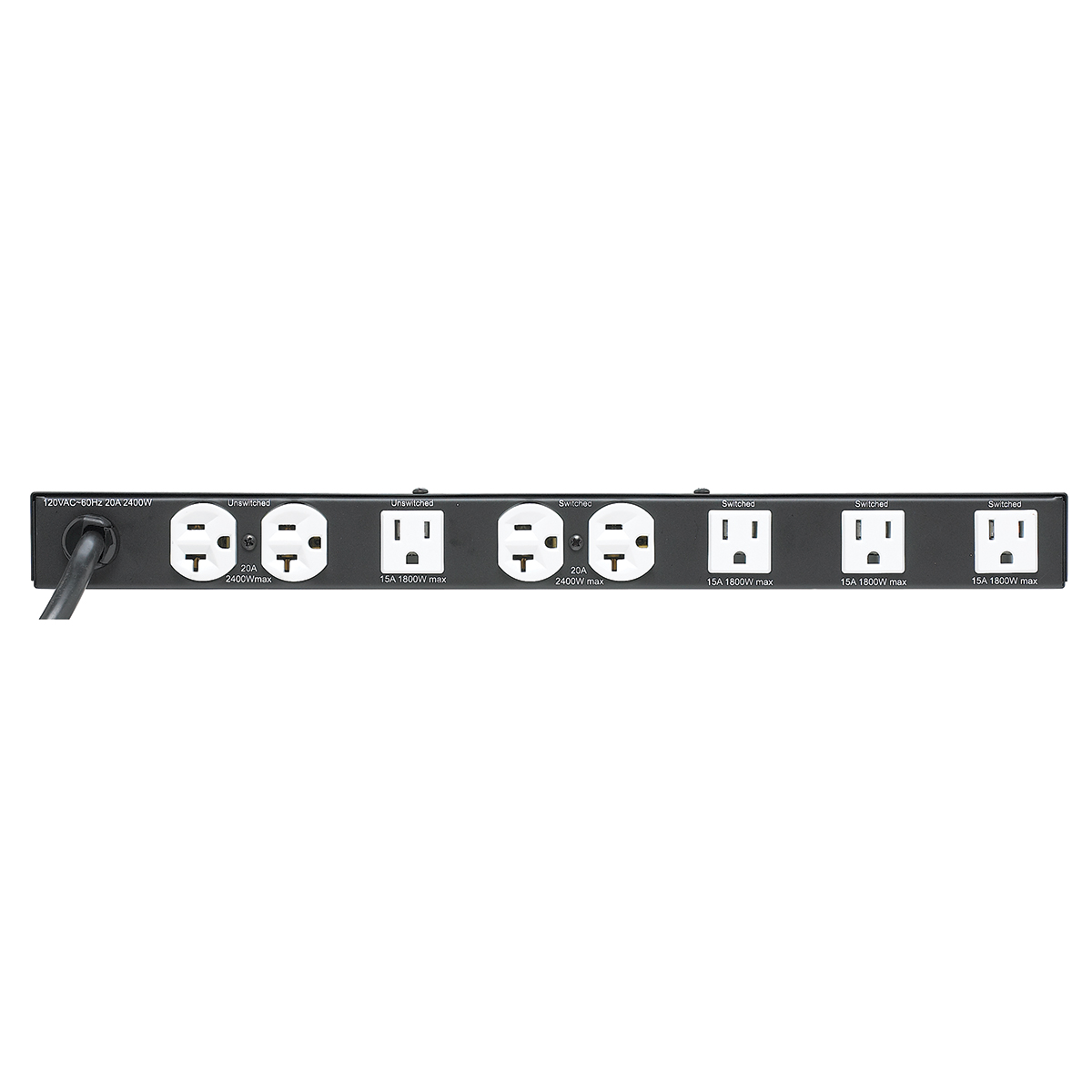

Outlets: 9 (15A/20A) outlets (1 front, 8 rear)
Termination: 9 ft. attached cord with NEMA 5-20P plug
Advanced surge protection to 72,000A. LED status indicators.
On/off Switch: Rocker switch controls 5 rear outlets (1 front and 3 rear outlets are un-switched)
Chassis: 19 in. x 9 in. x 1.75 in. (1U)

Spec Sheet: 1745-ACSPR2009

ETL Listed (U.S. and Canada)
Made in the U.S.A. with global components

The AC power panel shall be Lowell Model ACSPR-2009. It shall be ETL Listed and have a power rating of 120VAC, 60Hz/20A with EMI/RFI filtering and nine outlets (4 un-switched, 5 switched). It shall be housed in a rackmount steel chassis (19 in. x 9 in. x 1.75 in.) finished in black powder epoxy paint. Front activation shall be via a lighted rocker switch. Termination shall be 9 ft. cord with NEMA 5-20P plug. It shall include surge protection to 72,000A.
