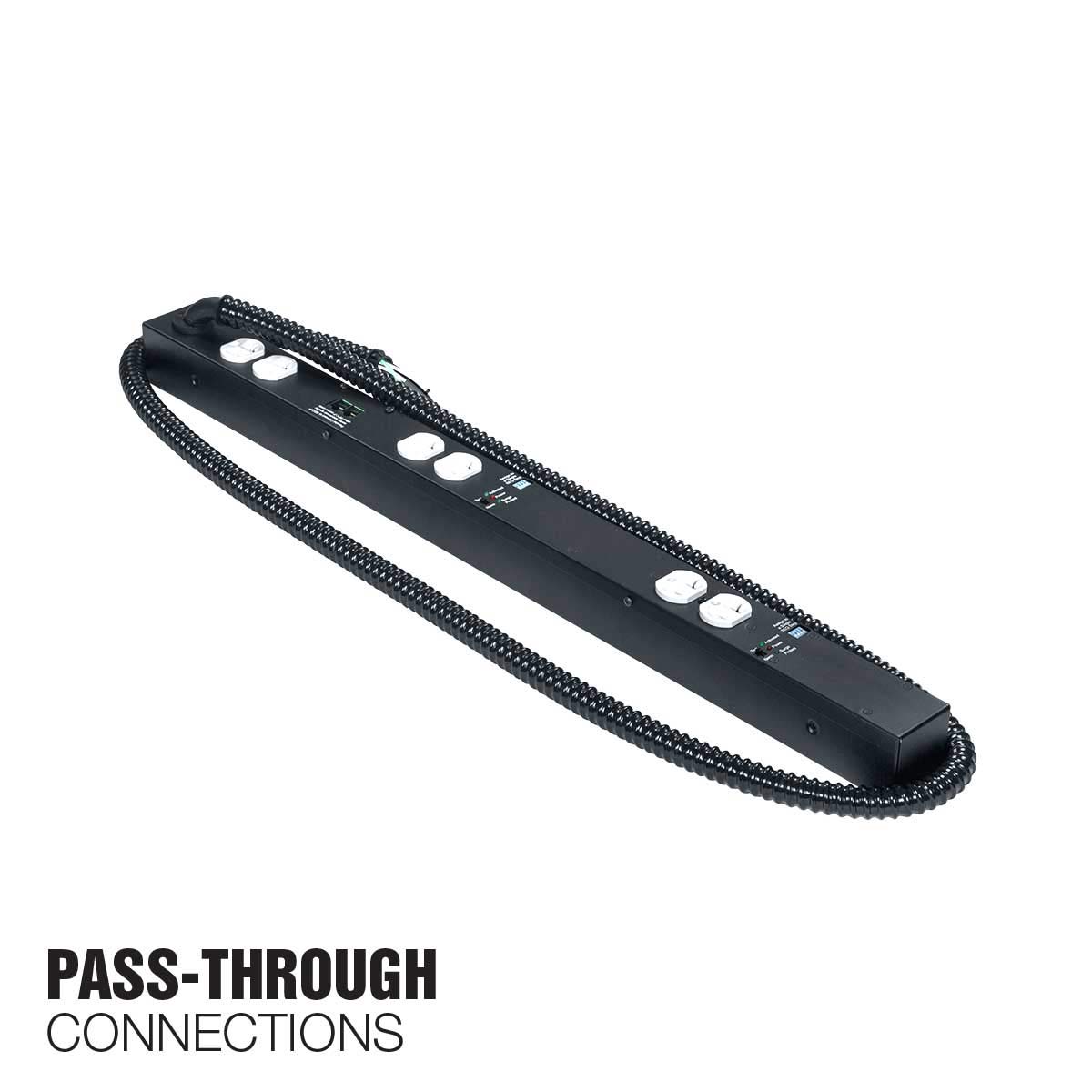

ACS-2006-3C-RPCP-HW power strip with pass-through connections

AC Power Strip (20A) with 6 Outlets on 3 Circuits, Basic Surge Protection, Remote-in/out, Pass-thru Connections

Name: AC Power Strip (20A) with 6 Outlets on 3 Circuits, Basic Surge Protection, Remote-in/out, Pass-thru Connections
SKU: ACS-2006-3C-RPCP-HW
Price: 691.44 USD
Availability: InStock

NEMA 5-20R outlets, 30-in. chassis, pass-thru connections

$691.44 MSRP

Model ACS-2006-3C-RPCP-HW

This hardwired power strip features three circuits featuring a total of (3) 20A duplex outlets. One circuit with a duplex outlet is unswitched (always on). The other two circuits (one duplex each) are activated by a compatible sequencer (model SEQ-P4 or SEQR-P4) which is required for activation (order separately).

Add to Favorites

Compare

Power Rating: 120VAC 60Hz 20A
Outlets: 6 NEMA outlets (2 switched, 1 un-switched)
Circuits: 3
RPC: Each switched circuit includes a Remote Power Control terminal with pass-through RJ45 jacks that allow equipment to be turned on/off from a remote location (order compatible sequencer separately)
Chassis: Steel with black finish, 60 in.

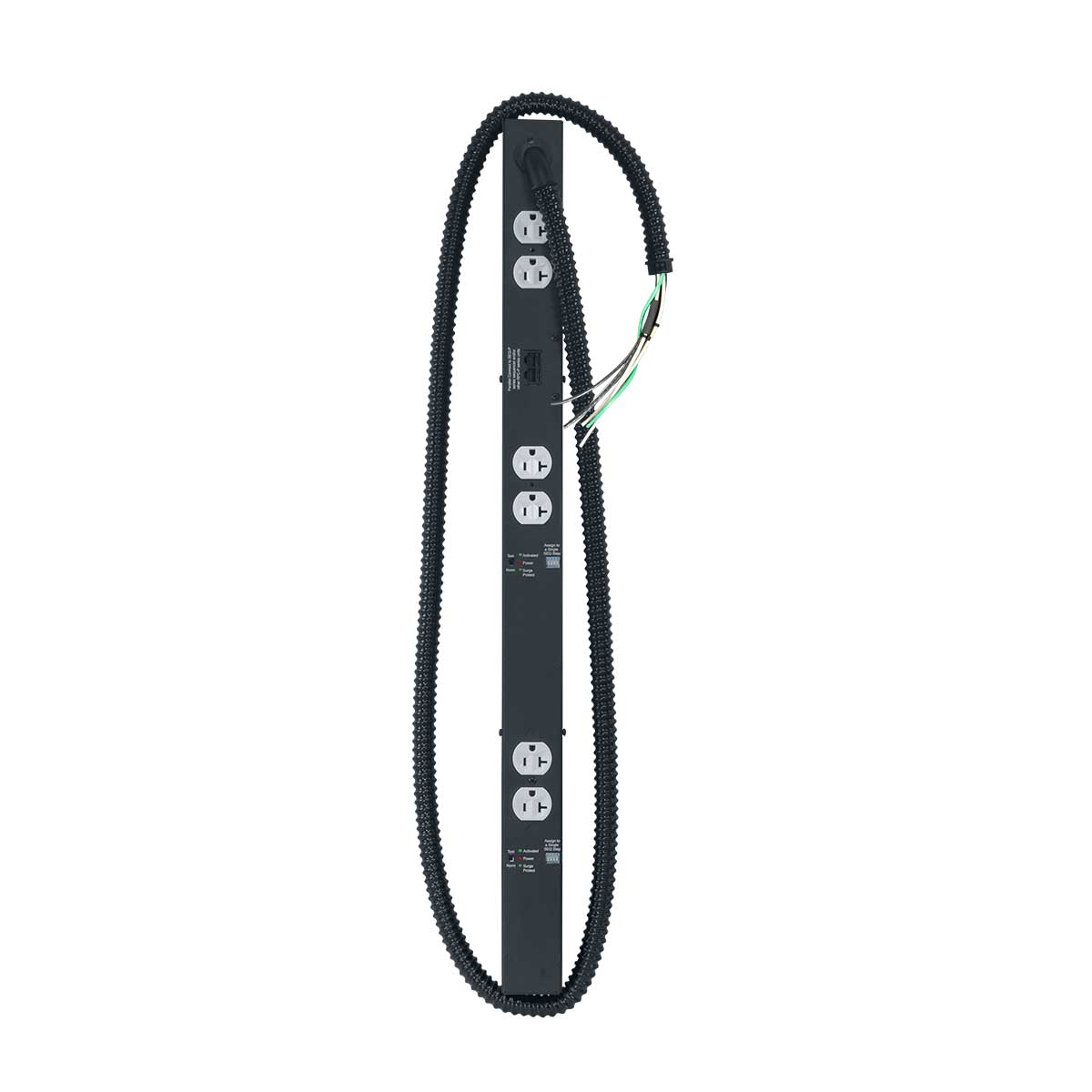

Termination: Hardwired 6-ft. non-metallic flexible conduit with pigtail leads
Universal mounting brackets

Spec Sheet: 2319-ACS20063CRPCPHW

EIA/TIA Compliant
ETL Listed, U.S./Canada
Made in the U.S.A.

The hardwired power strip shall be Lowell model ACS-2006-3C-RPCP-HW with power rating of 120VAC 60Hz 20A. The 30″ x 2″ x 2″ steel chassis with black powder epoxy finish shall include three circuits and three NEMA 5-20R duplex outlets. One duplex outlet shall be on an unswitched circuit (always on). The other duplex outlets shall be on two switched circuits which shall be activated and deactivated by Lowell power sequencer model SEQ-P4 or SEQR-P4, ordered separately. The power strip shall include surge protection up to 10,000A. It shall also include universal mounting brackets and a six ft. non-metallic flexible conduit with pigtail leads. The unit shall be made in the USA with global components and shall be ETL Listed.

SEQ-P4 or SEQR-P4: Sequencer w/pass-through connections
RY-P Series: Relay w/pass-through connections
