AC Power Strip (20A) with 24 Outlets, Basic Surge Protection

Name: AC Power Strip (20A) with 24 Outlets, Basic Surge Protection
SKU: ACS-2024
Price: 259.92 USD
Availability: InStock

NEMA 5-15R & 5-20R outlets, 70-in. chassis

$259.92 MSRP

Model ACS-2024

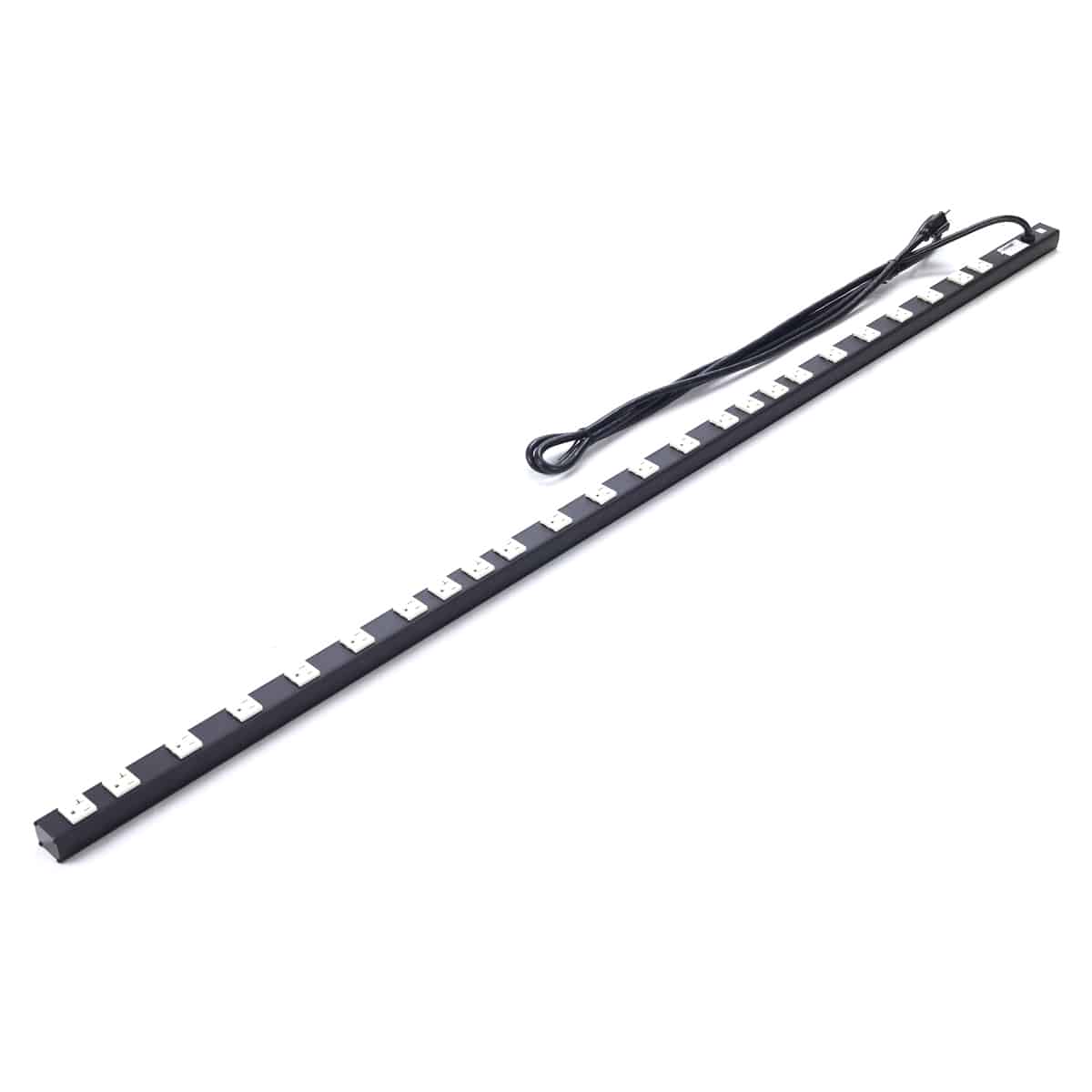

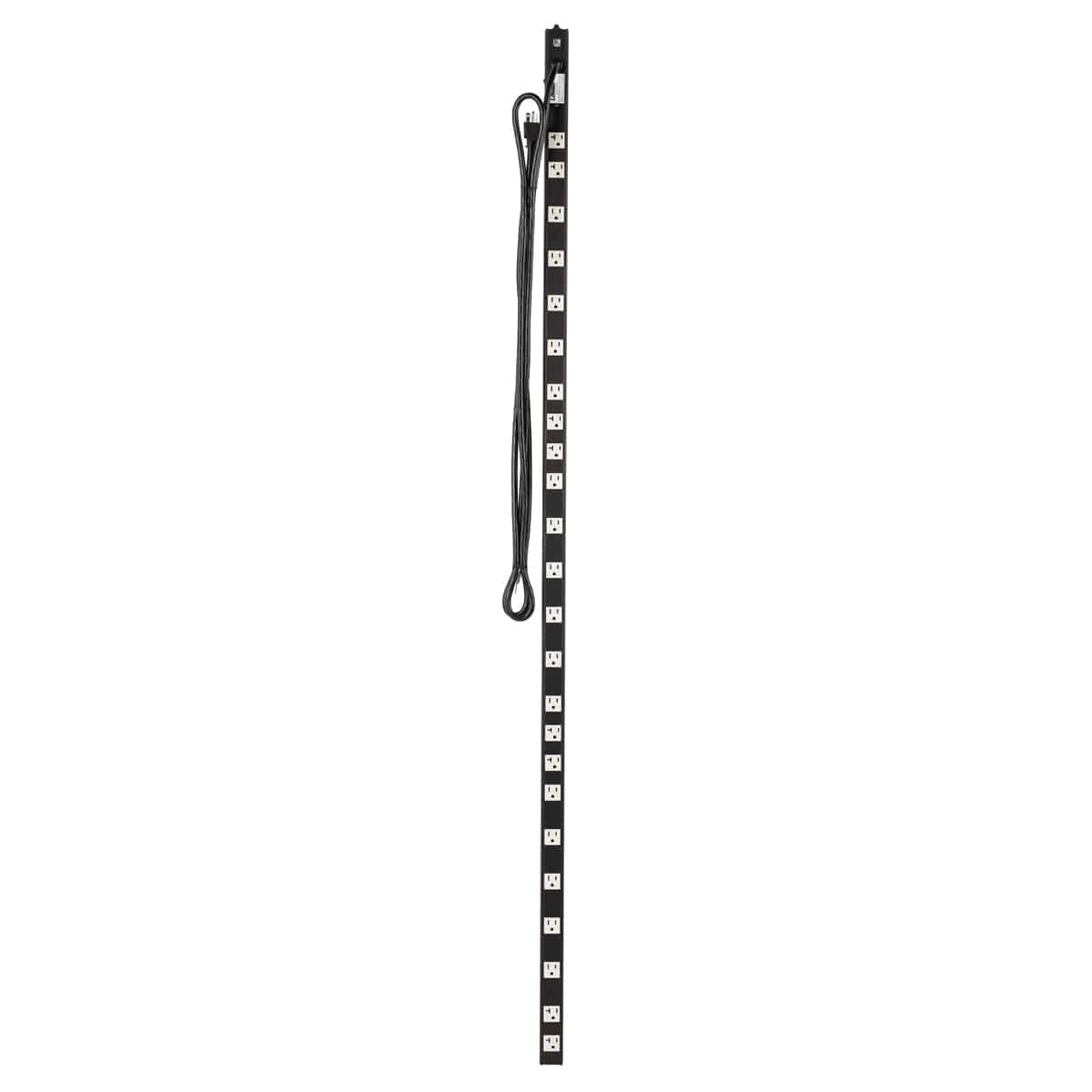

The 70-inch power strip features a total of 24 receptacles (16 NEMA 5-15R and 8 NEMA 5-20R). The 120VAC 60Hz 20A power strip with circuit breaker has an attached (non-removable) 12-ft. power cord with NEMA 5-20P molded plug. It includes basic surge suppression (common mode transient voltage surge suppression, maximum surge voltage 6000V) with LED indicator that lights to show protection is active. The strip includes mounting clips, screws and cable ties for vertical installation in a rack. UL Listed. Imported (China).

Add to Favorites

Compare

Amperage: 20A
Outlets: 16 (15A) and 8 (20A) NEMA
Power Rating: 120VAC, 20A
Chassis: Steel with black finish (70 in.)

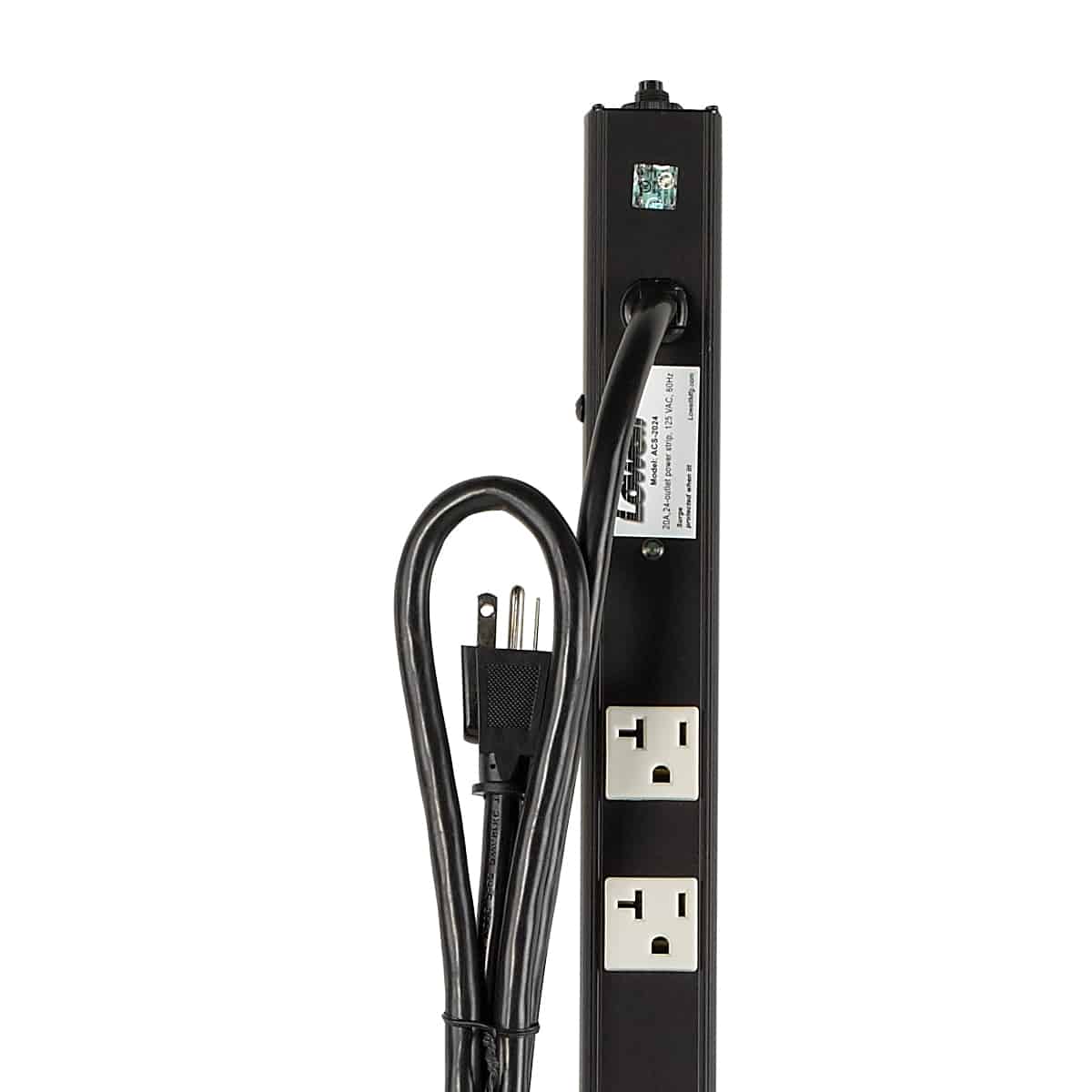

Termination: 12 ft. attached cord with 5-20P NEMA plug
Surge Suppression: Common mode transient voltage surge suppression (UL 1449-3 Listed) with LED indicator and 15A circuit breaker. Max surge current 6500A. Max surge voltage 6000V.
Mounting Aids: Mounting clip, screw, cable ties

Spec Sheet: 2170-ACS2024

EIA/TIA Compliant
RoHS Compliant
UL Listed, U.S./Canada
Imported

The UL Listed power strip shall be Lowell Model ACS-2024. Power rating shall be 120VAC 20A with circuit breaker protection and an LED indicator that is lit when protection is active. The power strip shall have a suppressed voltage rating of 400V with maximum surge at 6000V and 6500 Amperes maximum peak current. Power strip shall include 24 outlets. It shall be terminated with a 12 ft. cord and molded plug. It shall install to adjustable or fixed rail racks with a mounting clip and screw.

Mounting Brackets for open frame rack: PCMB-6
