AC Power Strip (20A) with 20 Outlets on 6 Circuits

Name: AC Power Strip (20A) with 20 Outlets on 6 Circuits
SKU: ACS-2020-6C-HW
Price: 525.72 USD
Availability: InStock

NEMA 5-20R outlets, 60-in. chassis

$525.72 MSRP

Model ACS-2020-6C-HW

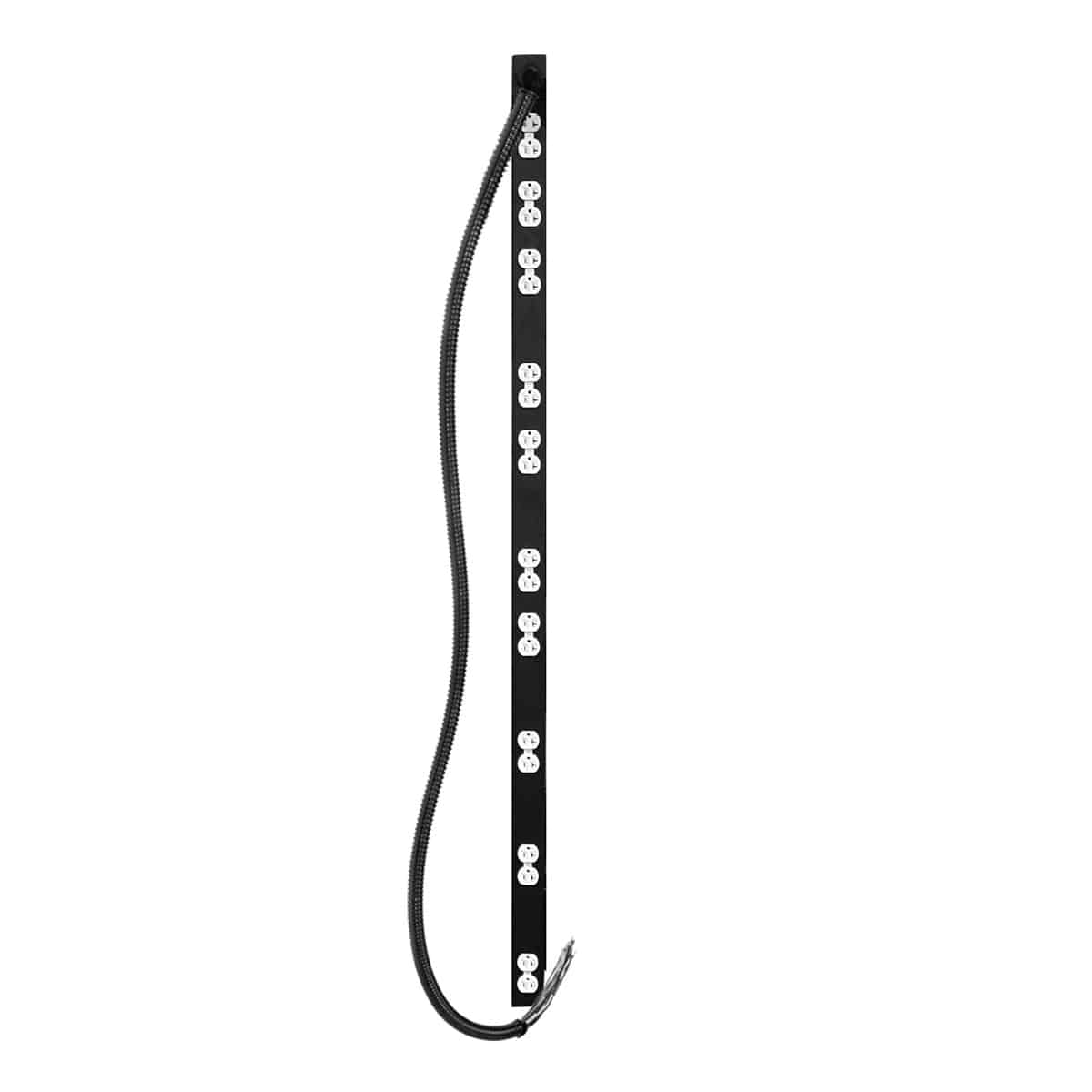

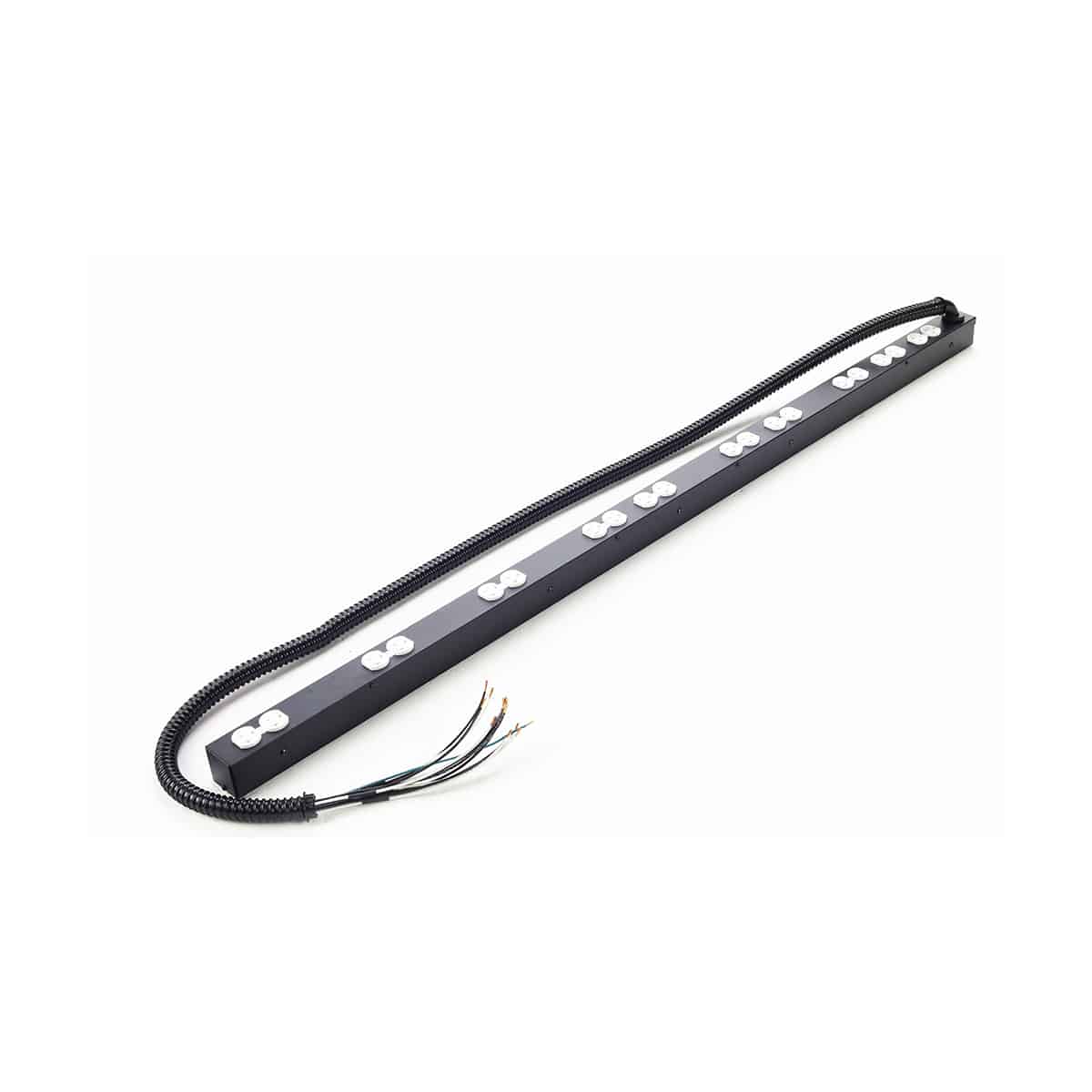

The (120VAC 60Hz 20A) power strip features 20 NEMA 5-20R receptacles (10 duplex) on 6-circuits. The 60-inch chassis includes termination via a 6-ft. non-metallic flexible whip with pigtail leads. Includes universal mounting brackets for wall, counter, or rack installation (minimum rack space 35U). ETL Listed. Made in the U.S.A.

Add to Favorites

Compare

Amperage: 20A
Outlets: 20 NEMA
Number of circuits: 6
Chassis: Steel with black finish (60 in.)
Termination: Hardwired 6 ft. non-metallic flexible conduit with pigtail leads
Mounting Aids: Universal mounting brackets

Spec Sheet: 1003-ACS20206CHW

EIA/TIA Compliant
RoHS Compliant
ETL Listed, U.S./Canada
Made in U.S.A. with global components

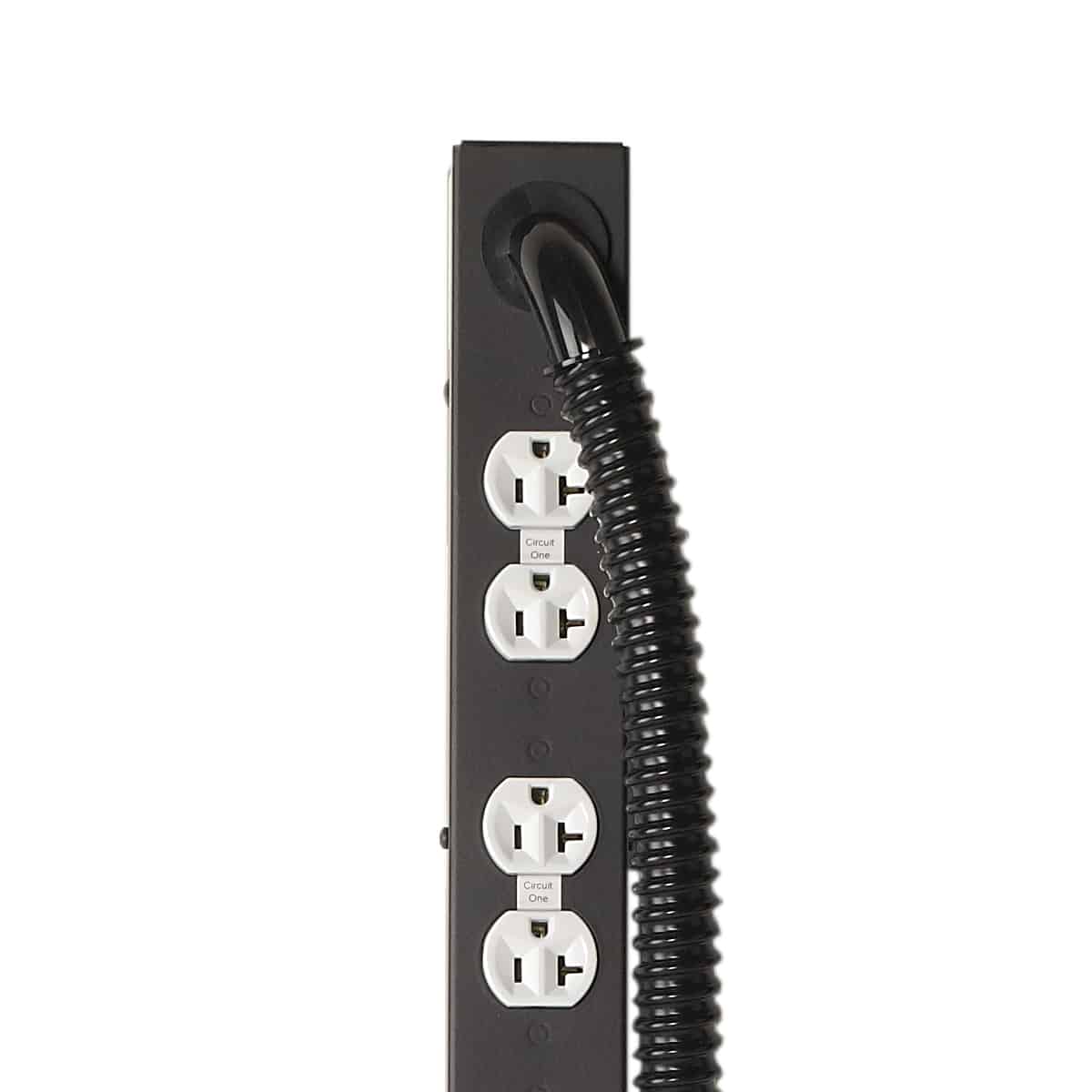

The ETL Listed power strip shall be Lowell model ACS-2020-6C-HW with power rating of six 20A circuits. It shall provide at total of 20 outlets (ten duplex) wired into six independent 20A circuits. Circuit 1 shall have 3 grouped duplex outlets, Circuits 2 and 3 shall have 2 grouped duplex outlets, Circuits 4-6 shall have 1 duplex outlet each. Termination shall be via a 6-foot non-metallic, flexible conduit with numbered pigtail leads. The chassis shall measure 60 in. x 2 in. x 2 in. and shall include hardware for mounting to racks with adjustable or fixed rails. It shall have a black powder epoxy finish.
