Rackmount 4-step power sequencer with outlets, ACR-SEQ4-1509

Sequencer with AC Power Outlets (15A), Remote-in/out, Switch

Name: Sequencer with AC Power Outlets (15A), Remote-in/out, Switch
SKU: ACR-SEQ4-1509
Price: 659.30 USD
Availability: InStock

Classic wire connections

$659.30 MSRP

Model ACR-SEQ4-1509

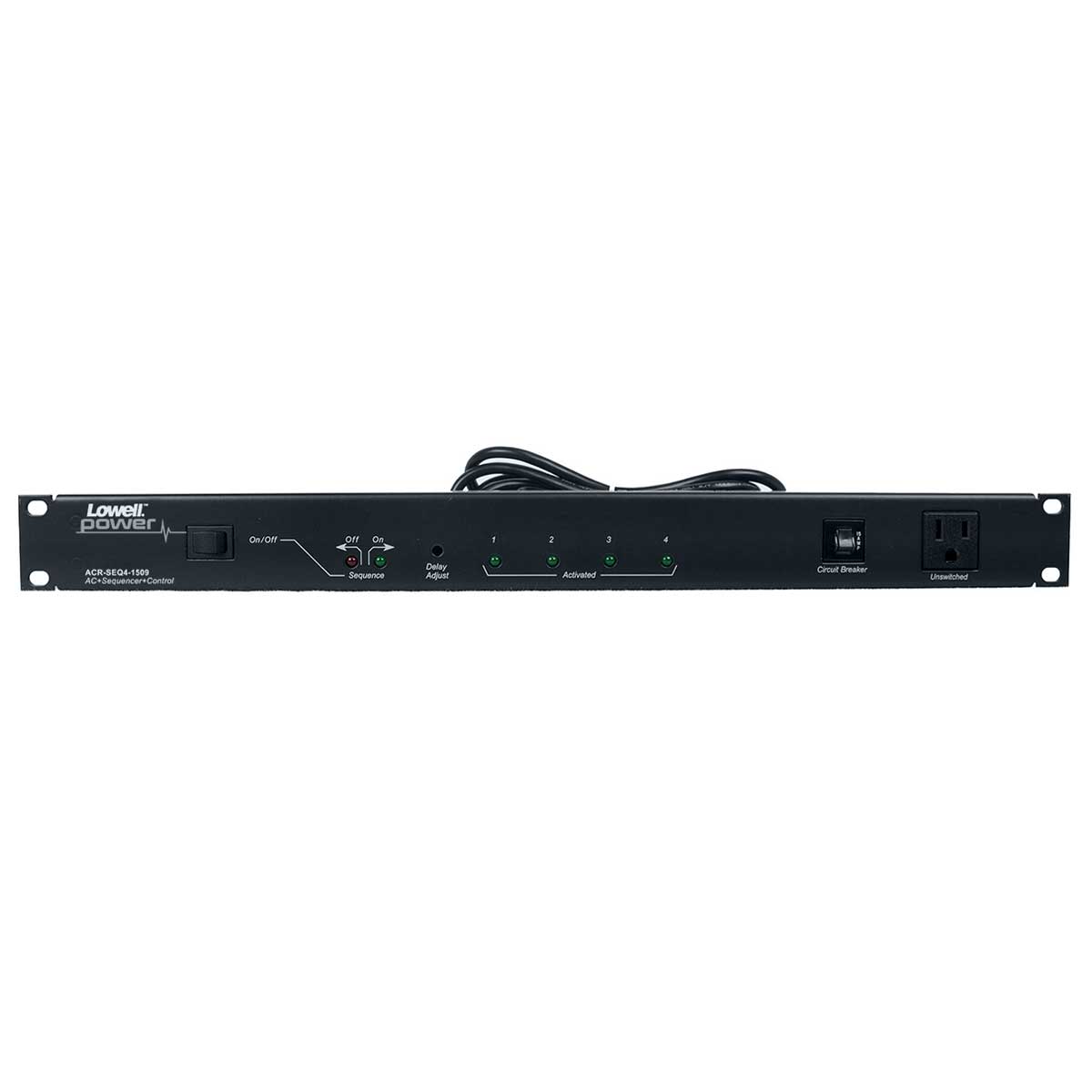

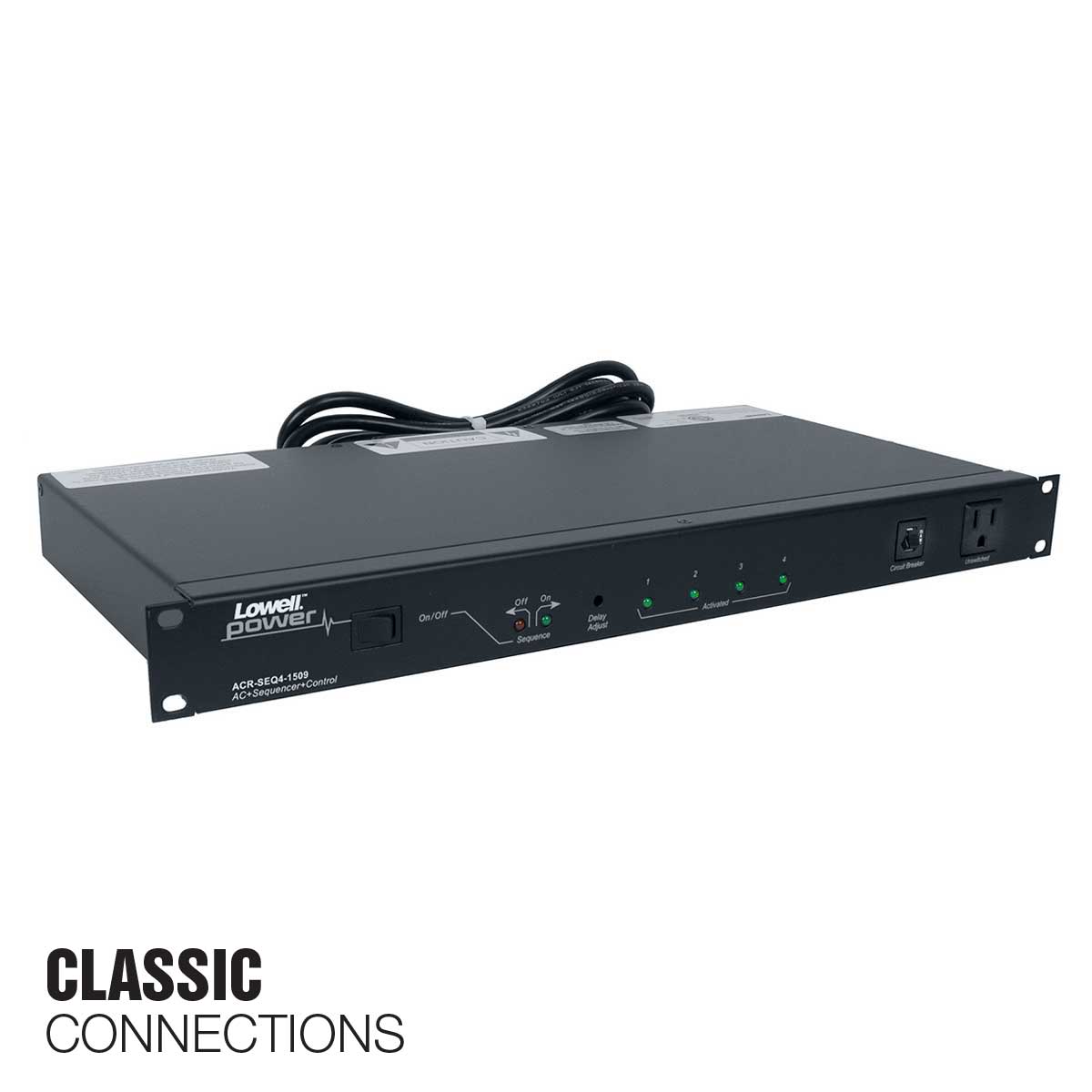

Rackmount panel features 15A power outlets and a 4-step sequencer for time-delayed activation/deactivation of equipment directly plugged into the 6 outlets that are controlled by the on/off rocker switch. Three additional outlets are un-switched (always on). This model includes a rear terminal block to connect remote switches using classic wire connections (not pass-thru jacks).

Add to Favorites

Compare

Chassis: 19 in. x 9 in. x 1.75 in. (1U)
Power Rating: 120VAC, 60Hz, 15A
Termination: 9 ft. attached cord with NEMA 5-15P plug
Activation: Rocker switch

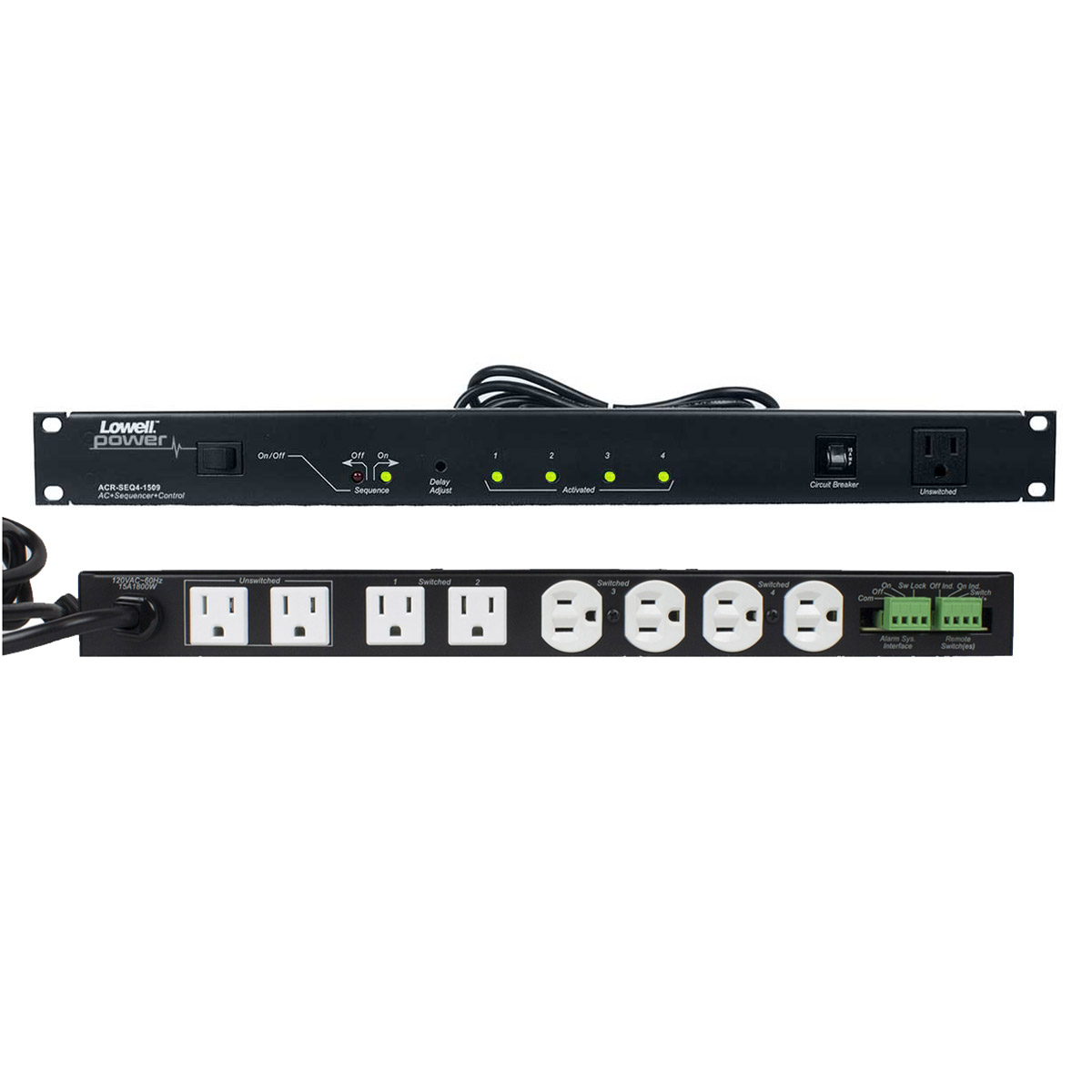

Outlets (9 total): 1 front 15A (un-switched), 2 rear 15A (un-switched) , 6 rear (15A) switched
Four-step sequencer has a delay between steps that can be set between 0.5 and 10 seconds (screwdriver adjustable)
Color coded LED status indicators
Rear terminal block for connection to optional remote switches (momentary).
Rear terminal block to allow system switches to be overridden for life safety system applications where fire code mandates an alarm interface.

Spec Sheet: 1606-ACRSEQ41509

ETL Listed (U.S., Canada)
Made in U.S.A. with global components

The 1U rackmount panel with nine 15A power outlets (one un-switched in front, two un-switched in rear, six switched in rear) and four-step sequencer shall be Lowell Model No. ACR-SEQ4-1509. It shall be ETL Listed and have a power rating of 120VAC 60Hz/15A with EMI/RFI filtering. The front rocker switch shall sequentially activate and deactivate equipment connected to the “switched” rear outlets in four steps. The sequence delay between steps shall be between 0.5 to 10 seconds, which shall be screwdriver adjustable. The steel chassis shall have a black finish and feature color coded LEDs and a rocker activation switch on the front. Overall measurements shall be 19 in. x 1.75 in. x 9 in. Termination shall be via an attached 9 ft. cord with NEMA 5-15P plug.

For use with classic connection devices (not pass-thru)
