AC Power Panel (20A) with 9 Outlets, Basic Surge Protection, Switch

Name: AC Power Panel (20A) with 9 Outlets, Basic Surge Protection, Switch
SKU: ACR-209-S
Price: 319.78 USD
Availability: InStock

NEMA 5-20R outlets

$319.78 MSRP

Model ACR-209-S

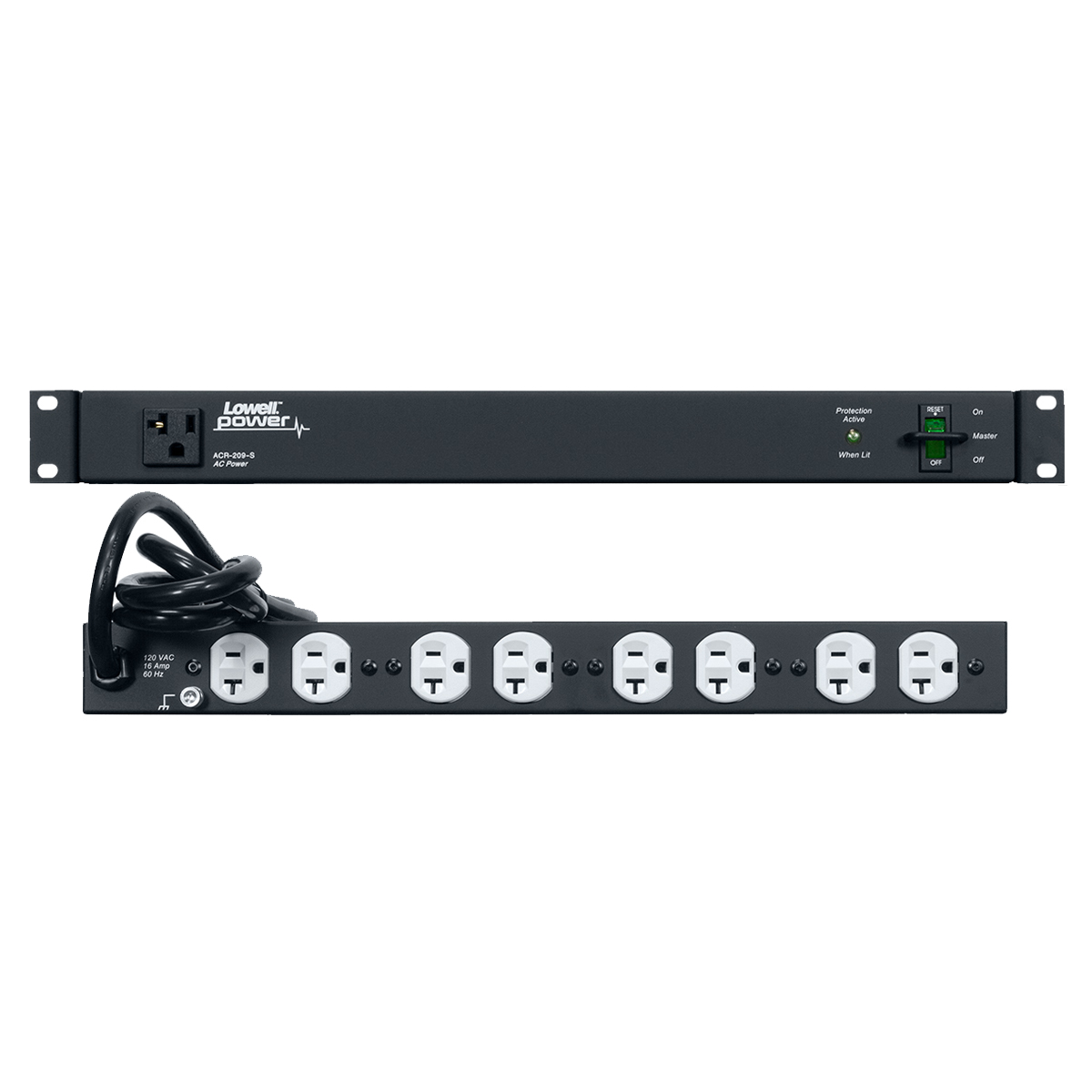

Economical 120VAC 60H, 20A power distribution panel features nine (9) NEMA 5-20R receptacles, all controlled by a lighted rocker switch, which makes it easy to see at-a-glance when the receptacles are powered. The switch has a guard bar across it to protect against accidental operation. This panel includes basic surge protection with LED status indicator and a 9-ft. attached power cord with NEMA 5-20P plug. Power rating 120VAC 60Hz 20A. UL Listed. Imported.

Add to Favorites

Compare

Power Rating: 120VAC, 60Hz, 20A

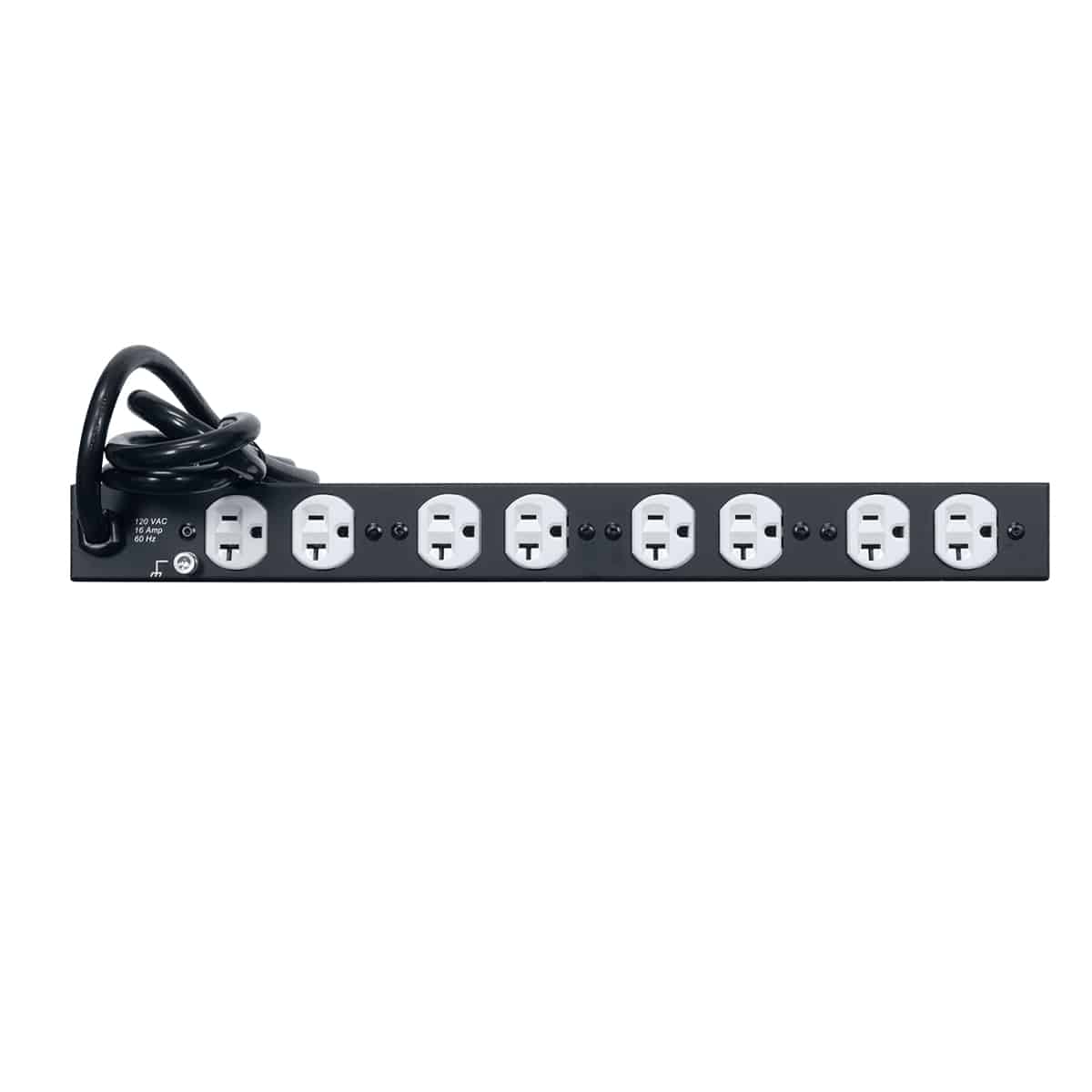

Outlets: 9 (20A) NEMA outlets (1 front, 8 rear)
Termination: 9 ft. attached cord with NEMA 5-20P plug
Chassis: 19 in. x 9 in. x 1.75 in. (1U)
Basic surge suppression with LED status indicator
On/off Switch: Rocker switch controls 1 front outlet and 8 rear outlets. Includes guard to prevent accidental operation.

Spec Sheet: 2069-ACR209S

UL Listed
Imported

The rack shall include Lowell panel model ACR-209-S, which shall feature nine NEMA 5-20R outlets (one front, eight rear), all controlled by a lighted rocker switch with guard bar. It shall include basic surge suppression and an external grounding/bonding terminal. The panel shall be UL Listed and have a power rating of 120VAC, 60Hz, 20A. The 19″W x 9″D x 1.75″H (1U) steel chassis shall have a black powder epoxy finish. Termination shall be via an attached 9 foot cord with NEMA-5-20P plug.
