AC Power Panel (15A) with 9 Outlets, Basic Surge Protection, Switch

Name: AC Power Panel (15A) with 9 Outlets, Basic Surge Protection, Switch
SKU: ACR-159-S
Price: 179.90 USD
Availability: InStock

NEMA 5-15R outlets

$179.90 MSRP

Model ACR-159-S

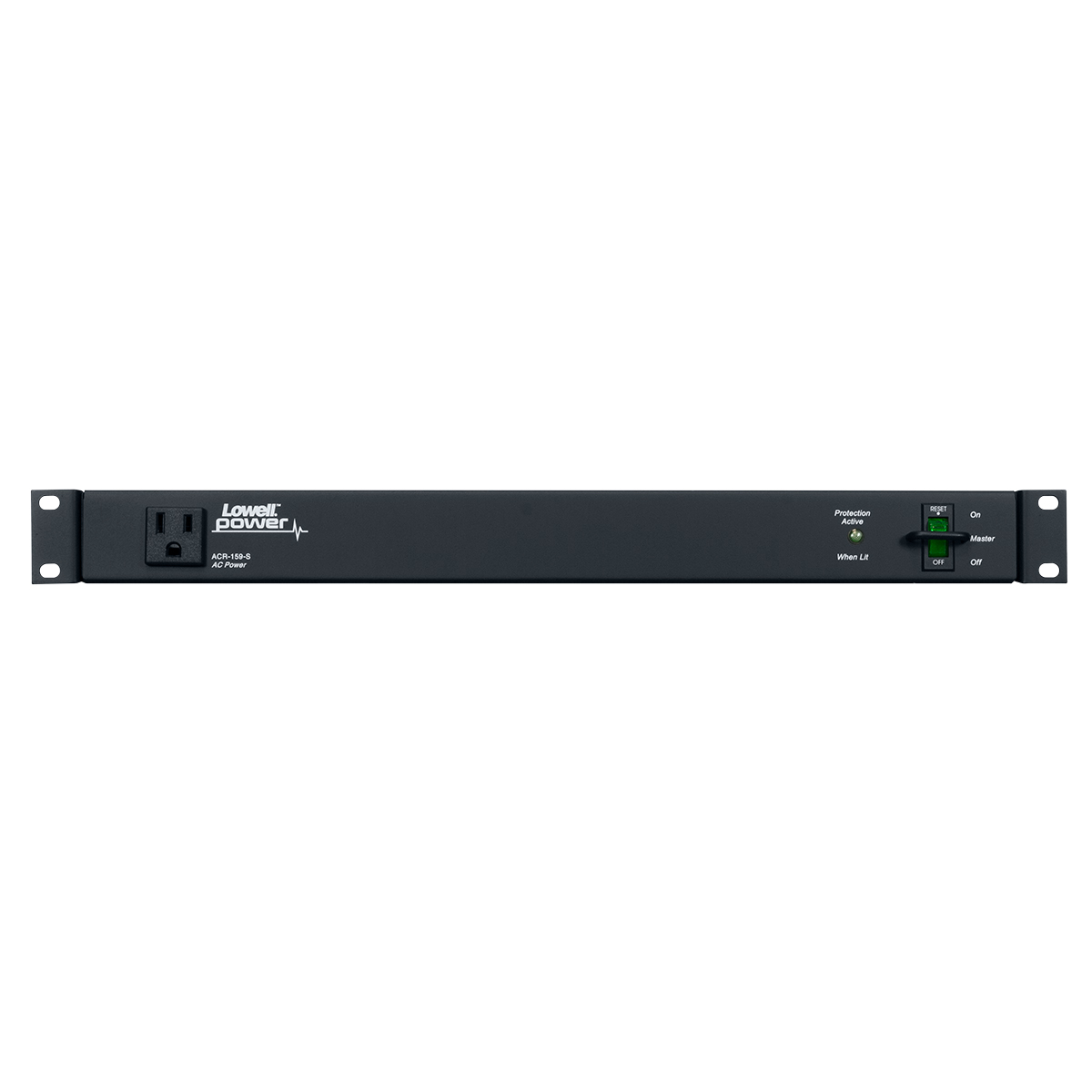

Economical power distribution panel features nine (9) NEMA 5-15R receptacles, all controlled by a lighted rocker switch, which makes it easy to see when receptacles are powered. A guard across the switch protects against accidental operation. The panel includes basic surge suppression (max. surge current 30,000A) with LED status indicator, and an external grounding/bonding terminal in the rear. The compact steel chassis with black powder epoxy finish occupies minimal rack space (1U). Termination is via an attached 9-ft. power cord with NEMA 5-15P plug. UL Listed. Imported (China).

Add to Favorites

Compare

Power Rating: 120VAC, 60Hz, 15A

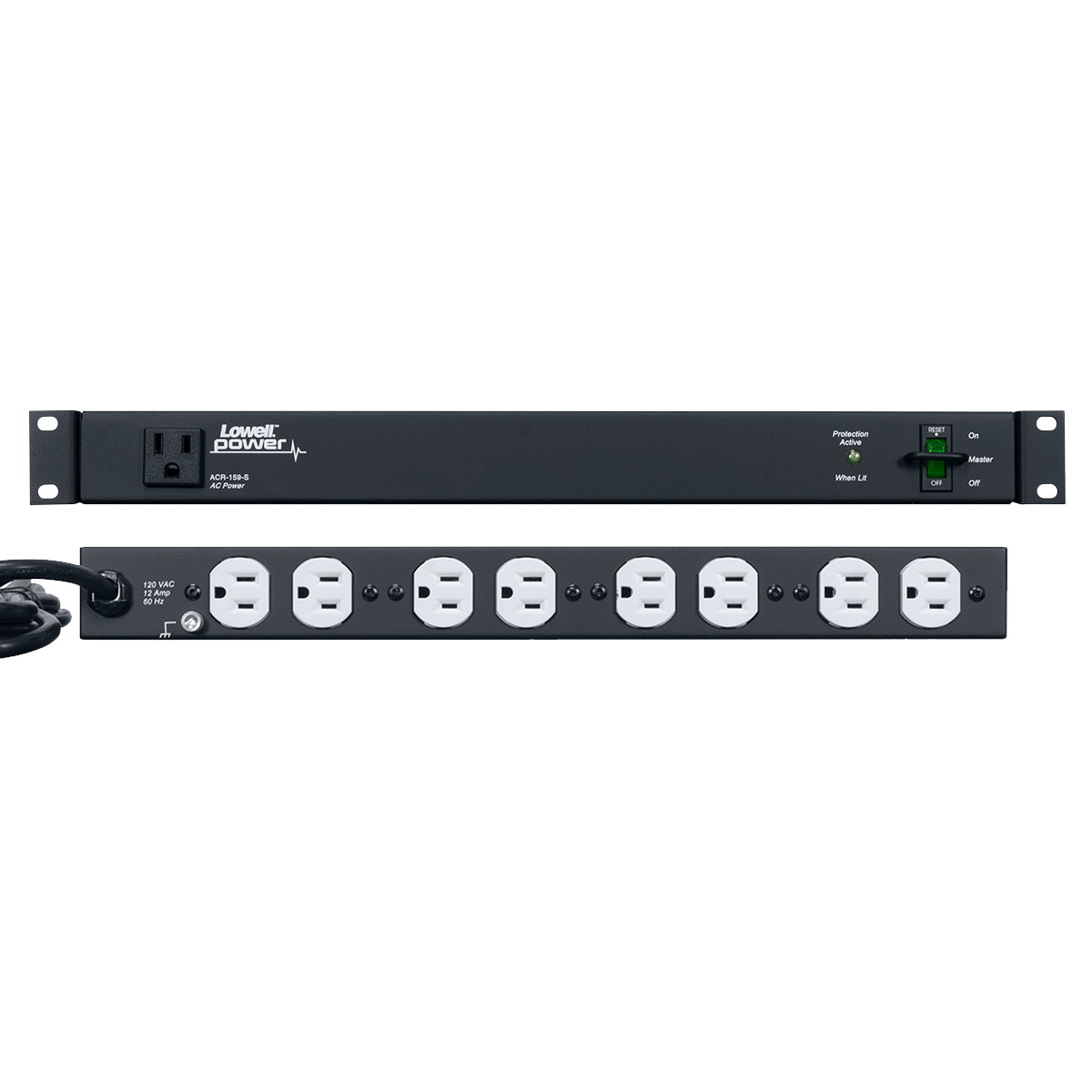

Outlets: 9 (15A) NEMA outlets (1 front, 8 rear)
Termination: 9 ft. attached cord with NEMA 5-15P plug
Chassis: 19 in. x 9 in. x 1.75 in. (1U)
Basic surge suppression with LED status indicator

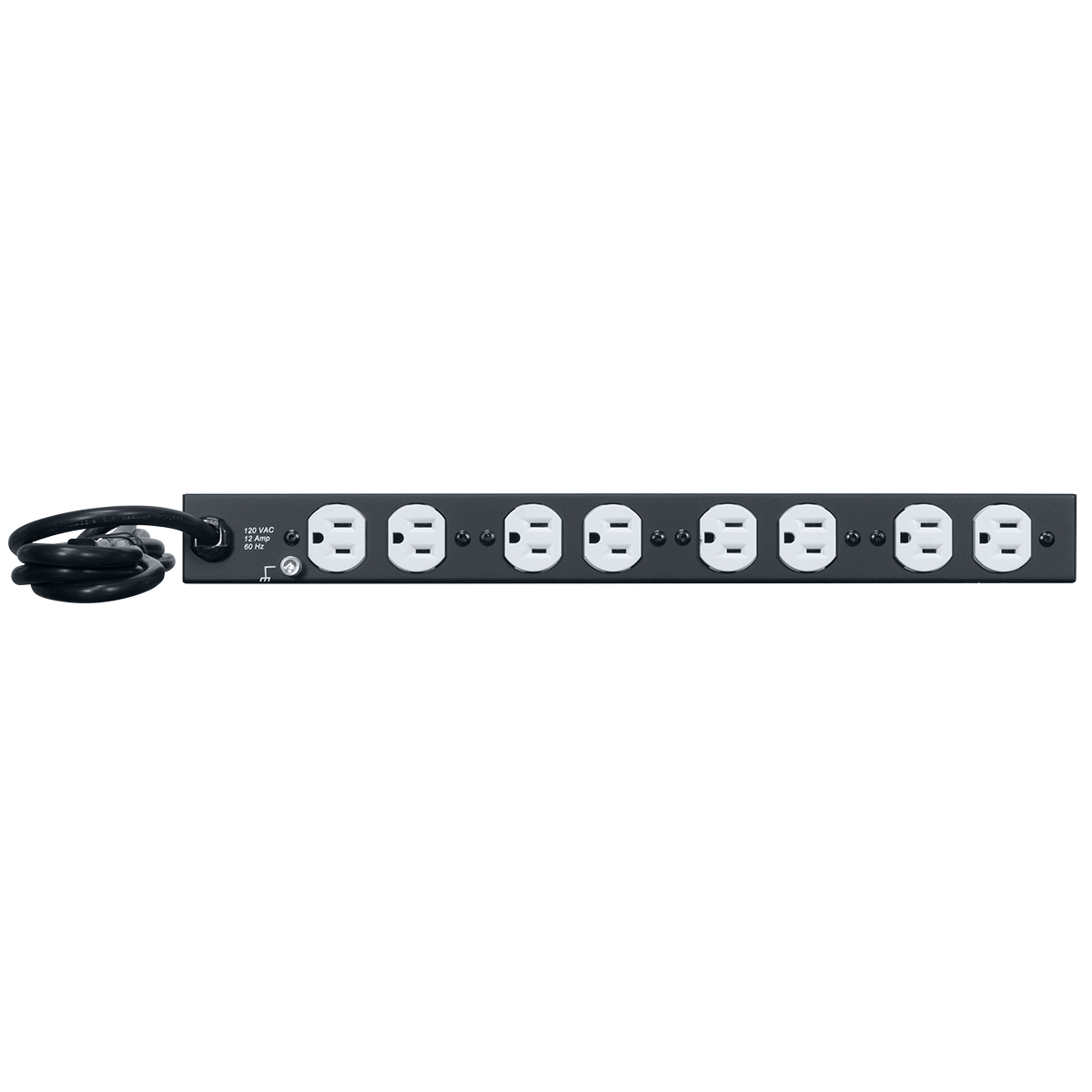

On/off Switch: Rocker switch controls 1 front outlet and 8 rear outlets

Spec Sheet: 1188-ACR159S

UL Listed
Imported

The AC rackmount power panel shall be Lowell Model ACR-159-S. It shall be UL Listed and have a power rating of 120VAC, 60Hz, 15A with eight outlets in rear and one in front. Activation shall be via a lighted rocker switch. Termination shall be a 9-ft. cord with NEMA 5-15P plug. Unit shall also include surge protection up to 30,000A. The steel chassis shall be 19 in. x 9 in. x 1.75 in. and have a black powder epoxy finish.

Custom Printed Panels: Add a company logo, instructions and/or graphics to this panel.
