ACR-1506-LTS: Rackmount panel, 15A outlets, light

AC Power Panel (15A) with 6 Outlets, Basic Surge Protection, Switch, Light

Name: AC Power Panel (15A) with 6 Outlets, Basic Surge Protection, Switch, Light
SKU: ACR-1506-LTS
Price: 307.32 USD
Availability: InStock

NEMA 5-15R outlets

$307.32 MSRP

ACR-1506-LTS

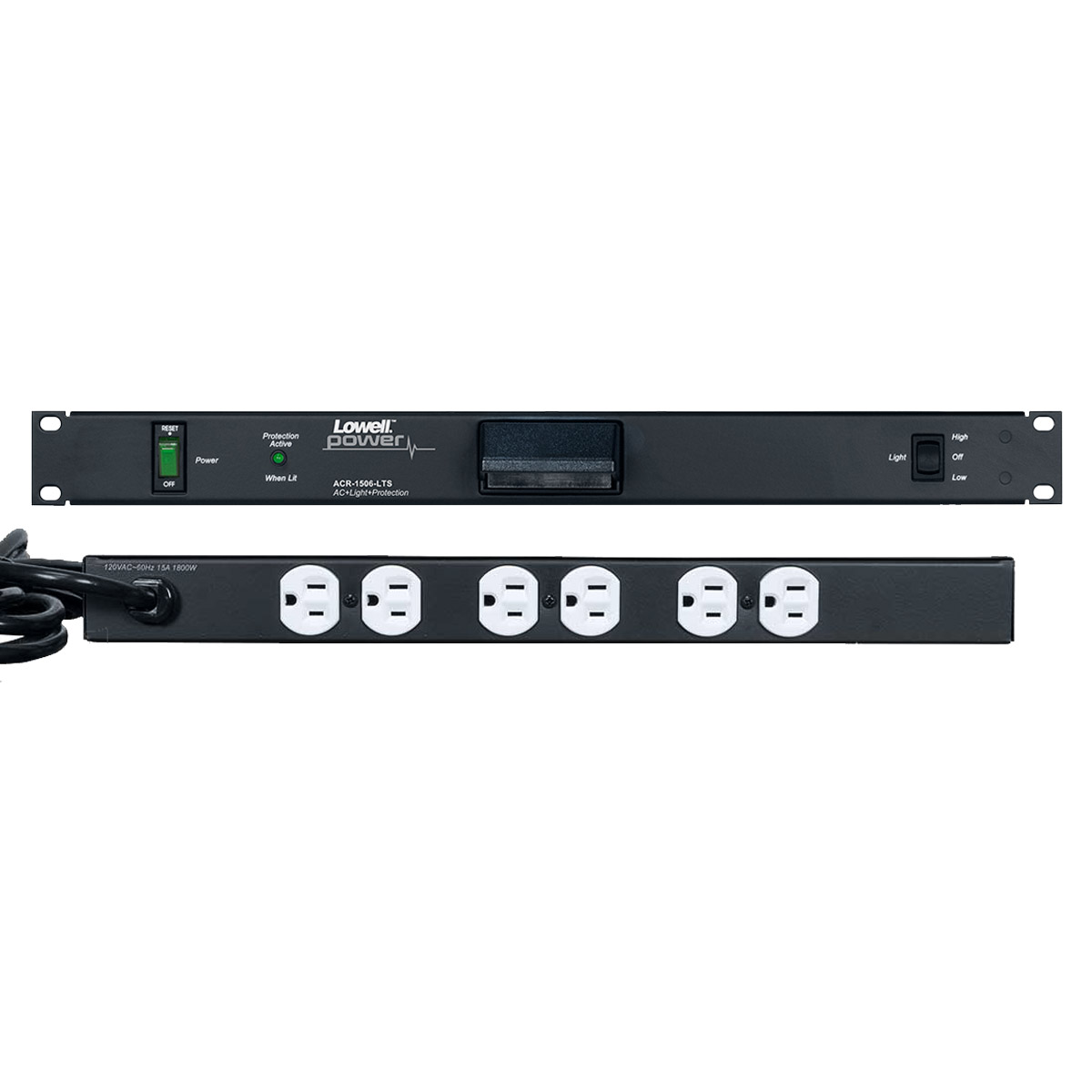

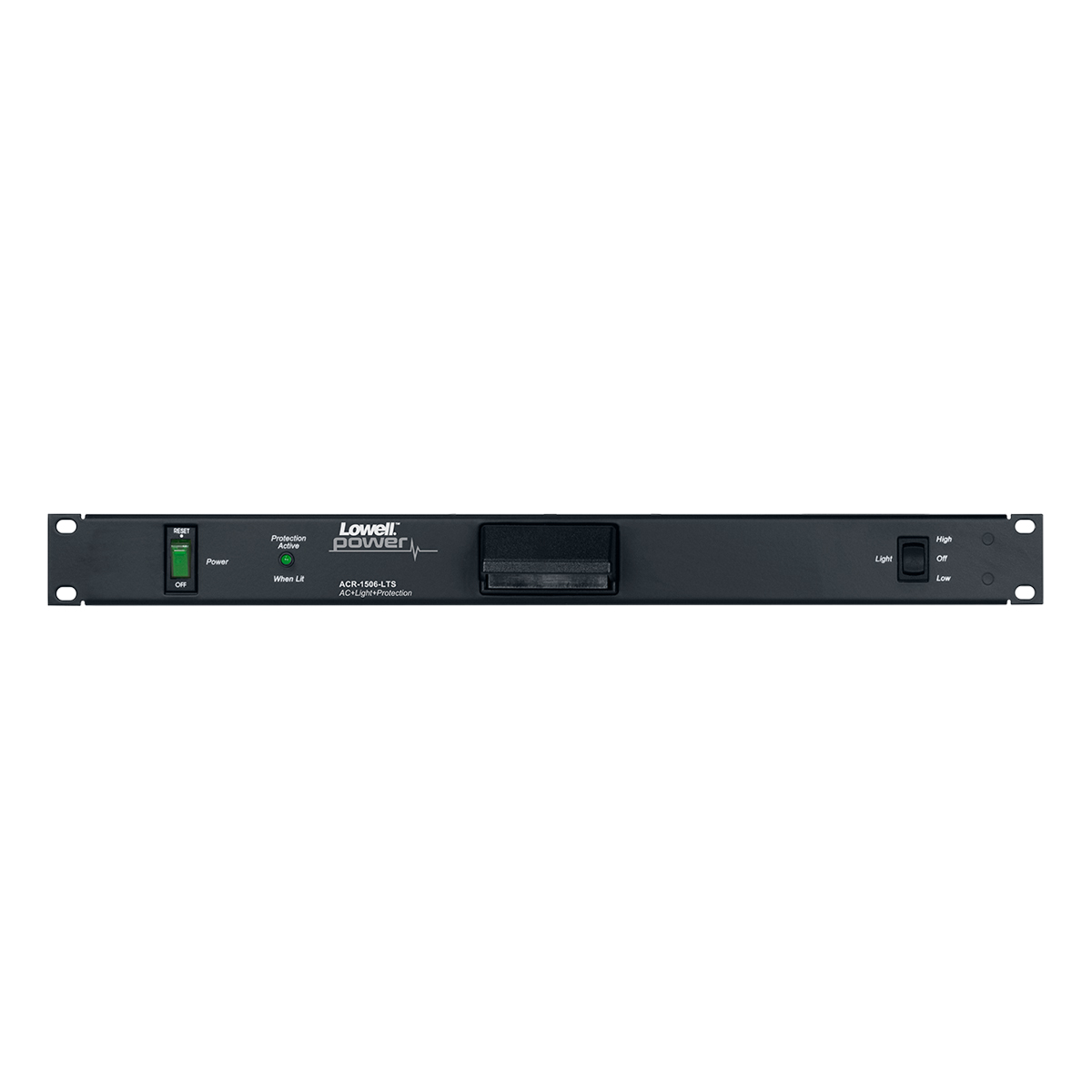

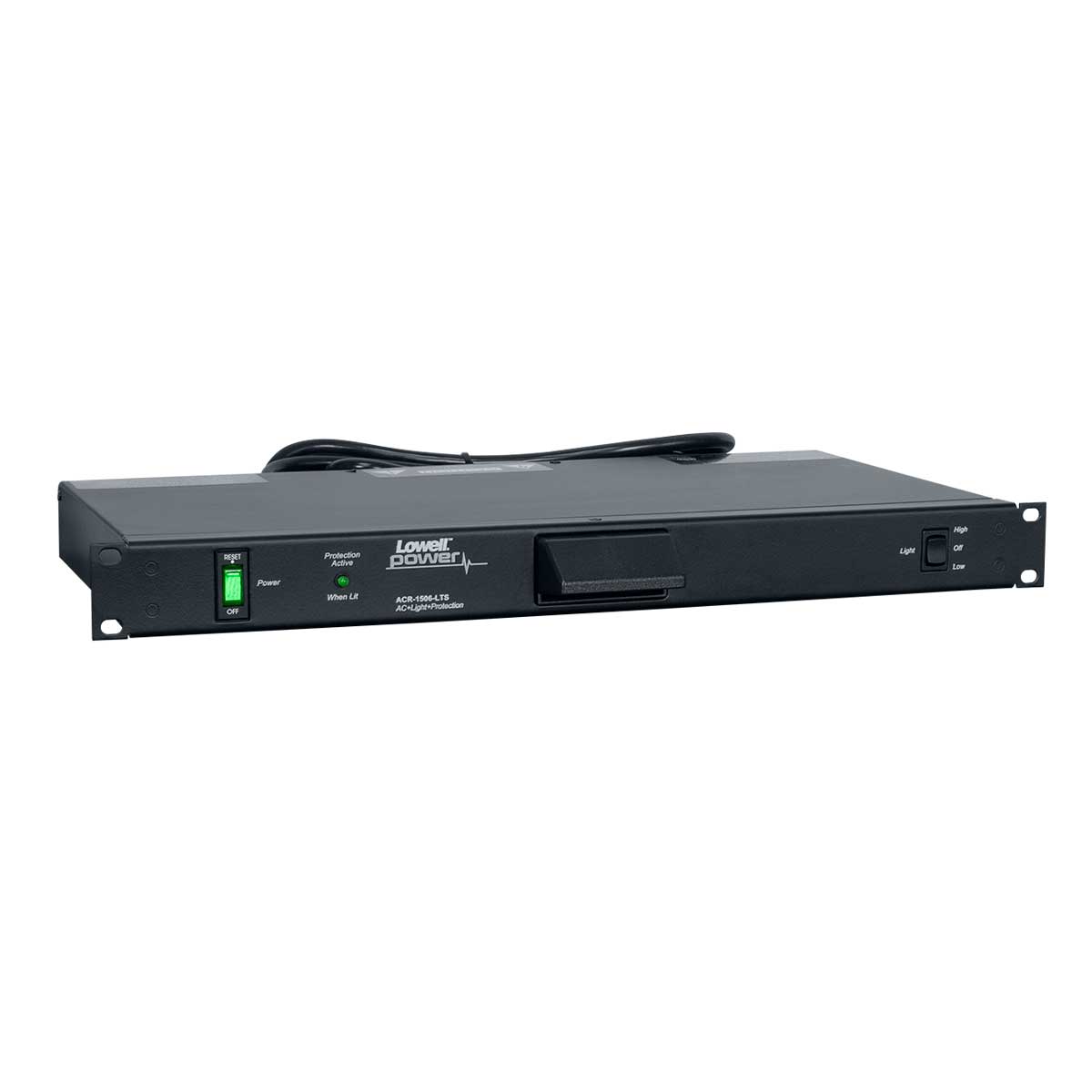

This rack panel features six (6) NEMA 5-15R receptacles and a hooded white light to provide illumination for rack-mounted controls. Receptacles are controlled by a front rocker switch; the light is controlled by a separate switch with three settings (high, low, off). The unit includes surge protection (surges up to 30,000A) and a 9-ft. attached cord with NEMA 5-15P plug. ETL Listed. Made in the U.S.A

Add to Favorites

Compare

Power Rating: 120 VAC, 60 Hz, 15A

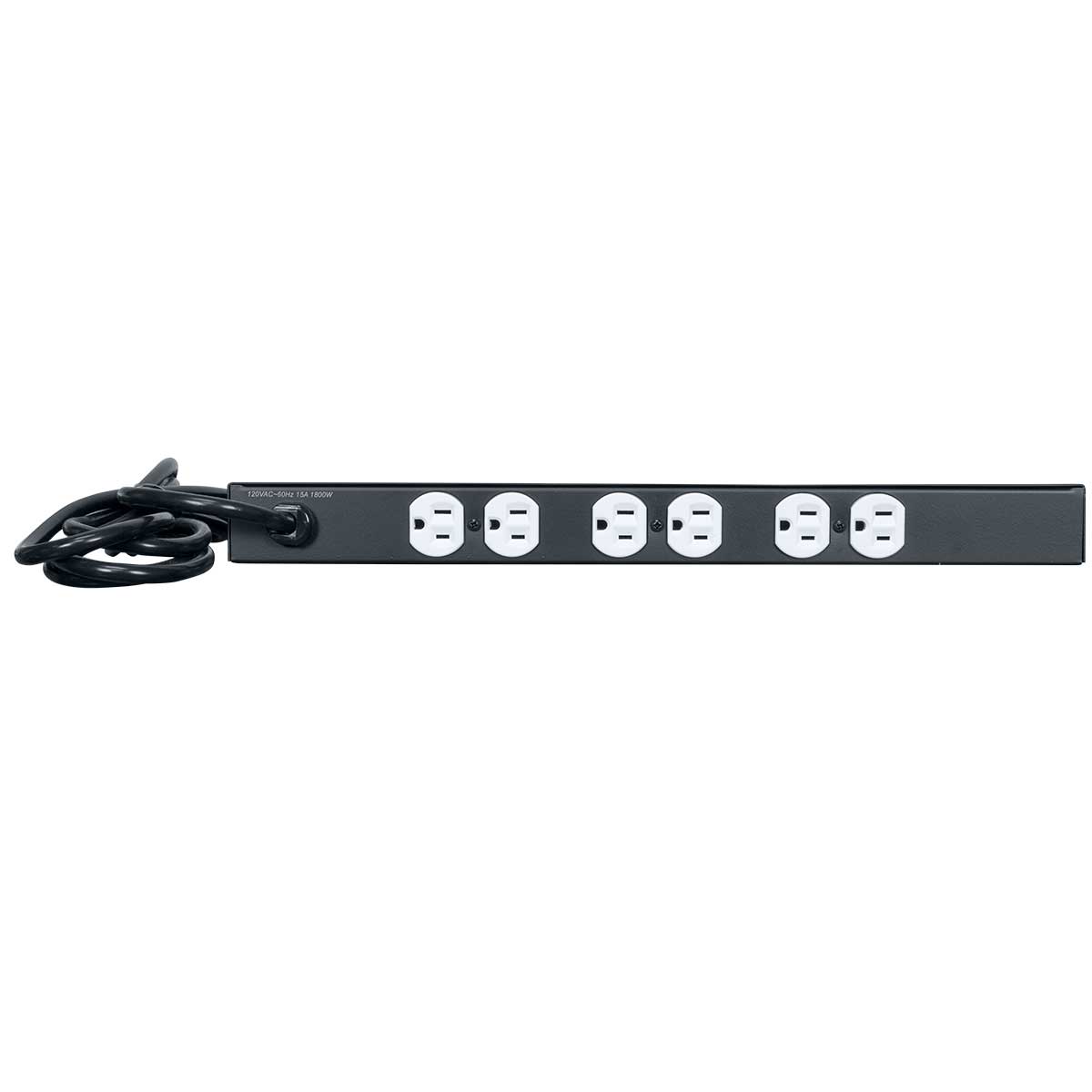

Outlets: 6 (15A) outlets total, all in rear. Controlled by front switch.
Termination: 9 ft. attached cord with NEMA 5-15P plug
Chassis: 19 in. x 9 in. x 1.75 in. (1U)
Surge Suppression: Up to 30,000A
Switch (on/off): Rocker
Lighting: Single hooded light produces soft white light

Spec Sheet: 1183-ACR1506LTS

EIA/TIA Compliant
RoHS Compliant
ETL Listed, U.S./Canada
Made in U.S.A. with global components

The 19 inch AC power rackmount panel shall be Lowell Model No. ACR- 1506-LTS, which shall be ETL Listed and have a power rating of 120VAC, 60Hz, 15A. It shall have three duplex outlets in the rear which shall be controlled by the on/off rocker switch on the front of the unit. The panel shall feature surge protection (maximum surge current 30,000A) and a hooded white light. The 19”W x 9”D x 1.75”H steel chassis shall feature a black powder epoxy finish and include a 9 ft. attached cord with NEMA 5-15P plug.
