AC Power Panel for Half-Rack (15A) with 5 Outlets, Basic Surge Protection, Switch

Name: AC Power Panel for Half-Rack (15A) with 5 Outlets, Basic Surge Protection, Switch
SKU: ACHR-1505-S
Price: 239.98 USD
Availability: InStock

NEMA 5-15R outlets

$239.98 MSRP

Model ACHR-1505-S

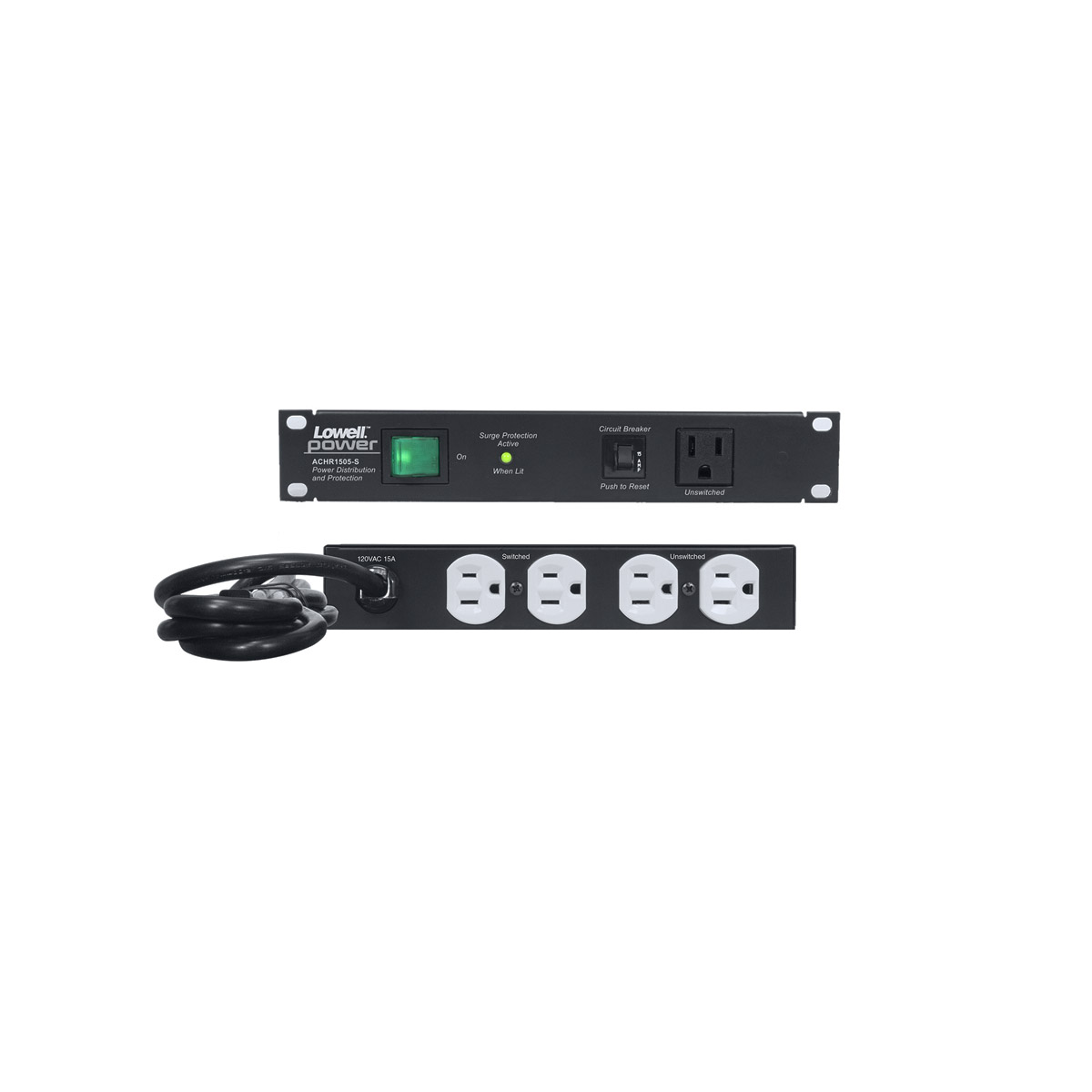

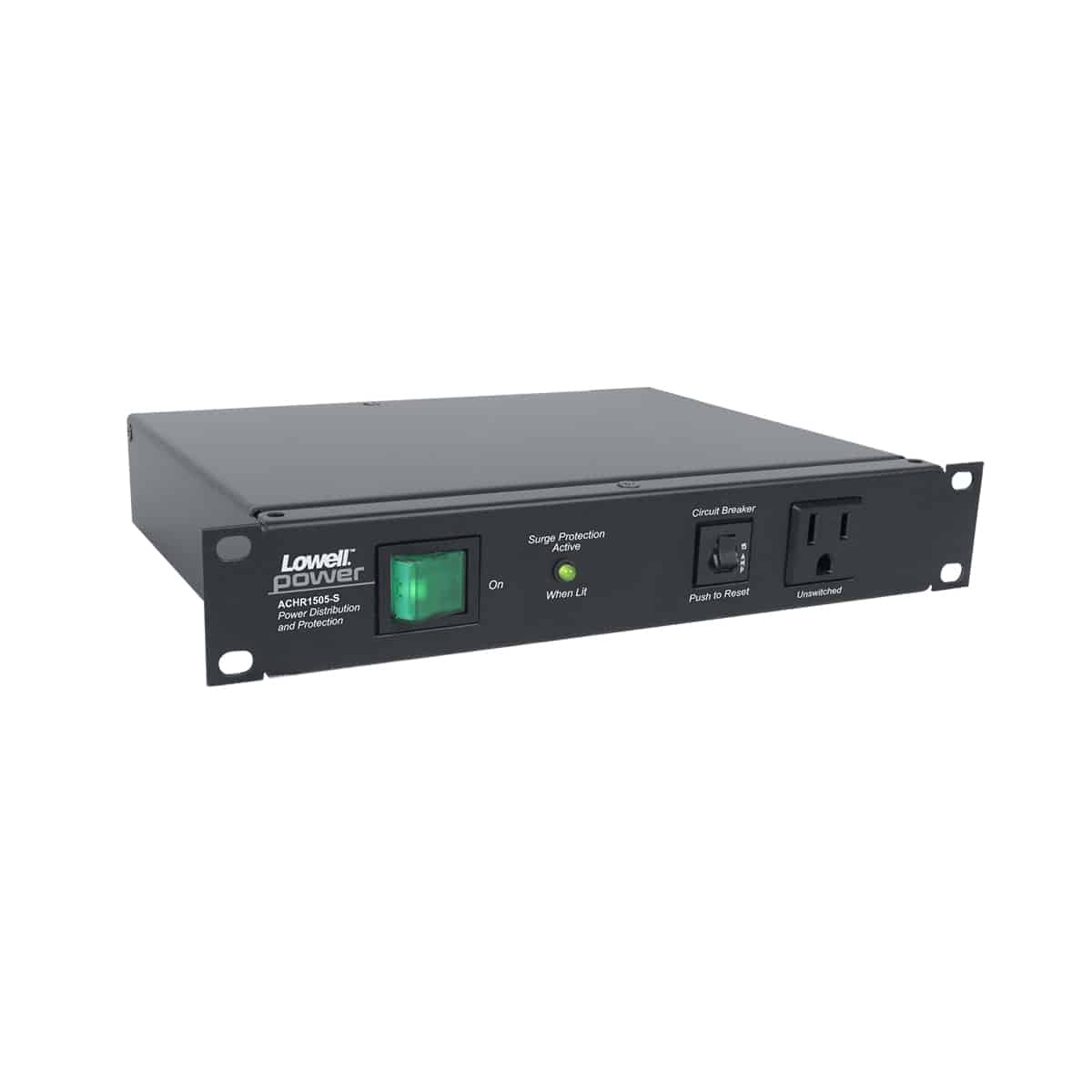

This 10.375-inch panel with AC power receptacles is sized to fit Lowell's half-width rack series LHFR-Series. The compact half-panel provides five (5) NEMA 5-15R receptacles, some of which are controlled by the front lighted rocker switch. The 120VAC 60Hz 15A unit includes basic surge protection (max. surge current 30,000) and a 6-ft. attached cord with NEMA 5-15P plug. ETL Listed. Made in the U.S.A.

Add to Favorites

Compare

10.38 in. x 7.25 in. x 1.75 in. chassis
Basic surge protection with LED status indicator. Maximum surge current 30,000A.
15A circuit breaker
Six ft. attached cord with NEMA 5-15P plug
Rocker switch (on/off)

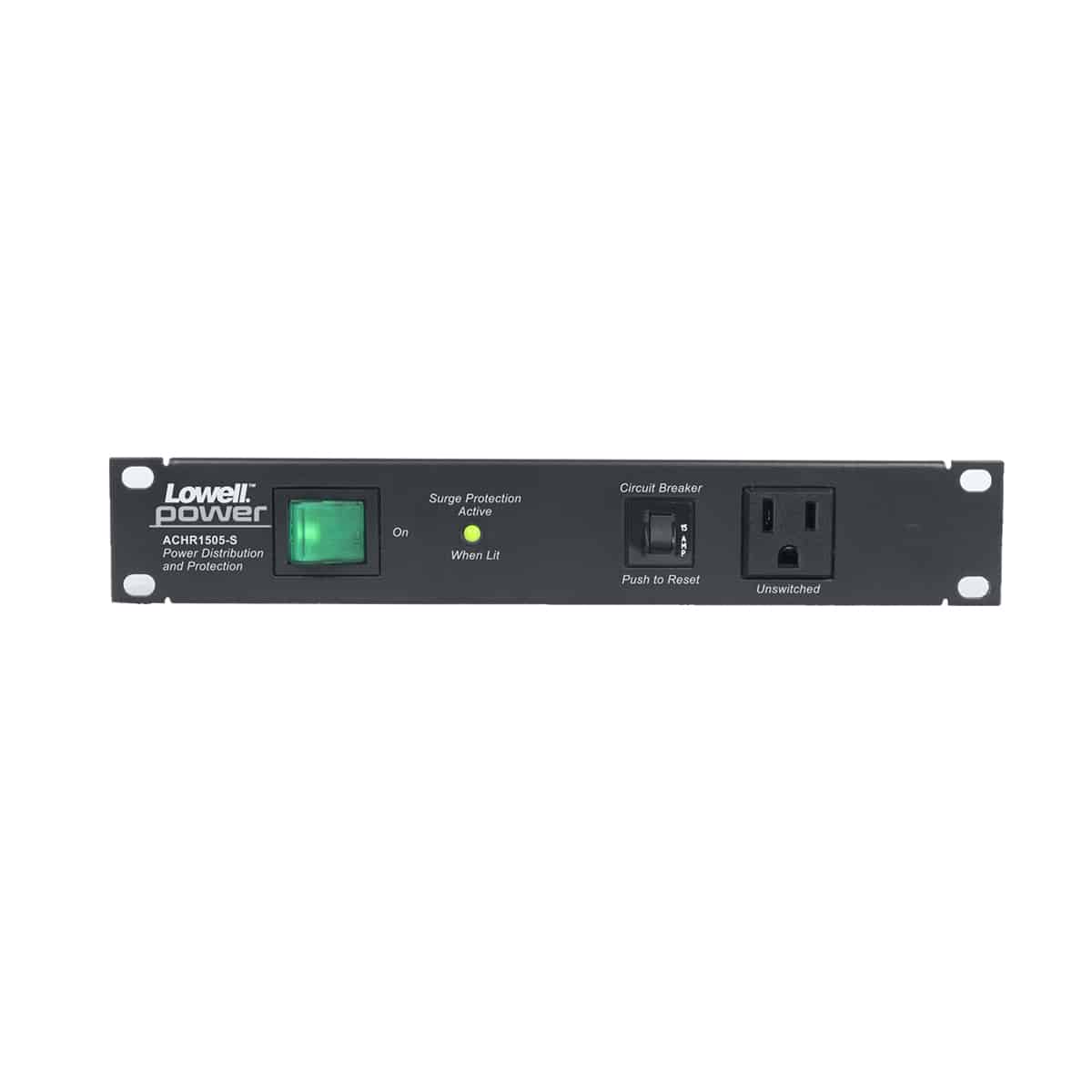

Front Outlet: 1 (un-switched)

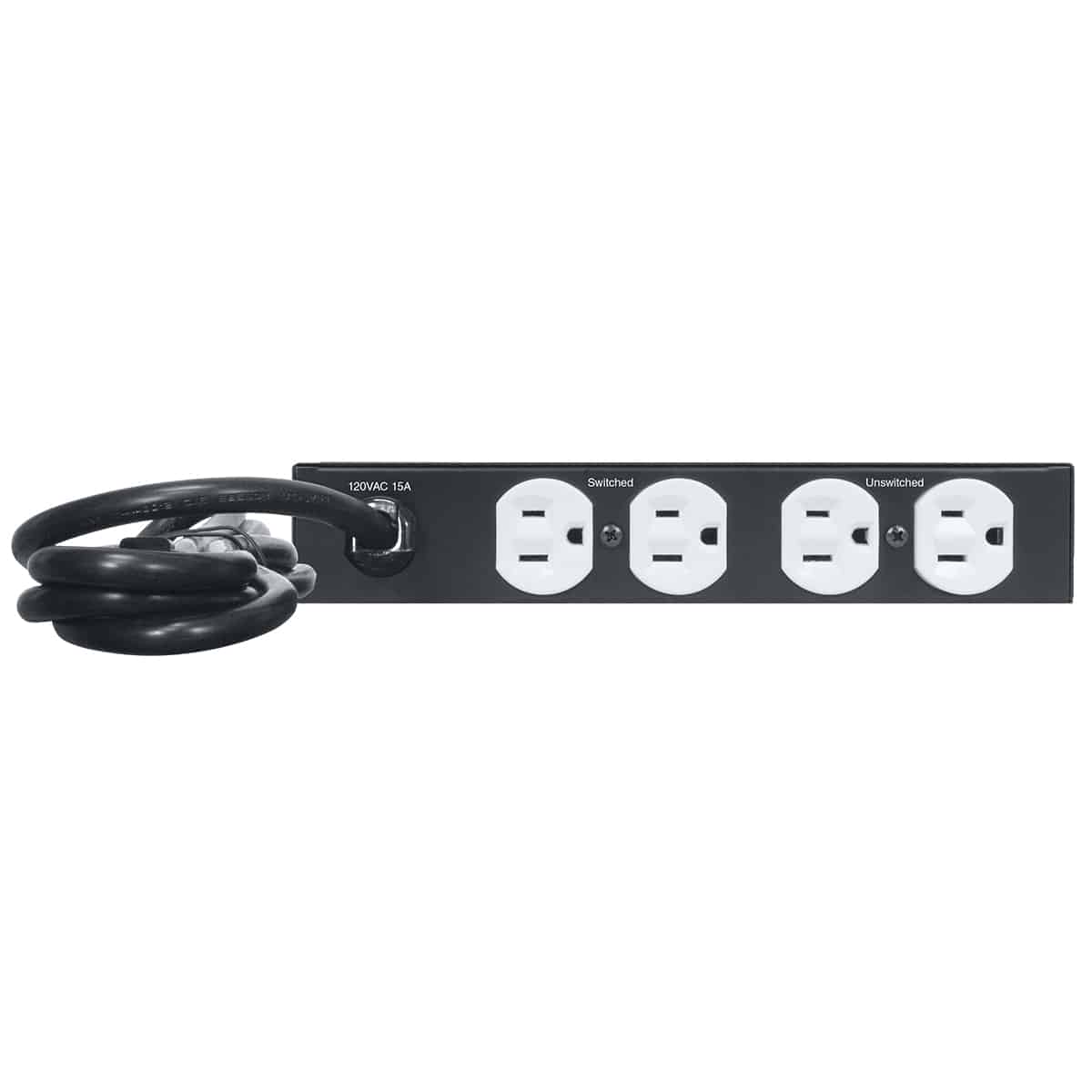

Rear Outlets: 2 (un-switched), 2 (switched)
Power Rating: 120 VAC (15A) 60 Hz
Total Outlets: 5 NEMA
Termination: 6 ft. cord
Surge Suppression: Yes

Spec Sheet: 1226-ACHR1505S

EIA/TIA Compliant
RoHS Compliant
ETL Listed, U.S./Canada
Made in U.S.A. with global components

The AC rackmount power panel shall be Lowell Model No. ACHR- 1505-S. It shall be ETL Listed and have a power rating of 120VAC, 60Hz, 15A with five outlets. Activation shall be via a lighted rocker switch which shall control two rear outlets. The front outlet and two rear outlets shall be unswitched. Termination shall be via a 6 ft. cord with NEMA 5-15P plug. The steel chassis shall measure 1U x 10.375″W x 7.25″D and shall have a black powder epoxy finish. The unit shall also include surge protection to 30,000A which shall have an LED status indicator.
