Stackable Recessed Enclosure for 8 inch driver, w/straps

Name: Stackable Recessed Enclosure for 8 inch driver, w/straps
SKU: 8XD4-S
Price: 26.58 USD
Availability: InStock

For screw-mount grille

$26.58 MSRP

Model 8XD4-S

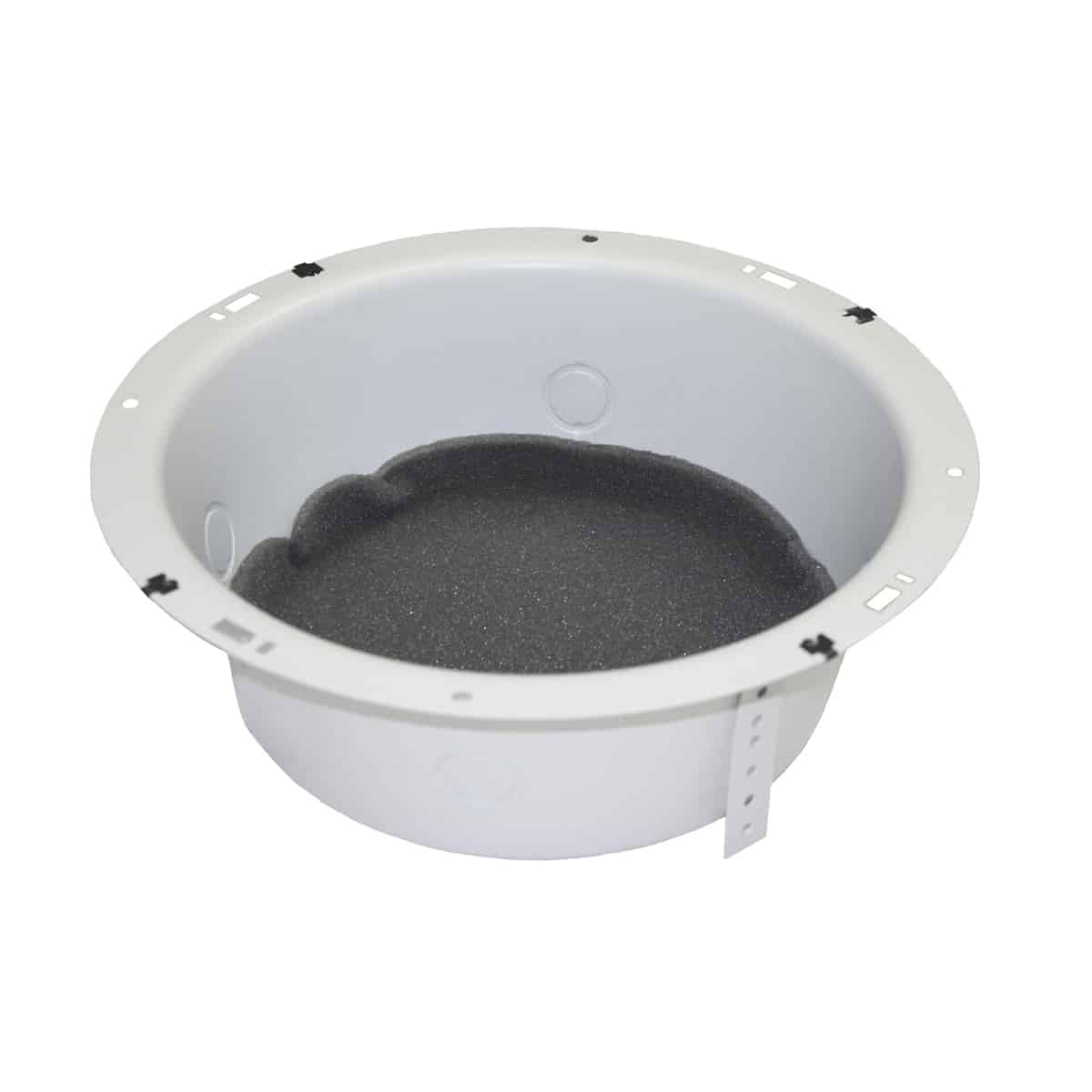

Steel speaker enclosure for recessed installation, in new or existing construction, is made to accommodate an 8 inch driver and screw-mount grille. The enclosure sides have a slight taper. The unit features one top knockout, four side knockouts, and two mounting straps.

Add to Favorites

Compare

Material: Steel
Finish: White
Diameter: 10.00 in., tapered
Depth: 4.00 in.
Volume: 0.147 cu.ft.
Acoustical Treatment: Foam pad
Mounting Aids: Knockouts (1 top, 4 side), clips, straps
For Grille Type: Screw-mount

Spec Sheet: 1289-8XD4S

Made in the U.S.A.
Certified U.S. steel

The enclosure for recessed installation of an 8″ driver shall be Lowell Model 8XD4-S, which shall be fabricated of certified U.S. steel and have a white powder epoxy finish. It shall have a tapered 10″ can diameter and 4″ depth. It shall include a polyurethane foam disc that is UL Listed to meet flammability CAL-117 for resonance and vibration control. The enclosure shall also feature one knockout (1/2″) on top, four combination (1/2″–3/4″) side knockouts spaced at 90-degree intervals, and two flexible perforated mounting straps spaced at 180-degree interval.

Screw-Mount Grilles: A8-AW, CS-8H, LO8-P, RS8-AW, WB-8
Drivers: 8 inch (magnet weight not more than 10 oz., mounted transformer with taps not more than 8W)
Tile Bridges: LBS8, LBS8-R1
