Stackable Recessed Enclosure for 8 inch driver

Name: Stackable Recessed Enclosure for 8 inch driver
SKU: 8XD4
Price: 21.98 USD
Availability: InStock

For screw-mount grille

$21.98 MSRP

Model 8XD4

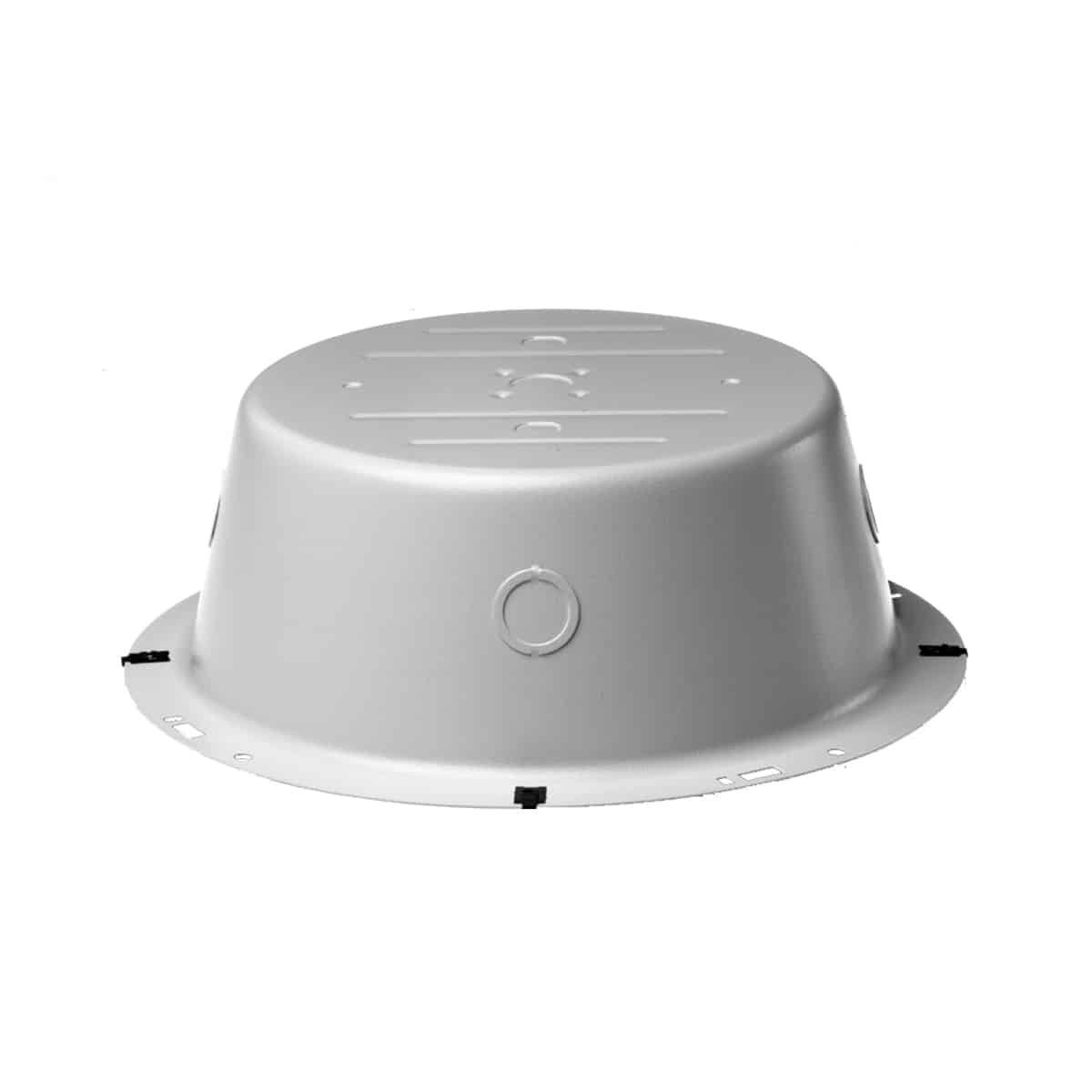

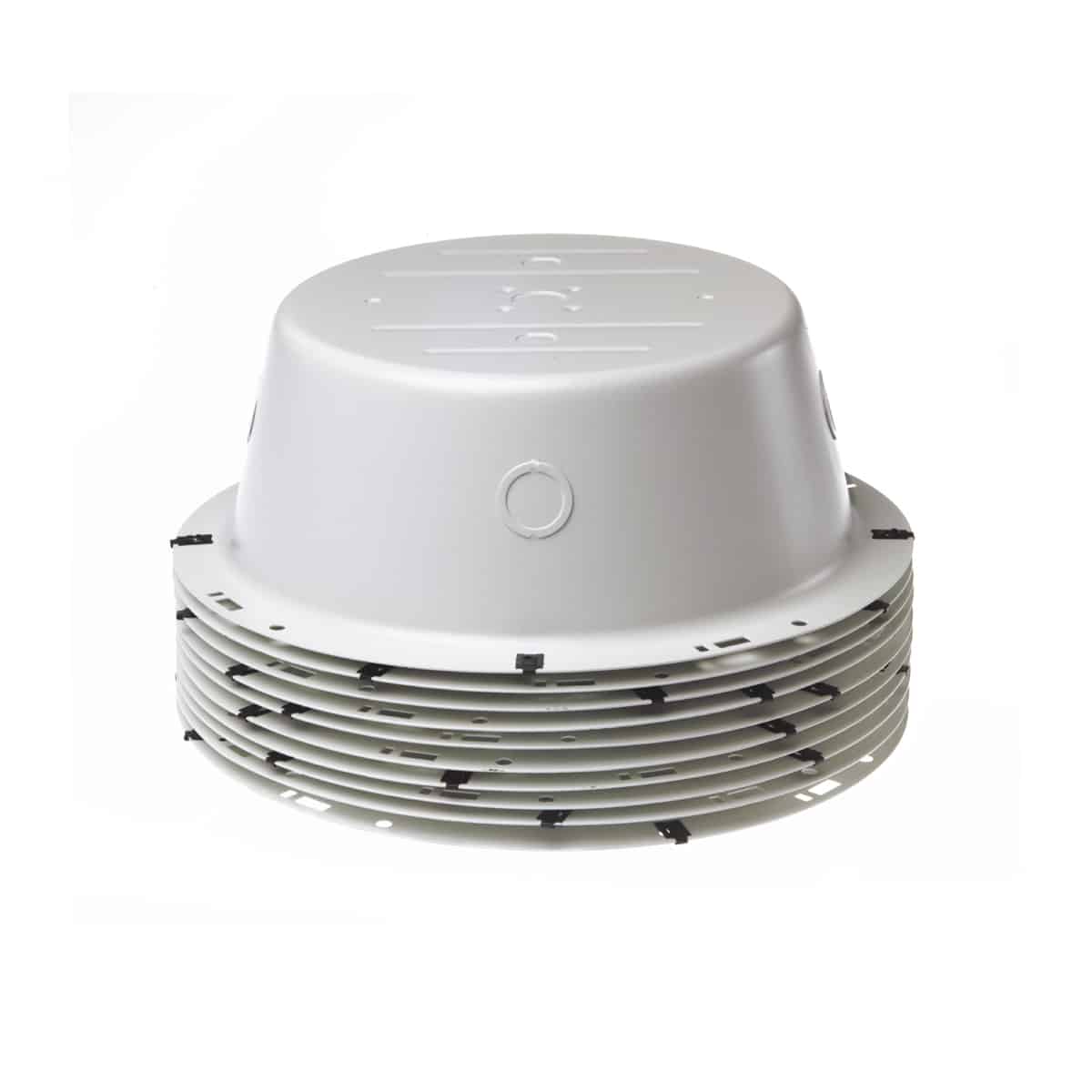

Recessed steel enclosure for 8 inch speaker driver has a slight taper, so it can be stacked for storage. This model features five knockouts (including one in the top), a white powder epoxy finish and foam pad.

Add to Favorites

Compare

Material: Steel
Finish: White powder epoxy finish

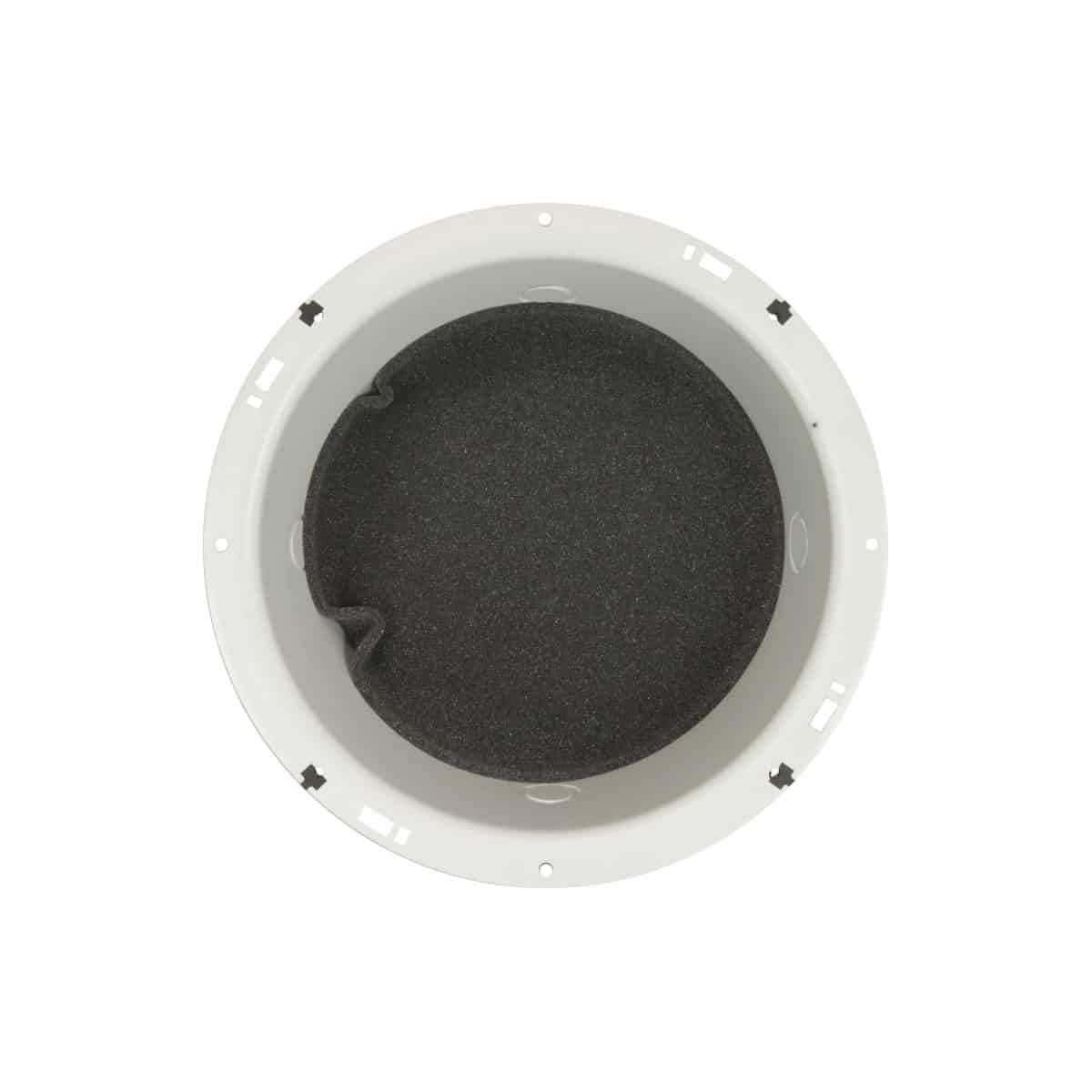

Acoustical Treatment: Foam pad
Mounting Aids: Knockouts (1 top, 4 side), clips
For Grille Type: Screw-mount
Diameter: 10.00 in., tapered
Depth: 4.00 in.
Volume: 0.147 cu.ft.

Spec Sheet: 1288-8XD4

The enclosure for recessed installation of an 8″ speaker shall be Lowell model 8XD4, which shall be fabricated of certified U.S. steel and have a white powder epoxy finish. It shall have a tapered 10″ can diameter and 4″ depth. It shall include a polyurethane foam disc. The enclosure shall feature one knockout (1/2″) on top and four combination knockouts (1/2″–3/4″) on sides spaced at 90-degree intervals.

Screw-Mount Grilles: A8-AW, CS-8H, LO8-P, RS8-AW, WB-8
Drivers: 8 inch (magnet weight not more than 10 oz., mounted transformer with taps not more than 8W)
Tile Bridges: LBS8, LBS8-R1
