8 inch (15W) Dual Cone Driver with xfmr

Name: 8 inch (15W) Dual Cone Driver with xfmr
SKU: 810-T470
Price: 65.42 USD
Availability: InStock

Includes driver with 70V (4W) xfmr

$65.42 MSRP

Model 810-T470

BACKGROUND MUSIC AND PAGING dual cone driver (8 in. 15W) with factory-mounted 70V transformer for background music and paging.

Add to Favorites

Compare

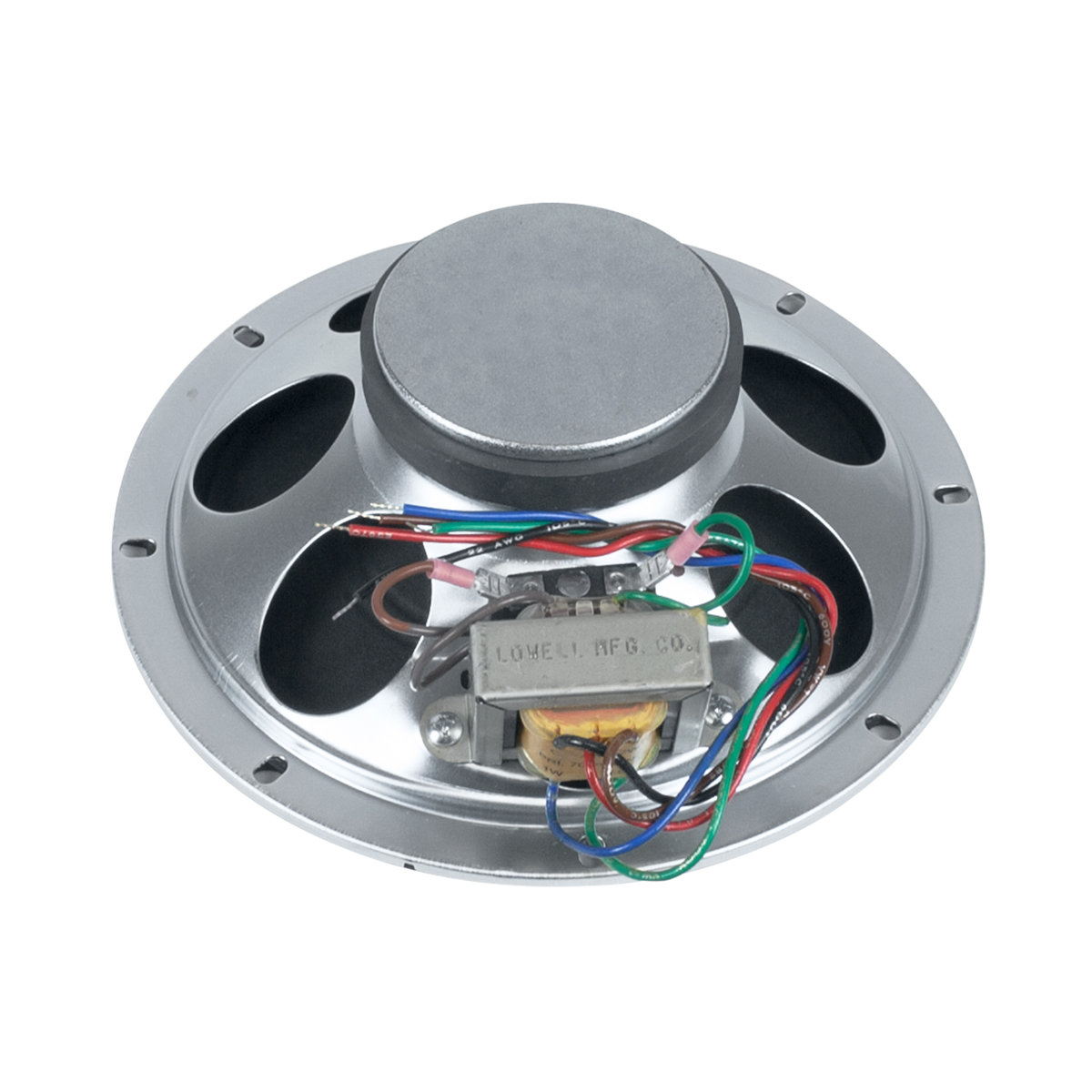

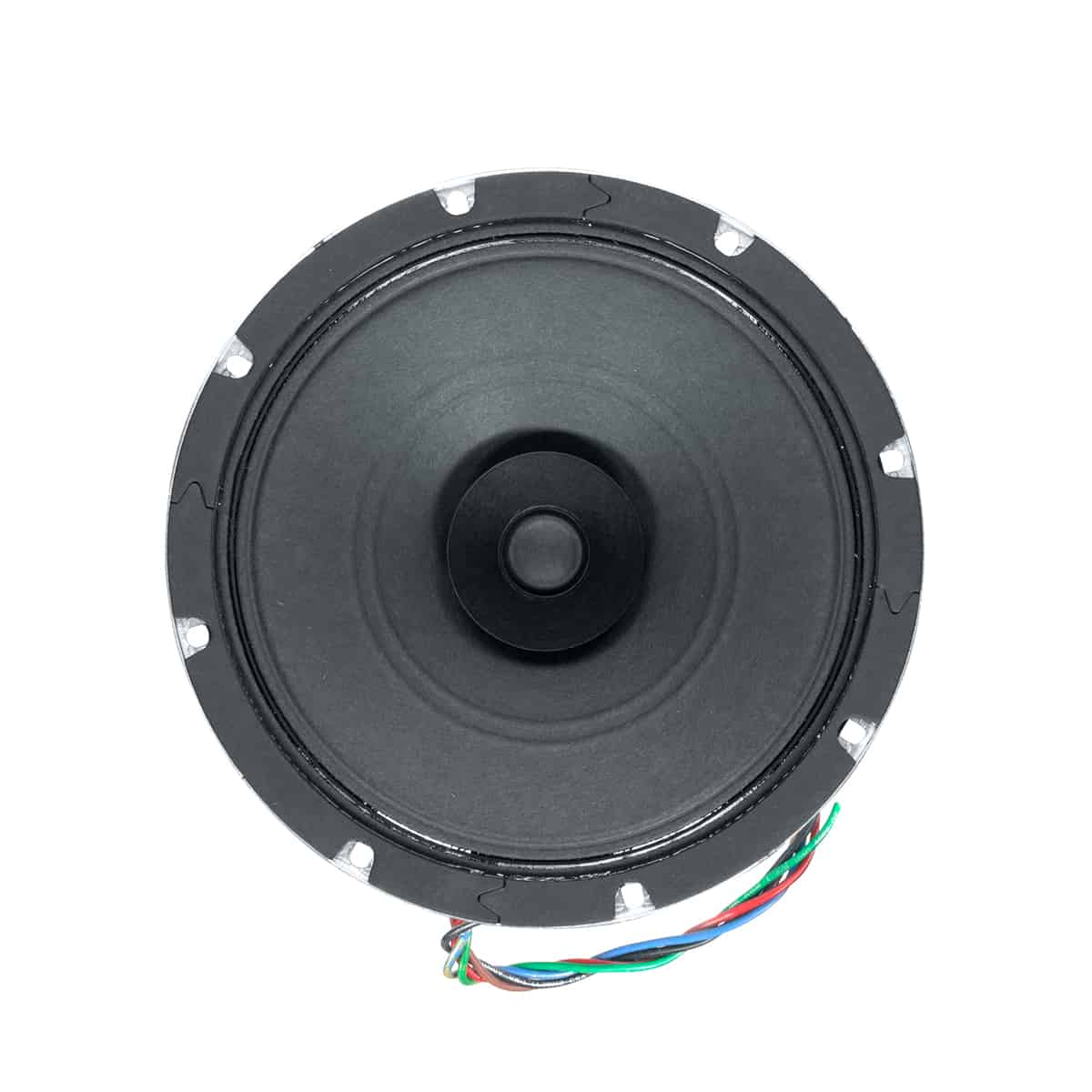

Driver: 8 in. 15W dual cone driver with 10 oz. ceramic magnet, hard fiber whizzer cone, and 1 in. voice coil.
Frame: 20-gauge stamped steel, zinc-plated.
Mounting Bolt Circle: 7.625 in.

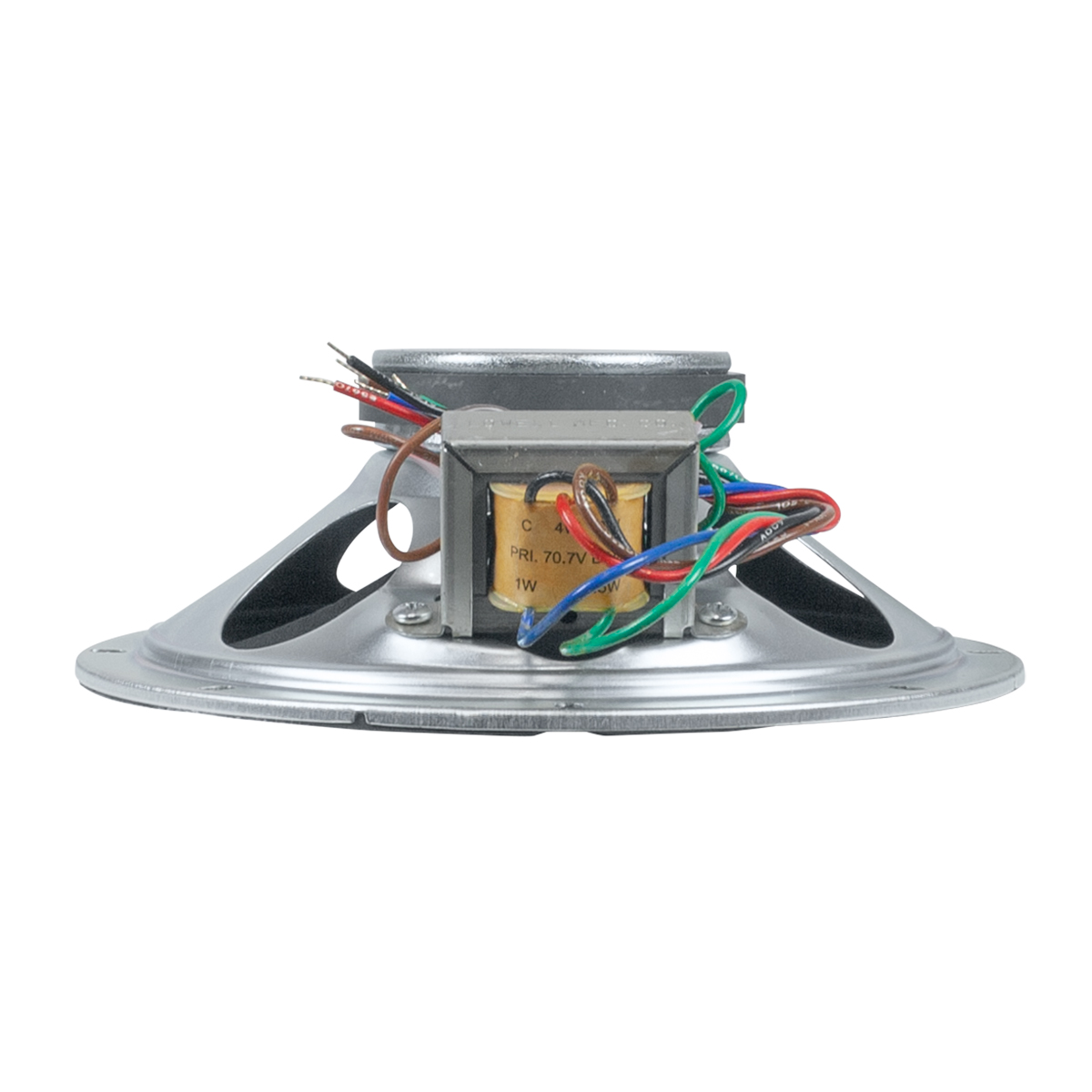

Transformer: 70V with taps at 0.5, 1, 2, 4W
Assembly Frequency Response: 51Hz-11.4kHz (±6dB) and 50Hz-20kHz (±6.7dB)
Assembly Mounting Depth: 2.84 in.
Assembly Dispersion Angle: 95 degrees conical
Assembly Average Sensitivity: 97.3 dB

Spec Sheet: 1442-810T470

Made in U.S.A. with global components
Meets or exceeds industry standards

The dual cone 8-inch speaker shall be Lowell Model No. 810-T470 which shall be of the permanent magnet type having a seamless molded fiber cone with a hard fiber whizzer cone mechanically coupled to a voice coil for extended high frequency response. Power rating shall be 15 watts RMS. The voice coil shall have a 1 inch diameter and shall operate in a magnetic field derived from a strontium ferrite (ceramic) magnet having a nominal weight of 10 oz. Voice coil impedance shall be 8ohms. The driver shall have a round, structurally reinforced stamped 20-gauge steel frame with 8.062 in. overall diameter and eight obround holes equally spaced at 45 degrees on a 7.625 in. diameter mounting bolt circle. Overall depth shall not exceed 2.84 in. External metal parts shall be zinc-plated to resist rust and corrosion. The mounted transformer shall be 70V with selectable taps at 0.5, 1, 2, and 4W. The assembly shall be capable of producing a uniform audible frequency response over the range of 51Hz-11.4kHz (±6dB) and 50Hz-20kHz (±6.7dB) with dispersion angle of 95 degrees conical @2000Hz (-6dB). Average sensitivity shall measure 97.3dB (SPL at 1W/1M).
