50W (3dB step) Mono Attenuator

Name: 50W (3dB step) Mono Attenuator
SKU: 50LVC-RM
Price: 64.40 USD
Availability: InStock

With adhesive scale

$64.40 MSRP

Model 50LVC-RM

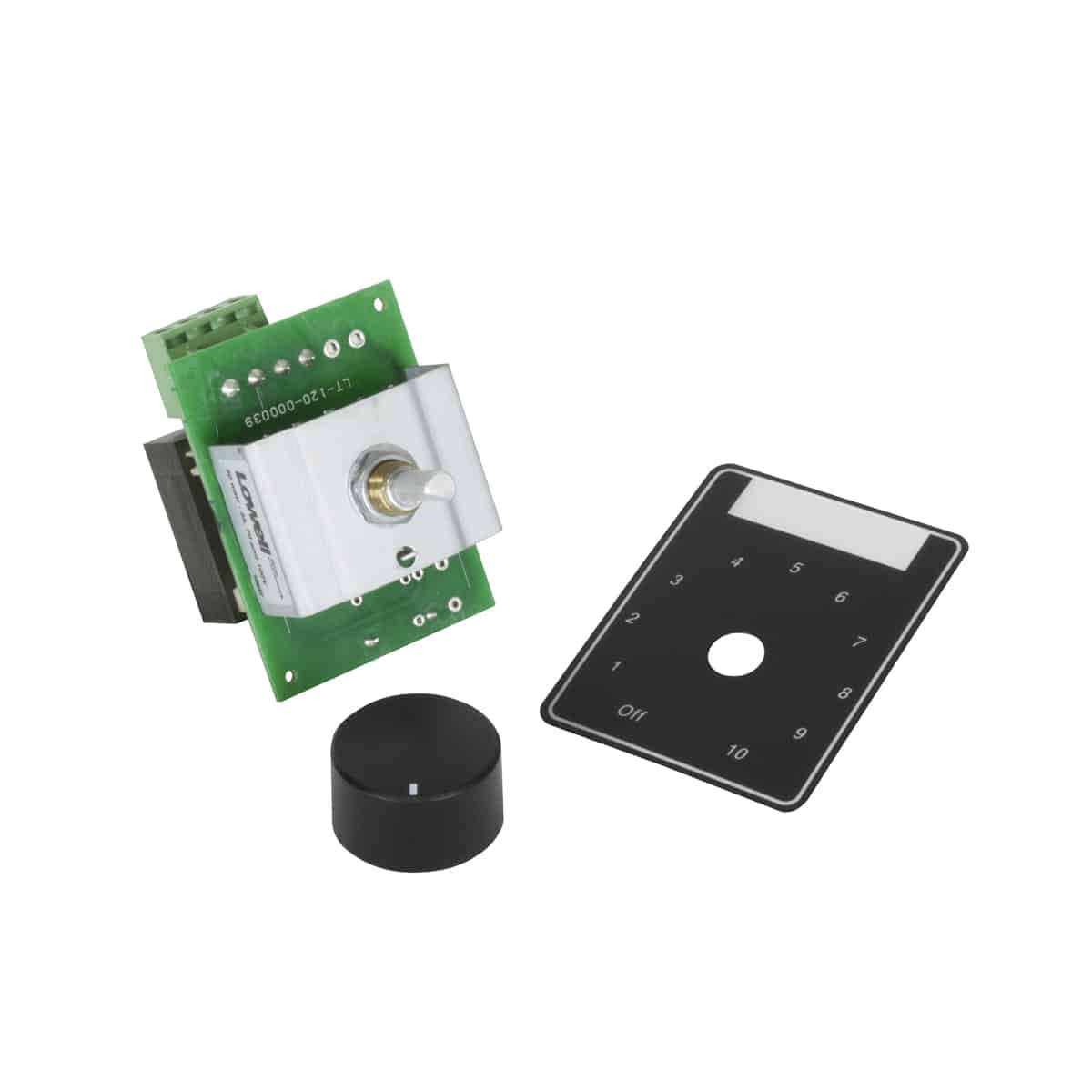

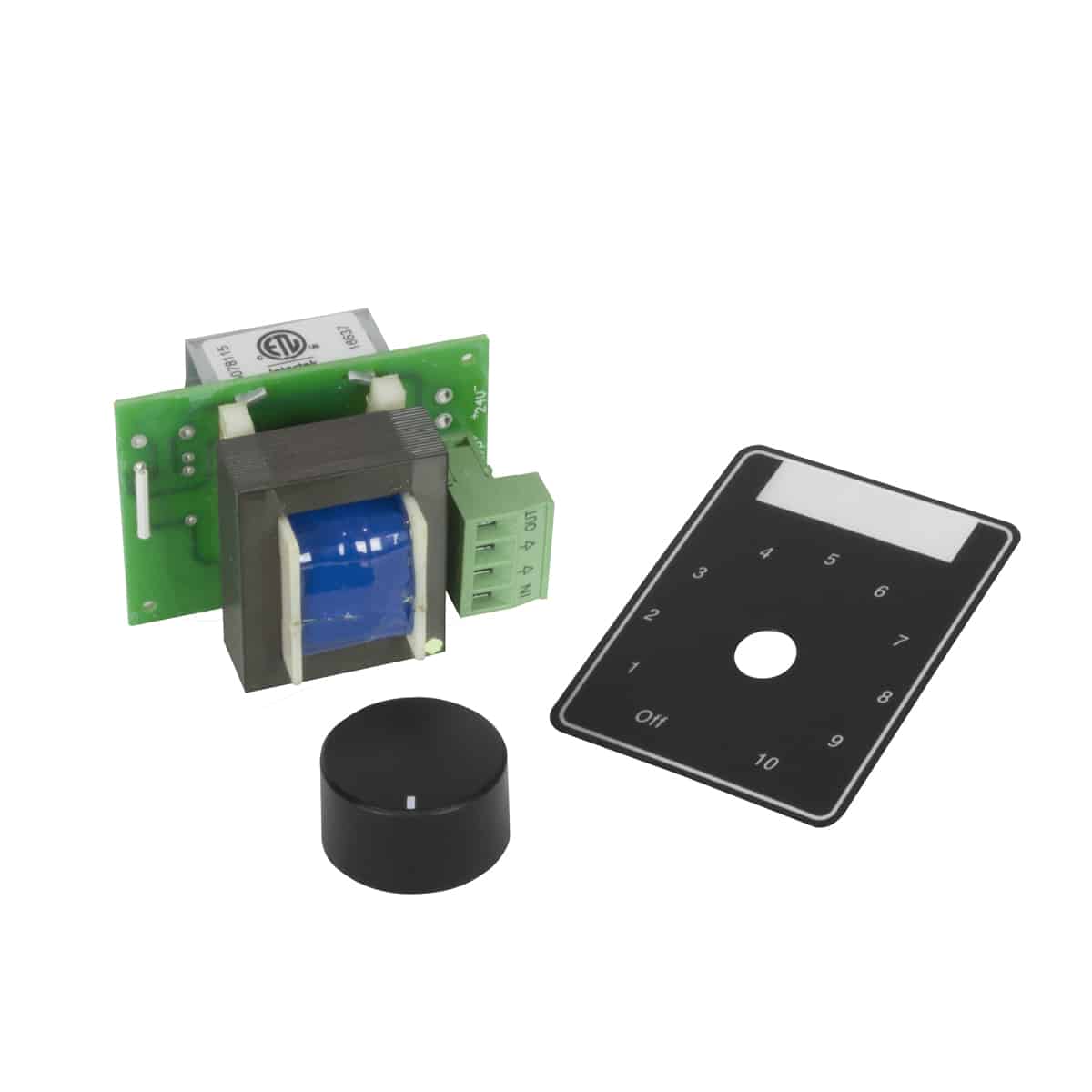

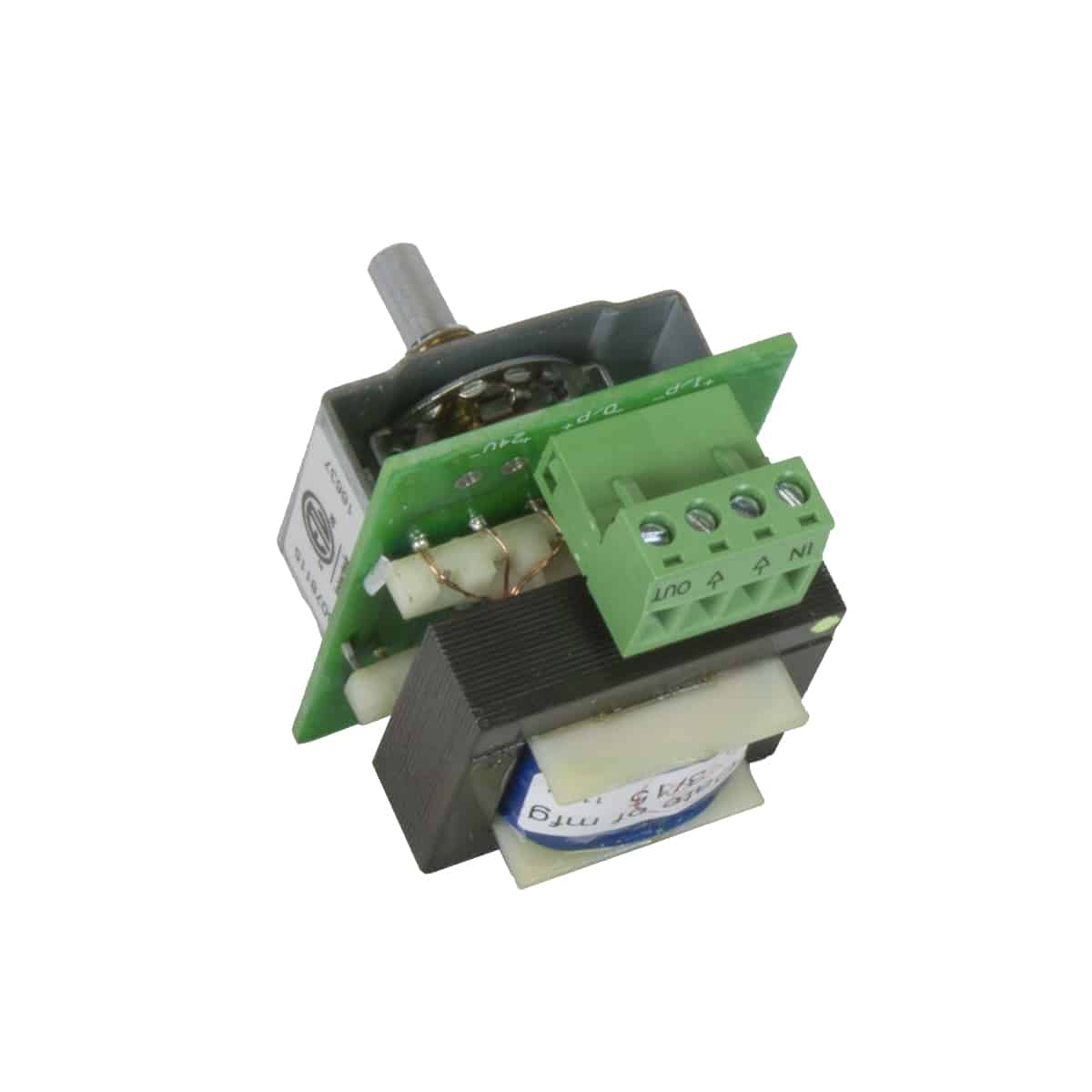

The 50W mono autoformer attenuator-style volume control with rotary switch for custom installations, includes an adhesive dial scale with a top area (PocketID) where a paper label can be inserted to identify the control.

Add to Favorites

Compare

Power Rating: 50W
Attenuation: 3dB per step (two steps of 6dB each before off)
Use With: 25/70/100V speaker line
Control: Rotary dial
Volume Positions: 0-10
Termination: Phoenix-style
Wire Capacity: 14-gauge
Adhesive dial scale with label area

Spec Sheet: 2233-50LVCRM

Made in the U.S.A. with global components
ETL Listed

The volume control shall be Lowell Model 50LVC-RM which shall have a power rating of 50W and attenuation of 3dB per step with two steps of 6dB each before off. It shall include a rotary knob and an adhesive label with dial scale. The control shall be ETL Listed.

LVC8P-ID2: Rackmount panel for attenuator installation (holds up to eight)
