25W (3dB step) Mono Attenuator

Name: 25W (3dB step) Mono Attenuator
SKU: 25LVC-DA
Price: 28.80 USD
Availability: InStock

With wall plate

$28.80 MSRP

Model 25LVC-DA

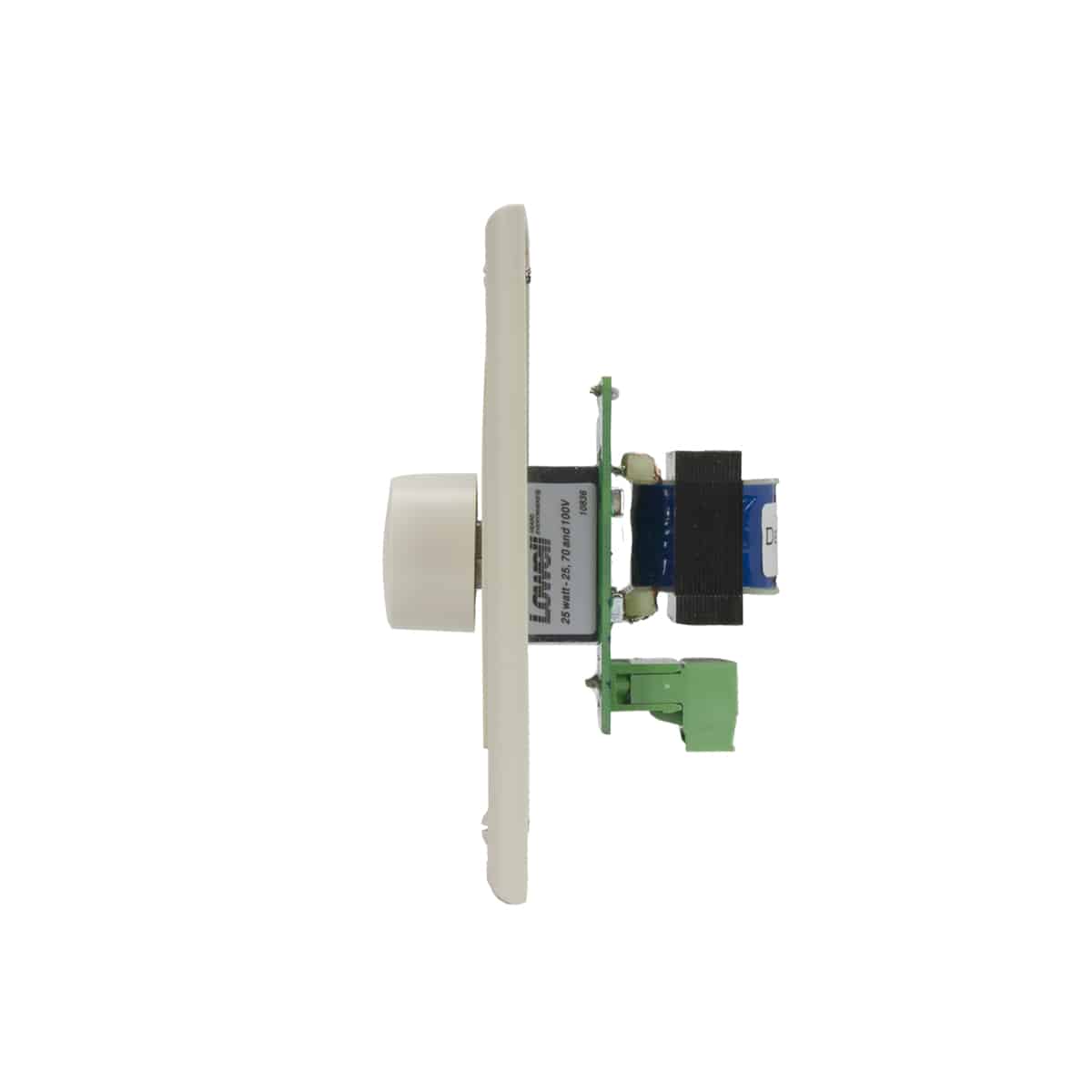

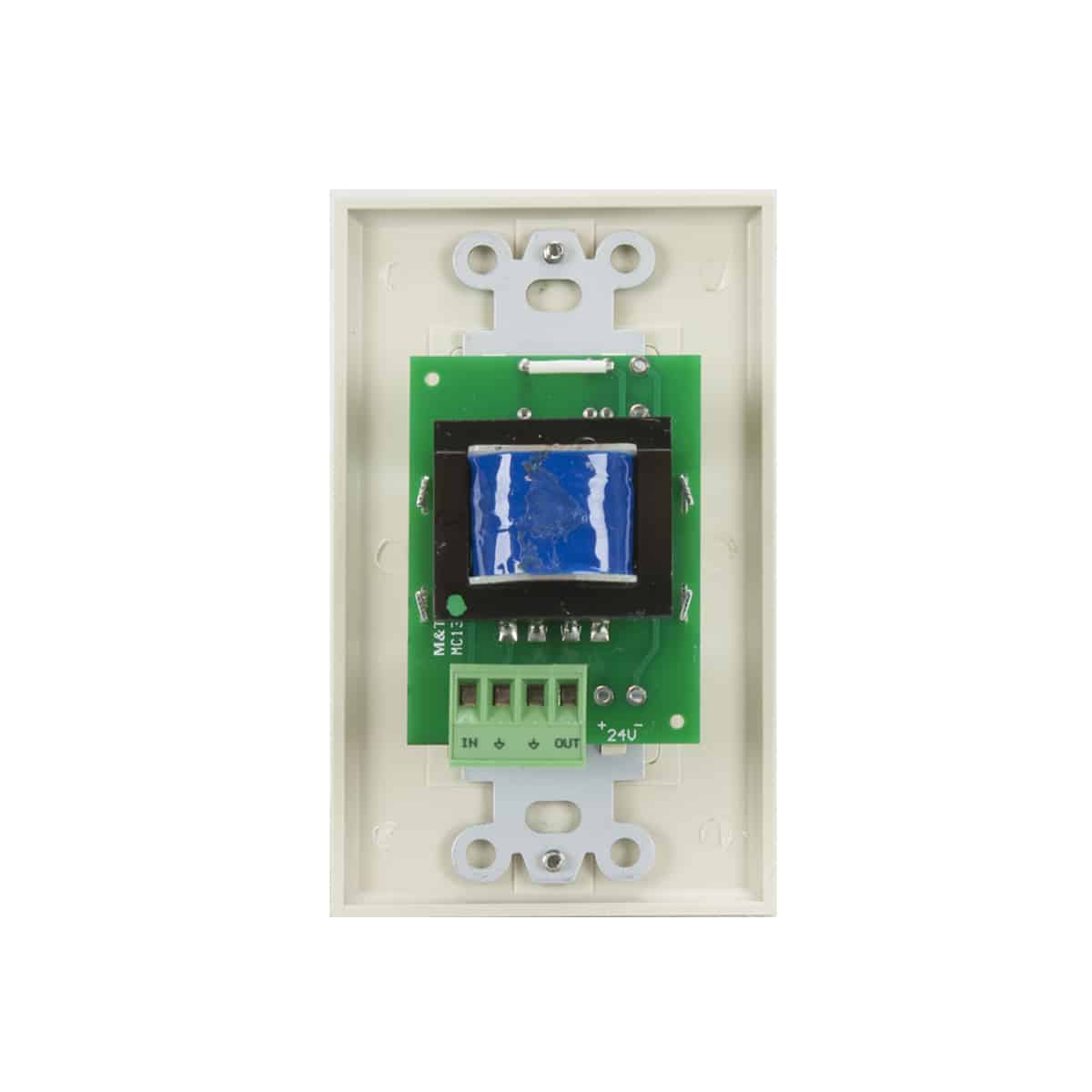

25W mono autoformer attenuator-style volume control with rotary switch and one-gang decorator style wall plate. Almond finish.

Add to Favorites

Compare

Power Rating: 25W
Attenuation: 3dB per step (33dB total)
Use With: 25/70/100V speaker line
Activation: Rotary dial
Volume Positions: 0-10
Termination: Phoenix-style
Wire Capacity: 14-gauge
Wall Plate: 1-gang decorator style
Finish: Almond
Fits standard E.O. box (2.125 in. min. depth)

Spec Sheet: 2223-25LVCDA

Made in the U.S.A. with global components
ETL Listed

The ETL Listed MONO attenuator/volume control shall be Lowell Model 25LVC-DA with 25W power rating and 3dB per step attenuation. It shall include a decorator style one-gang wall plate with almond finish. The device shall mount in an E.O. box with minimum inside dimensions of 1.875 in. x 2.688 in. x 2.125 in. (box not included).

P1X: Surface-mount wall box, 1-gang
