200W (3dB step) Mono Attenuator

Name: 200W (3dB step) Mono Attenuator
SKU: 200LVC-RM
Price: 161.20 USD
Availability: InStock

With adhesive scale

$161.20 MSRP

Model 200LVC-RM

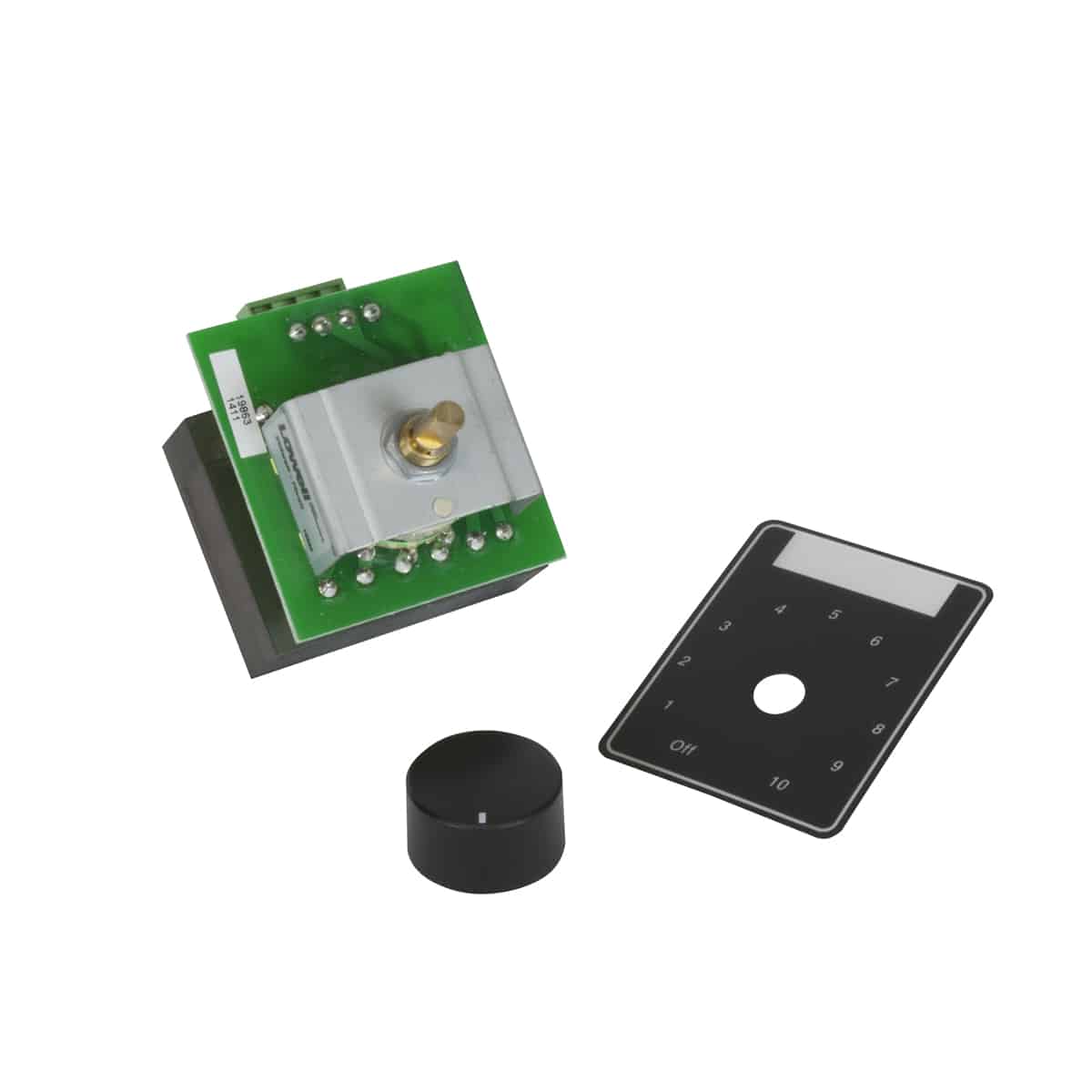

The 200W mono autoformer attenuator-style volume control with rotary switch with adhesive dial scale has a plastic pocket where a paper label can be inserted to identify the control. Ideal for rackmount use or custom installations.

Add to Favorites

Compare

Power Rating: 200W
Attenuation: 3dB per step (two steps of 6dB each before off)
Use With: 70/100V speaker line
Activation: Rotary dial
Volume Positions: 0-10
Termination: Phoenix-style
Wire Capacity: 14-gauge
Adhesive label with dial scale

Spec Sheet: 1781-200LVC

Assembled in the U.S.A.
ETL Listed

The volume control shall be Lowell Model 200LVC-RM with 200W power rating, 3dB per step attenuation and two 6dB positions before “Off.” The control shall have plug-in termination for up to 14-gauge wire for 70V or 100V input connections from the amplifier and 70V or 100V output to the speaker/transformer assemblies. It shall feature a black rotary knob and an adhesive dial scale.

LVC8P-ID2: Rackmount panel for attenuator installation
