150W (3dB step) Stereo Attenuator

Name: 150W (3dB step) Stereo Attenuator
SKU: 150LVCS-DSB
Price: 176.00 USD
Availability: InStock

With wall plate

$176.00 MSRP

Model 150LVCS-DSB

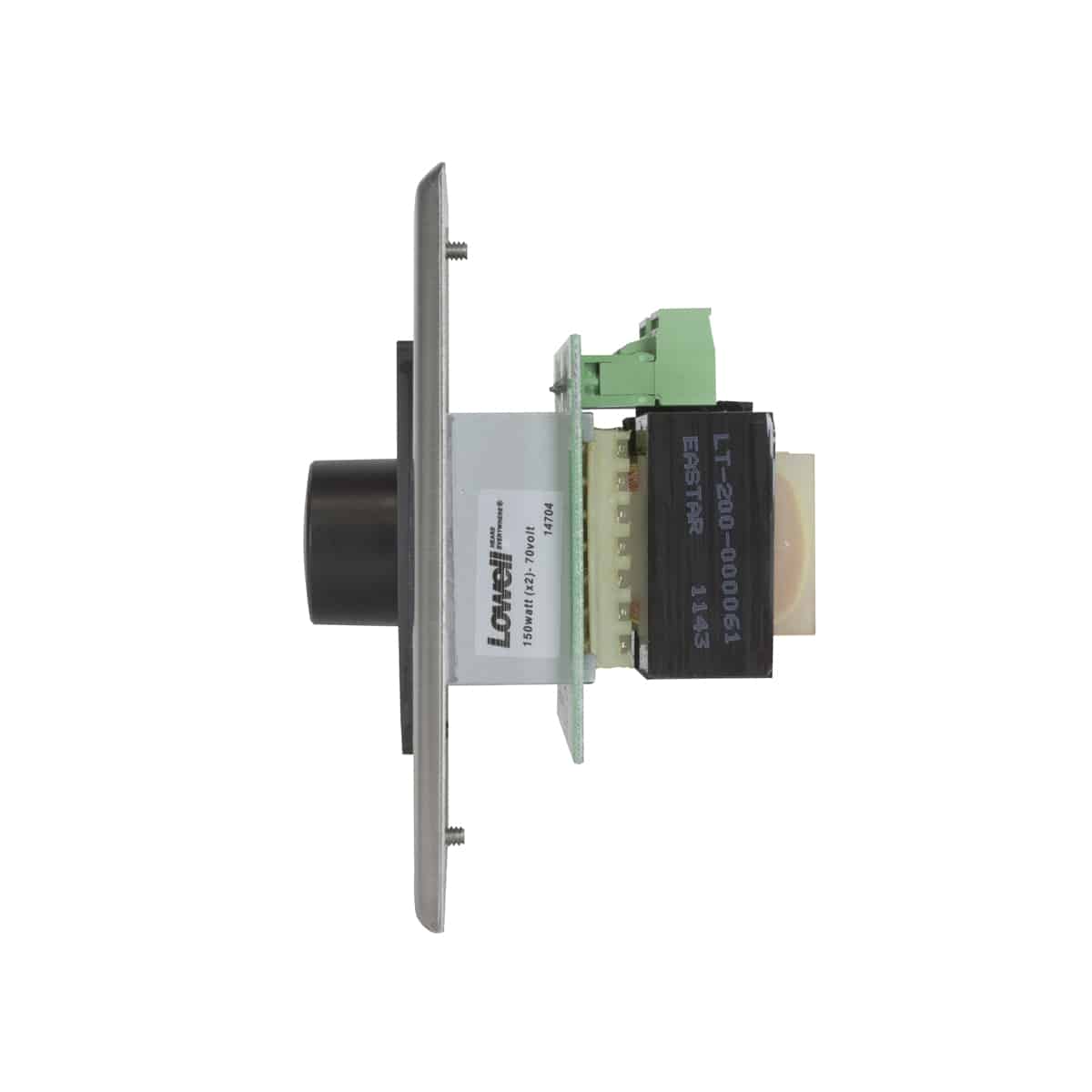

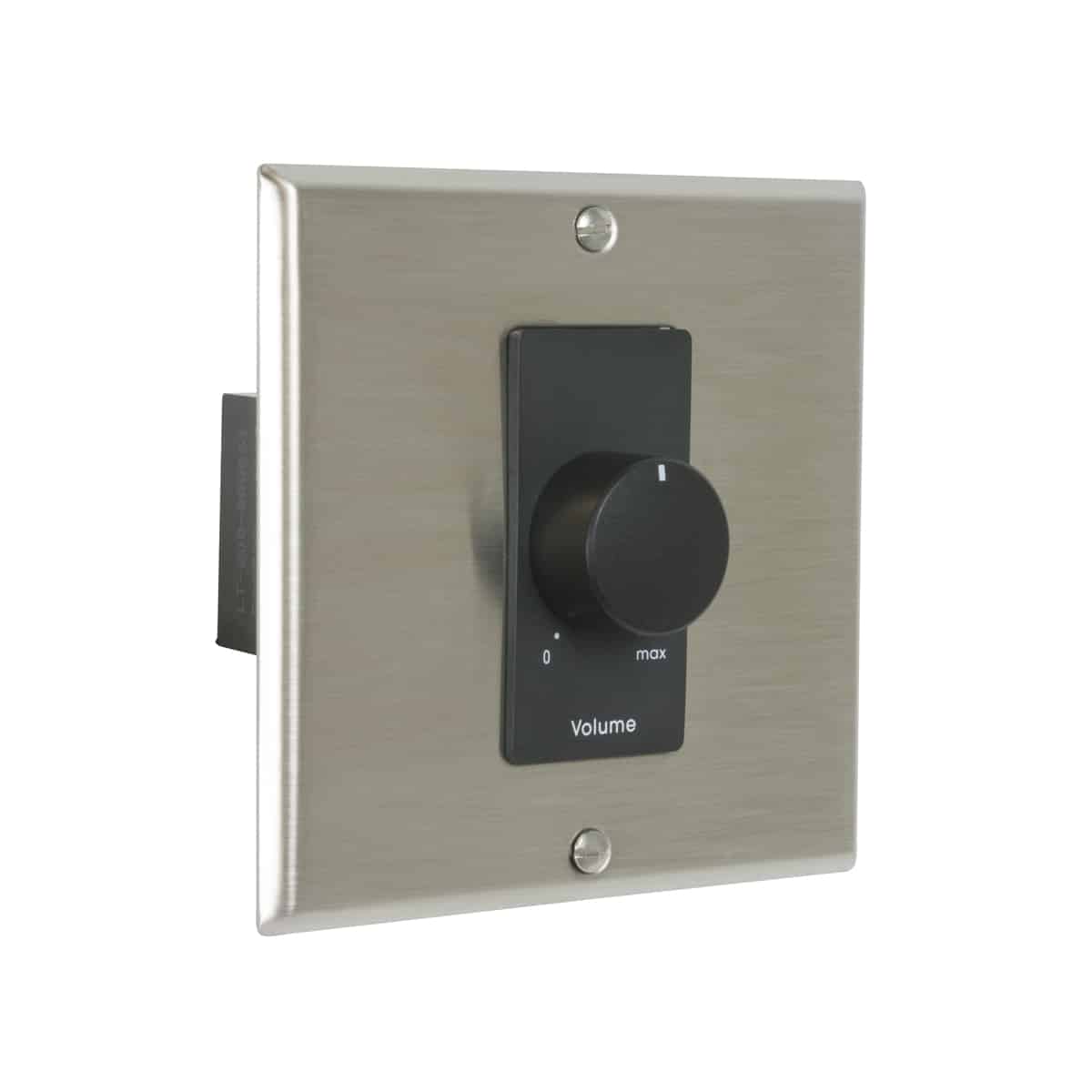

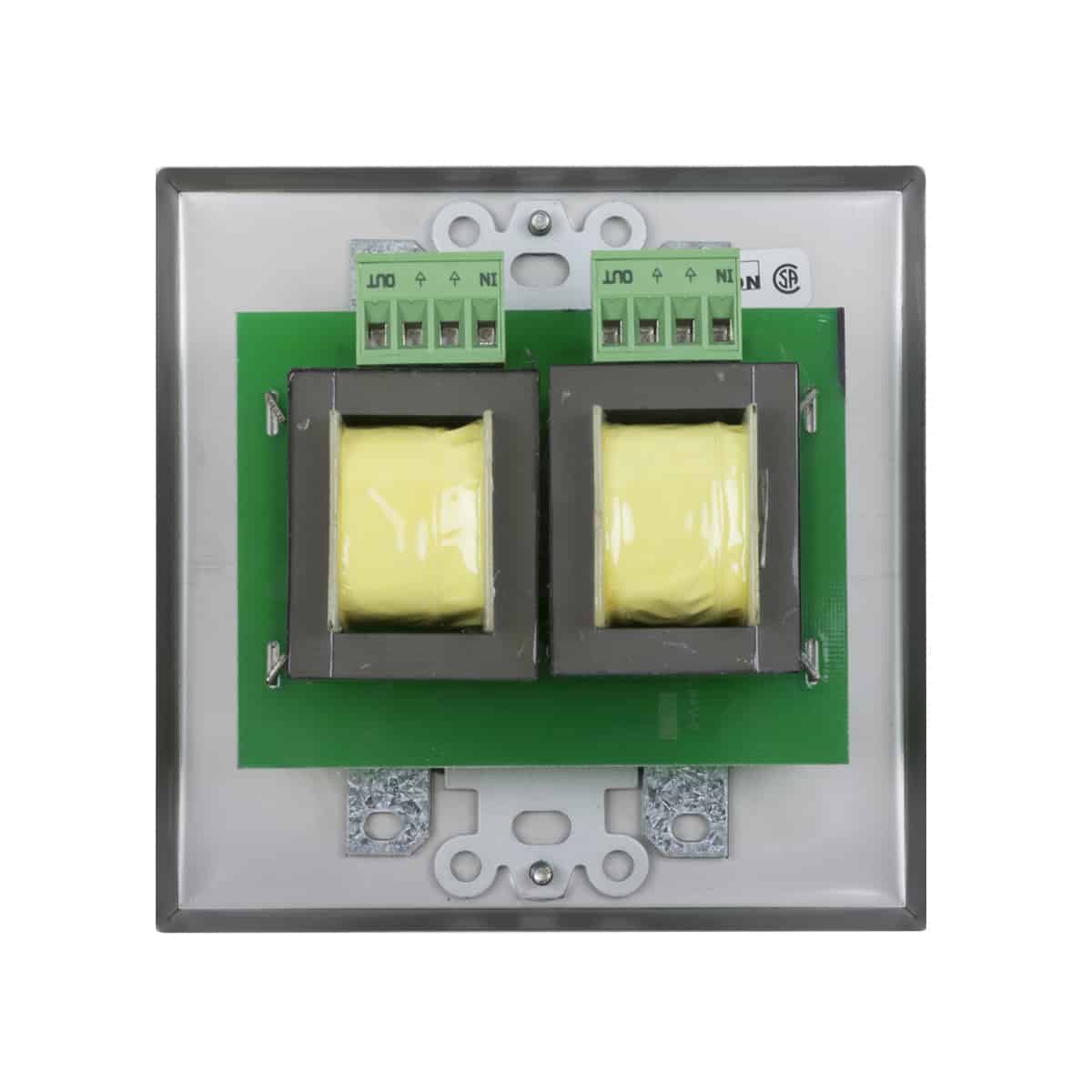

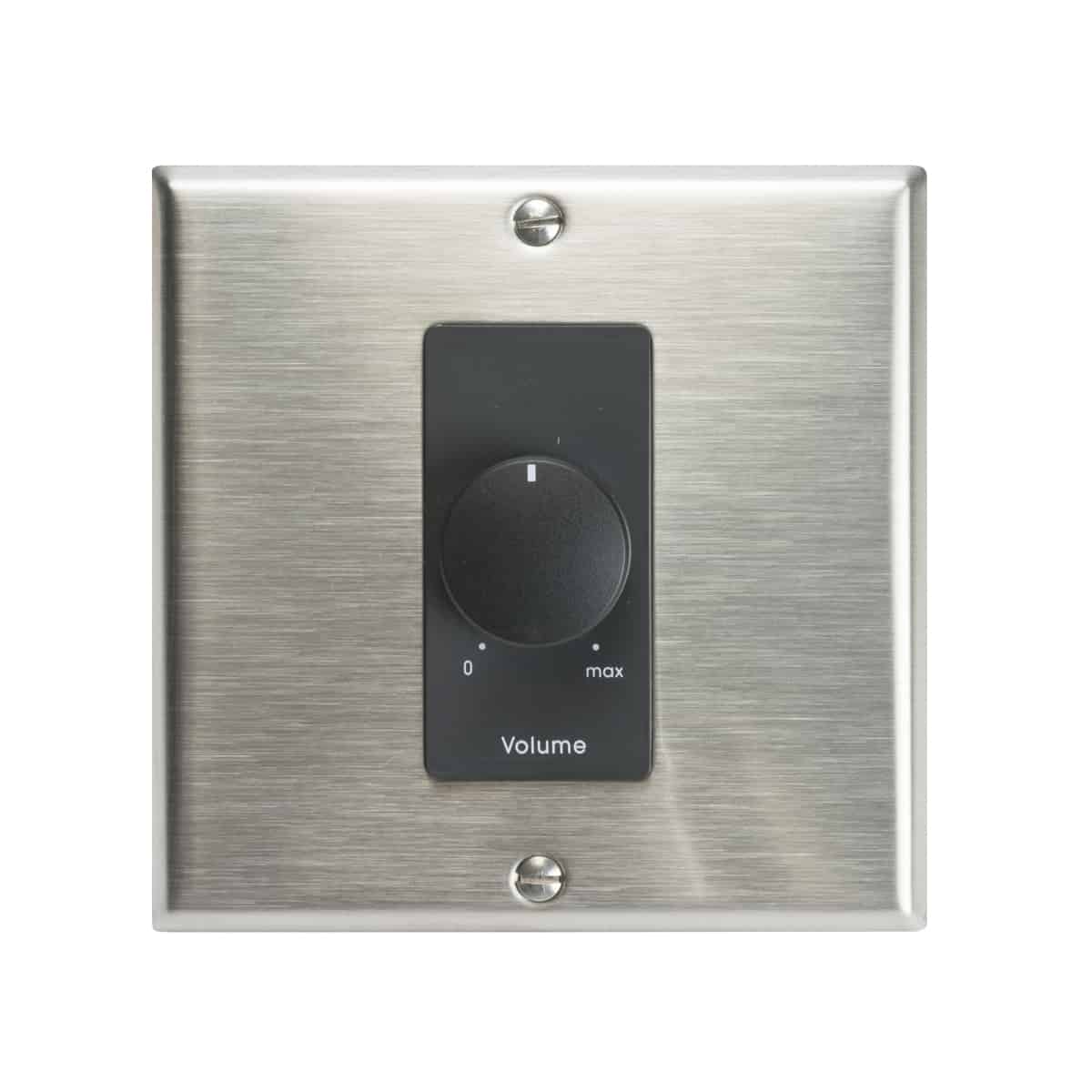

150W STEREO autoformer attenuator-style volume control with rotary switch and two-gang decorator style wall plate, black and stainless steel.

Add to Favorites

Compare

Power Rating: 150W
Attenuation: 3dB per step
Two positions of 6dB prior to off
Use With: 25/70/100V speaker line
Activation: Rotary dial
Wire Capacity: 14-gauge
Wall Plate: 2-gang decorator style
Finish: Stainless Steel & Black
Fits standard E.O. box (2.5 in. min. depth)

Spec Sheet: 2256-150LVCSDSB

Assembled in the U.S.A.
ETL Listed

The stereo volume control for distributed mono systems, distributed mono systems with subwoofer, or distributed stereo applications shall be Lowell Model 150LVCS-DSB with power rating of 150W per channel, 3dB per step attenuation and two 6dB positions before “Off.” The control shall have plug-in termination for up to 14-gauge wire for 70V or 100V input connections from the amplifier and 70V or 100V output to the speaker/transformer assemblies. The two-gang wall plate shall be decorator style with stainless steel & black finish. It shall include a black rotary knob. The volume control shall mount in a standard two-gang E.O. box with minimum depth of 2.5 in. with mud ring, if used. (Box/mud ring not included.)

P1X-2: Surface-mount wall box, 2-gang
