14U Credenza Rack

Name: 14U Credenza Rack
SKU: LCR-1423
Price: 590.60 USD
Availability: InStock

23"D x 19"W

$590.60 MSRP

Model LCR-1423

Engineered for electronics stored in cabinetry or under counters or desks, the LCR is fully welded to provide rugged support, torsional rigidity and labor-saving installation. The rack features a 16-gauge certified U.S. steel frame with 11-gauge corner post rails, tapped 10-32. An optional runner kit can be ordered to protect cabinet surfaces.

Add to Favorites

Compare

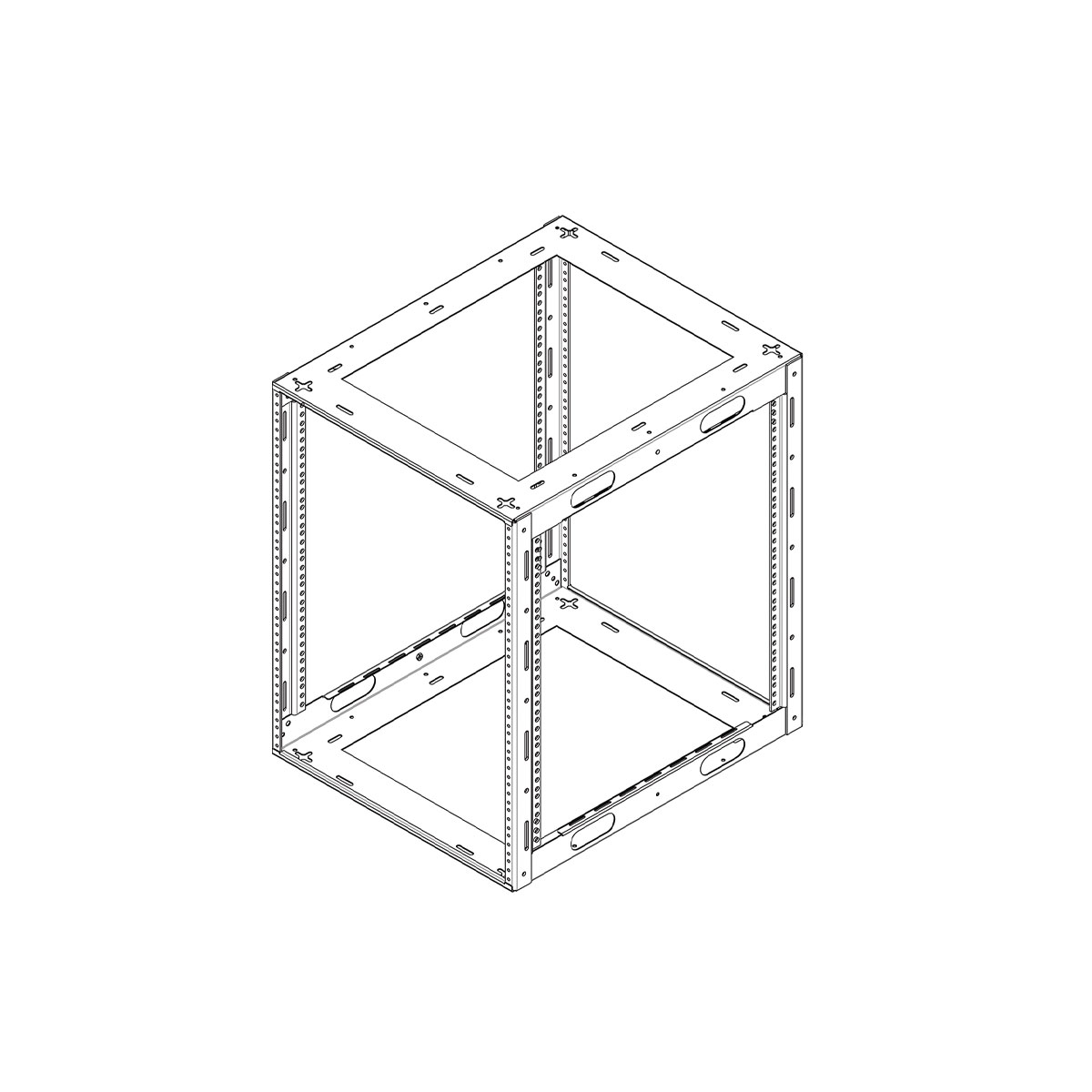

Open frame rack features corner post mounting rails, tapped 10-32. Rails are also punched for clean wire tie-off.
Side obrounds for cable management
Base/top with grounding studs and provisions to accept anchor bolts (not included)
Corner holes/slots for anchoring and positioning
Smooth black powder epoxy finish
Panel mounting hardware

Rack Space: 14U
Height: 25.44 in.
Width: 19.25 in.
Depth: 23.00 in.
Load Capacity: 250 lbs.

Spec Sheet:
CAD drawings: LCR-1423
Revit Models: LCR Series

EIA/TIA compliant
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The EIA/TIA compliant open frame rack shall be Lowell Model LCR-1423, which shall be built to EIA standards for mounting electronics. Dimensions shall be 25.44″H x 23.00″D x 19.25″W with 14U panel space. The rack shall be fully welded certified U.S. steel construction with 16-gauge top and bottom, 11-gauge corner post rails tapped 10-32 and multiple openings for cable and wire management. It shall have a smooth black powder epoxy finish.

Hardware
Runner kit: LCR-23RK
