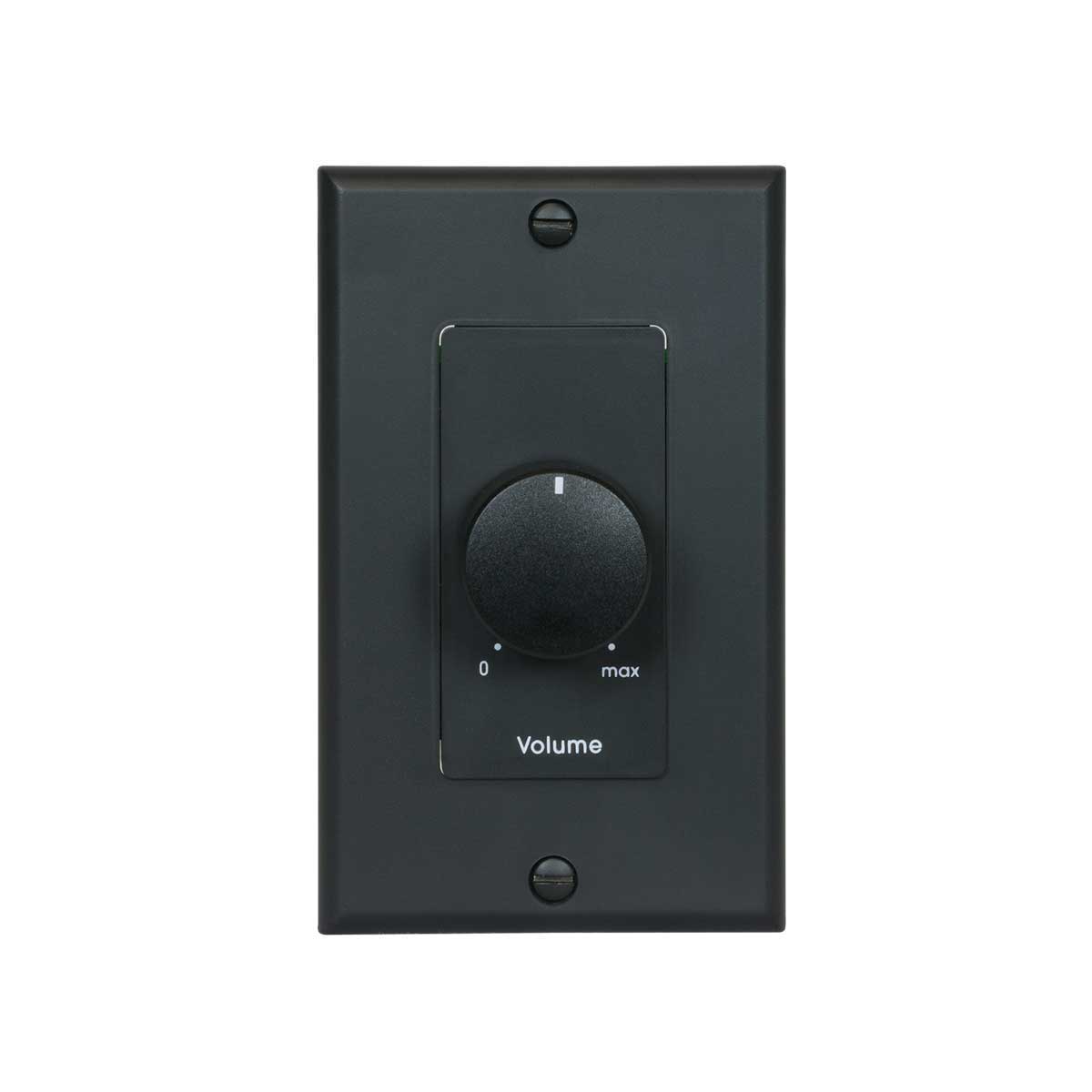

10k ohm Potentiometer

Name: 10k ohm Potentiometer
SKU: 10KLVC-DB
Price: 57.98 USD
Availability: InStock

With wall plate

$57.98 MSRP

Model 10KLVC-DB

10k ohm linear taper control for single-point remote level adjustment of voltage controlled amplifiers (VCA, by others) is designed to interface directly with three-wire, 0 to 10 volt control inputs that are typical on most voltage controlled amplifiers. The 10k ohm potentiometer allows the amplifier’s control voltage to be set or adjusted from a single remote location.

Add to Favorites

Compare

Power Rating: 1/2W
Resistance: 10k ohm
Continuous attenuation (stops at 0/max.)
Incremental detents for precision feel
Use With: VCA control or audio circuit
Activation: Rotary knob
Termination: Phoenix-style
Wire Capacity: 14-gauge
Wall Plate: 1-gang decorator style
Finish: Black
Fits standard E.O. box (2.125 in. min. depth)

Spec Sheet: 2217-10KLVCDB

Made in the U.S.A. with global components

The potentiometer control shall be Lowell Model No. 10KLVC-DB, which shall be a linear taper style potentiometer with 10,000 (10k) ohm resistance and 1/2W power rating. It shall be compatible with three-wire 0-10 volt control inputs on voltage control amplifiers (by others) for level adjustment from a single remote location. Attenuation shall be continuously variable with stops at minimum and maximum levels. The control shall be mounted to a 1-gang decorator style plate with black finish and a rotary knob.

P1X: Surface-mount wall box, 1-gang
