100W (3dB step) Mono Attenuator with Bypass

Name: 100W (3dB step) Mono Attenuator with Bypass
SKU: 100LVC-PA-SW
Price: 71.98 USD
Availability: InStock

With wall plate

$71.98 MSRP

Model 100LVC-PA-SW

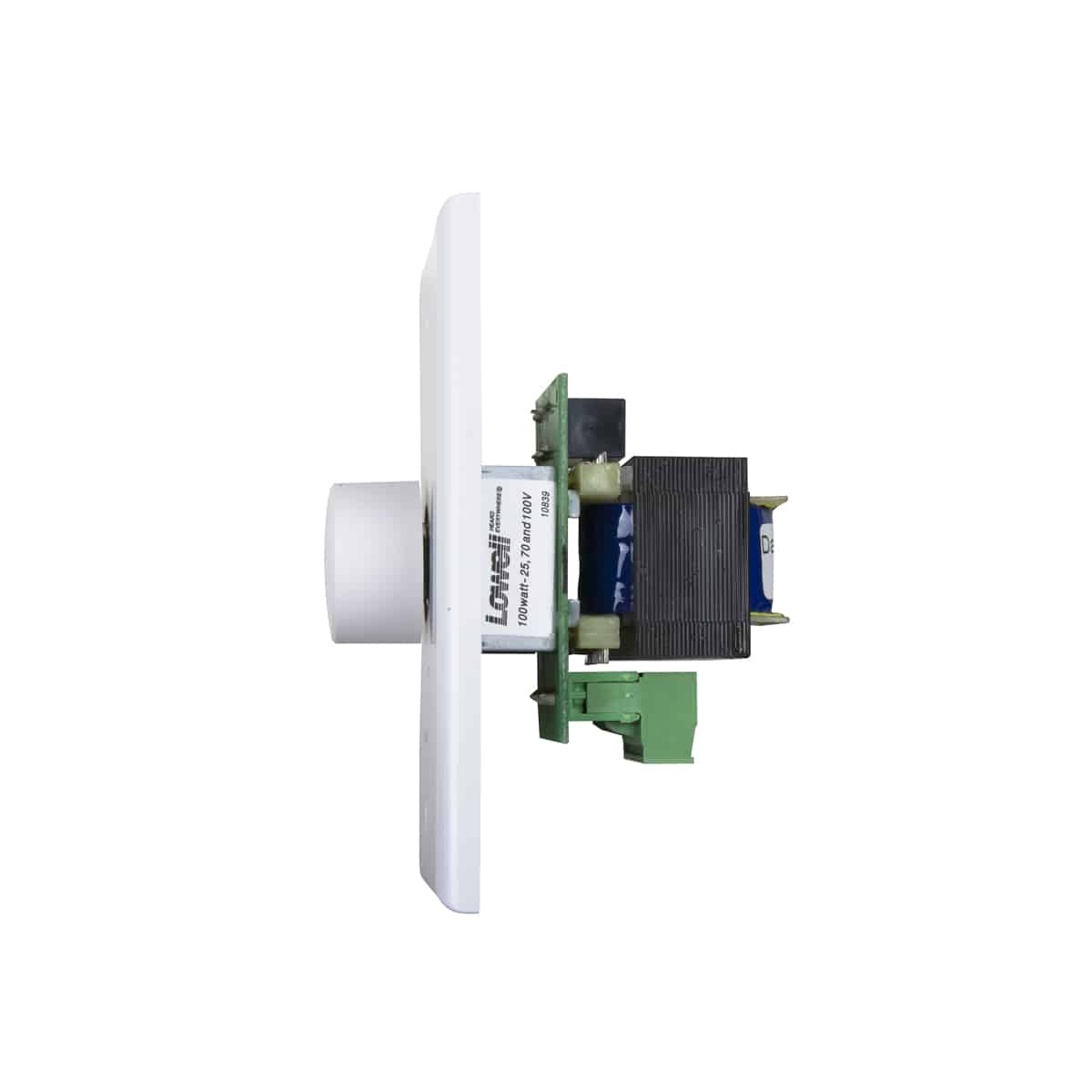

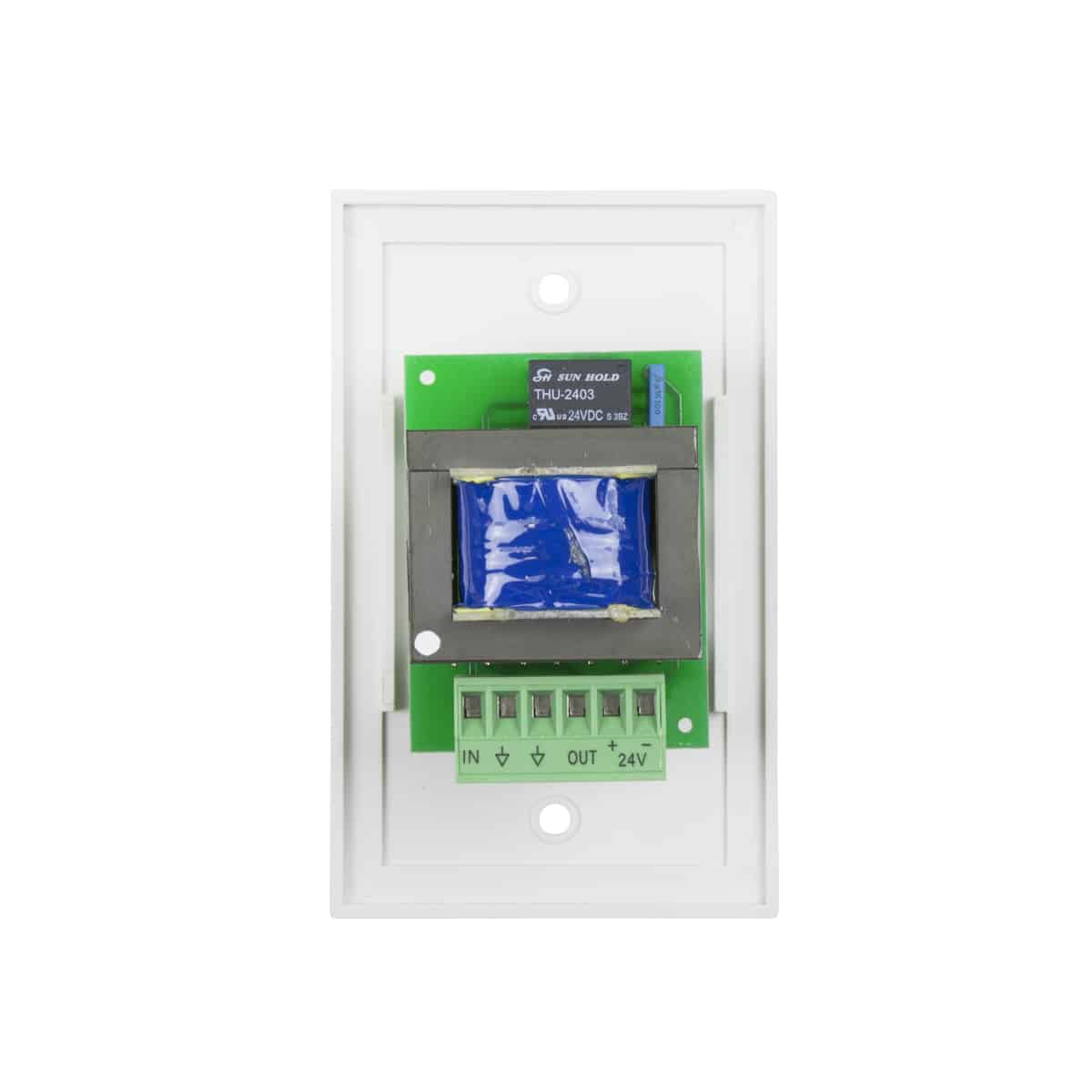

100W mono auto former attenuator-style volume control with rotary switch and one-gang standard wall plate. Includes priority relay for emergency bypass.

Add to Favorites

Compare

Power Rating: 100W
Attenuation: 3dB per step (33dB total)
Use With: 25/70/100V speaker line
Activation: Rotary dial
Volume Positions: 0-10
Termination: Phoenix-style
Wire Capacity: 14-gauge
Wall Plate: 1-gang standard
Finish: White
Fits standard E.O. box (2.125 in. min. depth)
Priority Relay: 24VDC@15mA relay for emergency signal bypass

Spec Sheet: 2248-100LVCPASW

Made in the U.S.A. with global components
ETL Listed

The ETL Listed volume control shall be Lowell Model No. 100LVC-PA-SW with 100W power rating, 3dB per step attenuation, and 24VDC@15mA relay for applications that require emergency and paging signals to bypass/override the attenuator. It shall include a standard one-gang wall plate with white finish. The device shall mount in an E.O. box with minimum inside dimensions of 1.875 in. x 2.688 in. x 2.125 in. (box not included).

P1X: Surface-mount wall box, 1-gang
