100W (1.5 step) Mono Attenuator

Name: 100W (1.5 step) Mono Attenuator
SKU: 10015LVC-DW
Price: 68.70 USD
Availability: InStock

With wall plate

$68.70 MSRP

Model 10015LVC-DW

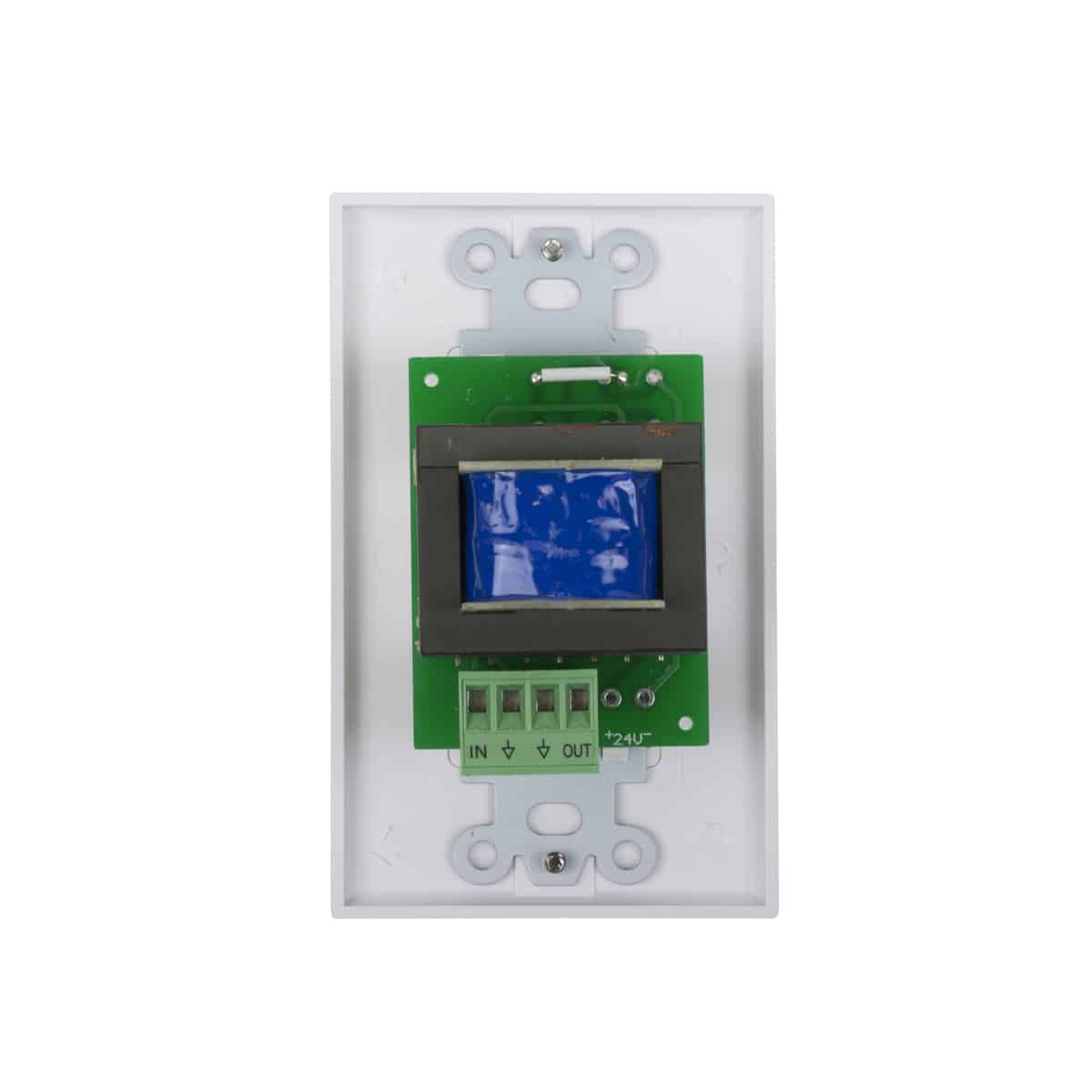

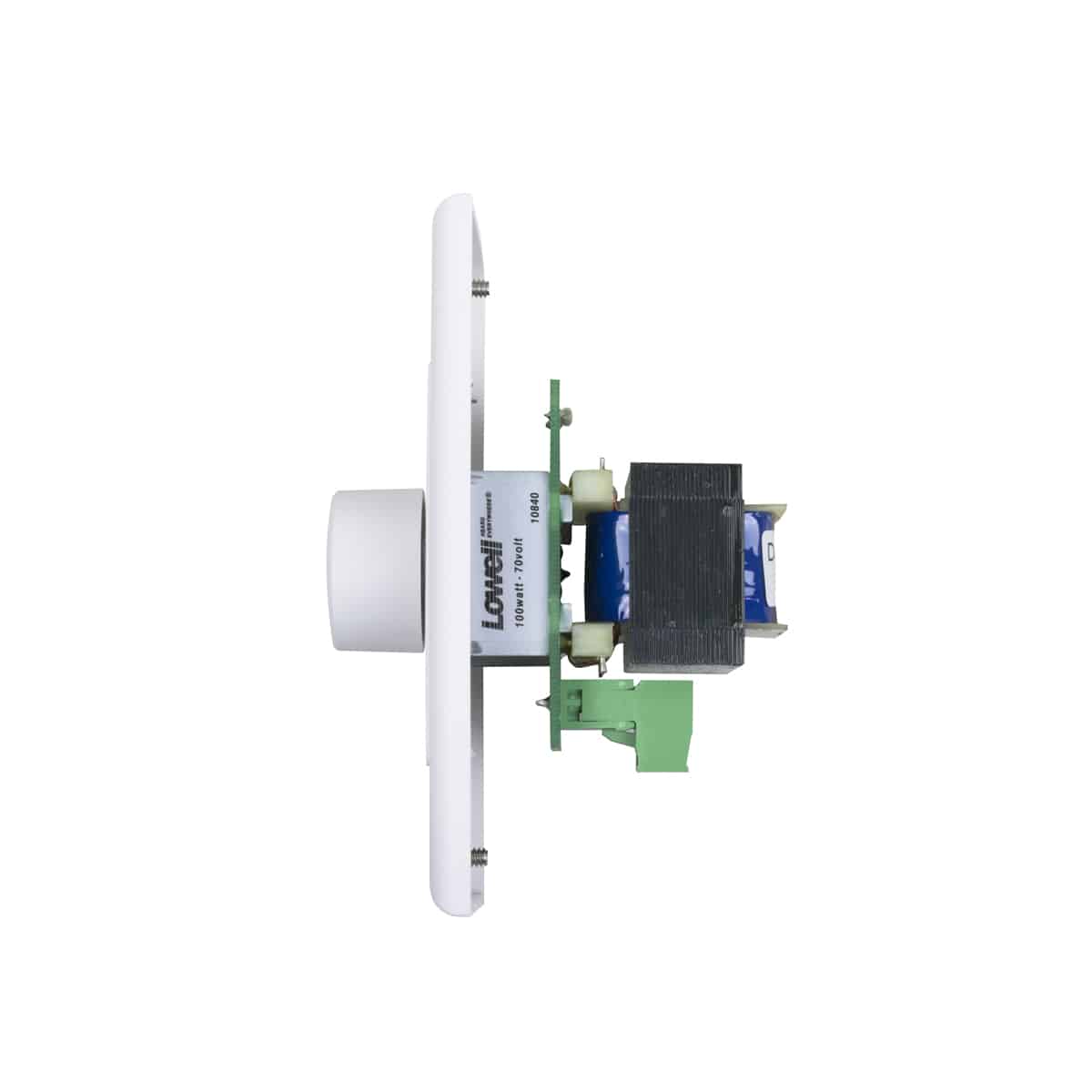

100W (1.5dB step) mono autoformer attenuator-style volume control with rotary switch and one-gang white, decorator style wall plate.

Add to Favorites

Compare

Power Rating: 100W
Attenuation: 1.5dB per step
Use With: 25/70/100V speaker line
Activation: Rotary dial
Volume Positions: 0-10
Termination: Phoenix-style
Wire Capacity: 14-gauge
Wall Plate: 1-gang decorator style
Finish: White
Fits standard E.O. box (2.125 in. min. depth)

Spec Sheet: 2255-10015LVCDW

Made in the U.S.A. with global components
ETL Listed

The ETL Listed volume control shall be Lowell Model No. 10015LVC-DW with 100W power rating and 1.5dB per step attenuation. It shall include a decorator style one-gang wall plate with white finish. The device shall mount in an E.O. box with minimum inside dimensions of 1.875 in. x 2.688 in. x 2.125 in. (box not included).

P1X: Surface-mount wall box, 1-gang
