Recessed Enclosure for 8 inch driver

Name: Recessed Enclosure for 8 inch driver
SKU: XCP84
Price: 31.78 USD
Availability: InStock

For screw-mount or torsion grille

$31.78 MSRP

Model XCP84

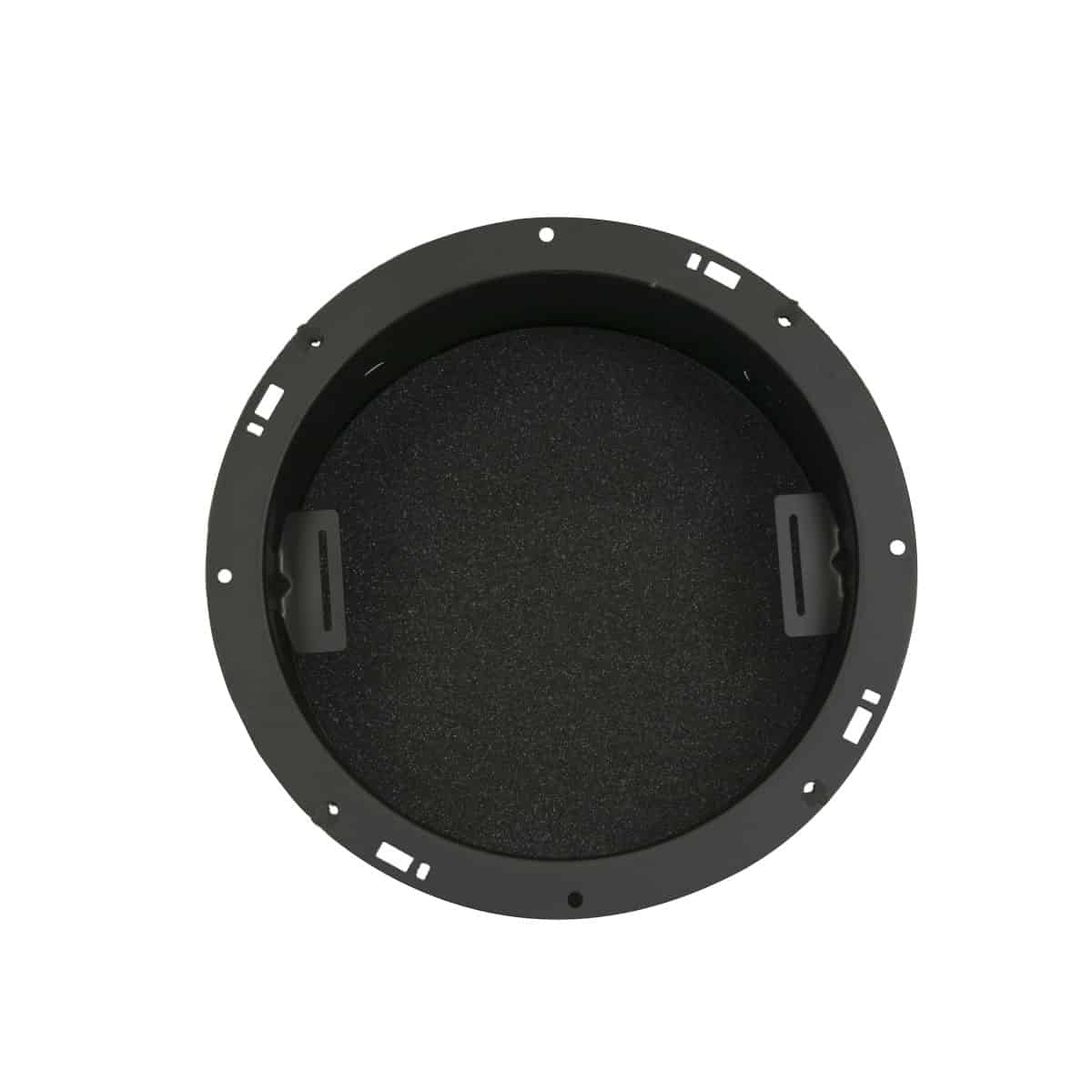

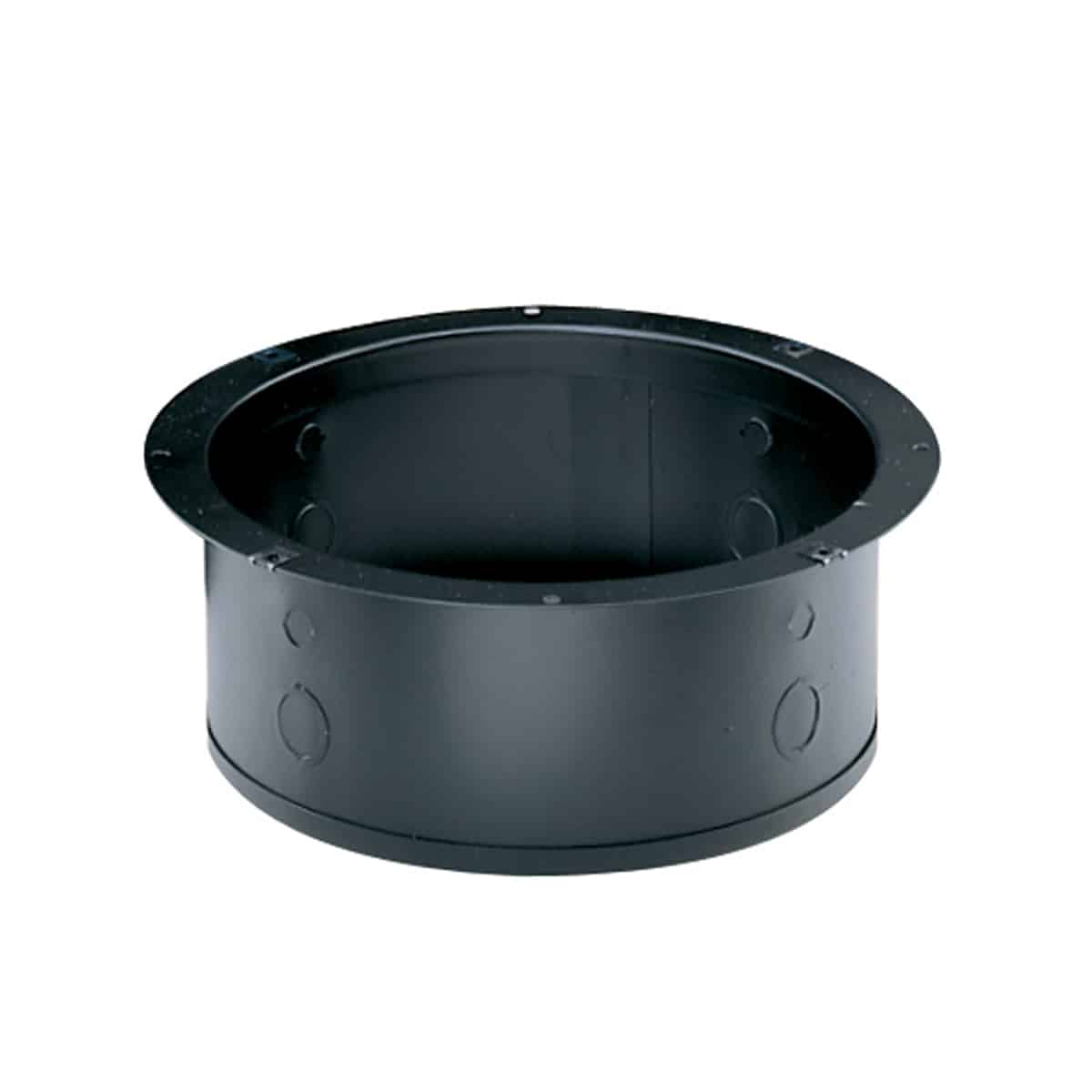

Recessed steel enclosure with black powder epoxy finish and flat grille mounting flange will accept an 8 inch driver and either torsion or screw-mount grille.

Add to Favorites

Compare

Material: Welded unitized heavy gauge steel
Diameter: 10.06 in.
Depth: 4.06 in.
Volume: 0.187 cu.ft.
Acoustical Treatment: Undercoated, foam pad
Mounting Aids: Knockouts, clips
For Grille Type: Screw-mount or torsion

Spec Sheet: 1285-XCP84

Made in U.S.A.
Certified U.S. steel

The recessed backbox shall be Lowell Model No. XCP84, which shall be 22-gauge steel undercoated to eliminate acoustic and mechanical resonance. The backbox shall have a 10.06″ diameter and 4.06″ depth. It shall have four 0.5″ to 0.75″ knockouts for conduit and four 0.5″ knockouts for wire. The backbox shall include a foam pad. It shall be finished in black powder epoxy paint.

Screw-Mount Grilles: A8-AW, CS-8H, LO8-P, RS8-AW, WB-8
Torsion Grilles: CN-8M, WB-8T
Drivers: 8 inch
Tile Bridges: LBS8, LBS8-R1
