4-Step Sequencer with Remote-in/out, Switch

Name: 4-Step Sequencer with Remote-in/out, Switch
SKU: SEQR-4
Price: 683.96 USD
Availability: InStock

Classic wire connections

$683.96 MSRP

Model SEQR-4

The low voltage sequencer is used in conjunction with remote power controls (RPCs) to provide time-delayed activation and deactivation of connected equipment, often located in another rack, room or building. The sequencer can also control accessory systems such as projector screens, lighting or blinds. To initiate sequencing, use the rocker switch on the front panel or connect an external momentary closure switch to the rear terminal block for remote activation. Includes UL Listed power supply. Made in the U.S.A. with global components.

Add to Favorites

Compare

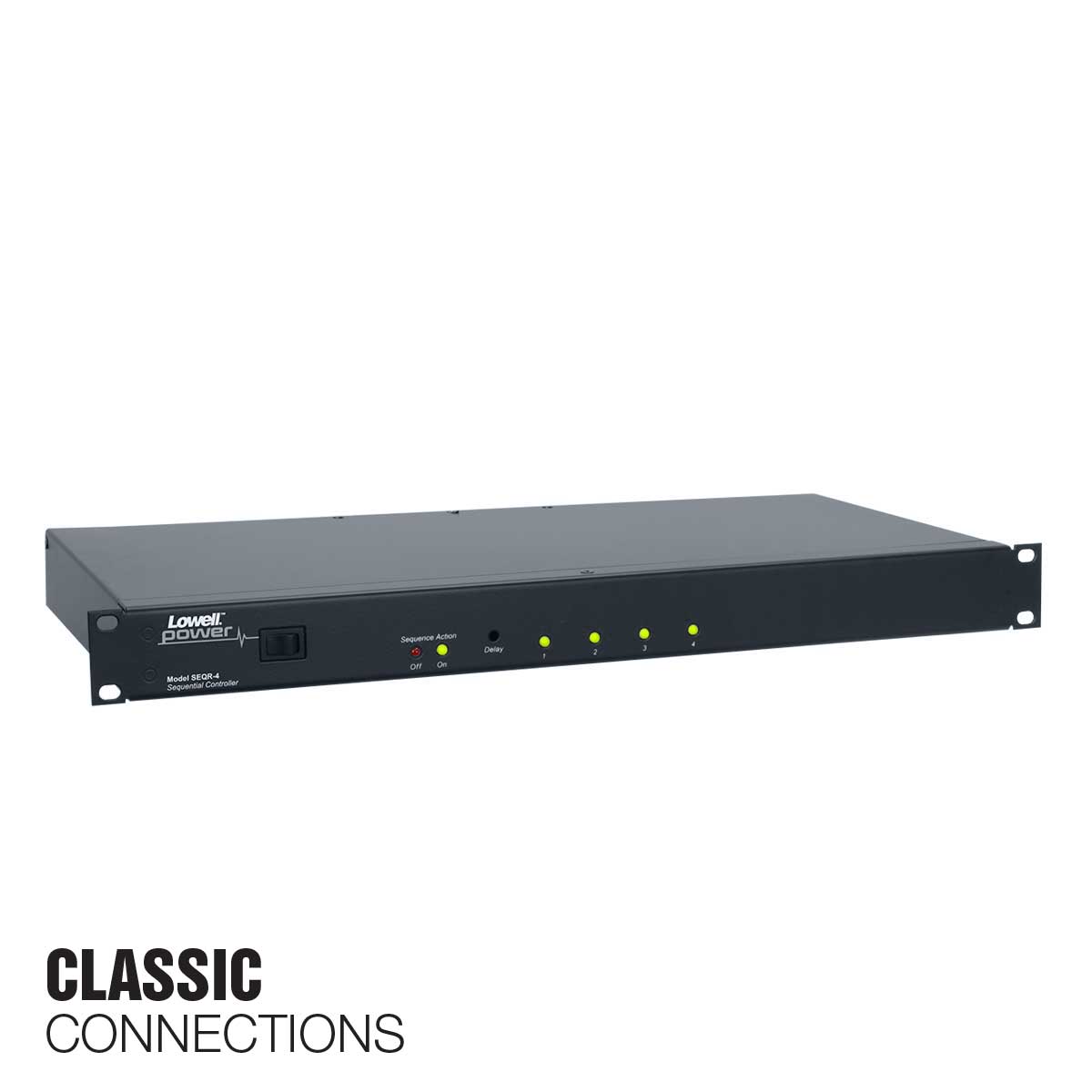

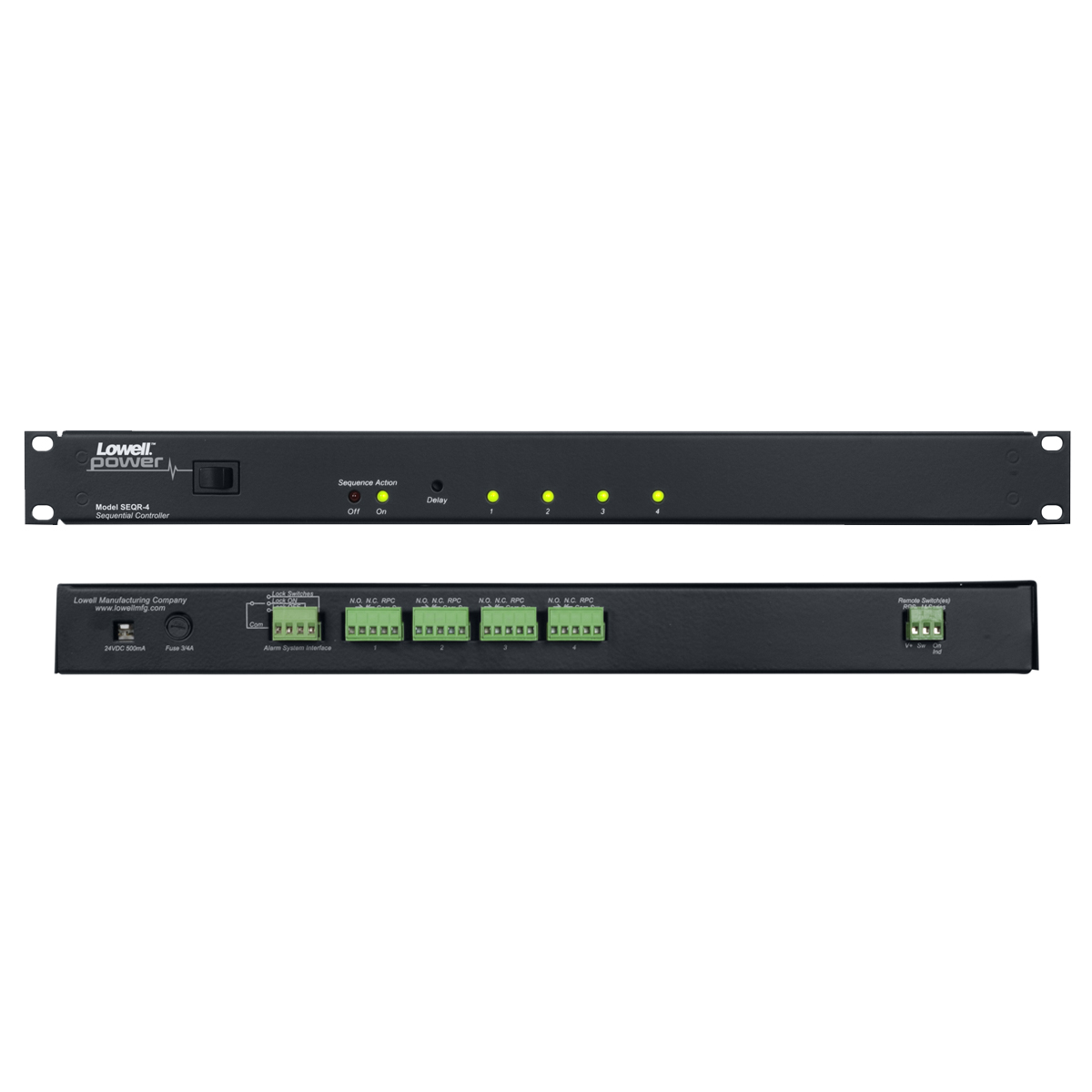

Chassis: Steel rackmount chassis with black finish, 19.00 in. x 9.00 in. x 1.75 in. (1U)

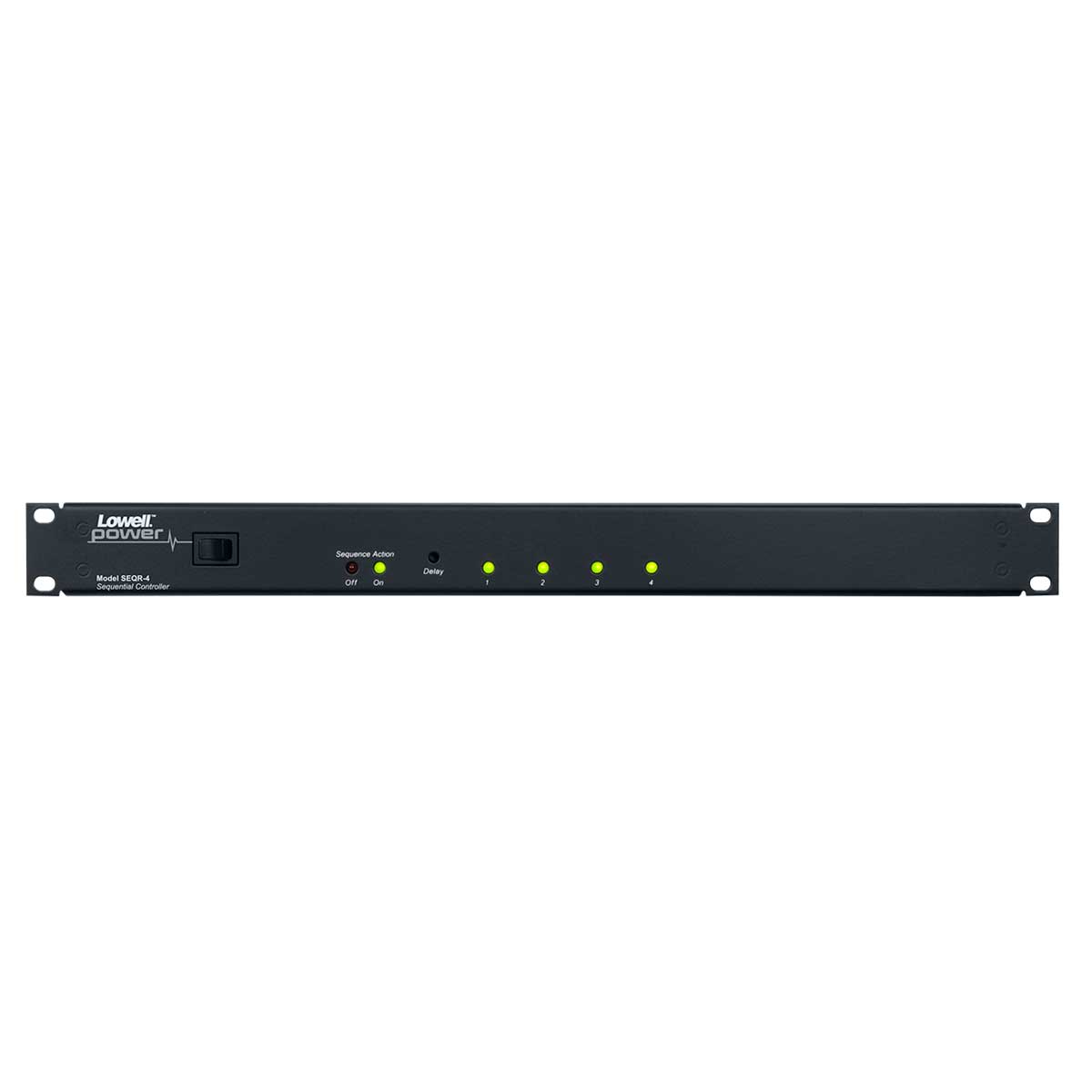

Activation: Rocker switch
LED status indicators
Adjustable delay allows 0.5 to 10 seconds between steps.

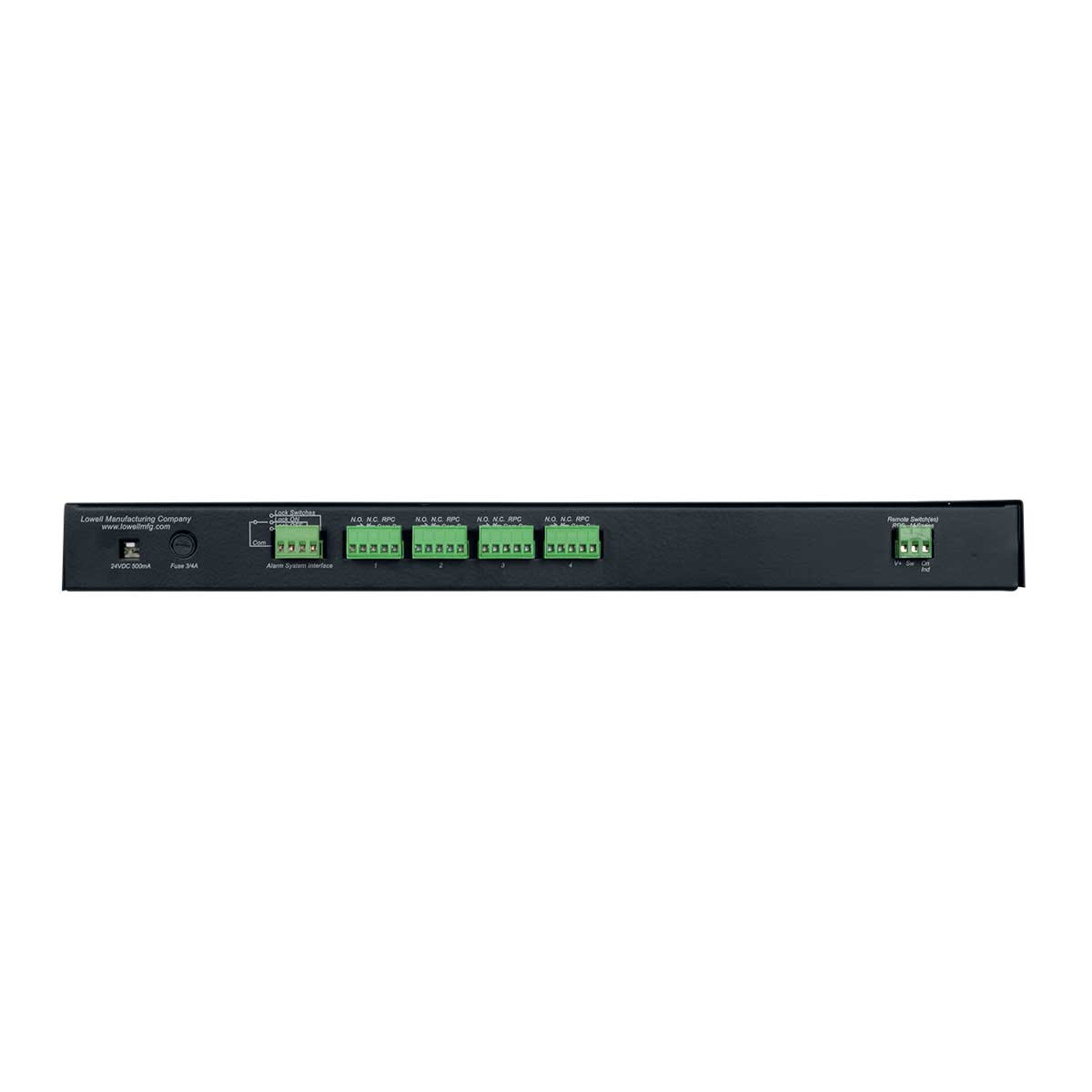

Four rear-access barrier strip control outputs
Contacts for connecting remote switches
Alarm interface for use where required by local building code.
Each of the four control outputs includes switch contacts for connection to remote power control-activated equipment and auxiliary dry contacts for sequentially activating accessory systems such as projector screens, lighting, etc.
UL Listed power supply with input 100-240VAC, output 24VDC, 500mA, 6 ft. cord and four plug adaptors (NEMA 1-15, Schuko CEE 7/16, BS1362, AS3112)

Spec Sheet: 1604-SEQR4

Made in U.S.A. with global components

The device for sequentially activating equipment shall be Lowell rackmount Model SEQR-4, which shall feature front rocker actuation switch, LEDs and accessible trim pot for 4- step delay adjustment of sequence operation. The rear panel shall feature four barrier strip terminals for remote power control units and dry auxiliary contacts for accessory devices. Equipment to be controlled shall be connected to the sequencer using 2-conductor wire and Lowell Remote Power Control No. __________ (RPC Series, order separately). The rear panel shall include contacts for connecting an optional momentary style switch No. __________ (RPSW-M or RPSB-M Series, order separately) for remote operation of the sequence controller. The unit shall be equipped with an alarm interface for use where required by local building code.

RPC Series: Remote power controls. Switches requiring 3-conductor wire are typically used with this sequencer.
