Standalone remote power control, 15A, IEC, classic connections

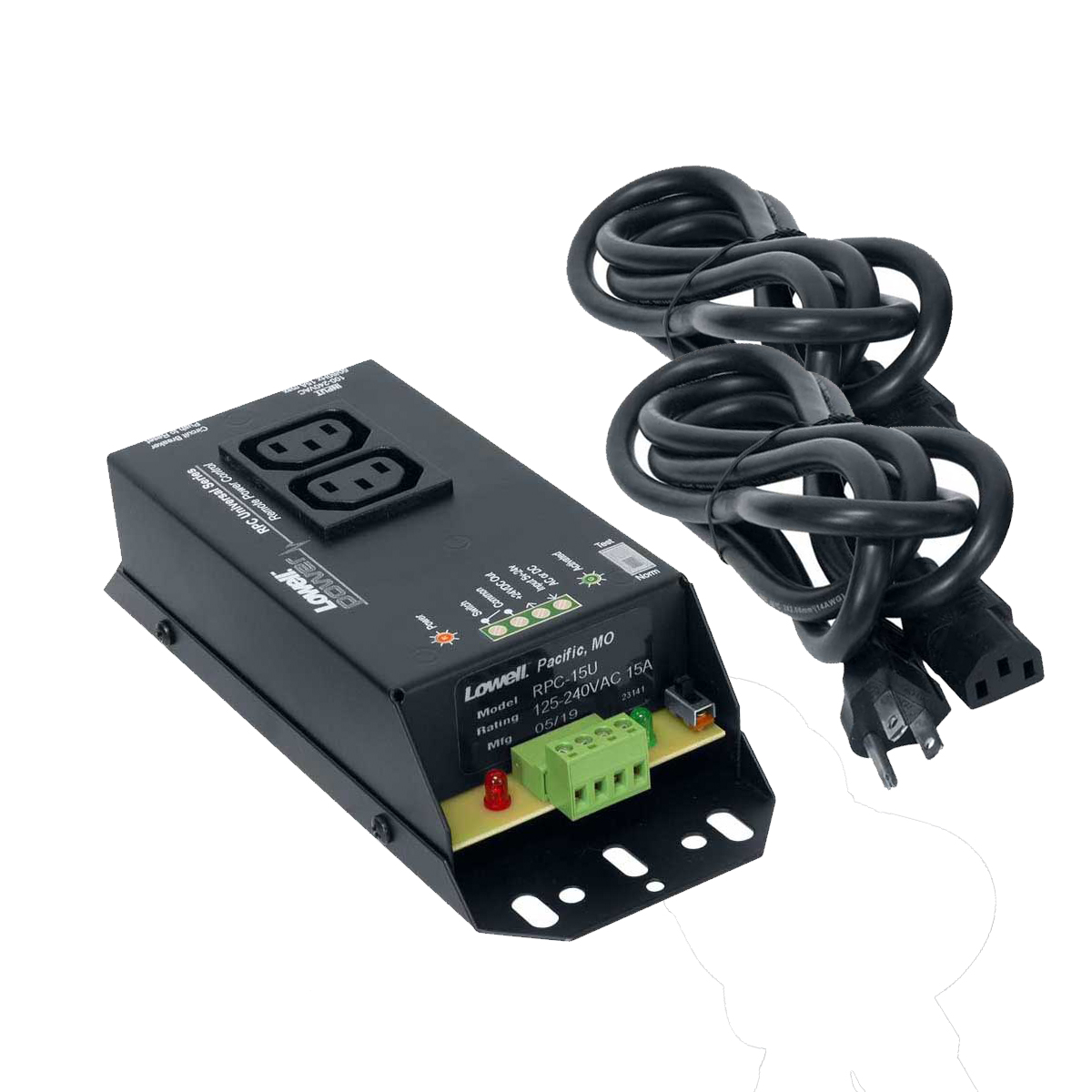

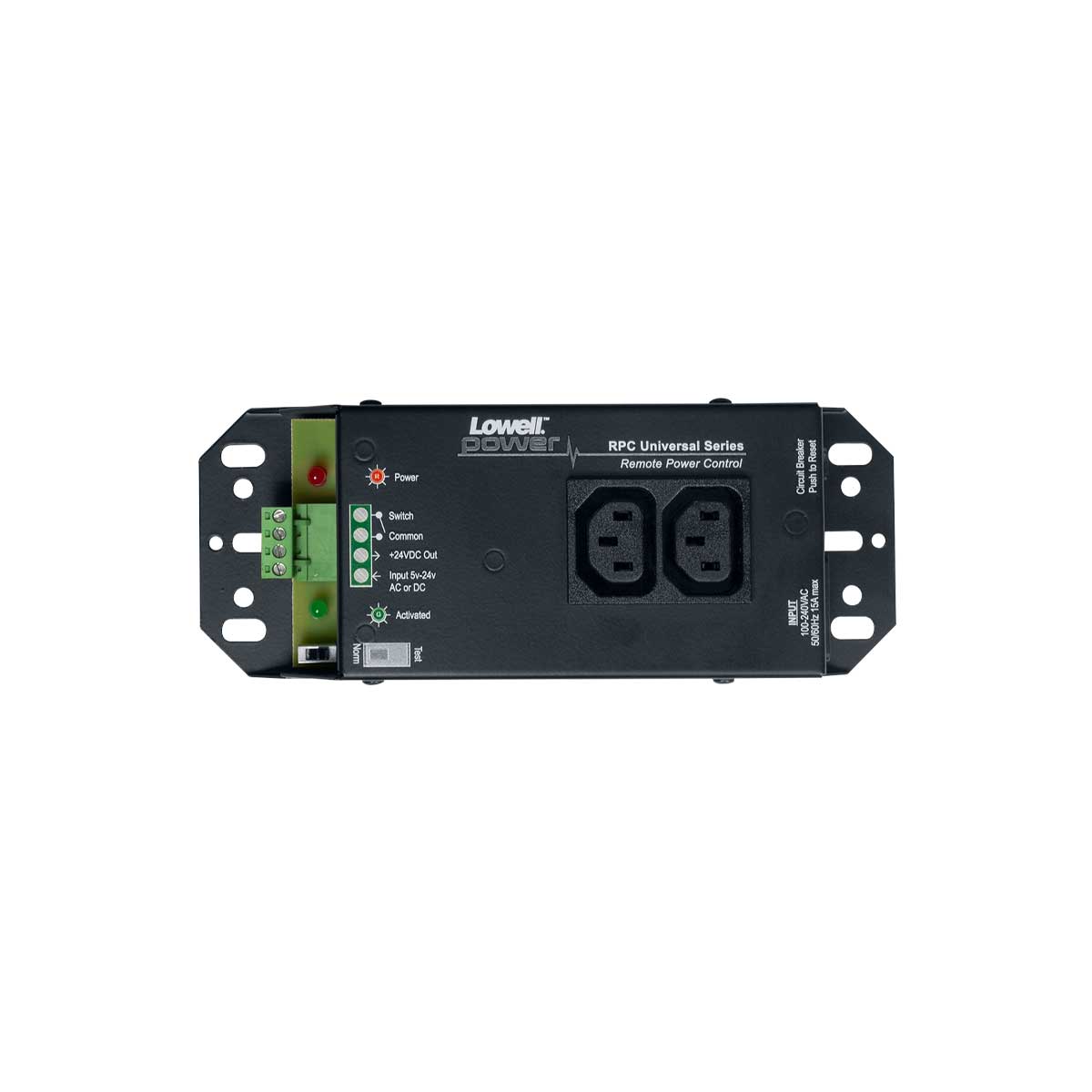

Remote Power Control with IEC-C13 Outlets

Name: Remote Power Control with IEC-C13 Outlets
SKU: RPC15U
Price: 233.26 USD
Availability: InStock

Classic wire connections

$233.26 MSRP

Model RPC-15-U

The Remote Power Control (RPC) can be combined with a variety of switches or sequencers that provide dry contact closure or voltage trigger, for an intrinsically safe, low voltage method of controlling AC power to equipment at remote locations. This model features IEC C14 input and C13 outlets. This unit requires an external trigger.

Add to Favorites

Compare

Chassis: Steel with black finish, 7.5 in. x 3.25 in. x 1.75 in
Power Rating: 100-240VAC, 50/60Hz, 15A
Power Inlet: IEC C14
Power Outlets: IEC C13 duplex
Termination: Includes two 6-ft. cords (C13 to NEMA 5-15P, and C13 to C14)
Activation: Requires connection to external trigger (SPST switch, power sequencer, independent control system with dry contact closure, or DSP voltage connection)

Spec Sheet: 1949-RPC15U

ETL Listed (U.S., Canada)
Made in U.S.A. with global components

The device for remotely controlling AC power shall be Lowell model RPC-15-U, which shall be a 7.5”L x 3.25”W x 1.75”H steel chassis with black powder epoxy finish. Power rating shall be 100-240VAC. The remote power control shall feature one IEC C13 duplex power outlet with 15A power rating and an IEC C14 power inlet. It shall include two 6 ft. cords (C13 to NEMA 5-15P and C13 to C14). Activation shall be via an external control switch or sequencer with dry contact closure, or a voltage trigger source.

RPS Series: SPST maintained and momentary switches
SEQ Series: Low-voltage sequencers
