R1810-72: 8-in 15W dual cone driver, 5W transfomer, square grille, volume control knob

R7181072K: 8" 15W dual cone driver, 5W transformer, square grille, volume control knob

8 inch (15W) Dual Cone Speaker

Name: 8 inch (15W) Dual Cone Speaker
SKU: R7810-72K
Price: 127.80 USD
Availability: InStock

Includes driver, transformer, grille, VC

$127.80 MSRP

Model R7810-72K

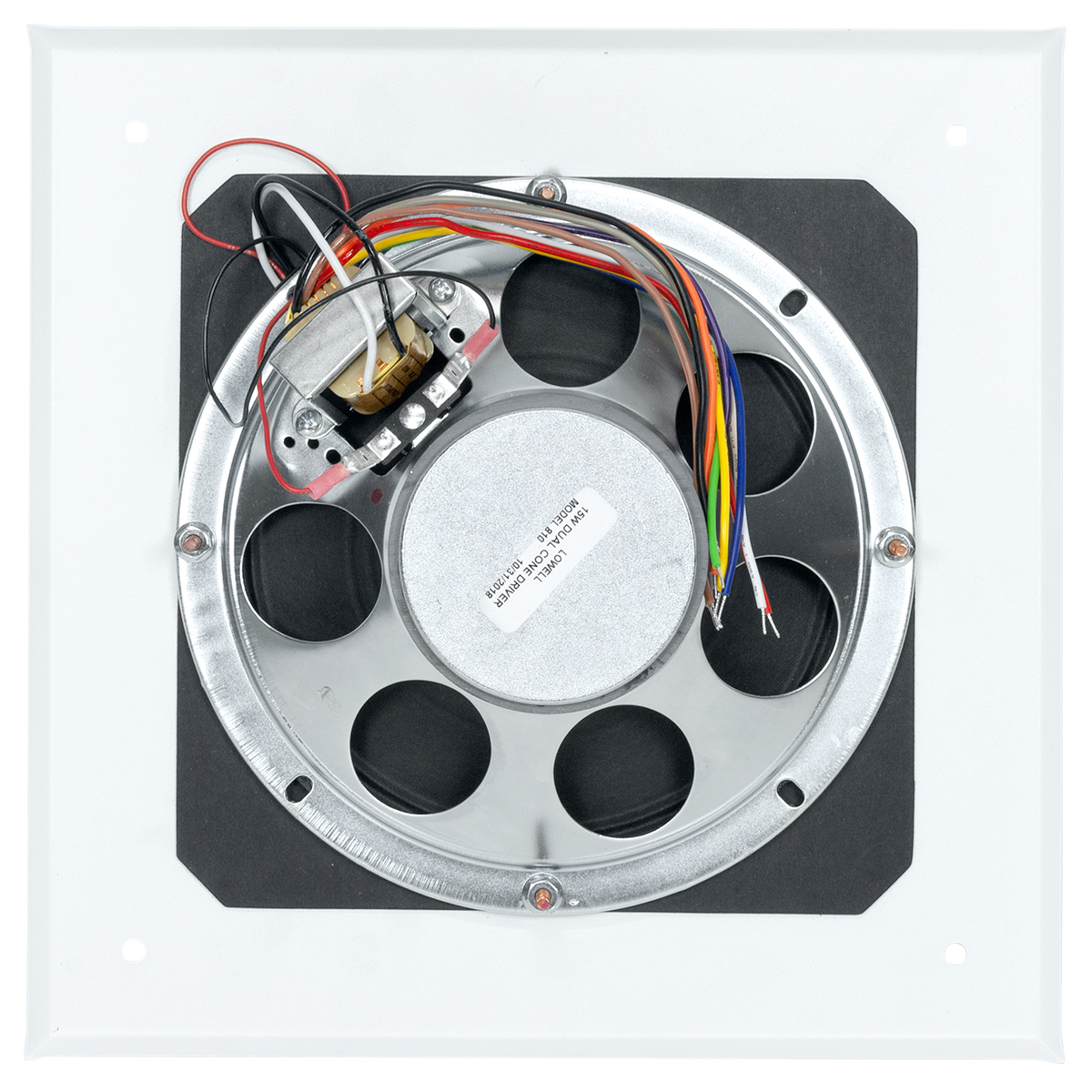

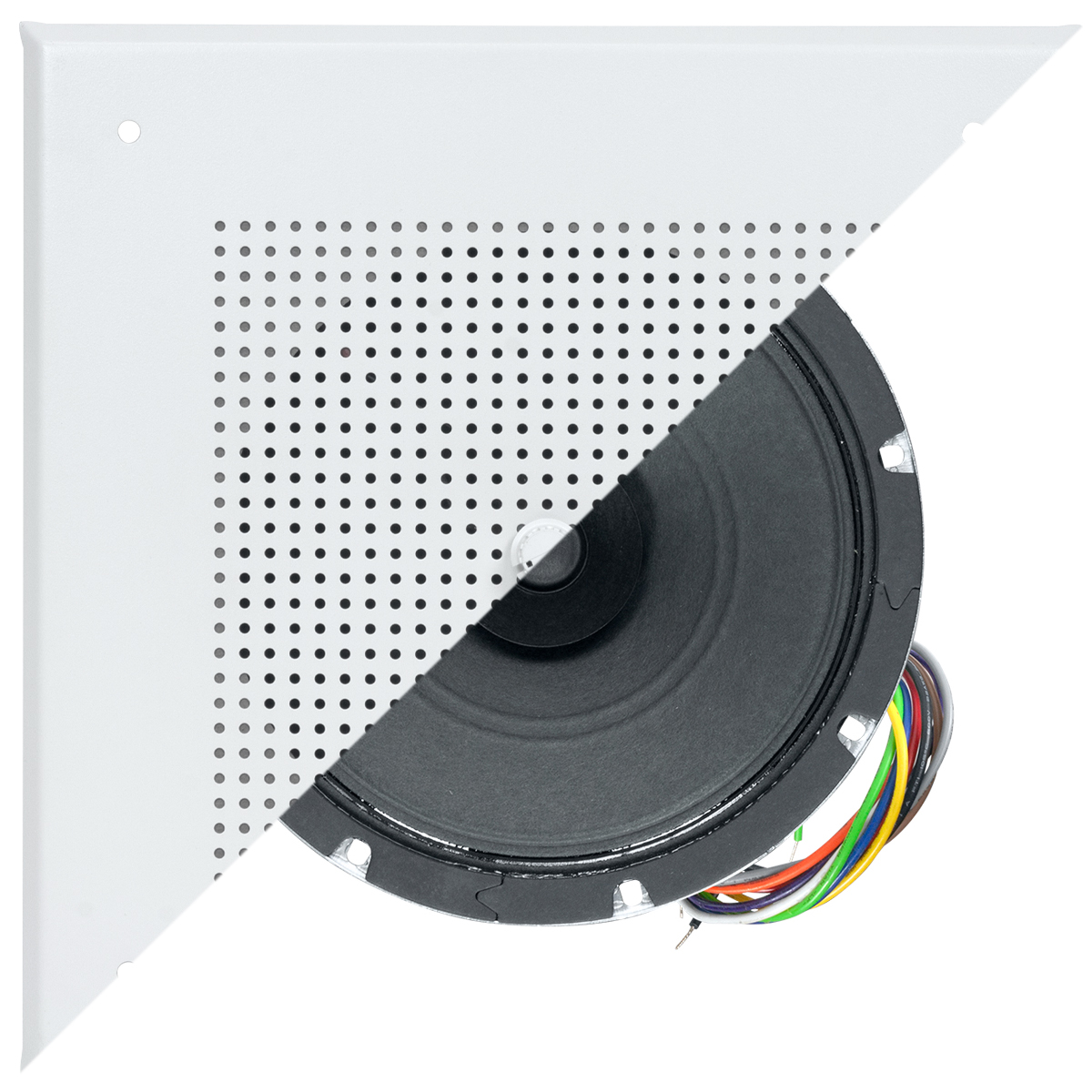

Background music and paging speaker assembly includes an 8-inch driver, transformer and grille with volume control knob. It's made to provide consistent performance with clear intelligibility and wide dispersion, where installed cost is a prime consideration.

Add to Favorites

Compare

Driver: 8 in. 15W dual cone driver with 10 oz. ceramic magnet. Cone is molded of a high fiber content material to provide smooth extended frequency response and a clean natural sound.
Transformer: 25V/70V transformer. Taps at .25, .5, 1, 2, 5W.

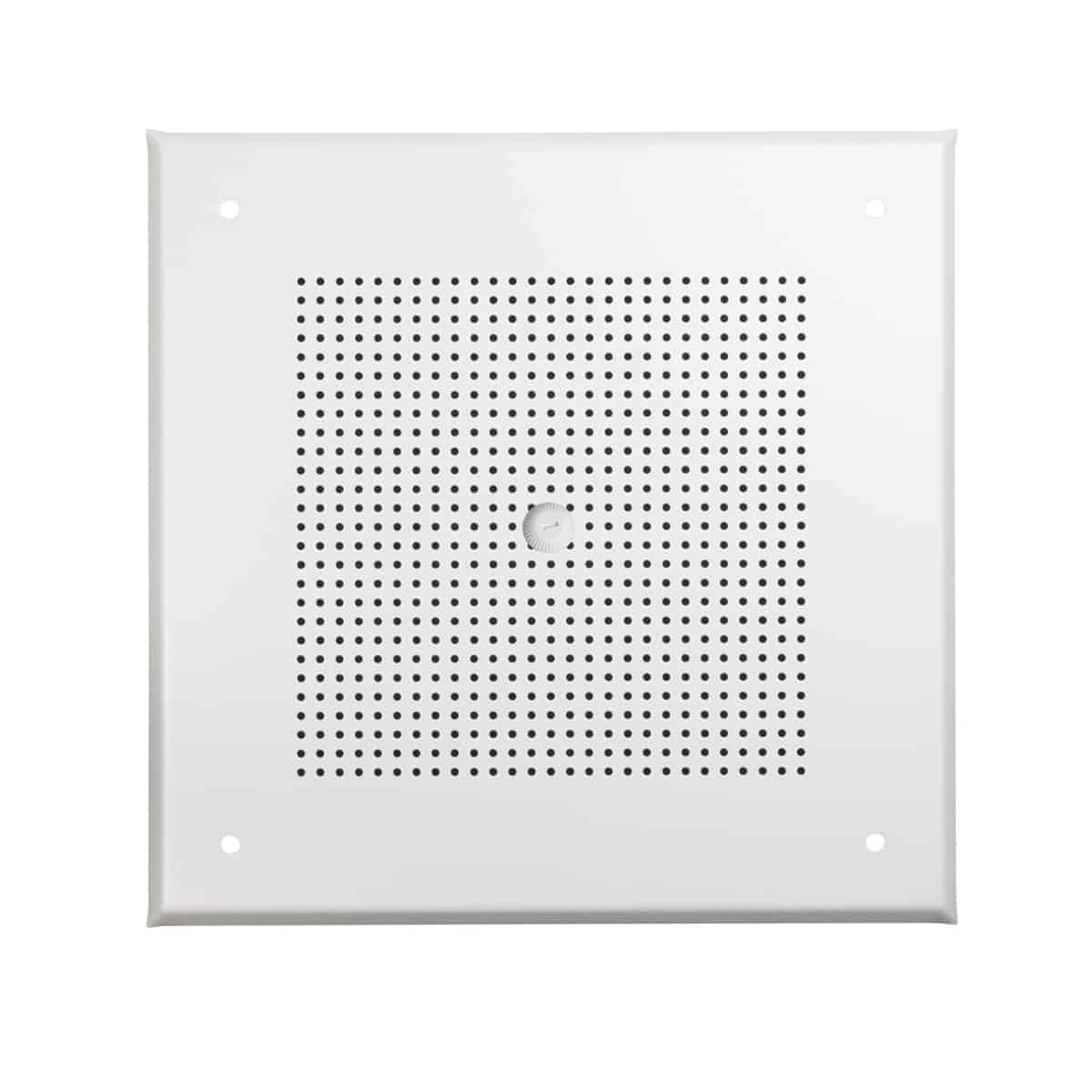

Grille: 11.44 in. square steel screw-mount grille. White.
Volume control knob

Spec Sheet: 2287-R781072K

The 8-inch speaker-grille assembly shall be Lowell Model No. R7810-72K, which shall include an 8 inch dual cone driver with wired transformer and square screw-mount grille with volume control knob. The driver shall have 15 watt RMS power rating and shall employ a 10 oz. ceramic magnet and molded high fiber cone. Frequency response shall be 54Hz–11.6kHz (±6dB); 50Hz–20kHz (±6.6dB) with sensitivity of 97.9dB avg. measured 1W/1M. The wired dual voltage transformer shall be 25/70V with primary taps at .25, .5, 1, 2, and 5W. The steel grille shall be mounted to the driver and have a white powder epoxy finish.
